GOT321C-ADL-WCD

產品階段 : 即將推出

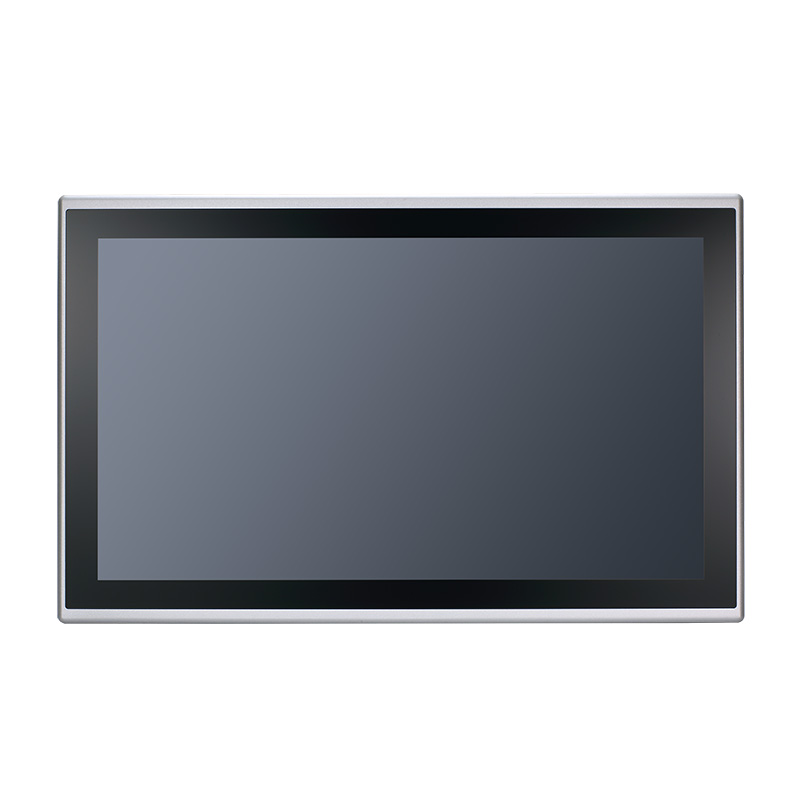

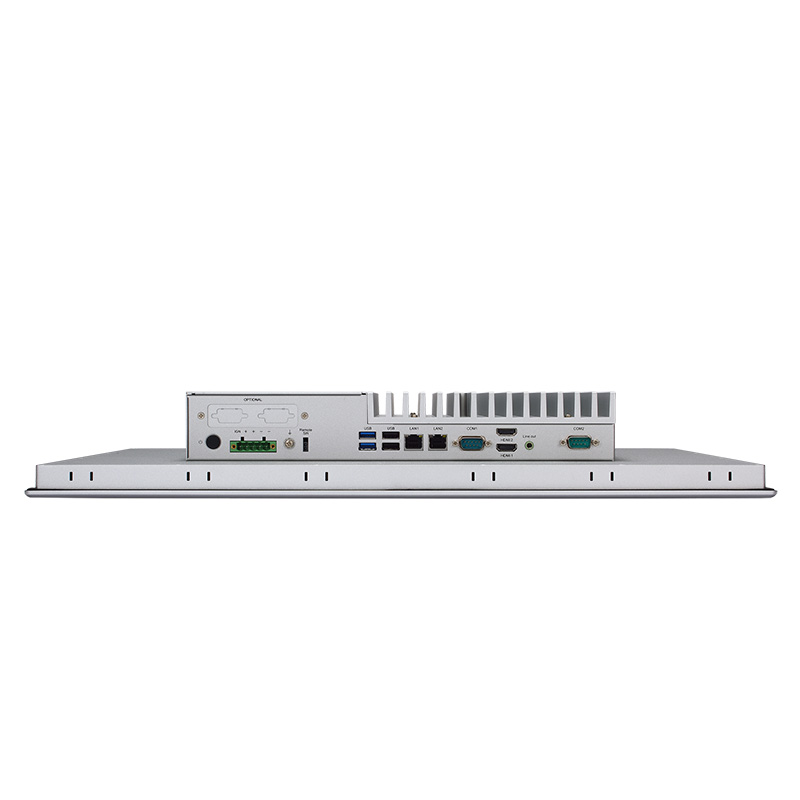

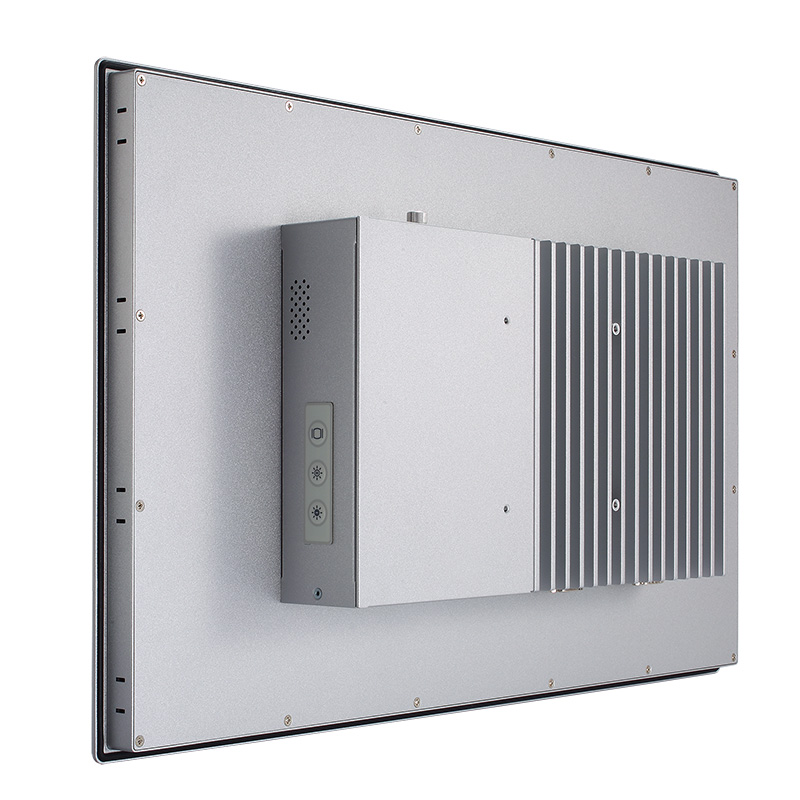

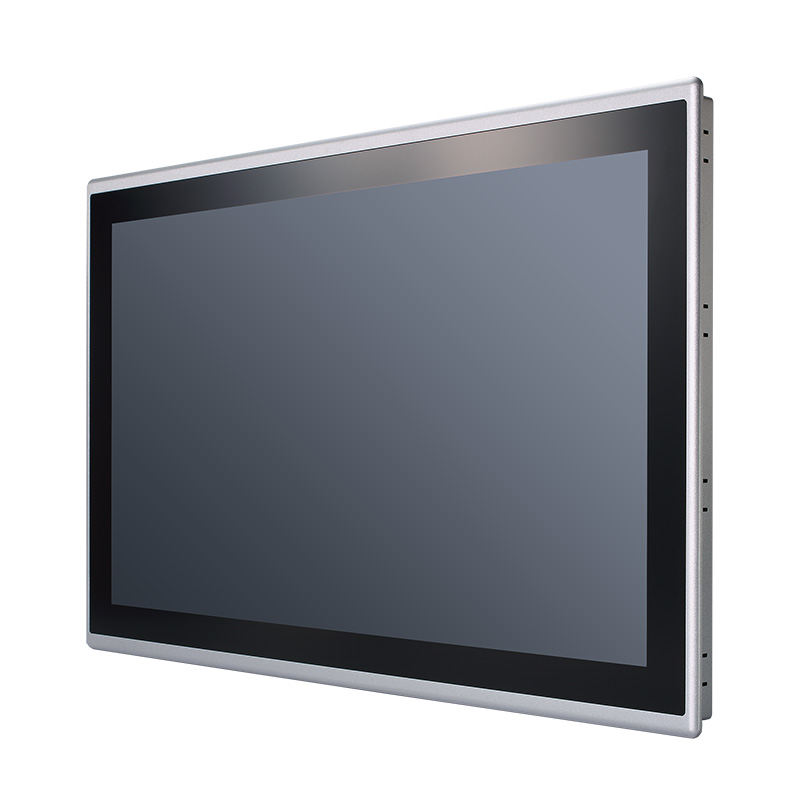

21.5" FHD Fanless Touch Panel Computer with LGA1700 Socket 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 or Pentium® Processor

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
GOT321C-ADL-WCD
GOT321C-ADL-WCD
GOT321C-ADL-WCD
GOT321C-ADL-WCD
Fanless

Fanless

IP65 Rating

IP65 Rating

PCAP

PCAP

TPM

TPM

Wide Temperature

Wide Temperature

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件

產品特色

  • 21.5" FHD TFT LCD with 400 nits of brightness
  • 10-point projected capacitive touch screen
  • Supports one 2.5" SATA HDD/SSD
  • Supports 2 HDMI outputs for a second display
  • Supports WLAN module and antenna (optional)
  • Supports 4 USB and 2 COM ports
  • Flexible I/O window with support for COM3, and DIO (optional)
  • Supports panel mount, VESA mount, desktop stand, and wall mount
  • Wide temperature range of -10°C to +50°C

產品規格

LCD Panel
  • 21.5" FHD TFT LCD
  • 400 nits
  • 1920 x 1080
CPU
  • LGA1700 socket 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 or Pentium® processor (up to 35W)
Chipset
  • Intel® H610
System Memory
  • 1 x 262-pin DDR5 5600 MHz SO-DIMM, up to 48GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485
  • 1 x RS-232
USB
  • 2 x USB 3.2 Gen 1 (Type A)
  • 2 x USB 2.0 (Type A)
Ethernet
  • 1 x RJ-45 for GbE (Intel® I219-V)
  • 1 x RJ-45 for 2.5GbE (Intel® I226-V)
Display
  • 2 x HDMI 1.4b
Audio
  • 1 x Line-out
Storage
  • 1 x 2.5" SATA HDD (WT)/SSD (7 mm and 9.5 mm height, removable)
Expansion
  • 1 x M.2 Key E 2230 with PCIe x1 and USB 2.0
  • 1 x PCI Express Mini Card slot (USB + PCIe signal + nano SIM slot "LTE")
  • 1 x flexible I/O window, supporting COM3, and DIO (onboard optional)
TPM
  • TPM 2.0
Others
  • 1 x Phoenix-type connector for DC power input
  • 1 x switch for power on/off (ATX)
  • 1 x remote power switch
  • 1 x grounding hole
Touchscreen
  • Projected capacitive multi-touch
Front Bezel
  • IP65 front bezel
Power Supply
  • 10 to 36V DC-in (typical 12/24 VDC) via terminal block
Power Consumption
  • 139W
Watchdog Timer
  • 255 levels, 0 to 255 sec.
Operating Temperature
  • -10°C to +50°C (35W CPU/SSD)
Relative Humidity
  • 10% to 95% @ +40°C; non-condensing
Shock & Vibration
  • 1G/5 to 500Hz/operation (SSD, random)
Dimensions<br>(W x D x H)
  • 542 x 76.4 x 338 mm (21.34" x 3.01" x 13.31")
Weight (net/gross)
  • 8.7 kg (19.18 Ibs)/12.40 kg (27.34 Ibs)
Certifications
  • CE Class A, IEC/EN 61000-6-4, and IEC/EN 61000-6-2
  • FCC 47 CFR Part 15 Subpart B (Class A)
  • UKCA
  • RoHS standard
EOS
  • Win 11, Win 11 IoT, and Linux
Mounting
  • Panel mount
  • VESA mount
  • Desktop stand
  • Wall mount

訂購資訊

  • GOT321C-ADL-WCD (P/N-E22B321C00)
    21.5" FHD TFT fanless touch panel computer with LGA1700 socket 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 or Pentium® processor (up to 35W), 10-point projected capacitive multi-touch screen, and 10 to 36V terminal block connector
  • 4G LTE kit
  • Wi-Fi kit
  • 594K6220210E
    Remote power cable, L= 720 mm
  • E29R131114
    Wall mount kit
  • 50906A24000E
    Adapter 24V 230W FSP230-AAAN3 WIRE FSP
  • E29R131111
    ACC131-PM-25
  • E392902103
    AX92902 + AX93287 full-size PCI Express Mini module with GbE
  • E392903102
    AX92903 full-size PCI Express Mini module with CAN bus
  • E392918103
    AX92918 full-size PCI Express Mini module with 2GbE
