GOT315WL-845

產品階段 : 供應中

15.6" WXGA TFT Multi-touch Panel Computer with Intel® Pentium® Processor N3710

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
GOT315WL-845
GOT315WL-845
GOT315WL-845
GOT315WL-845
Fanless

Fanless

IP65 Rating

IP65 Rating

Low Power

Low Power

PCAP

PCAP

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件
  • 常見問題

產品特色

  • 15.6" WXGA projected capacitive multi-touch widescreen
  • Fanless design with Intel® Pentium® processor N3710
  • 2.5" SATA HDD and mSATA
  • 3G, WLAN module and antennas (optional)
  • 2 GbE LANs, 2 USB 3.0, 2 USB 2.0, and 2 COM
  • IP65-rated aluminum front bezel
  • Supports panel mount and VESA mount (VESA arm/desktop stand/wall mount optional)
  • Adjustable RS-232/422/485 setting via BIOS

產品規格

LCD Panel
  • 15.6" WXGA TFT
  • 400 nits
  • 1366 x 768 pixels
CPU
  • Intel® Pentium® processor N3710, 1.6 GHz
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin DDR3L-1333/1600 SO-DIMM, up to 8GB
BIOS
  • AMI
COM
  • 1 x RS-232
  • 1 x RS-232/422/485
USB
  • 2 x USB 3.0
  • 2 x USB 2.0
Ethernet
  • 2 x 10/100/1000 Mbps Ethernet (Intel® I210-AT)
Display
  • N/A
Audio
  • 1 x Audio (Line-out)
Storage
  • 1 x 2.5" SATA HDD (9.5 mm height)
  • 1 x mSATA
Expansion
  • 1 x Full-size PCI Express Mini Card slot with mSATA
  • 1 x Full-size PCI Express Mini Card slot with SIM
Others
  • 1 x Switch for power on/off (ATX)
Touchscreen
  • Projected capacitive multi-touch
Front Bezel
  • IP65 front bezel
Power Supply
  • 24 VDC
Power Consumption
  • 72W
Watchdog Timer
  • 255 levels, 0 to 255 sec.
Operating Temperature
  • 0°C to +50°C (+32°F to +122°F)
Relative Humidity
  • 20% to 90% @ +40°C; non-condensing
Shock & Vibration
  • 1G, 10 - 500 Hz, random for 2.5" SATA HDD
Dimensions<br>(W x D x H)
  • 396.8 x 59.0 x 247.1 mm (15.62" x 2.3" x 9.73")
Weight (net/gross)
  • 4.5 kg (9.9 lb)/6.5 kg (14.3 lb)
Certifications
  • CE
EOS
  • Windows® 10 IoT Enterprise, Windows® 10
Mounting
  • Panel mount
  • Wall mount
  • VESA arm
  • Desktop stand

訂購資訊

  • GOT315WL-845-PCT-DC (P/N-E22B315101)
    15.6" WXGA TFT fanless touch panel computer with Intel® Pentium® N3710 1.6 GHz processor, projected capacitive multi-touch screen, and 24 VDC terminal block connector
  • 4G LTE kit
  • Wi-Fi kit
  • 881231770A0E
    Wall mount kit
  • 509000001500
    Adaptor 24V/120W, wire only, FSP120-AAAN3

技術文件

Drivers

日期 說明 版本 下載檔案
2021/07/14 Windows10 driver VA1.3
2021/07/14 Windows7 Driver VA1.3

Software

Manual

日期 說明 版本 下載檔案
2020/08/07 User Manual VA2

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2023/01/04 CE-Conformity Declaration
2023/01/04 UKCA Declaration of Conformity
2023/01/04 FCC Verification
2023/01/04 CE EMC Verification
2020/02/15 CE LVD Verification

常見問題FAQ

您可能也會喜歡

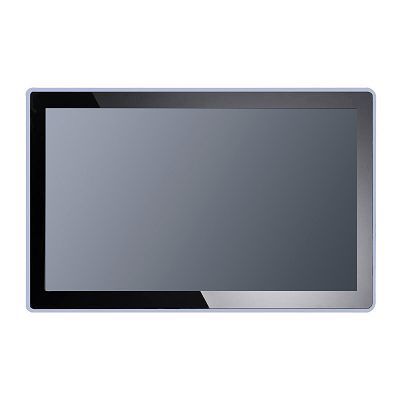

產品圖片 GOT318WL-845
