Q7M120

產品階段 : 供應中

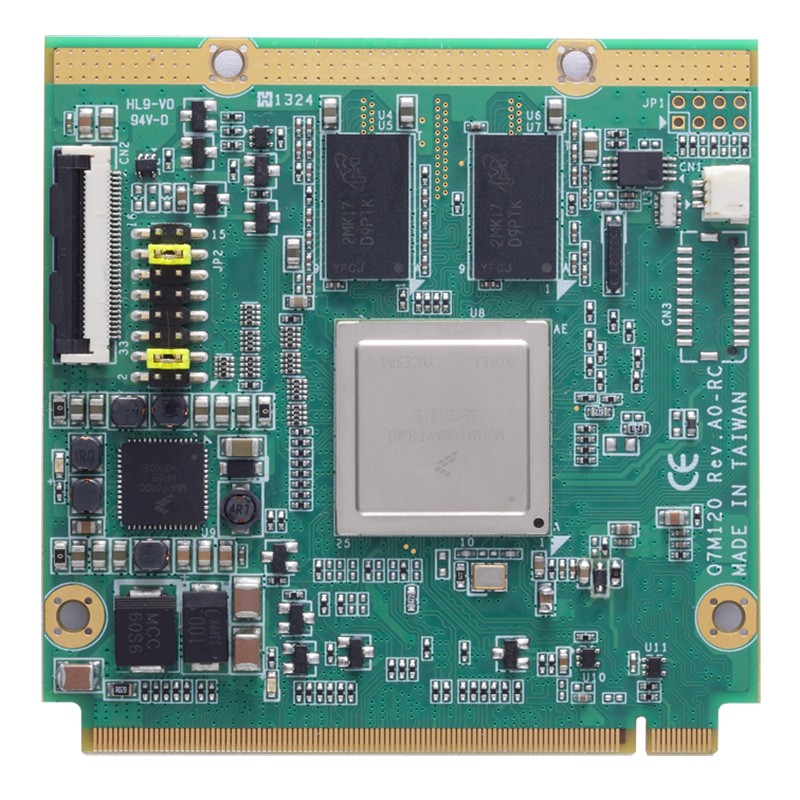

Qseven v2.0 SoM with iMX6 Quad/DualLite 800 MHz (Industrial) SoC, 1GB RAM, 4GB eMMC, GbE LAN, Audio and CAN

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
Q7M120
HDD

HDD

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件

產品特色

  • Qseven v2.0 (70 x 70 mm)
  • Ultra low power consumption Cortex™-A9
  • 2 CAN
  • 24-bit TTL signal
  • LVDS/HDMI 1080P
  • 10/100/1000 Mbps Ethernet
  • Linux 3.0.35/Android 4.3
  • Audio

產品規格

CPU
  • Freescale i.MX6 Series SoC with Quad/DualLite/Solo ARM Cortex™-A9 CPU 800 MHz/1 GHz (only Solo)
Chipset
  • SoC integrated
System Memory
  • Onboard DDR3-1600, up to 1GB
BIOS
  • N/A
COM
  • 4 x COM with TX/RX/RTS/CTS (1 with 3.3V TTL level)
  • 1 x Console port
USB
  • 1 x USB 2.0
  • 1 x OTG client
Ethernet
  • 1 x 10/100/1000Mbps
Display
  • 1 x 24-bit TTL signal
  • 2 x Signal channel 24-bit LVDS
  • 1 x HDMI 1080P
Audio
  • 1 x Audio (Mic-in/Headphone)
GPIO
  • 8 button-detect
I2C
  • 3 x I2C
CAN
  • 2 x CANBus 2.0B
SPI
  • 1 x SPI
Storage
  • 1 x eMMC flash 4 GB
  • 1 x SDIO interface
  • SATA interface (Quad cores CPU)
Expansion
  • 1 x PCIe x1
Others
  • N/A
Battery
  • Battery on the Baseboard is required
Power Requirement
  • +5V, 1A
Watchdog Timer
  • N/A
Hardware Monitoring
  • N/A
Operating Temperature
  • -40°C to +85°C (-40°F to +185°F)
Relative Humidity
  • 10% - 95%, non-condensing
Dimensions
  • 70 x 70 mm
Board Thickness
  • 1.2 mm ± 0.1mm
Certifications
  • CE

訂購資訊

  • Q7M120- DualLite-I (P/N-E38Q120100)
    Qseven v2.0 module with Freescale iMX6 DualLite 800 MHz (industrial) SoC, 1GB RAM, 4GB eMMC, 1 GbE LAN, audio, and CAN
  • Q7M120- Quad-I (P/N-E38Q120102)
    Qseven v2.0 module with Freescale iMX6 Quad 800 MHz (industrial) SoC, 1GB RAM, 4GB eMMC, 1 GbE LAN, audio, and CAN
  • Q7M120-Quad-T
    Qseven v2.0 module with Freescale iMX6 Quad 1 GHz (automotive) SoC, 1GB RAM, 4GB eMMC, 1 GbE LAN, audio, and CAN

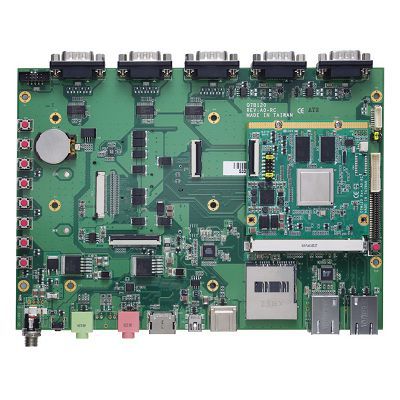

  • Q7M120-120-EVK DualLite-I
    Evaluation kit board
  • Q7M120-120-EVK Quad-I
    Evaluation kit board
  • 5078Q120100E
    Q7M120 heat spread (-40˚C to 70˚C)
  • 5078Q120200E
    Heatsink (-40˚C to 75˚C)

技術文件

Drivers

Software

Manual

日期 說明 版本 下載檔案
2017/05/04 Q7M120 manual VA1
2017/05/04 Q7M120 BSP Android manual VA1
2017/05/04 Q7M120 BSP Linux manual VA1

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2021/12/08 UKCA Declaration of Conformity
