SDM510L

產品階段 : 供應中

Intel® Smart Display Module Large (Intel® SDM-L) with 13th/12th Gen Intel® Core™ i7/i5/i3 or Intel® Celeron® Processor and Intel® Iris® Xe Graphics with 8K60Hz or up to Four 4K60Hz Videos Supported

產品規格表 (PDF)

立即詢價

4K

8K

Intel SDM

USB 3.2

產品特色
產品規格
訂購資訊
技術文件
相關新聞

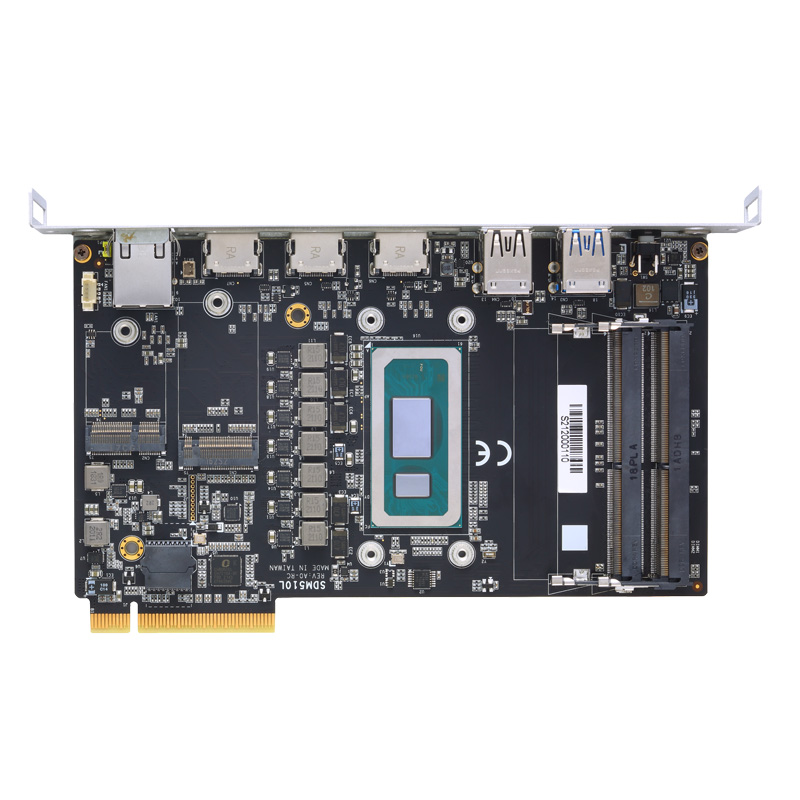

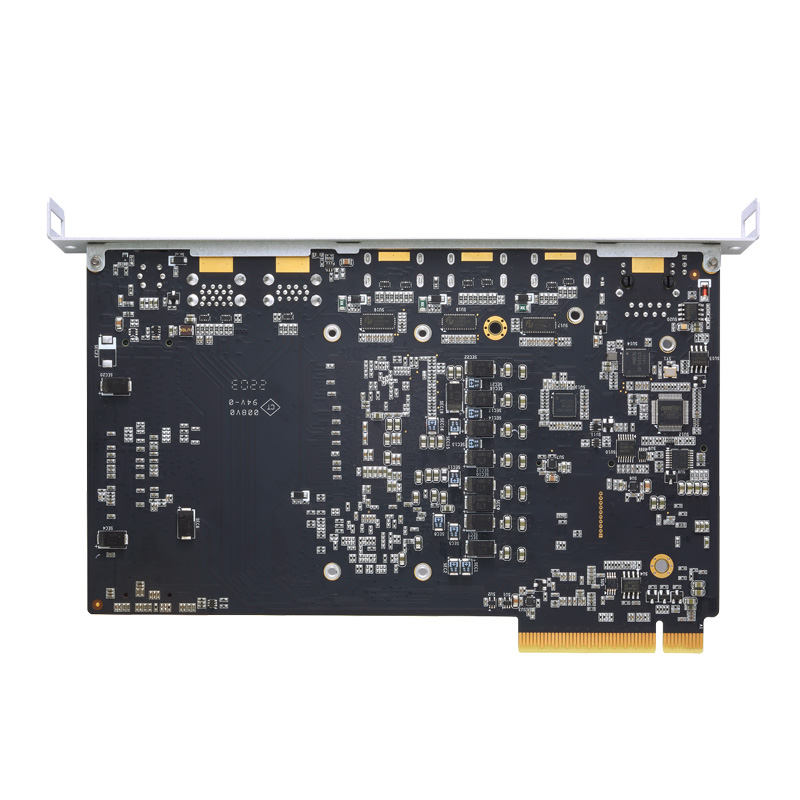

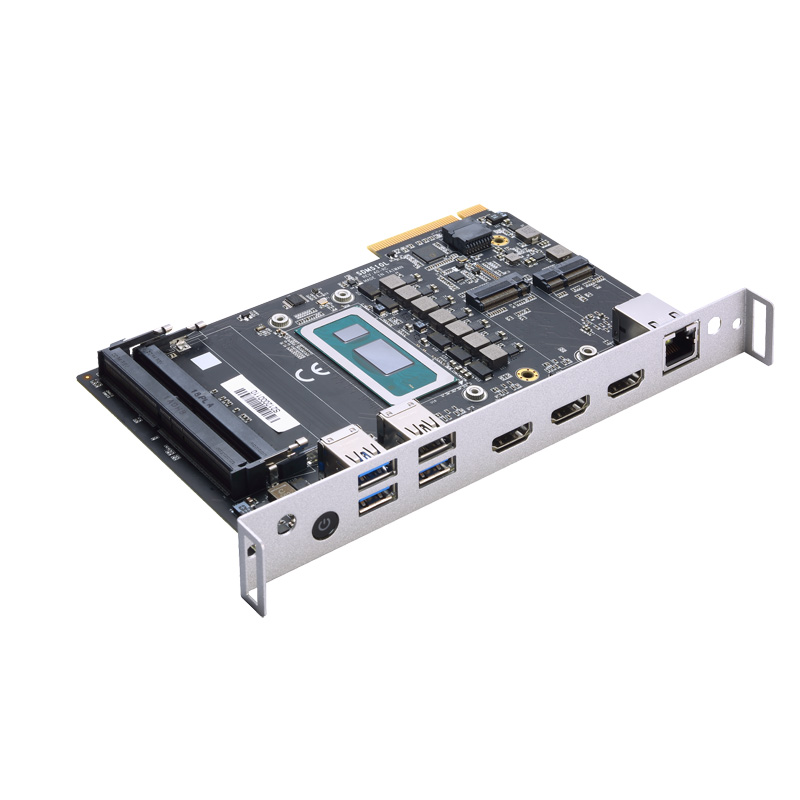

產品特色

Intel® Smart Display Module (Intel® SDM) specification
13th/12th gen Intel® Core™ i7/i5/i3 or Intel® Celeron® processor
2 DDR4-3200 SO-DIMM
Supports M.2 Key E and M.2 Key M slots
3 HDMI, 3 USB 3.2 Gen2, 1 USB 2.0, and 1 LAN
Supports Intel® OpenVINO™ and Intel vPro®

產品規格

CPU	13th/12th gen Intel® Core™ i7/i5/i3 or Intel® Celeron® processor
Chipset	SoC integrated
System Memory	2 x 260-pin DDR4-3200 SO-DIMM
SDM Edge connector	1 x USB 3.0 1 x HDMI 2.1 (8K60Hz) 1 x DisplayPort 1.4 1 x Serial TX/RX 2 x I2C
I/O	1 x 2.5GbE with Intel® I225; supports Wake-on LAN (Intel® Core™ i7 and i5 support Intel vPro® function) 3 x HDMI 2.0 (4K60Hz) Audio by HDMI 3 x USB 3.2 Gen2 1 x USB 2.0
Storage	1 x M.2 Key M 2242 slot
Expansion	1 x M.2 Key E 2230 slot for Wi-Fi/Bluetooth
Power Input	Through SDM golden finger +12V & +3.3VSB
Watchdog Timer	255 levels, 1 to 255 sec.
Dimensions	175 x 100 mm
Weight (net/gross)	252g/340g
Board Thickness	1.6 mm
Operation Humidity	10% - 95% relative humidity, non-condensing
Operating Temperature	0ºC to 60ºC (+32°F to +140°F)

訂購資訊

SDM510L-I5H-3H1 (P/N-E38X510L01)
SDM-L module with 12th gen Intel® Core™ i5-12600HE processor (45W), 2 SO-DIMM, 1 M.2 SSD, 3 HDMI, 1 LAN, 3 USB 3.2 Gen2, and 1 USB 2.0
SDM510L-I3U-3H1 (P/N-E38X510L00)
SDM-L module with 12th gen Intel® Core™ i3-1215UE processor (15W), 2 SO-DIMM, 1 M.2 SSD, 3 HDMI, 1 LAN, 3 USB 3.2 Gen2, and 1 USB 2.0
SDM510L-CLU-3H1 (P/N-E38X510L02)
SDM-L module with 12th gen Intel® Celeron processor 7305E (15W), 2 SO-DIMM, 1 M.2 SSD, 3 HDMI, 1 LAN, 3 USB 3.2 Gen2, and 1 USB 2.0
SDM510L-U3E-3H1 (P/N-E38X510L06)
SDM-L module with 13th gen Intel® Celeron® processor U300E (15W), 2 SO-DIMM, 1 M.2 SSD, 3 HDMI, 1 LAN, 3 USB 3.2 Gen2, and 1 USB 2.0
SDML-I5U-3H1 (P/N-E38X510L08)
SDM-L module
8812T1500A0E
Wi-Fi kit
E29R323100
Intel AX210 Wi-Fi kit
M.2 SSD
M.2 Key M 2242; 64GB to 256GB
DDR4 SO-DIMM
DDR4 4GB to 32GB
