The MANO561 is built for 14th/13th/12th Gen Gen Intel® Core™ i9/i7/i5/i3 processors, along with Intel® Pentium® Gold and Celeron® options, offering flexible performance levels for different applications.
It comes with two DDR4 SO-DIMMs for up to 64GB or two DDR5 SO-DIMMs for up to 96GB for demanding workloads.
Yes, it supports up to three independent displays via HDMI, LVDS, and VGA, making it suitable for multi-screen environments.
Absolutely. A PCIe x16 slot is available for adding GPUs, AI accelerators, or vision-related expansion cards.
The MANO561 supports wide-range 12–24 VDC power input, operates reliably from 0°C to 60°C, and integrates TPM 2.0 for hardware-based security, ensuring system stability and data protection in mission-critical environments.
It offers rich expansion options, including PCIe Gen4 x16, M.2 Key B for 5G/LTE, M.2 Key E for Wi-Fi, and a PCIe Mini Card slot, enabling flexible system configuration for evolving connectivity needs.
It features both 2.5GbE and standard Gigabit LAN ports, ensuring high-speed and stable network performance.
Powered by Intel® UHD Graphics 770, the MANO561 supports multiple display outputs, including HDMI, LVDS, and VGA, delivering high-quality graphics performance for visualization, control, and interactive applications.

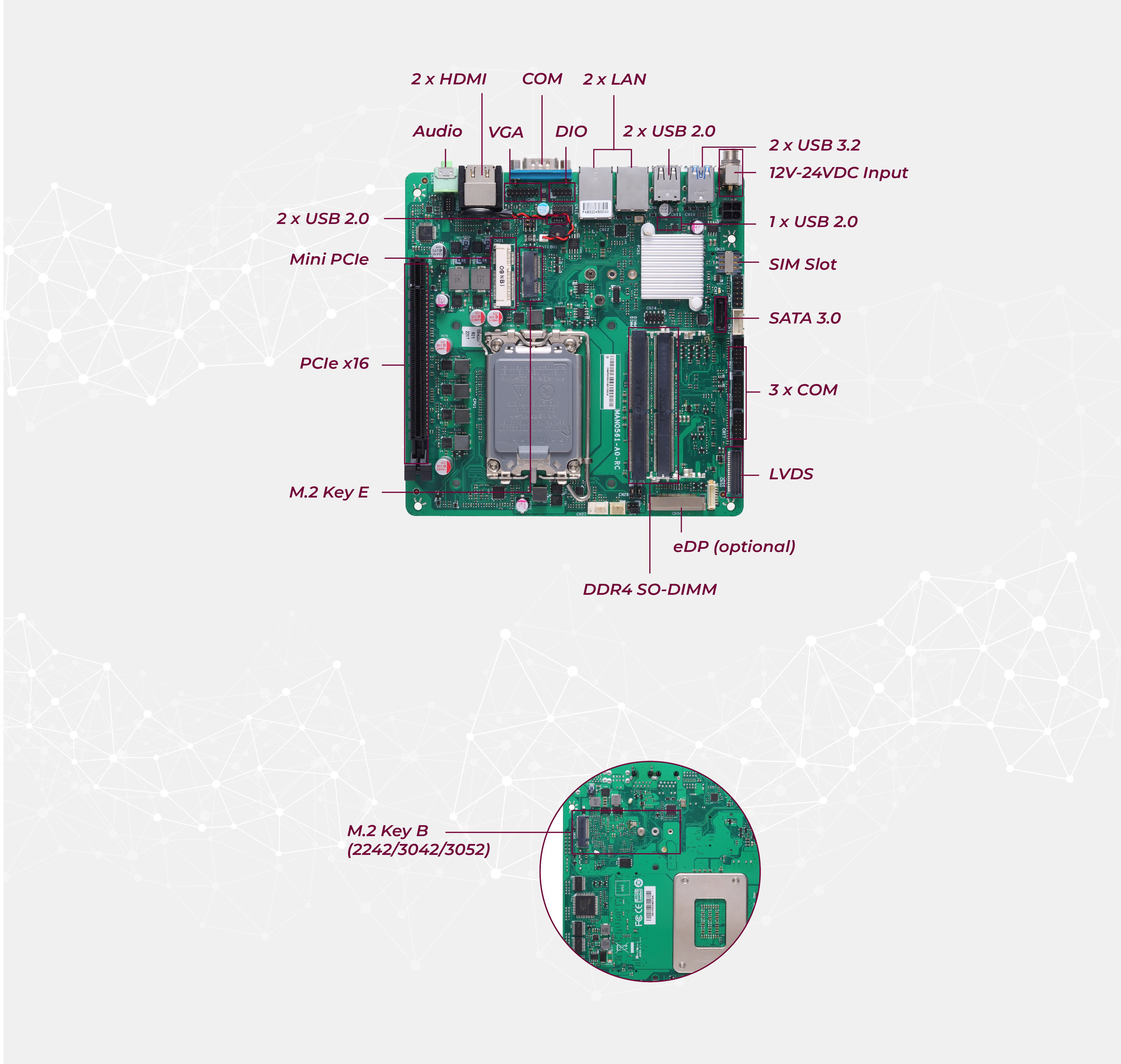

It offers a comprehensive set of interfaces, including multiple COM ports, USB ports, display outputs, digital I/O, and audio, enabling easy integration with various devices.
The inclusion of TPM 2.0 enhances hardware-level security and protects sensitive data.
The MANO561 is ideal for medical devices, industrial HMI, smart kiosks, factory automation, machine control, and edge AI systems, where real-time processing, wireless connectivity, and stable operation are essential.
