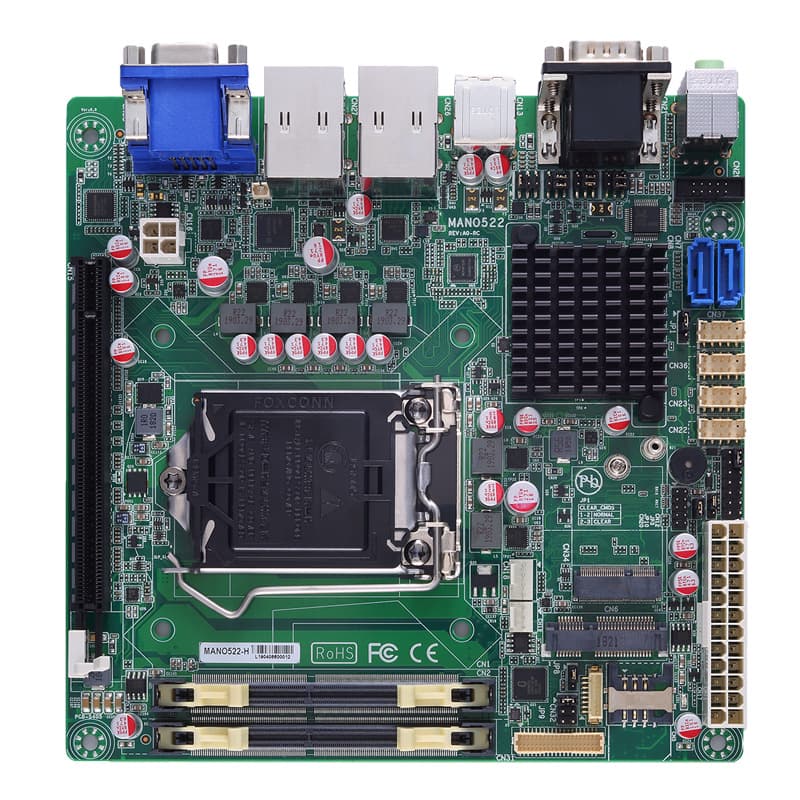

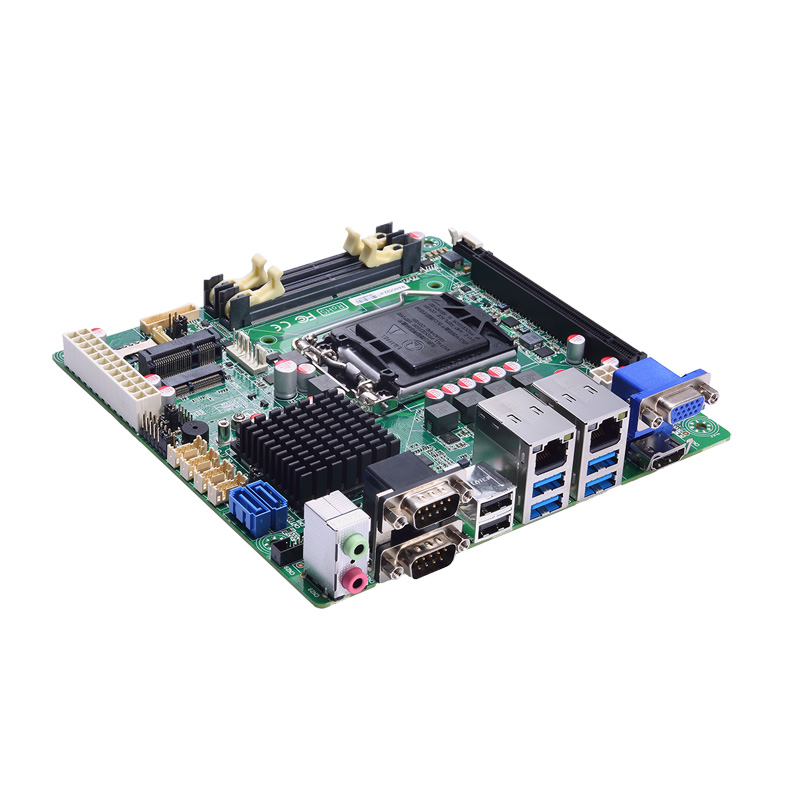

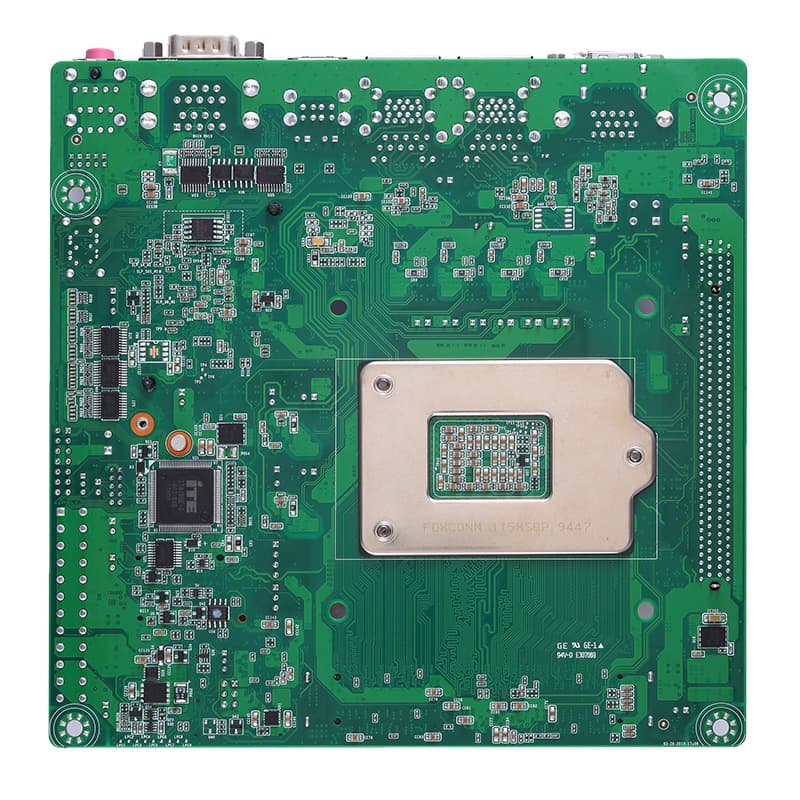

MANO522

產品階段 : 供應中

Mini-ITX SBC with LGA1151 9th/8th Gen Intel® Core™ i7/i5/i3 Processor, HDMI, VGA, LVDS, USB 3.2 Gen 1, mSATA, M.2 and Dual GbE LAN

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
MANO522
MANO522
MANO522
Dual-View

Dual-View

PCIe Expansion

PCIe Expansion

TPM

TPM

USB 3.2

USB 3.2

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件

產品特色

  • LGA1151 9th/8th gen Intel® Core™ i7/i5/i3 processor
  • Intel® H310 chipset
  • 2 DDR4 SO-DIMM for up to 64GB of memory
  • 4 USB 3.2 Gen 1 and 2 USB 2.0
  • 6 COM ports
  • 2 SATA-600 and 1 mSATA
  • PCIe x16 and M.2 Key E

產品規格

CPU
  • LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3 processor (up to 65W)
Chipset
  • Intel® H310
System Memory
  • 2 x 260-pin DDR4-2666/2400 SO-DIMM, up to 64GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485 (with +5V/+12V power)
  • 5 x RS-232
USB
  • 4 x USB 3.2 Gen 1
  • 2 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® i211-AT)
  • 1 x 10/100/1000 Mbps (Intel® i219-LM)
Display
  • 1 x VGA
  • 1 x HDMI
  • 1 x LVDS
GPIO
  • 8-channel in/out programmable
Audio
  • MIC-in/Line-in/Line-out
Storage
  • 1 x mSATA
  • 2 x SATA-600
Expansion
  • 1 x PCIe x16
  • 1 x M.2 Key E 22 x 30
Others
  • Firmware TPM 2.0 (fTPM 2.0)
Battery
  • Lithium 3V/220mAH
Power Input
  • 24+4 pin ATX connector
  • AT Mode Auto Power Function supported
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 170 x 170 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

訂購資訊

  • MANO522VGGA-H310 (P/N-E38M522101)
    Mini-ITX SBC with LGA1151 9th/8th gen Intel® Core™ processor, Intel® H310, HDMI, VGA, LVDS, 2 GbE LAN, HD audio and gift box
  • 594M5002100E
    2 x COM port, P=2.0 mm, L=300 mm
  • 59384500100E
    Audio cable with bracket, P=2.0 mm, L=420 mm
  • 594E8422800E
    2 x USB 2.0 wafer cable with bracket, P=2.0, L=180 mm

技術文件

Drivers

日期 說明 版本 下載檔案
2022/01/21 05.Realtek_Audio.zip VA1.2
2022/01/21 04.Intel_LAN.zip VA1.2
2022/01/21 03.Intel ME.zip VA1.2
2022/01/21 02.Intel Graphic.zip VA1.2
2022/01/21 01.Intel Chipset_.zip VA1.2
2021/04/16 06.Intel_Rapid_Storage_Technology.zip VA1.0

Software

Manual

日期 說明 版本 下載檔案
2021/04/16 MANO522 User's Manual.pdf VA1.2

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2021/12/03 UKCA Declaration of Conformity
