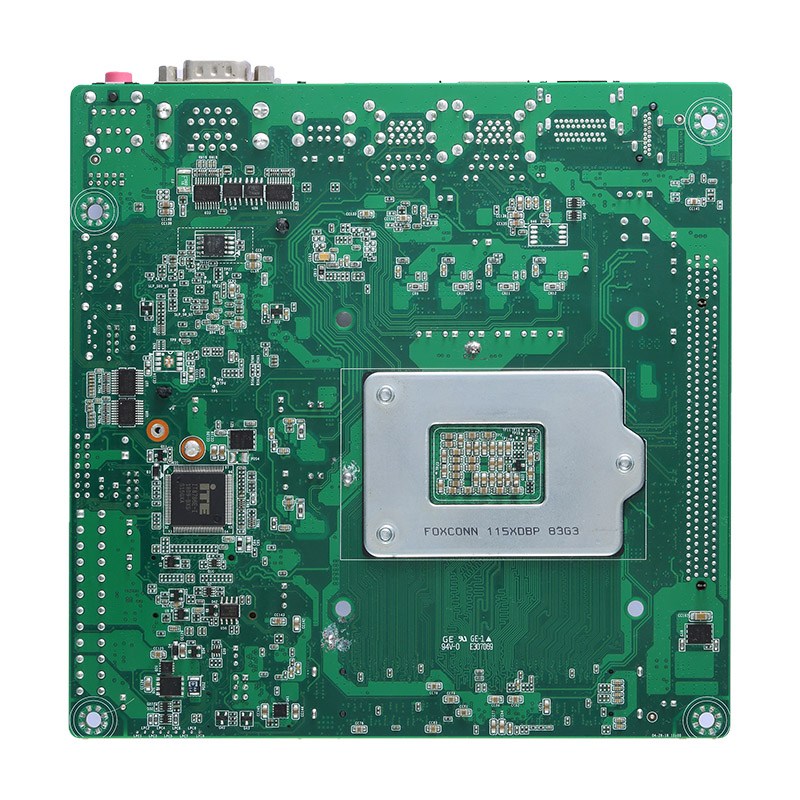

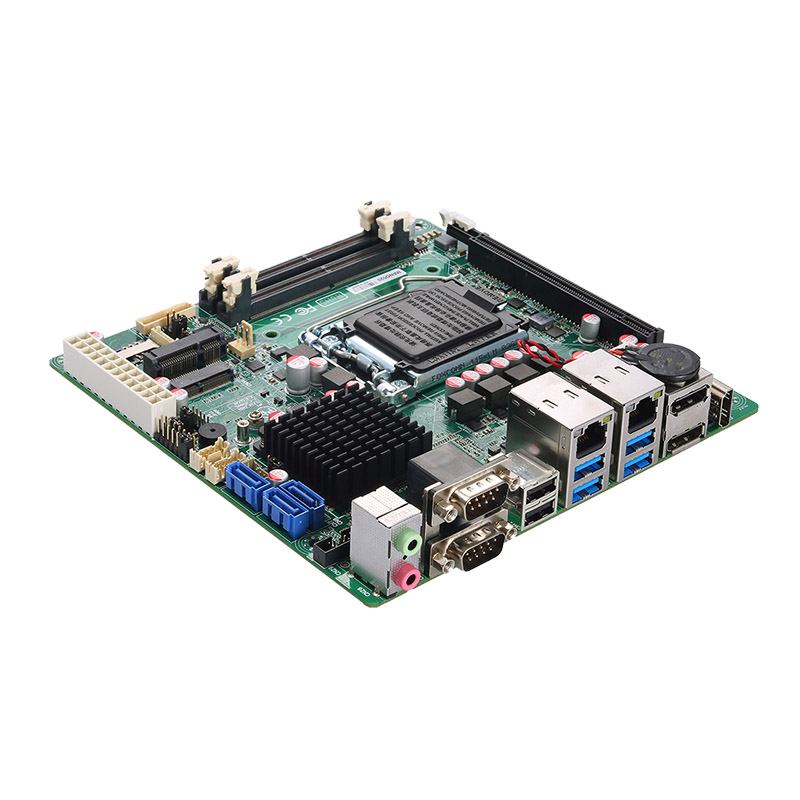

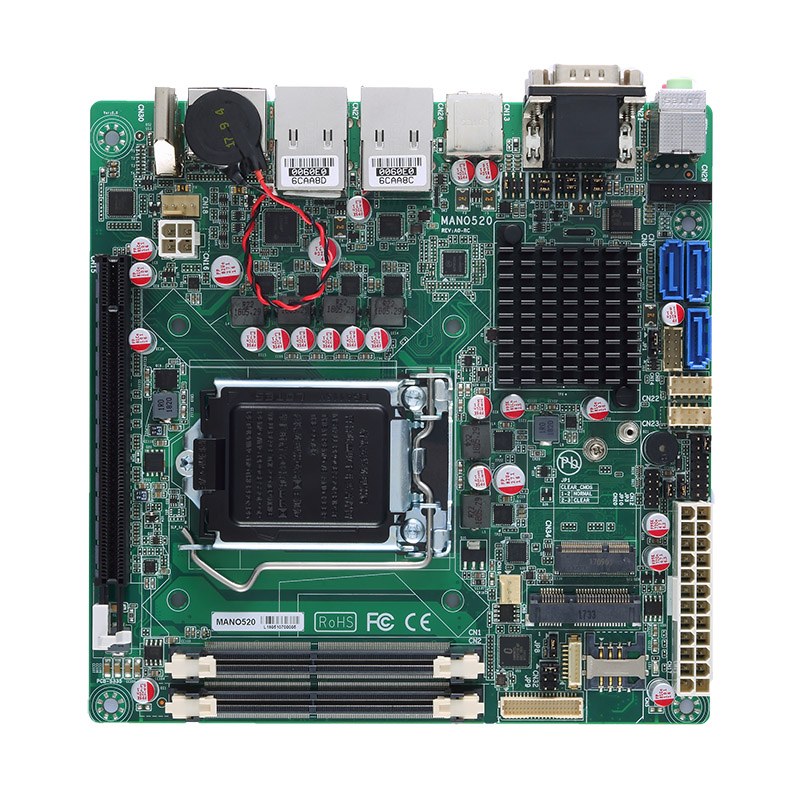

MANO520

產品階段 : 供應中

Mini-ITX SBC with LGA1151 9th/8th Gen Intel® Core™ i7/i5/i3 Processor, Dual DisplayPort++, HDMI, LVDS, USB 3.0, mSATA, M.2 and Dual GbE LAN

PCIe Expansion

CPU	LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® processors Gold/Celeron® processors (up to 65W)
Chipset	Intel® H310
System Memory	2 x 260-pin DDR4-2666/2400 SO-DIMM up to 32GB
BIOS	AMI
COM	1 x RS-232/422/485 (with +5V/+12V power) 3 x RS-232
USB	4 x USB 3.0 4 x USB 2.0
Ethernet	1 x 10/100/1000 Mbps Ethernet (Intel® I210-AT) 1 x 10/100/1000 Mbps Ethernet (Intel® I219-LM)
Display	2 x DisplayPort++ 1 x HDMI 1.4b (3840 x 2160 @30Hz) 1 x LVDS
GPIO	8-channel in/out programmed
Audio	MIC-in/Line-in/Line-out
Storage	3 x SATA-600 1 x mSATA
Expansion	1 x PCIe x16 1 x M.2 Key E 22 x 30
Others	Onboard TPM 2.0 (optional)
Battery	Lithium 3V/220mAH
Power Input	Standard 12V ATX power 24+4 pin ATX connector AT Mode Auto Power Function supported
Watchdog Timer	255 levels, 1 to 255 sec.
Hardware Monitoring	Yes
Operating Temperature	0°C to +60°C (+32°F to +140°F)
Relative Humidity	10% to 95% relative humidity, non-condensing
Dimensions	170 x 170 mm
Board Thickness	1.6 mm
Certifications	CE

MANO520PHGGA-H310 (P/N-E38M520100)
Mini-ITX SBC with LGA1151 9th/8th gen Intel® Core™ processor, Intel® H310, DisplayPort++, HDMI, LVDS, 2 GbE LAN and HD Audio; bulk packing
MANO520PHGGA-H310 (P/N-E38M520101)
Mini-ITX SBC with LGA1151 9th/8th gen Intel® Core™ processor, Intel® H310, DisplayPort++, HDMI, LVDS, 2 GbE LAN and HD Audio; single box
594M5002100E
2 x COM port, P=2.0 mm, L=300 mm
594E8422800E
2 x USB 2.0 wafer cable with bracket, P=2.0, L=180 mm
59384500100E
SBC84500 audio cable with bracket, P=2.0 mm, L=420 mm
713PL76A000E
LGA1156 1.5U cooler
5077L07C000E
LGA1156 1U cooler
