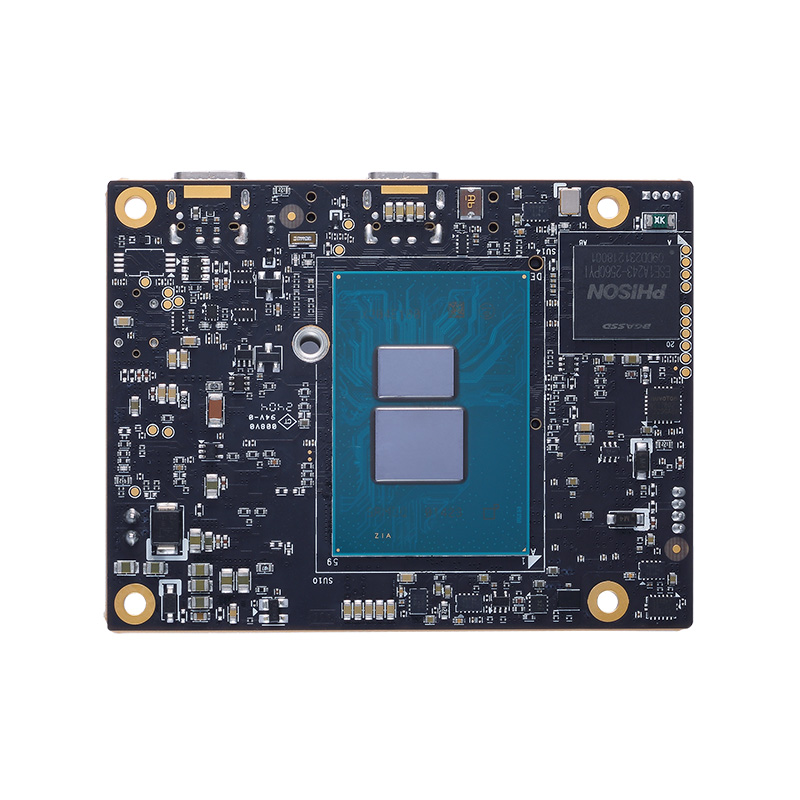

KIWI330

產品階段 : 供應中

1.6" SBC with Intel Amston Lake/Alder Lake-N® Processor, LPDDR5, eDP, M.2 Key E, 2 USB 3.2 (Type-C), and USB 3.2 (Vertical Type-C)

產品規格表 (PDF)
產品規格表 (PDF)
立即詢價
立即詢價
KIWI330
KIWI330
KIWI330
KIWI330
KIWI330
KIWI330
KIWI330
  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件
  • 常見問題

產品特色

  • Super tiny 1.6-inch embedded board
  • Intel Amston Lake/Alder Lake-N® processor onboard
  • Onboard 4GB LPDDR5 memory
  • Onboard 64GB NVMe SSD storage
  • Supports M.2 Key E socket
  • Supports eDP for display
  • Supports operating system: Linux, Windows®
Powerful Yet Energy-Efficient
Powerful Computing

Intel® Processor N50 (6W TDP)
LPDDR5 Memory and NVMe SSD

Ultra-Compact & Rugged
Ultra-Compact & Rugged

 1.6” SBC (7.2 × 5.6 cm)
-30°C to +60°C

Flexible Expansion
Flexible Expansion

MIO Expansion Modules
Onboard M.2 Key E 2230



Ultra-Compact & Energy-Efficient Computing for Edge Applications

Designed for space- and power-constrained edge environments, the KIWI330 features the Intel® N50 processor with only 6 W TDP. With 4GB onboard LPDDR5 memory and a 64GB NVMe SSD, it delivers responsive performance while maintaining low power consumption. Its ultra-small footprint (7.2 × 5.6 cm) enables flexible deployment in robotics, smart devices, industrial automation, edge AI computing, and intelligent gateway solutions.

High Integration Capability with Flexible I/O and Expansion

Despite its small footprint, the KIWI330 offers rich connectivity, including two USB 3.2 Type-C ports — one horizontal with DisplayPort support — and an M.2 Key E 2230 slot for wireless modules or AI accelerators. The board also supports eDP for high-resolution embedded display applications, while optional MIO expansion modules enable the effortless addition of COM, LAN, or GPIO ports.



Industrial-Grade Reliability for Continuous Edge Operation

The KIWI330 supports a wide operating temperature range from -30°C to +60°C and operates on a stable 12 VDC power input. An onboard RTC backup battery ensures system time retention during unexpected power interruptions. Combined with hardware monitoring features and comprehensive middleware support, the compact SBC is designed for long-term, unattended operation and supports both Windows® and Linux® platforms.

Rich I/O Interfaces

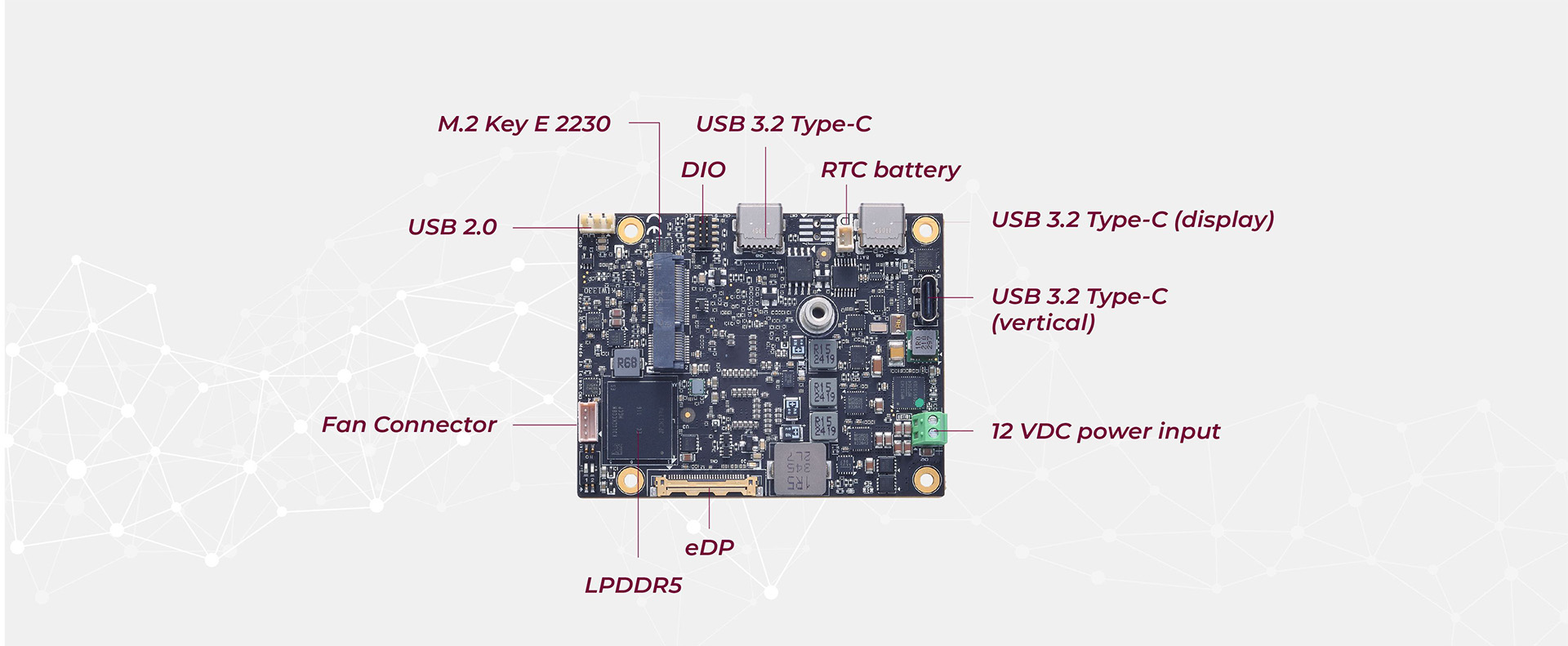

Front View
KIWI330 Front I/O

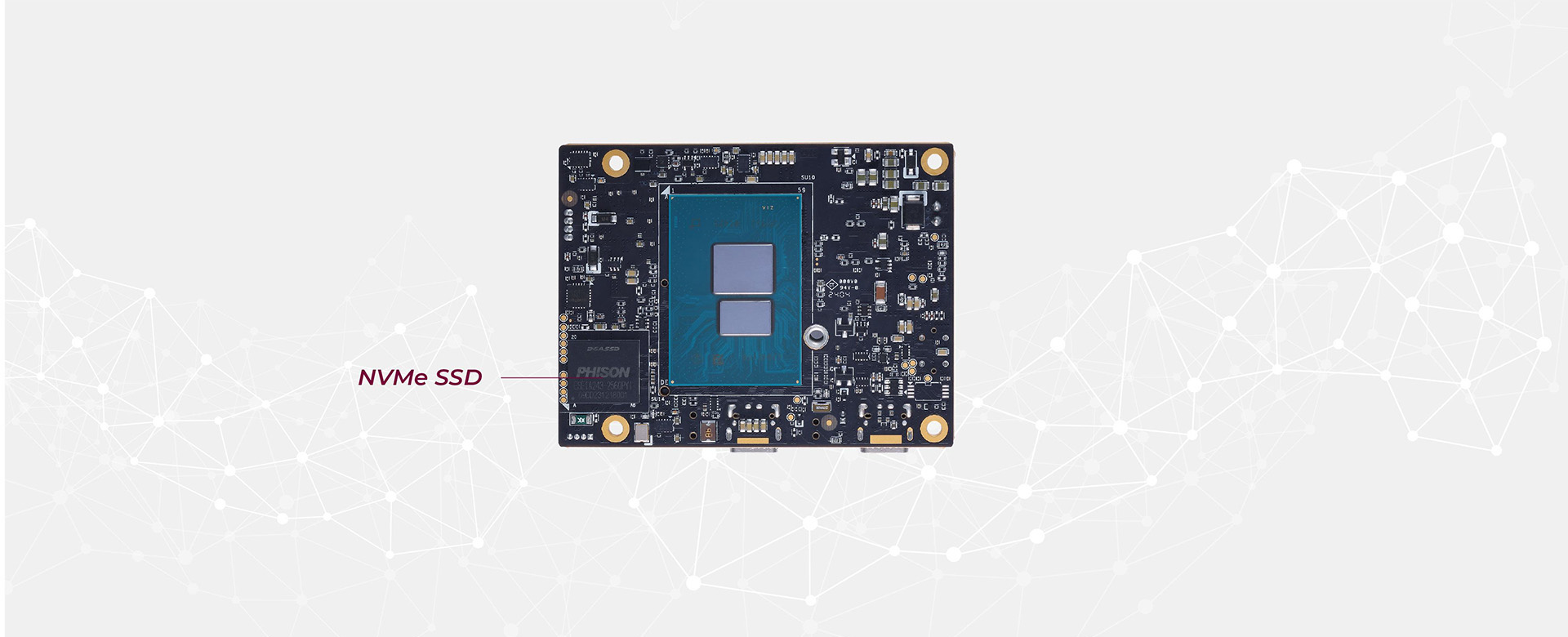

Rear View
KIWI330 Rear I/O

產品規格

CPU
  • Intel Amston Lake/Alder Lake-N® processor
Chipset
  • SoC integrated
System Memory
  • On-board 4GB LPDDR5
BIOS
  • AMI
COM
  • N/A
USB
  • Horizontal:
  • 1 x USB 3.2 Type-C DP Alt Mode
  • 1 x USB 3.2 Type-C
  • Vertical:
  • 1 x USB 3.2 Type-C
  • Internal:
  • 1 x USB 2.0 header (1 x 4-pin wafer)
Ethernet
  • N/A
Display
  • 1 x eDP
GPIO
  • N/A
Audio
  • N/A
Storage
  • BGA 64GB NVMe
Expansion
  • 1 x M.2 Key E 2230 (USB 2.0, PCIe)
Others
  • N/A
Battery
  • Lithium 3V/225 mAh
Power Input
  • 2-pin Phoenix type
  • 12 VDC/5A
Power Consumption
  • TBD
Watchdog Timer
  • 255 levels, 1 to 255 sec
Hardware Monitoring
  • Yes
Operating Temperature
  • -30°C to +60°C (-22°F to +140°F) for Amston Lake SKU
  • 0°C to +60°C (+32°F to +140°F) for Alder Lake-N SKU
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 72 mm × 56 mm
Board Thickness
  • 1.6 mm
Operating System
  • Linux, Windows®
Certifications
  • CE
Industrial Chassis
  • N/A

訂購資訊

  • KIWI330-X7211-S (P/N-E3D0330105)
    Intel Atom® x7211RE processor, 4GB LPDDR5 & 64GB NVMe SSD with cooler, and -30°C to +60°C
  • KIWI330-N50-S (P/N-E3D0330100)
    Intel® processor N50, 4GB LPDDR5, and 64GB NVMe SSD with cooler
  • KIWI330-N50-M5 (P/N-E3D0330103)
    Intel® processor N50, 4GB LPDDR5, and 64GB NVMe SSD with MIO335 and cooler

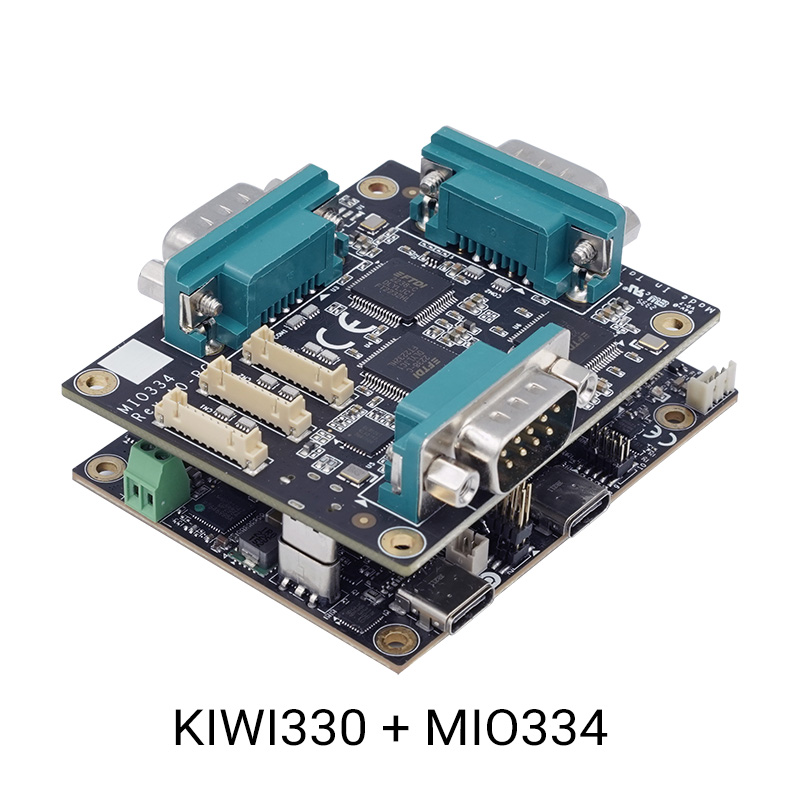

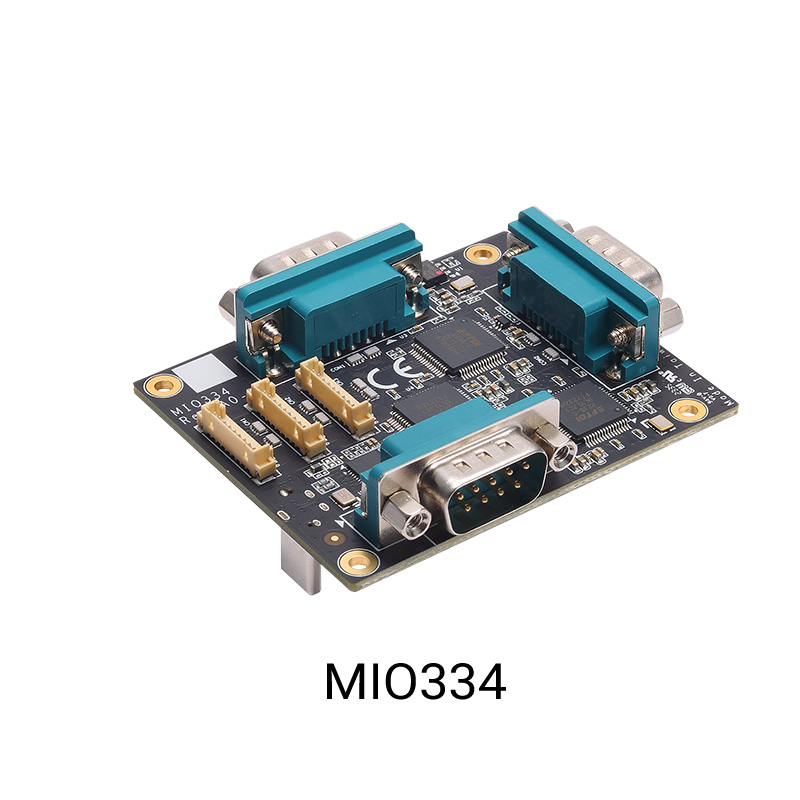

  • MIO334-6COM-S (P/N-E39Q334101)
    6-port COM module, 3 DB9 RS-232, and 3 header RS-232

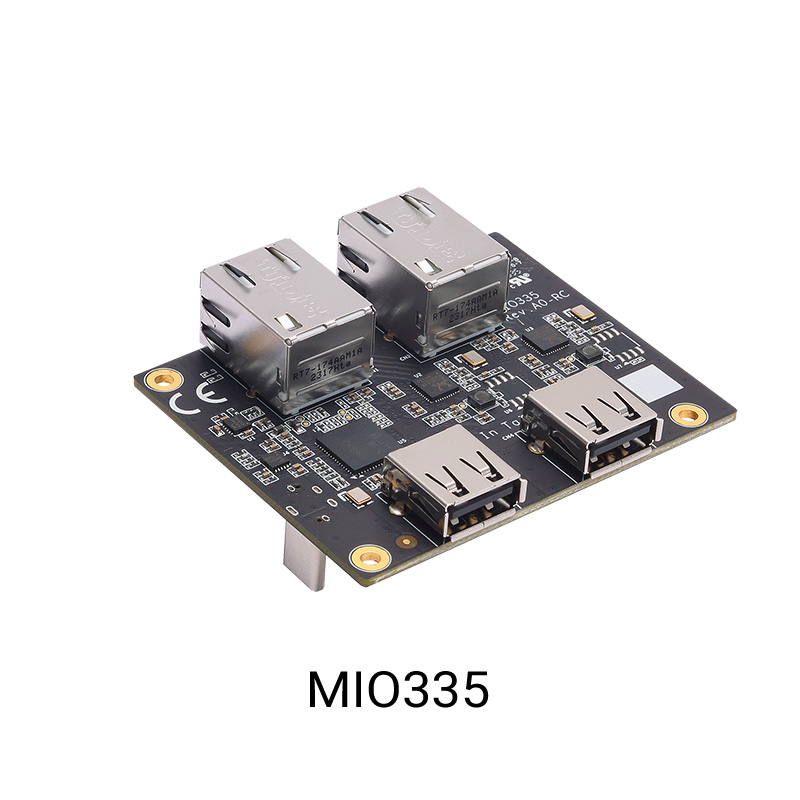

  • MIO335-2LAN-S (P/N-E39Q335101)
    Dual GbE LAN module, 2 RJ-45 GbE LAN, and 2 USB 2.0 Type-A
  • USB cable (P/N-594P8802810E)
    USB‑to‑1.25_4‑pin housing, L = 150 mm
  • COM cable (P/N-59380880250E)
    COM‑port cable, DB9 - 9 × 1 P, L = 250 mm, P = 1.25
  • Adapter (P/N-50966124050E)
    Adapter 12V 60W FSP060-DHAN3 with screw

技術文件

Drivers

日期 說明 版本 下載檔案
2025/06/27 Chipset driver VA1.0
2025/06/26 SerialIO driver VA1.0
2025/06/26 ME driver VA1.0
2025/06/26 Graphic driver VA1.0

Software

Manual

日期 說明 版本 下載檔案
2025/06/27 User's manual VA1.0

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2025/09/22 CE-Conformity Declaration
2025/09/22 UKCA Declaration of Conformity
