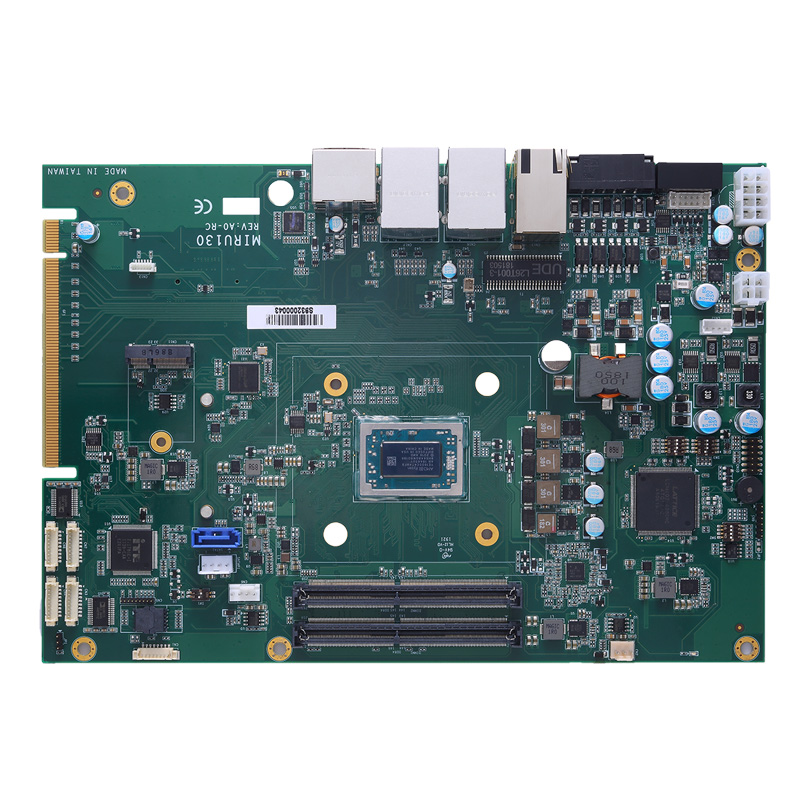

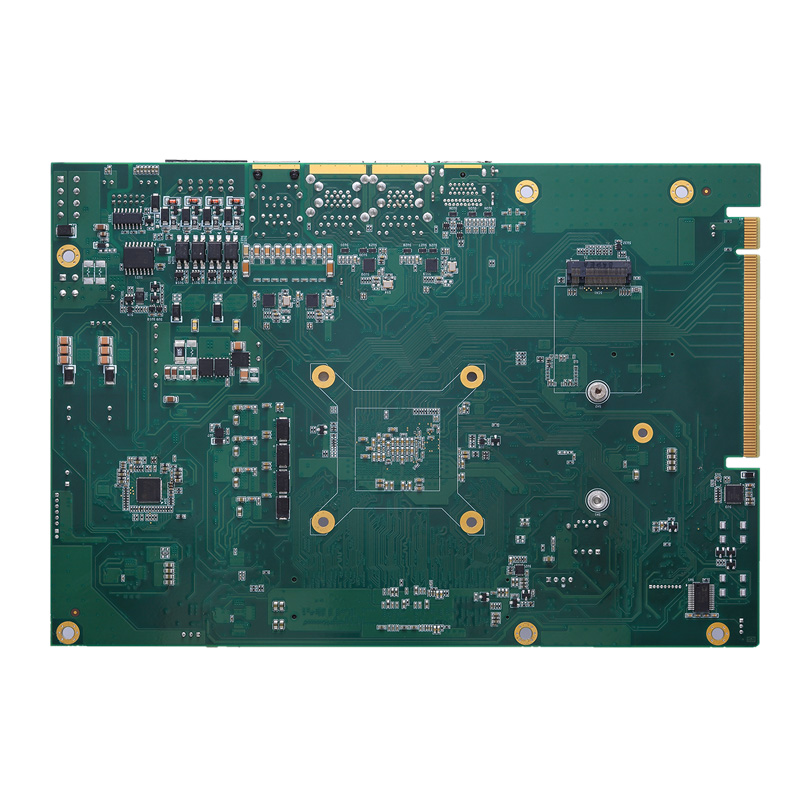

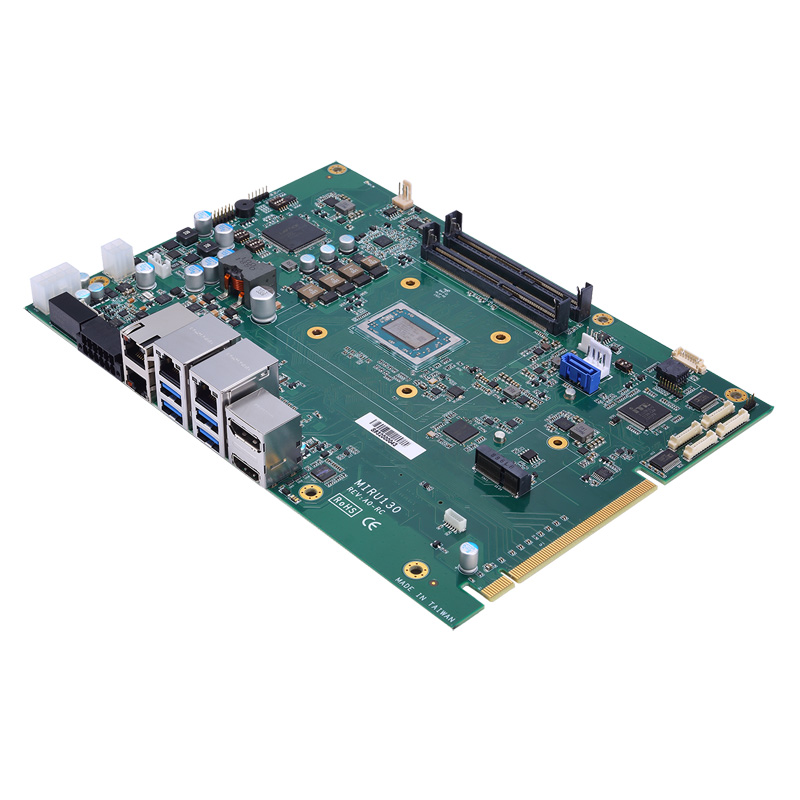

The MIRU130 is an embedded vision and AI motherboard optimized for machine vision, automated inspection, deep learning, and vision-guided robotics applications.
It is powered by AMD Ryzen™ Embedded V1807B or V1605B processors with integrated AMD Radeon™ RX Vega graphics.
The motherboard integrates dedicated vision I/O, PoE camera connectivity, encoder input, trigger control, and lighting control to simplify machine vision system development.
The MIRU130 features two IEEE 802.3at PoE GbE ports and two additional GbE LAN ports, enabling direct connection to multiple industrial cameras.
Yes, it provides two camera trigger outputs, allowing precise synchronization between cameras and inspection processes.
It integrates trigger inputs, camera trigger outputs, LED lighting control, encoder input, and isolated DIO, enabling real-time coordination between cameras, lighting, sensors, and actuators.
The motherboard includes one incremental quadrature encoder input, making it ideal for conveyor tracking and position-based inspection systems.
Yes, it includes two dedicated LED lighting control channels for synchronized illumination during image acquisition.
Integrated AMD Radeon™ RX Vega graphics support DirectX® 12 and dual-display output through HDMI and DisplayPort.
It supports up to 16GB of DDR4 memory through two SO-DIMM slots.
The board offers an M.2 Key E slot for wireless modules, an M.2 Key B slot for storage or cellular connectivity, and a PCIe x16 slot with PCIe x8 signal for graphics or expansion cards.
The MIRU130 provides four USB 3.1 Gen2 ports, four serial ports (three RS-232 and one RS-232/422/485), SATA storage, and isolated digital I/O.
Yes, it supports operation from -20°C to +60°C and is designed for reliable deployment in demanding industrial settings.
