IMB542

產品階段 : 供應中

ATX Motherboard with LGA1700 Socket 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® Processor, Intel® Q670, USB 3.2 Gen 1x1, SATA 3.0, GbE, VGA, DVI-D, and HDMI

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價

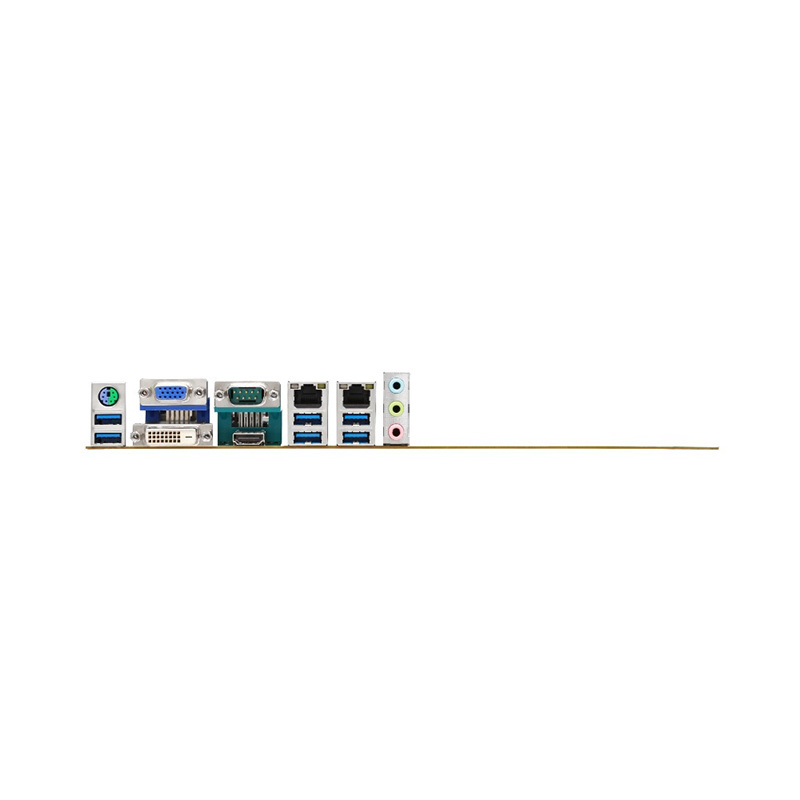

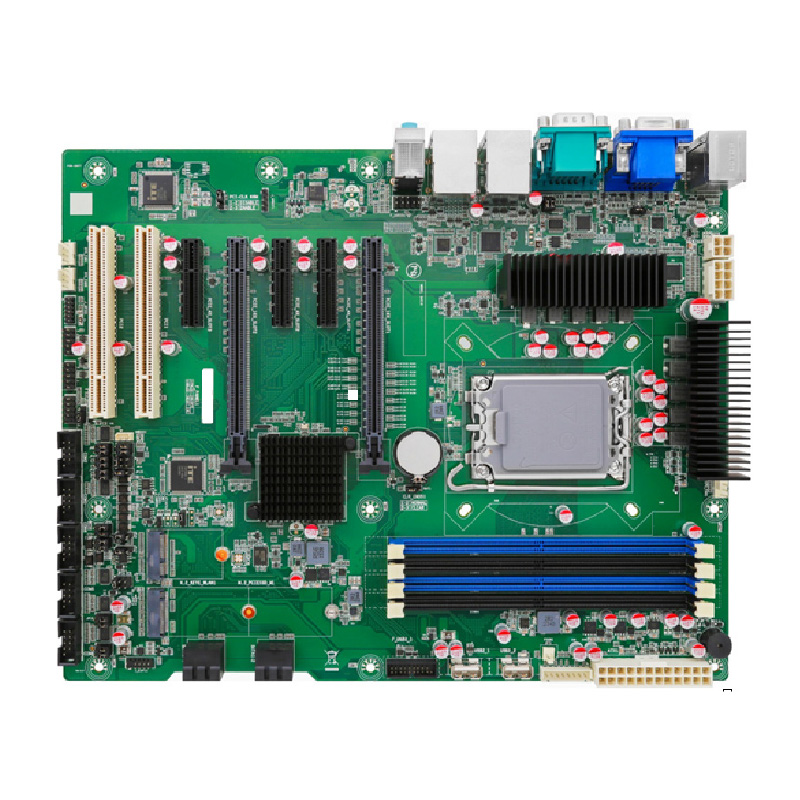

IMB542
IMB542
PCIe Expansion

PCIe Expansion

RAID

RAID

TPM

TPM

Triple-View

Triple-View

USB 3.2

USB 3.2

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件

產品特色

  • LGA1700 socket 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
  • Four 288-pin DDR5-4400 non-ECC Long-DIMM, up to 192GB
  • Supports triple-view with VGA, DVI-D, and HDMI interfaces
  • Supports M.2 Key M 2280 and Key E 2230
  • 6 USB 3.2 Gen 1x1 and 2 USB 3.2 Gen 1x1 (internal)
  • TPM 2.0 supported

產品規格

CPU
  • LGA1700 socket 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (up to 125W)
Chipset
  • Intel® Q670
System Memory
  • 4 x 288-pin DDR5-4400 non-ECC Long-DIMM, up to 192GB
BIOS
  • AMI
COM
  • 1 x RS-232 (rear I/O)
  • 3 x RS-232 (internal box header)
  • 1 x RS-232/422/485 (internal box header)
  • 1 x RS-232/485 (internal box header)
USB
  • 6 x USB 3.2 Gen 1x1 (5Gbps, rear I/O)
  • 2 x USB 3.2 Gen 1x1 (5Gbps, internal box header)
  • 4 x USB 2.0 (internal pin header)
  • 1 x USB 2.0 (internal 180D Type-A)
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® I210-AT)
  • 1 x 10/100/1000 Mbps (Intel® I219-V)
Display
  • 1 x VGA, up to 1920 x 1200 @ 60Hz
  • 1 x HDMI 2.0, up to 4096 x 2160 @ 60Hz
  • 1 x DVI-D, up to 1920 × 1200 @ 60Hz
Digital I/O
  • 8-channel programmable
Audio
  • HD Codec audio as MIC-in/Line-in/Line-out
Storage
  • M.2 Key M 2280 with support for PCIe x4 via PCH
  • 4 x SATA-600 with RAID 0/1/5/10
Expansion
  • 2 x PCIe x16 slot (signal: PCIe Gen 4 x16 + PCIe Gen 3 x4)
  • 3 x Open-ended PCIe Gen 4 x4 slot
  • 1 x M.2 Key E 2230 (supports PCIe x1 + USB 2.0)
  • 2 x 32-bit PCI slot; default clock is 33 MHz
Others
  • 1 x PS/2 keyboard (rear I/O)
Battery
  • Lithium 3 V/ 220 mAH
TPM
  • Not included by default; supports Intel® PTT as default
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 305 x 244 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

訂購資訊

  • IMB542-Q670-SP
    ATX motherboard with LGA1700 socket 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor, Intel® Q670, USB 3.2 Gen 1x1, SATA 3.0, GbE LAN, VGA, DVI-D, and HDMI (single packaging)
  • 5938A808010E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=190 mm
  • 5938A808020E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=400 mm
  • 5948C122800E
    2 x USB 3.2 Gen 1 cable with bracket, L=400 mm
  • 594G5208000E
    SATA 3.0 signal cable, L=500 mm with locking latch
  • 594G5208010E
    SATA 3.0 signal cable, L=500 mm without locking latch
  • 59380402010E
    1 x COM port cable with bracket, P=2.54 mm, L=300 mm
  • 59380703000E
    2 x COM port cable with bracket, P=2.54 mm, L=300 mm
  • 711000002500
    CPU cooler for 2U, 4U, and wall mount chassis with smart fan

技術文件

此內容目前更新中，請稍後再查看。

您可能也會喜歡

產品圖片 IMB540

IMB540
產品圖片 IMB541

IMB541

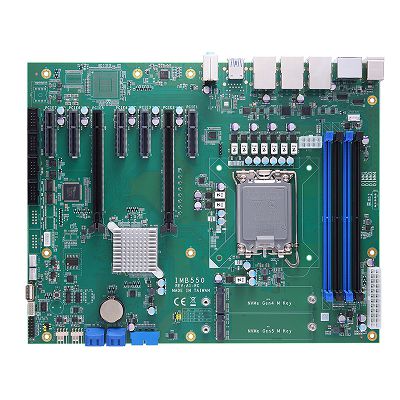

產品圖片 IMB550
