CAPA520

產品階段 : 供應中

3.5” Embedded SBC with LGA1151Socket 9th/8th Gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® Processor, DisplayPort, HDMI, LVDS and 3 GbE LAN

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價

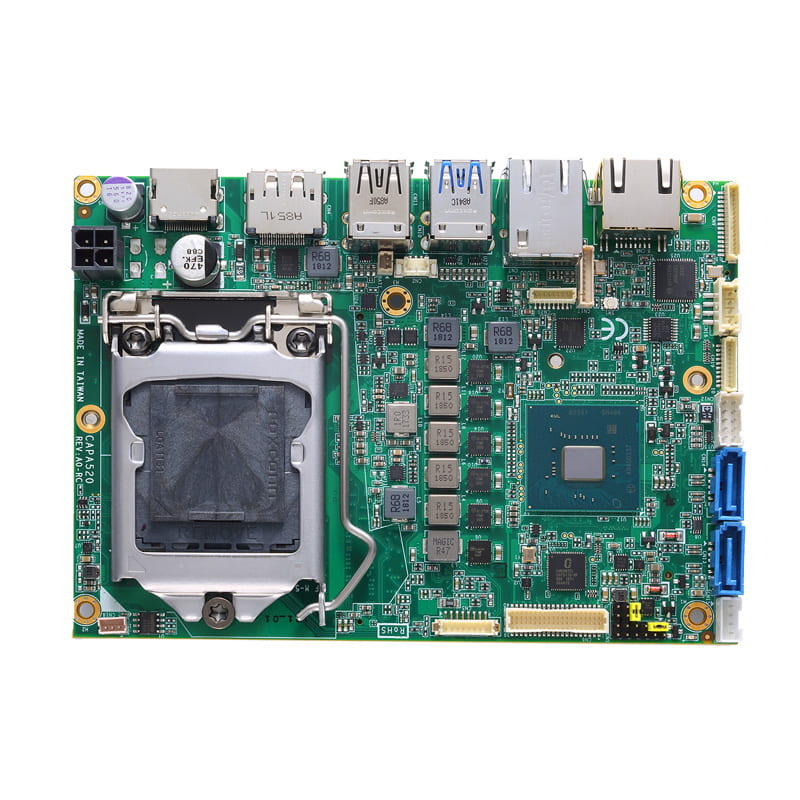

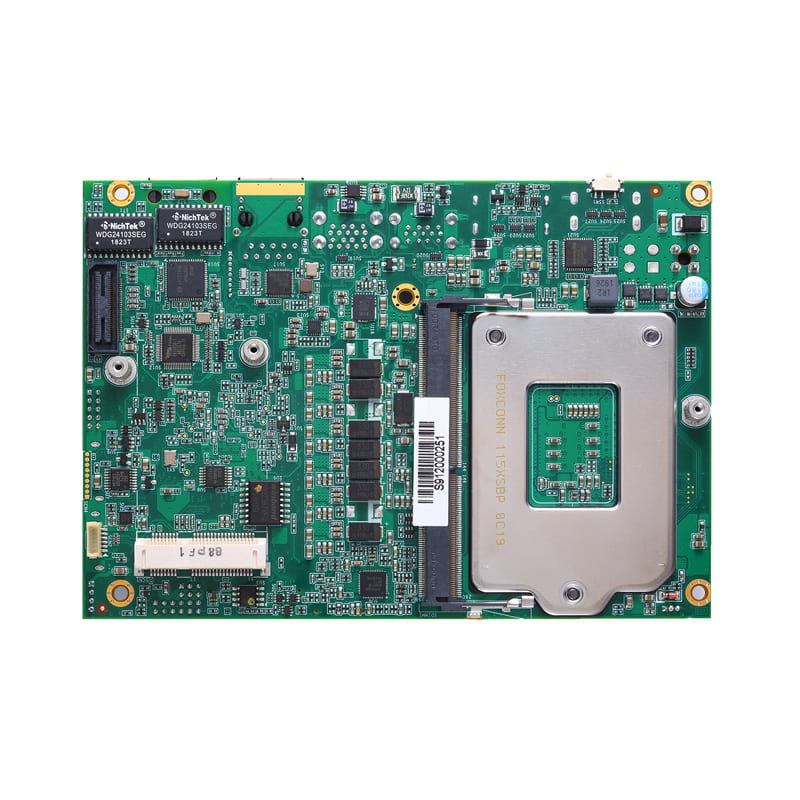

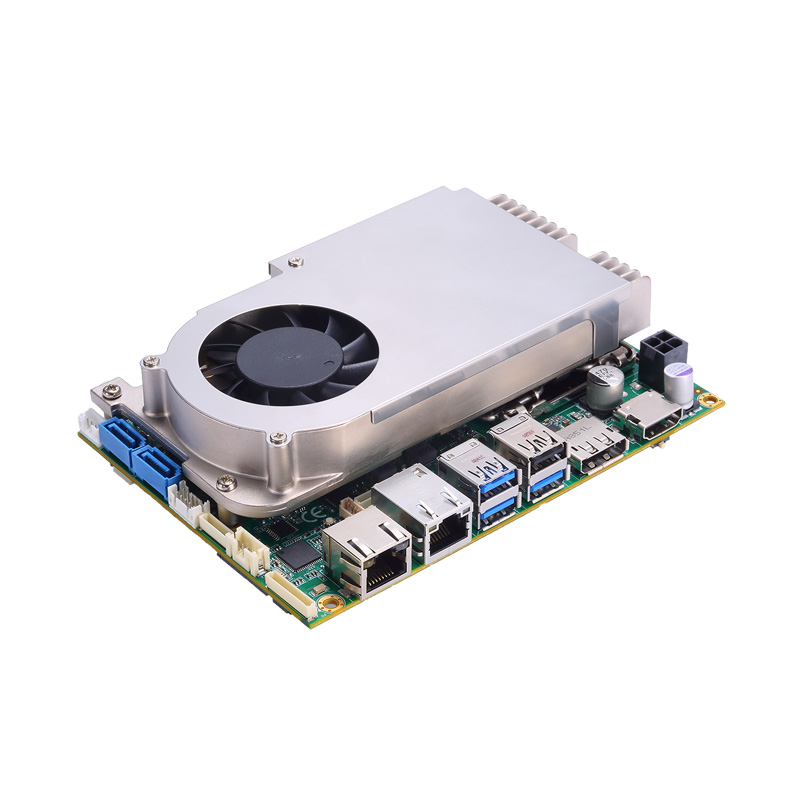

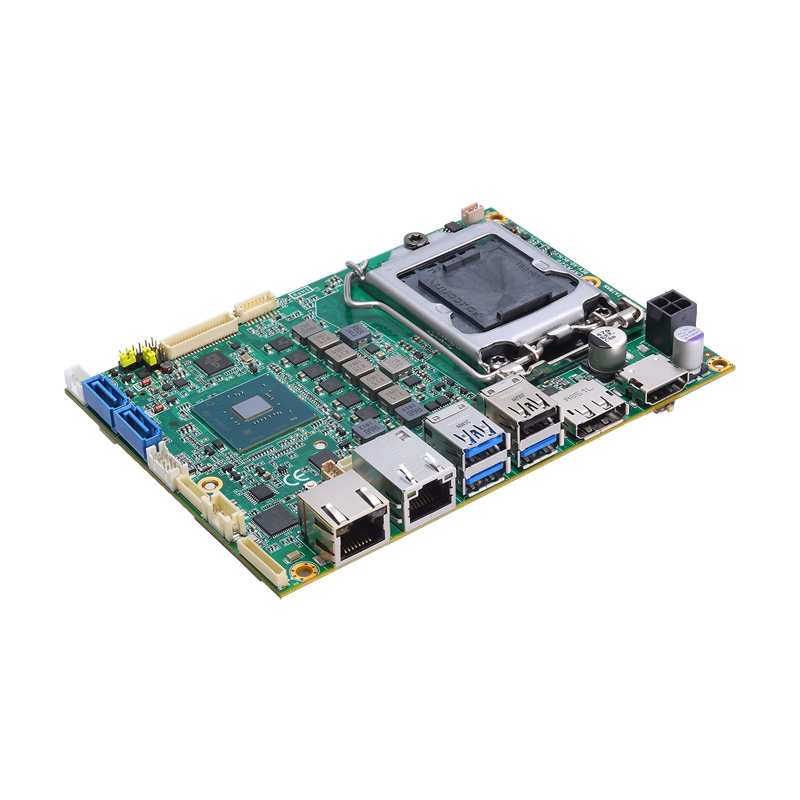

CAPA520
CAPA520
CAPA520
CAPA520
AMT

AMT

TPM

TPM

Triple-View

Triple-View

Wide Temperature

Wide Temperature

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件

產品特色

  • LGA1151 socket 9th/8th gen Intel® CoreTM i7/i5/i3 processor
  • Intel® H310/Q370 chipset
  • 1 DDR4 SO-DIMM for up to 16GB of memory
  • 3 GbE LAN
  • 1 PCI Express Mini Card slot
  • Intel® AMT 12 supported (optional)

產品規格

CPU
  • LGA1151 socket 9th/8th Gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor (TDP 35W)
Chipset
  • Intel® H310
  • Intel® Q370
System Memory
  • 1 x 260-pin DDR4-2666 SO-DIMM, up to 16GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485
USB
  • 3 x USB 3.0
  • 3 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps Ethernet (Intel® I210-AT)
  • 1 x 10/100/1000 Mbps Ethernet ( Intel® i219-LM)
  • 1 x 10/100/1000 Mbps Ethernet (Intel® I210-AT; optional)
Display
  • 1 x HDMI
  • 1 x LVDS; 18/24-bit single/dual channel
  • 1 x DisplayPort
Digital I/O
  • 8-channel in/out programmed
Audio
  • HD Audio link
Storage
  • 2 x SATA-600
  • 1 x mSATA (optional)
Expansion
  • 1 x PCI Express Mini Card slot
  • 1 x USB, 1 x PCIe x1, 1 x LPC, 1 x SMBus through a ZIO connector
Others
  • SMBus
Battery
  • Lithium 3V/220 mAh
Power Input
  • 2 x 2-pin connector
  • +12V DC-in only
  • AT Auto Power On function supported
Power Requirements
  • N/A
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -20°C to +60°C (-4°F to 140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 146 x 104 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
Industrial Chassis
  • N/A

訂購資訊

  • CAPA520PHGG-H310-ZIO (P/N-E38E520103)
    3.5” Embedded SBC with LGA1151, Intel® H310 chipset, DisplayPort, HDMI, LVDS, 2 GbE LAN and ZIO
  • CAPA520PHGG-Q370-ZIO (P/N-E38E520102)
    3.5” Embedded SBC with LGA1151, Intel® Q370 chipset, DisplayPort, HDMI, LVDS, 2 GbE LAN and ZIO
  • CAPA520PH3G-H310-ZIO (P/N-E38E520101)
    3.5” Embedded SBC with LGA1151, Intel® H310 chipset, DisplayPort, HDMI, LVDS, 3 GbE LAN and ZIO
  • CAPA520PH3G-Q370-ZIO (P/N-E38E520100)
    3.5” Embedded SBC with LGA1151, Intel® Q370 chipset, DisplayPort, HDMI, LVDS, 3 GbE LAN and ZIO
  • AX93A22 (P/N-E393A22100)
    HD codec audio board for Mic-in/Line-in/Line-out
  • 594E8422800E
    2 USB 2.0 wafer cables w/bracket, 180 mm
  • 59380880250E
    COM port cable DB-9 x 1P, P=1.25 mm, L=250 mm
