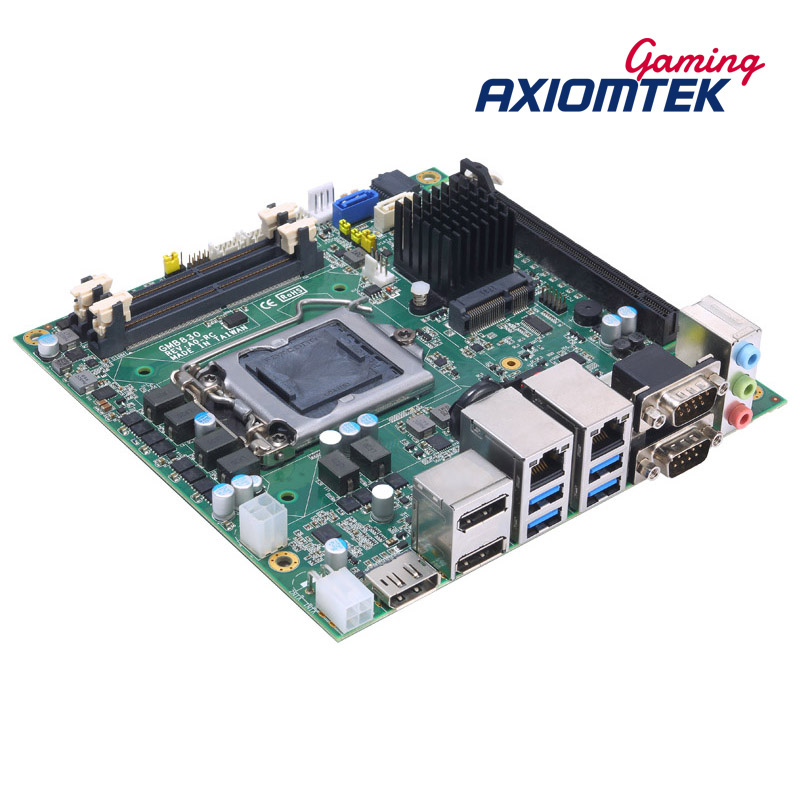

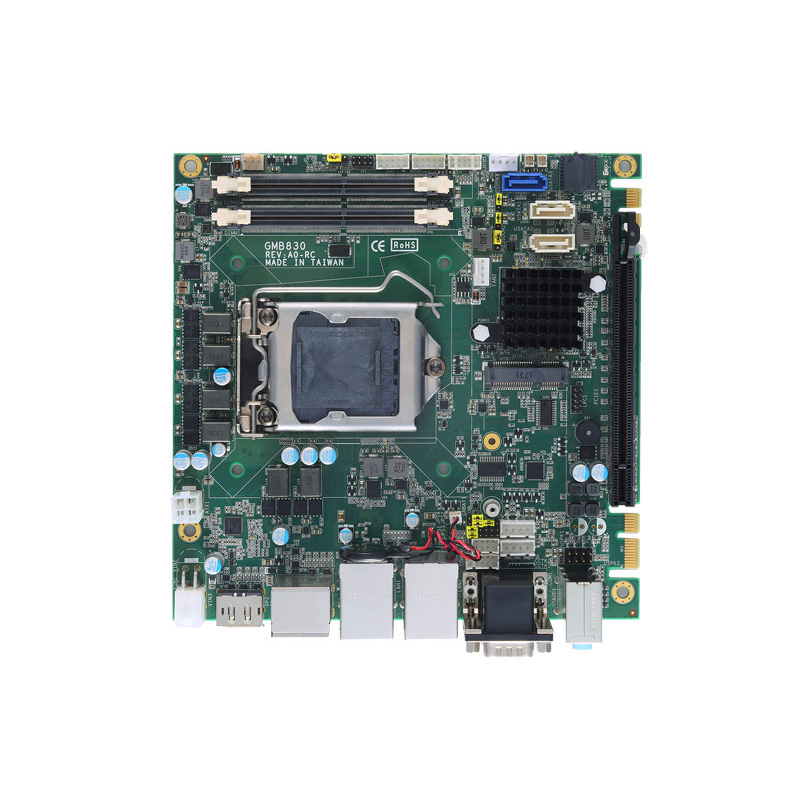

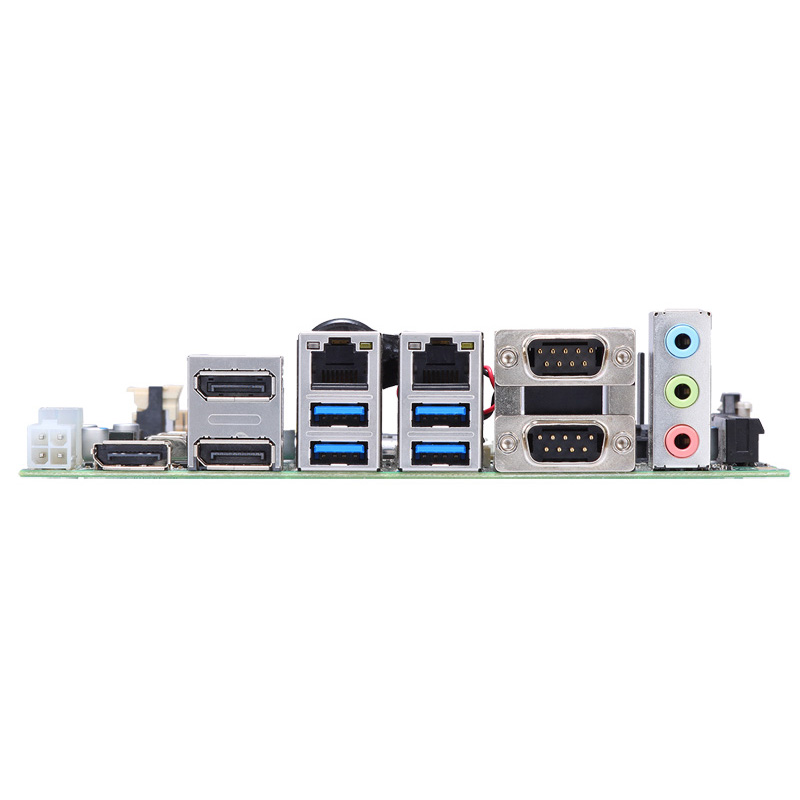

GMB830

產品階段 : 供應中

Mini-ITX Gaming Board with 8th/9th Generation Intel® Core™

產品特色

CPU	LGA1151 socket supports 8th/9th Gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
Chipset	Intel® Q370 / H310
System Memory	2 x 260-pin DDR4 SO-DIMM up to 2400/2666 MHz, max. up to 64GB
BIOS	AMI -uEFI
Watchdog Timer	1 sec to 255 min
USB	4 x USB 3.2 Gen1x1 (5Gb/s) 4 x USB 2.0 pin header
Serial Interface	2 x Full RS-232 DB9 (COM1 supports RS-232/422/485) 1 x Full RS-232 box header 3 x Simple RS-232 box header
Ethernet	2 x GbE LAN ports
Audio	HD Audio: Line-in/ Line-out/ Mic-in phone jack (7.1 Ch.) Stereo: 6W + 6W audio amplier outputs pin header SPDIF output pin header
Display	3 x DP++ port (up to 4096 x 2160 @60Hz) H310 supports dual displays
GPIO	N/A
Expansion	1 x PCIe x16 (Gen3) 1 x Full-size Mini-PCIe (PCIe x1 & USB 2.0 signal) 2 x PCIe golden nger expansion for Axiomtek Gaming I/O Module
Storage	3 x SATA 6Gb/s
Security	Onboard TPM 2.0 Axiomtek TrustedBoot for BIOS security boot
Power Input	DC +12V Input, ± 5%
Dimensions	170 mm x 170 mm
Operating Temperature	0°C to 60°C (32 °F to 140 °F)
Humidity	10% to 90%, non-condensing
OS	Windows® 10 Enterprise & IoT Enterprise, 64-bit
Software	SAS 6.02 COM port driver provided (via Gaming I/O module)

GMB830-Q370 (P/N-E38V830105)
8th/9th Gen Intel® Core™ Mini-ITX board with Q370 PCH, 3 x DP++, 2 x GbE, 6 x COM, 8 x USB, 12V DC-in
GMB830-H310 (P/N-E38V830104)
8th/9th Gen Intel® Core™ Mini-ITX board with H310 PCH, 3 x DP++, 2 x GbE, 6 x COM, 8 x USB, 12V DC-in
5078V820000E
LGA1151/1200 cooler kit, 2U chassis compatible, 65W
E9C900C000
LGA1151/1200 cooler kit, 1U chassis compatible, 35W
59403208000E
SATA cable 180D to 180D with lock L=20cm-UL
590000001800
SATA+power cable 7+15P female 180° and housing pitch 2.54mm 1x 4P, L=45cm
594Q8302100E
COMPort cable, DB9 male x 3, PHD4 x 2P, L=30cm
594Q8302110E
COMPort cable, DB9 male, PHD5 x 2P, L=30cm
594Q3002800E
USB2.0 cable HS2 x 5P P2.0/USB x 2 stack AF 20cm
