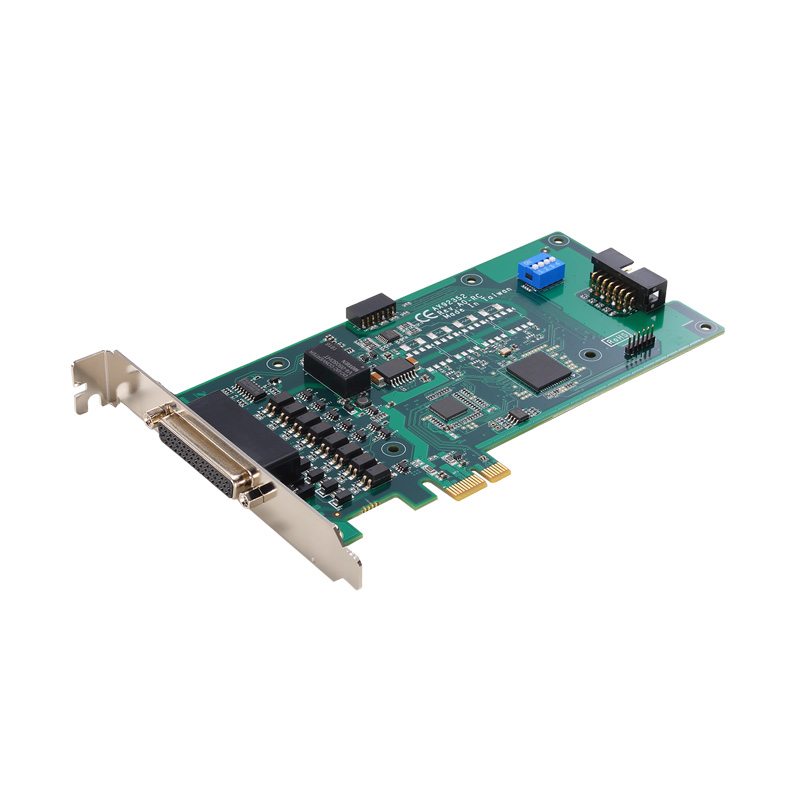

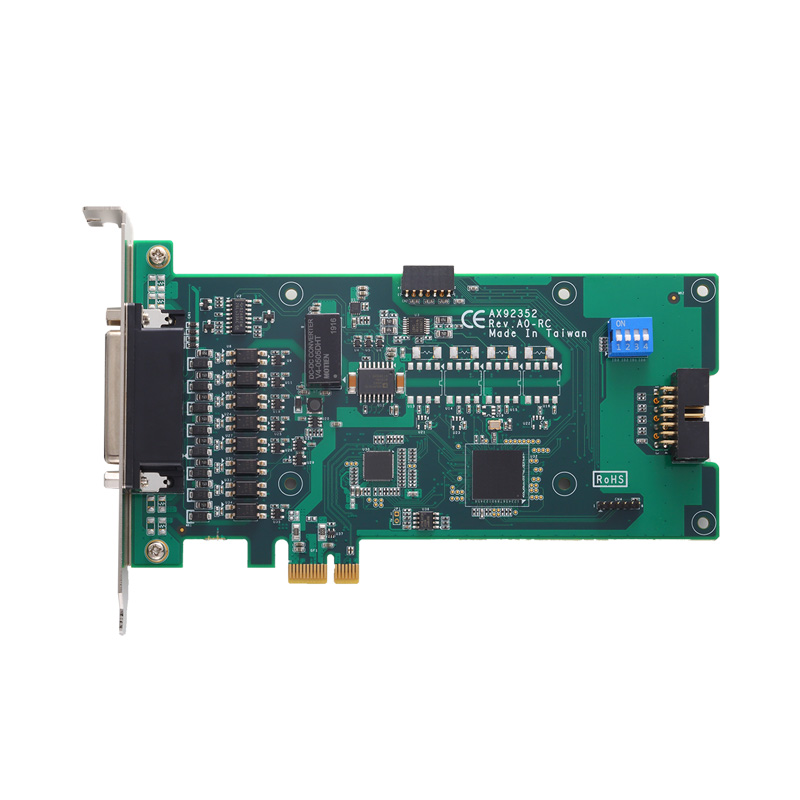

AX92352

產品階段 : 供應中

2-CH Encoder Card with Real-Time Trigger I/O

產品特色

Synchronizes devices via real-time I/O
Applied to area scan and line scan applications
Integrates multiple I/O
2-CH 32-bit incremental quadrature encoder input
4-CH trigger input
4-CH trigger output
8-CH isolated DI, 8-CH isolated DO
Programmable interrupt functions
PCI Express x1 compliant

Bus Type	PCI Express x1
Connector	2-CH 32-bit incremental quadrature encoder input 4-CH trigger input 4-CH trigger output 8-CH isolated DI, 8-CH isolated DO
Power Connector	N/A
Power Requirements	180mA @ +3.3V (Max.) 120mA @ +12V (Max.)
Operating Temperature	0°C to +70°C (32°F to +158°F)
Relative Humidity	10 to 95% RH, non-condensing
Dimensions	168 x 100 mm
Certifications	CE
Software	C#, C/C++
OS	Windows® 7/Windows® 10 (32/64bit)

AX92352 (P/N-E392352102)
AX92352 Vision I/O card with encoder
AX92353 (P/N-E392353100)
4-CH lighting control module (this optional module cannot be operated independently, please apply with AX92352)
5A244AP1200E
44-pin DIN-rail terminal board DM44-AP12
594DM443500E
44-pin D-SUB cable, L=1m WHDM44/1.0-6954
594DM443510E
44-pin D-SUB cable, L=2m WHDM44/2.0-6954
594DM443520E
44-pin D-SUB cable, L=3m WHDM44/3.0-6954

日期	說明	版本	下載檔案
2020/06/09	Driver and SDK	VA1.2

日期	說明	版本	下載檔案
2020/06/09	User Manual	VA1
