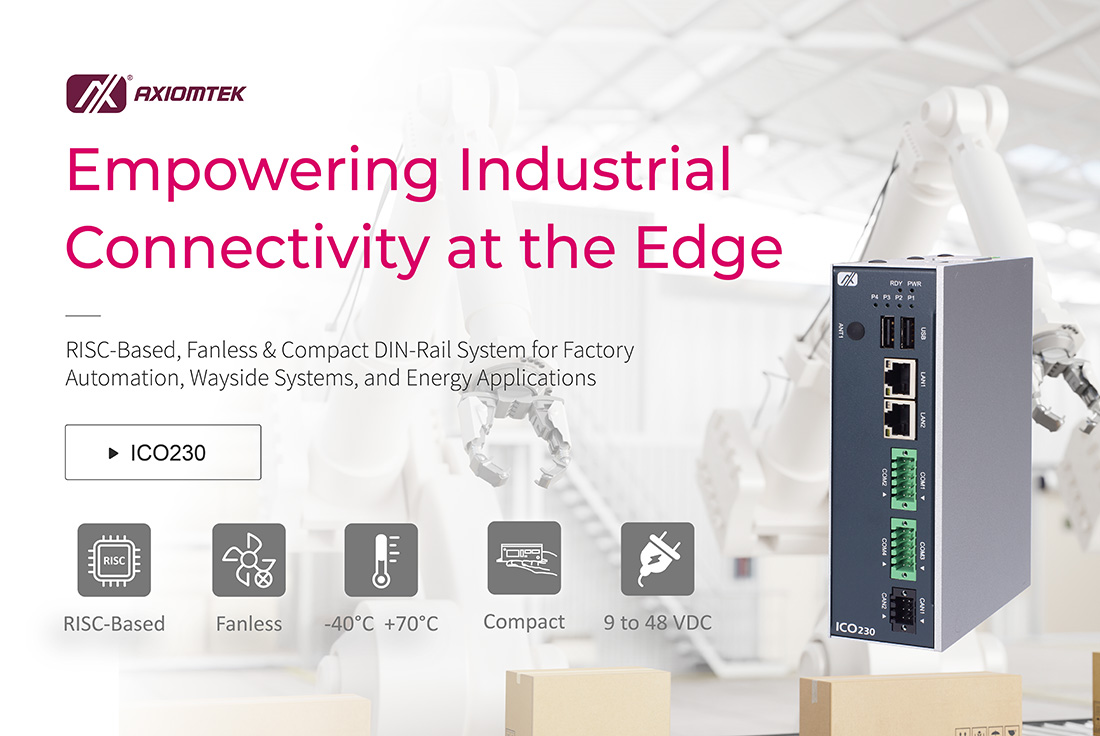

Axiomtek, a world-renowned leader relentlessly devoted to the research, development, and manufacture of innovative, highly efficient, and reliable industrial computer products, is proud to announce the release of the ICO230, a robust, fanless RISC-based embedded system purpose-built for demanding applications in factory automation, transportation wayside systems, and renewable energy. Powered by the NXP i.MX 8M-Plus processor, the rugged ICO230 delivers reliable edge communication and gateway functionalities with minimal power consumption, enabling efficient and cost-effective operation in remote and demanding environments.
NXP i.MX 8M-Plus Processor
This efficient processor architecture provides robust computing capabilities while ensuring low power consumption, a critical factor for remote and energy-sensitive applications. Also, the strong parallel processing capability of RISC allows multiple instructions to be executed simultaneously at different stages.
Extended Connectivity Options
The ICO230 features four isolated COM ports, two isolated CAN FD ports, and two Ethernet ports with 1.5 KV magnetic isolation, ensuring reliable communication and data integrity while minimizing electrical noise and interference in industrial environments. It also has two USB 2.0 ports and one HDMI port for enhanced connectivity and versatility.
Rugged Design for Harsh Environments
Designed for challenging conditions, the ICO230 supports a temperature range from -40°C to +70°C and accepts a wide power input range of 9 to 48 VDC, providing flexibility across different deployment scenarios. Additionally, it withstands 5 Grms of vibration.
Great Expandability for Wireless Connectivity
The ICO230 also offers extensive expandability with an M.2 Key E 2230 slot for Wi-Fi/Bluetooth and a full-size PCIe Mini Card slot for LTE, plus an externally accessible SIM socket for simplified installation and maintenance.
Improved Performance and Storage Efficiency
The ICO230 comes with 2GB LPDDR4 onboard memory and 16GB eMMC onboard storage, enhancing overall system performance and data management.
Compact and Cost-Effective Design
With its fanless DIN-rail form factor, the ICO230 is optimized for easy installation in space-constrained environments such as sealed cabinets. Its sturdy aluminium and steel construction, combined with IP40-rated protection, makes it highly durable while maintaining a compact footprint.
“Axiomtek’s ICO230 is engineered to address the unique challenges of today’s edge computing needs in industrial environments. Its low-power architecture, extensive connectivity options, and rugged design make it a compact yet powerful solution for IoT and Industry 4.0 applications, particularly in automation, wayside systems, and energy sectors.”
— Kevin Hsiao, Product Manager, Axiomtek
Advanced Features of ICO230
- Fanless design
- NXP i.MX8M Plus Cortex® A53 processor
- 2GB LPDDR4 onboard
- 16GB eMMC onboard
- Isolated COM and CAN FD ports
- 9 to 48 VDC wide range power input with terminal block
- Wide operating temperature range from -40°C to +70°C
Download PDF
Axiomtek’s industrial-grade DIN-rail RISC-based embedded system ICO230 is now available. For more product information or customization services, please visit our global website at www.axiomtek.com or contact one of our sales representatives at info@axiomtek.com.tw.
