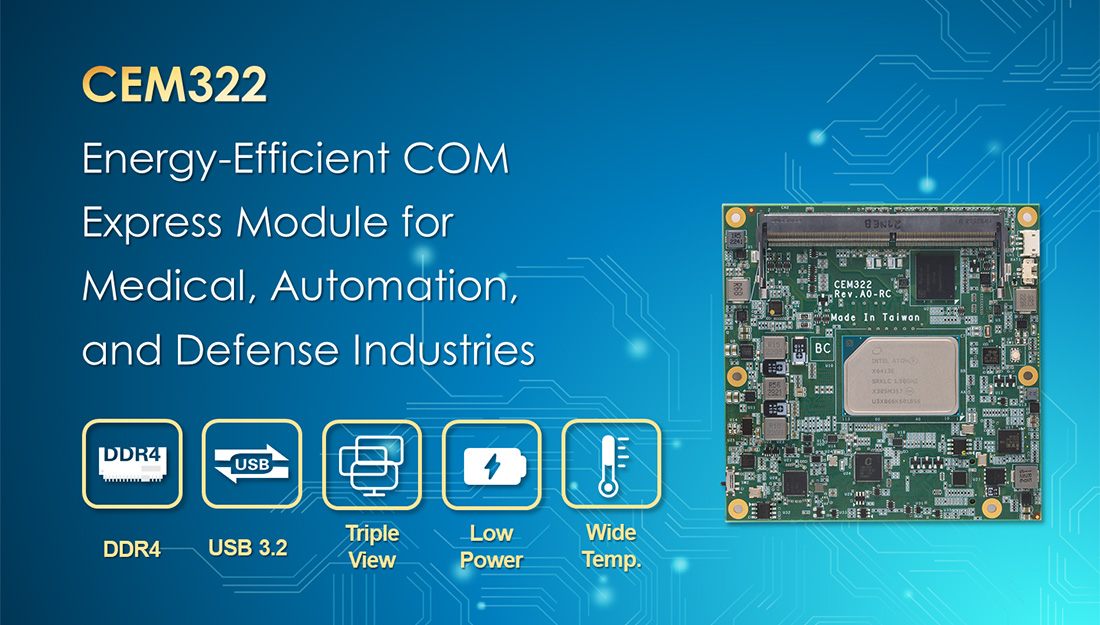

Axiomtek, a world-renowned leader relentlessly devoted to the research, development, and manufacture of innovative, highly efficient, and reliable industrial computer products, is pleased to introduce its latest COM Express Type 6 Compact Module, the CEM322. Built for high reliability, the CEM322 is fully compatible with standard COM Express carrier boards for easy integration and deployment. With AXEAPI 3.0 support, the module provides easy access to hardware monitoring, watchdog timers, and DIO control in an OS environment. Perfectly suited for medical, automation, and defense industries, this module is ready to meet the challenges of complex systems with ease.
“Axiomtek’s CEM322 is designed to meet the PICMG R3.0 COMe module standards, ensuring exceptional compatibility and reliability across diverse applications. With BOM customization options, customers can easily adapt the module to their unique project requirements, ensuring maximum flexibility across industries. Supported by our in-house firmware team, the CEM322 enables seamless and efficient upgrades, providing quick updates without sacrificing performance. These features position the COM Express Type 6 module as a highly versatile and future-proof solution for advancing technological demands.”
— Kevin Lin, Product Manager, IDS Division, Axiomtek
This energy-efficient module supports the Intel® Pentium®, Celeron®, and Atom® x6000 series processors, along with up to 32GB of dual-channel DDR4-3200 SO-DIMM memory, enabling seamless multitasking and exceptional performance. It also features up to six PCI Express lanes, two SATA Gen3 interfaces, and versatile connectivity options, all engineered to deliver outstanding performance, versatility, and reliability for demanding applications.
The CEM322 is equipped with Intel® Gen11 Graphics Engines (SoC integrated), supporting triple simultaneous displays via two DDI and one LVDS output. It offers a versatile range of I/O options, including five PCIe x1, six PCIe x1 (optional by removing the 2.5GbE), two USB 3.2 Gen1, eight USB 2.0, one 2.5GbE LAN with Intel® I226 support, two SATA Gen3, HD Codec audio, one LPC, one SPI, two TX/RX, and a 4-channel GPIO. Additionally, it offers optional eMMC 5.1 storage of up to 64GB, catering to diverse storage requirements. These features provide exceptional connectivity and adaptability for diverse applications.
Engineered for versatility, the CEM322 supports ATX (+12V, +5VSB) and AT (+12V) power configurations, ensuring seamless integration into various systems. Built to thrive in demanding environments, it operates across a broad temperature range of -40°C to +85°C (industrial-grade) or 0°C to +60°C (standard-grade). To boost performance and security, the CEM322 includes advanced features such as a watchdog timer, hardware monitoring, and TPM 2.0, delivering robust security and consistent performance even in the harshest conditions.
Advanced Features of CEM322
- Intel® Pentium®/Celeron® or Atom® x6000 series processors
- Dual-channel DDR4-3200 SO-DIMM, up to 32GB
- Up to 6 PCI Express lanes
- 2 SATA Gen3, 2 USB 3.2 Gen1, and 8 USB 2.0
- Optional 64GB eMMC 5.1 storage
- TPM 2.0 for enhanced security
Download PDF
The COM Express Type 6 Compact module CEM322 is available now. For more product information or pricing, please visit our global website at www.axiomtek.com or contact one of our sales representatives at info@axiomtek.com.tw.
