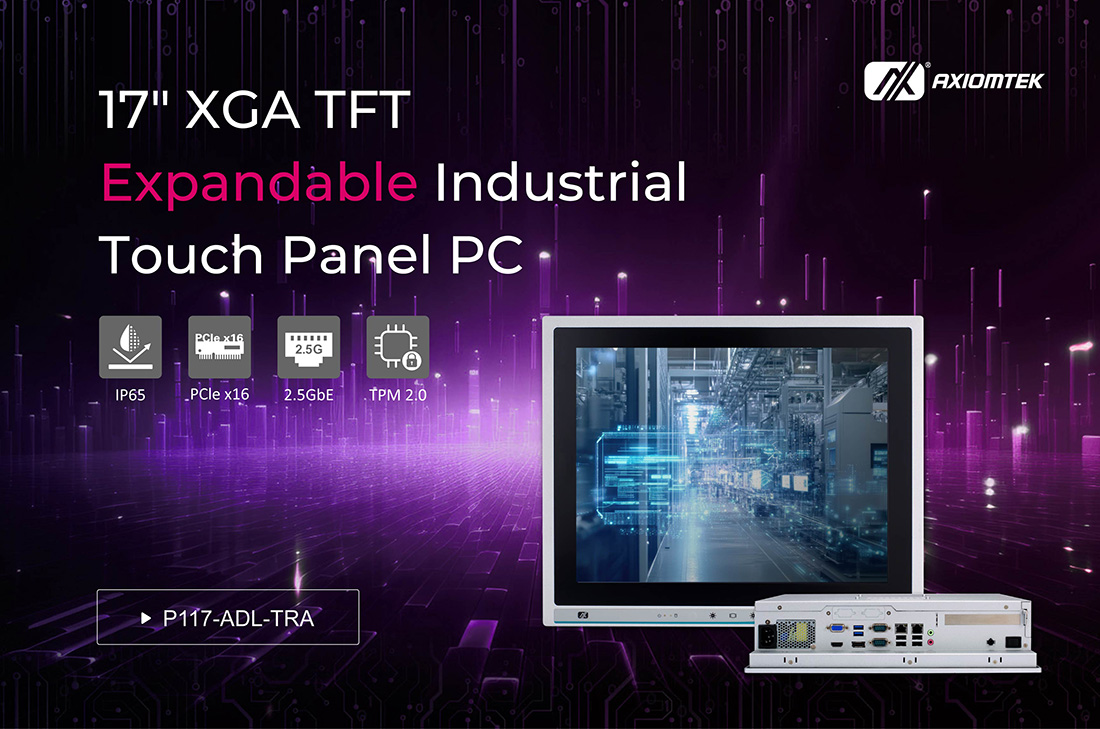

Axiomtek – a world-renowned leader relentlessly devoted to the research, development, and manufacture of innovative, highly efficient, and reliable industrial computer products – is excited to announce its newest 17-inch industrial touch panel PC, the P117-ADL-TRA, designed for demanding applications in multimedia kiosks, heavy-duty industries, and factory automation. Powered by scalable 13th/12th Gen Intel® Core™ i7/i5/i3 or Pentium® processors with the Intel® H610 chipset, this rugged panel PC delivers outstanding performance and flexibility. Its 17-inch XGA TFT LCD display with a 5-wire resistive touchscreen and 250 nits of brightness provides clear visuals and an enhanced user experience. Equipped with a PCIe x16 slot, this all-in-one solution supports AI accelerator, vision, motion, and various add-on I/O cards, providing enhanced connectivity and versatile functionality. Built for durability in harsh environments, this IP65-rated HMI can be confidently deployed in challenging industrial conditions to effectively support critical operations.
"The P117-ADL-TRA is designed for easy maintenance, featuring a convenient two-screw back chassis that allows quick access and reduces downtime during servicing. Additionally, this robust all-in-one panel computer adopts an IP65-rated front bezel, ensuring robustness against water and dust in harsh environments,” said Zoey Chang, a product manager of the Product PM Division at Axiomtek. “It also has one PCIe x16 slot for integration with various add-on cards. This flexibility enables users to customize the system with additional graphics cards, network interface cards, or specialized I/O cards, catering to specific application needs and future upgrades."
The P117-ADL-TRA is equipped with dual 260-pin DDR4-3200/2666/2400 SO-DIMM slots, supporting up to 64GB of system memory. For versatile storage needs, it offers a 2.5” SATA HDD/SATA slot (available upon request). The panel PC includes a wide range of I/O interfaces, such as two USB 3.2 Gen1 ports, four USB 2.0 ports, one RS-232 port, one RS-232/422/485 port, one GbE LAN port (Intel® I219-V), one 2.5GbE LAN port, one audio (Mic-in/Line-out), and a remote power switch. Ideal for multimedia applications, the P117-ADL-TRA delivers seamless display capabilities with one VGA, one HDMI, and one DisplayPort. Additionally, it features a flexible I/O window for optional configurations and supports an optional WLAN module and antenna for wireless connectivity.
The P117-ADL-TRA has a wide operating temperature range of 0°C to +45°C. To ensure this Intel® Core™-based touch panel PC can be integrated into different settings, it can be mounted using a panel, VESA, or wall mount kit. It supports various operating systems including Windows® 11 and Windows® 11 IoT.
Advanced Features of P117-ADL-TRA
- 17" XGA LCD with 5-wire resistive touch and 250 nits of brightness
- HDMI, DisplayPort, and VGA outputs support dual-display functionality
- One PCIe x16 slot for expansion
- WLAN module & antenna (optional)
- TPM 2.0 onboard
- Panel/VESA/wall mount kit
- 0°C to 45°C operating temperature
Download PDF
The P117-ADL-TRA industrial touch panel PC is available now. For more product information or pricing, please visit our global website at www.axiomtek.com or contact one of our sales representatives at info@axiomtek.com.tw.
