Smarter and Safer Fleets
Fleet management is no longer just for major operators; companies of all sizes are embracing this advancing technology. According to MarketsandMarkets, the fleet management market is projected to grow at a CAGR of 14.2% through 2028. The benefits are clear: fleet management systems can maximize efficiency, reduce costs, and improve productivity. With the adoption of new technologies, fleet management can also significantly enhance safety.
Computer vision, video analytics, and IoT enable real-world applications such as driver behavior management, fatigue monitoring, and blind spot detection. Video footage captured onboard can be analyzed locally and sent to control centers for further optimization. This comprehensive approach ensures fleets operate more safely and efficiently, providing tangible benefits for businesses of all sizes.

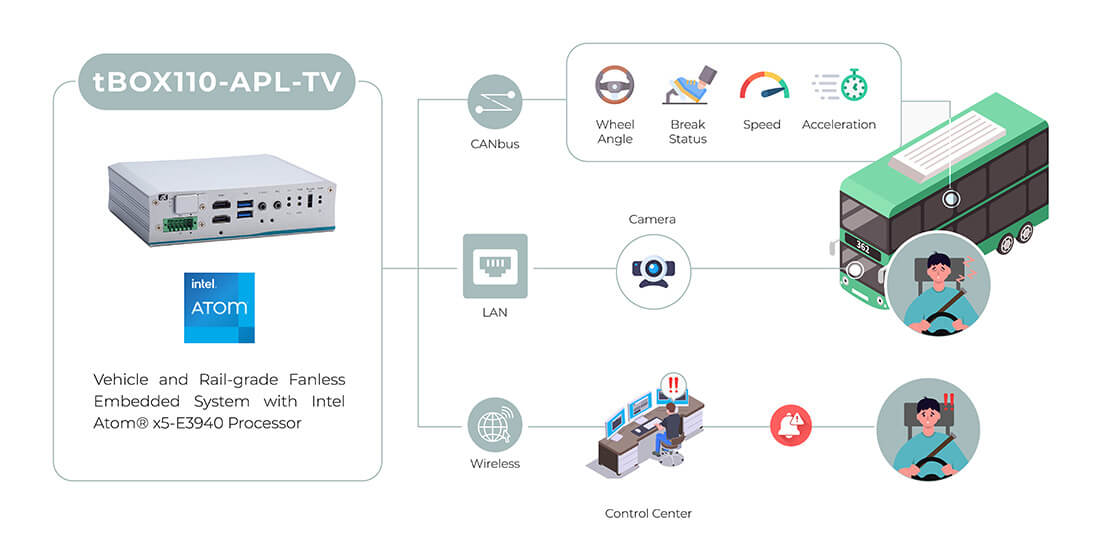

tBOX110-APL-TV: E-Mark-Certified Fanless Embedded System Designed for Vehicles
Rugged Design for Onboard Use
The tBOX110-APL-TV is specifically designed for vehicle and railway applications. To ensure stable onboard operation, it features a wide operating temperature range of -40°C to +70°C and a wide power input range from 9 to 36 VDC. It also includes Smart Ignition for safe shutdown and vehicle battery protection.
Compact with Rich I/O
Measuring only 16.4 cm x 12.8 cm x 4.4 cm, the tBOX110-APL-TV fits seamlessly into space-constrained environments. For greater deployment and integration flexibility, it offers extensive I/O options, including 2 x isolated CAN bus, 2 x LAN, 2 x COM, and 2 x HDMI.
Energy and Cost Effectiveness
Powered by the Intel® Atom® x5-E3940 with a TDP of less than 10W, the tBOX110-APL-TV is designed for energy and cost efficiency. This fanless embedded gateway enables customers to quickly deploy new onboard applications while minimizing budget and resource consumption.

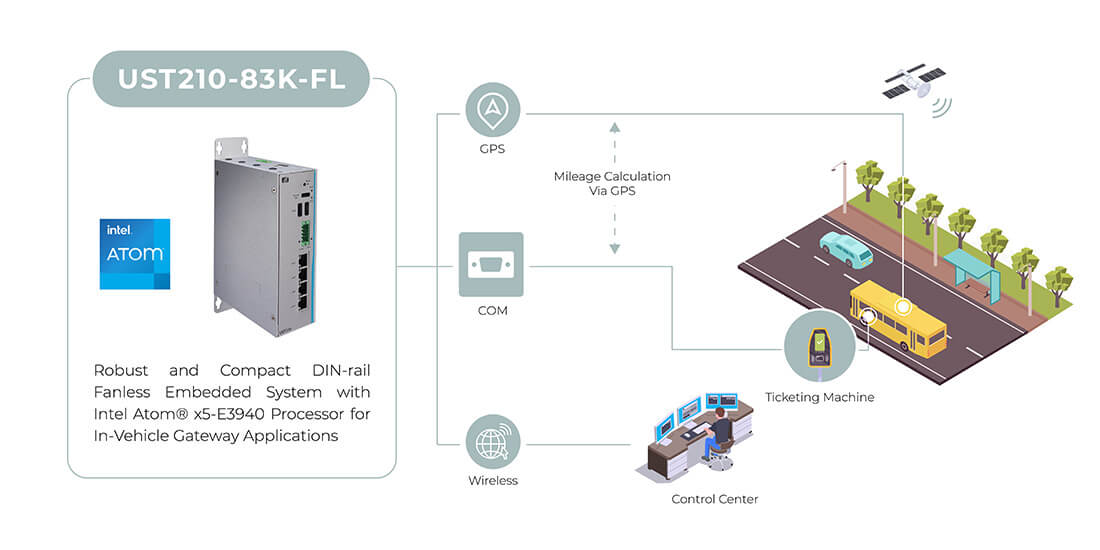

UST210-83K-FL: Compact and Fanless In-Vehicle Embedded System for Real-Time Fleet Management
Great Expandability for GPS and Wireless Connectivity
The UST210-83K-FL is equipped with one full-size PCI Express Mini Card slot and one half-size Mini Card slot, enabling seamless integration with GNSS or GPS cards for reliable, continuous wireless connectivity. This ensures real-time updates on vehicle locations, facilitating precise monitoring and efficient route optimization.
Reliable Connectivity with Versatile I/O Ports
The UST210-83K-FL provides versatile I/O options, including two USB 3.0 ports, one HDMI output, four LAN ports, and up to two COM ports, enabling seamless data transmission for tracking systems and ticketing machines while offering the flexibility to accommodate various customer applications.
Rugged and Reliable Design with E-Mark
Certified by E-Mark, the UST210-83K-FL includes Smart Ignition control and supports 12/24 VDC power input, ensuring stable performance while safeguarding vehicle batteries. With an extended operating temperature range from -40°C to +70°C, the system is built to deliver reliable operation even in demanding environments.

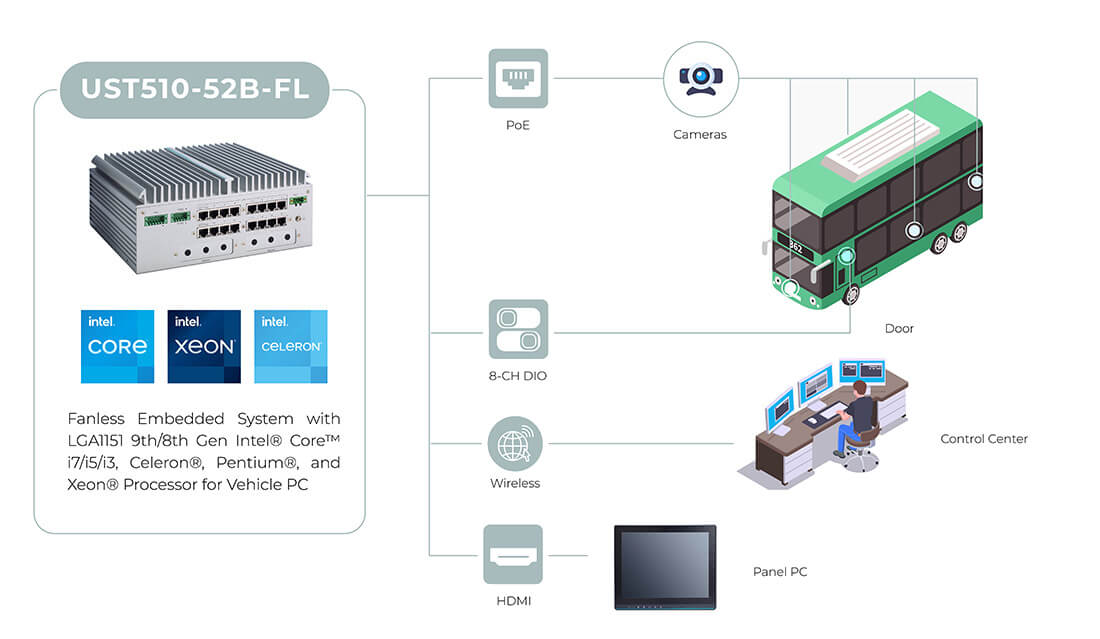

UST510-52B-FL: High-Computing Onboard Edge Computing Platform with E-Mark Certification
High-Computing Power with Generous Storage Capacity
The UST510-52B-FL is powered by an LGA1151 Intel® Xeon®, 9th/8th Gen Intel® Core™ i7/i5/i3, Celeron®, or Pentium® processor, supporting up to 65W TDP. It accommodates up to four SATA drives with software RAID 0/1/5/10 support for better fault tolerance and performance.
Flexible I/O with PoE Manager Software
The UST510-52B-FL features two flexible I/O windows to meet diverse customer needs. It supports up to 16 PoE ports, making it an excellent choice for video surveillance applications. To simplify management, Axiomtek provides AX PoE Manager software, allowing on-site monitoring of each port without system reboots.
Rugged and Reliable Design with E-Mark
The E-Mark-certified box PC operates reliably across a broad temperature range from -40°C to +70°C and withstands vibrations up to 3 Grms. Its wide power input range of 9 to 36 VDC with Smart Ignition ensures stable and safe in-vehicle operation.
