| CPU |
- LGA1700 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 or Celeron® processor (CPU TDP 35W)
|
| Chipset |
|
| System Memory |
- 1 x DDR5 SO-DIMM slot, up to 32GB
|
| BIOS |
|
| COM |
|
| USB |
|
| PoE |
- 1 x RJ-45 2.5GbE LAN (Intel® I226-IT) (Rear)

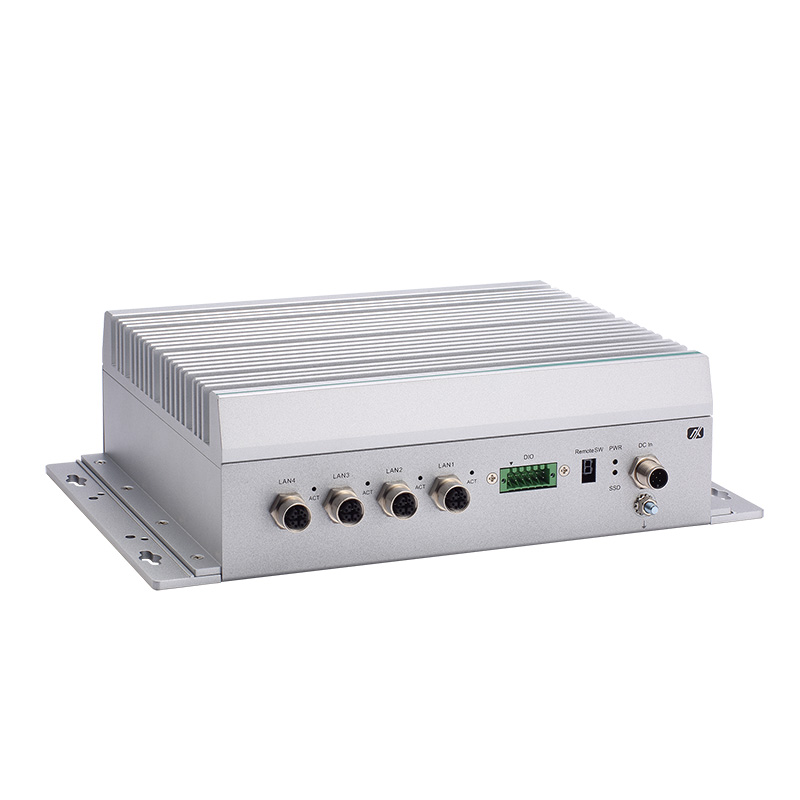

- 4 x M12 X-code 2.5GbE LAN (Intel® I226-IT) (Front)
|
| Ethernet |
|
| Display |
- 1 x HDMI Type A 1.4b (3840 x 2160 @ 30 Hz)
|
| CANbus |
|
| Digital I/O |
- 1 x terminal block isolated 6-in/2-out DIO (isolation voltage: 2 kV)
|
| Audio |
|
| Storage |
- 2 x 2.5" 15 mm swappable SATA drive with 2 SATA, Intel® RAID 0/1 supported
- 4 x 2.5" 15 mm swappable SATA drive with 4 SATA, Intel® RAID 0/1/5/10 supported
|
| TPM |
|
| Expansion |
- 1 x M.2 Key M 2280 NVMe (PCIe x4 /SATA) occupied for OS storage
- 1 x M.2 Key B 3052 for 5G/LTE (4G) (PCIe/USB 3.0)
- 1 x full-size Rev. 1.2 PCI Express Mini Card slot for LTE/Wi-Fi/Bluetooth/GPS (PCIe/USB)
- 2 x Nano SIM slot
- 1 x M.2 Key E for Wi-Fi 6/Bluetooth (PCIe/USB)
|
| Others |
- 5 x antenna opening
- 1 x remote switch
|
| Power Consumption (Max.) |
|
| Power Supply |
- Railway: 1 x M12, 24 to 110 VDC
|
| Watchdog Timer |
- 255 levels, 1 to 255 sec.
|
| Construction |
- Aluminum extrusion and heavy-duty steel, IP30-rating
|
| Operating Temperature |
- Railway: -40°C to +70°C (-40°F to +158°F) with W.T. peripheral
|
| Relative Humidity |
- 0% to 95% relative humidity, non-condensing
|
| Vibration |
- 3 Grms with SSD (5 to 500Hz, X/Y/Z direction; random, operating)
- 1 Grms with HDD (5 to 500Hz, X/Y/Z direction; random, operating)
- MIL-STD-810G, Method 514.6C-VI Category 4 compliant
- EN 50155: EN 61373 category 1 class B
|
| Shock |
- EN 61373 (IEC 61373) Category 1 Class B, half-sine pulse, 5 g, 30 ms (longitudinal), 3 g, 30 ms (vertical/transverse)
|
Dimensions
(W x D x H) |
- 2 SATA SKU: 300.6 x 182.4 x 81 mm (11.84" x 7.19" x 3.19") (Default with wall mount)
- 4 SATA SKU: 300.6 x 182.4 x 101 mm (11.84" x 7.19" x 3.98") (Default with wall mount)
|
| Weight (net/gross) |
- 2 SATA SKU: 4.2 kg (9.25 lbs)/5 kg (11.02 lbs)
- 4 SATA SKU: 4.3 kg (9.47 lbs)/5.1kg (11.24 lbs)
|
| Certifications |
- CE (Class A), LVD, FCC (Class A), EN 50155, EN 45545-2, and NFPA 130
|
| EOS Support |
- Ubuntu 22.04, Windows® 10, and Windows® 11
|
| Software Support |
|
| Mounting |
|
