NA345R

Status : Available

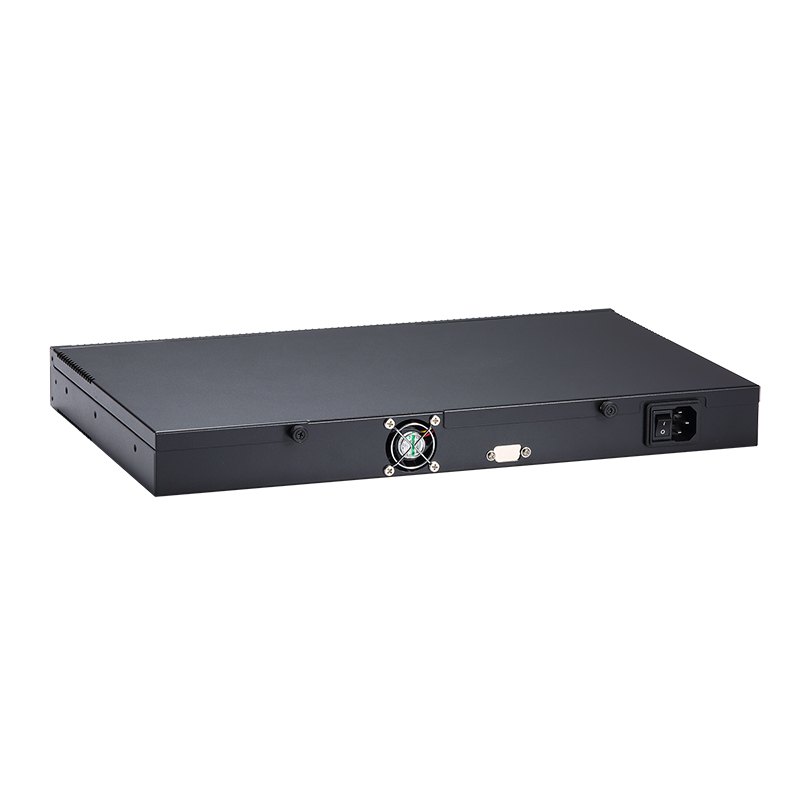

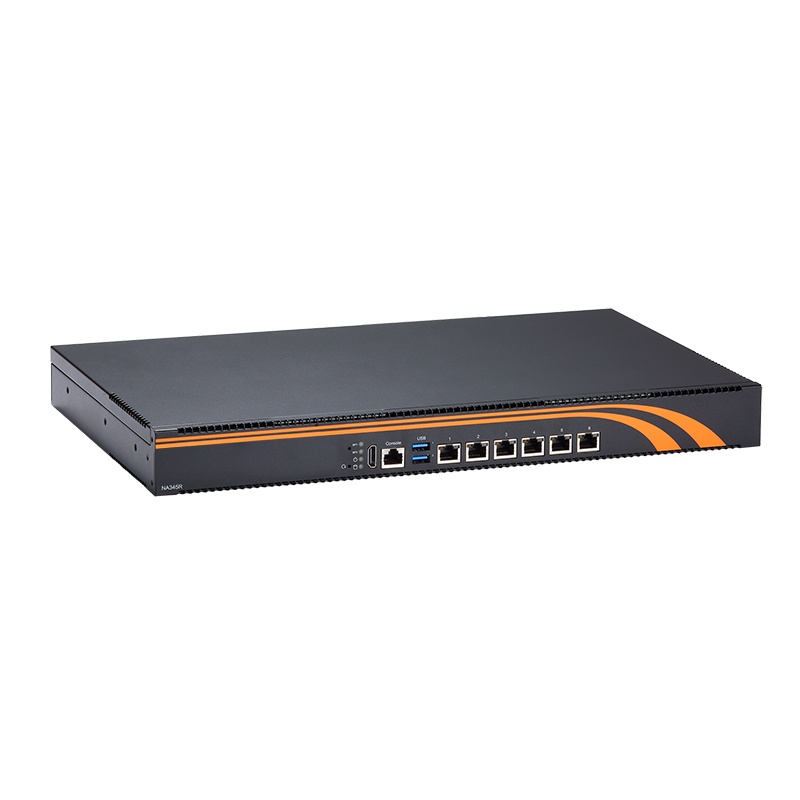

1U Rackmount Network Appliance Platform with Intel® Celeron® N3350 or Atom™ x5-E3940 Processor and 6 LANs

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
NA345R
NA345R
LAN Bypass

LAN Bypass

Low Power

Low Power

TPM

TPM

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • Intel® Celeron® N3350/J3455 processor (Apollo Lake)
  • 1 DDR3L-1866 SO-DIMM, up to 8GB memory
  • Six 10/100/1000 Mbps Ethernet ports (Intel® I211)
  • Supports one 2.5" SATA3 HDD
  • Suitable for VPN, network bandwidth controller, and firewall applications

Specifications

Form Factor
  • 1U rackmount
CPU
  • Intel® Celeron® N3350/J3455 processor (Apollo Lake)
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3L-1600 SO-DIMM, up to 8GB non-ECC memory
BIOS
  • AMI
Ethernet
  • 6 x 10/100/1000 Mbps (Intel® I210)
LAN Bypass
  • LAN Bypass function through latch relay (one pair)
LAN Module
  • N/A
Storage
  • 1 x 2.5" SATA3 HDD
  • 1 x Full-size mSATA
  • 1 x 3.5" SATA HDD (optional)
Expansion
  • N/A
I/O Interface
  • 1 x Console (RJ-type)
  • 2 x USB 3.0
  • 6 x RJ-45 GbE
  • 1 x HDMI
Power Supply
  • 65 W open frame
LCM Module
  • Optional
Watchdog Timer
  • 255 levels for system reset
  • 7 levels for LAN Bypass
Operating Temperature
  • 0°C to +45°C (+32°F to +113°F)
Dimensions
(H x W x D)
  • 44 x 430 x 250 mm (1.73" x 16.93" x 9.84")
Weight (net/gross)
  • 7 kg (15.43 lb)/8 kg (17.64 lb)
OS
  • Linux
Certifications
  • CE/FCC Class B
Others
  • Onboard TPM 1.2 (optional)

Ordering Information

  • NA345R-R6GI-N3350-US with 1 LBP (P/N-E26E345101)
    1U rackmount network appliance with Intel® Celeron® N3350 (1.10GHz 2C 6W), 6 LAN, 1 LAN Bypass (LBP), without TPM
  • NA345R-R6GI-J3455-US with 1 LBP (P/N-E26E345106)
    1U rackmount network appliance with Intel® Celeron® J3455 (2.30GHz 4C 10W), 6 LAN, and 1 LBP, without TPM
  • 5916E552000E
    DB9F-RJ-45 1.8M console cable for Cisco
  • 59906000010E
    Power cord YP-12/YC-12 (JP)
  • 59903000000E
    Power cord YP-22/YC-12 (EU)
  • 59905000000E
    Power cord YP-35/YC-12 (AU)
  • 59904010000E
    Power cord YP-61A/YC-12 (UK)

Download

Drivers

Software

Manual

Date Description Version Download File
2018/01/19 User's Manual VA2

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/01/04 FCC Verification
2023/01/04 UKCA Declaration of Conformity
2023/01/04 CE EMC Verification
2023/01/04 CE-Conformity Declaration
2020/02/15 CE LVD Verification
