AX93326

Status : Available

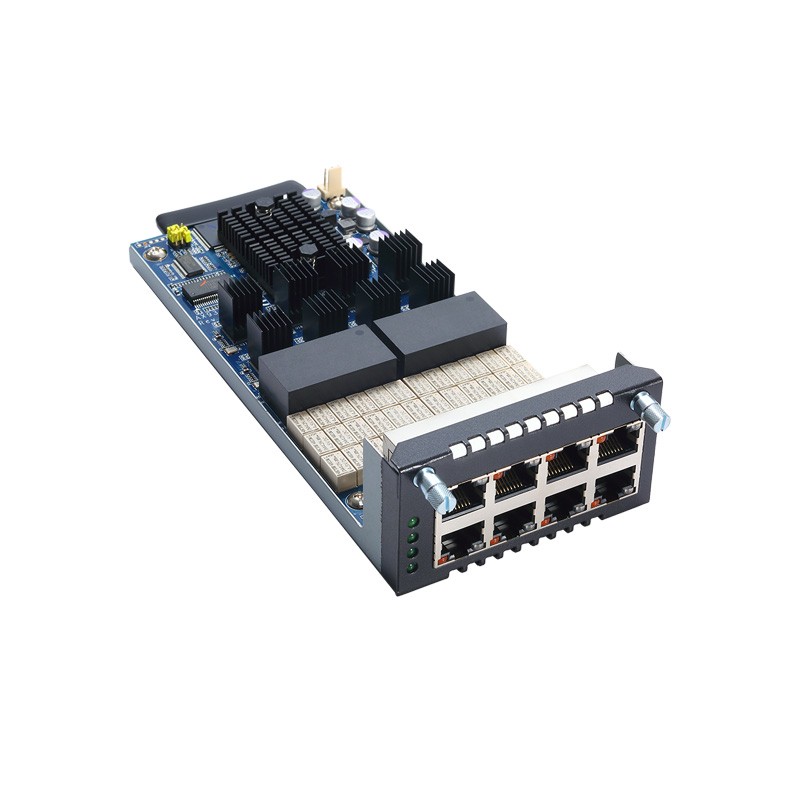

8-port LAN Module with Intel® I210-AT Ethernet Controller

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
AX93326
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • Intel® I210-AT Ethernet controller
  • Eight GbE RJ-45 ports
  • PCIe 2.0 x4 golden finger
  • Four pairs LAN Bypass (optional)
  • RoHS compliant

Specifications

Controller
  • Intel® I210-AT
Speed/Connector
  • 8 x GbE RJ-45
Interface
  • PCIe 2.0 x8
LAN Bypass
  • Optional (refer to ordering information)
Jumbo Frames
  • Yes
Virtualization
  • N/A
Acceleration
  • DPDK
Watchdog Timer
  • Yes
Available Models
  • NA361R, NA362R, NA552, NA570, NA580, NA590, NA720, NA850, NA860, NA861
Operation Temperature
  • 0°C to +40°C (+32°F to +104°F)
Humidity
  • 10% - 90% RH, non-condensing
Dimensions
  • 78.9 x 175 x 42.8 mm (3.11" x 6.89" x 1.69")

Ordering Information

  • AX93326-8GI-i210 with LAN Tray (P/N-E393326100)
    LAN module with Intel® I210, 8 copper LAN ports

Download

This object is currently under update, please visit later.
