| CPU |
- Intel® Core™ Processors Series 2 & 14th/13th/12th Gen Core™ Processor, up to 65W
|
| Chipset |
|
| System Memory |
- 2 x 262-pin DDR5 4800 ECC/non-ECC SO-DIMM, up to 96GB
|
| BIOS |
|
| COM |
- 2 x RS-232(4-wire)/422/485 (default RS-232), DB9 (by BIOS selection)
|
| USB |
- Intel® H610E:
- 2 x USB 3.2 Gen2x1 (10G) Type-A
- 2 x USB 3.2 Gen1x1 (5G) Type-A
- 1 x USB 2.0 180D Type-A (internal, up to 30 mm)
- Intel® R680E:
- 4 x USB 3.2 Gen2x1 (10G) Type-A
- 1 x USB 2.0 180D Type-A (internal, up to 30 mm)
|
| Ethernet |
- 2 x RJ-45 2.5GbE LAN (Intel® I226-V)
- 1 x RJ-45 GbE LAN (Intel® I219-LM); with Intel® AMT (R680E)
|
| Display |
- 1 x DisplayPort++ 1.2 with 4096 x 2160 resolution supported
- 1 x HDMI 1.4b with 4096 x 2160 resolution supported
|
| Digital I/O |
|
| Audio |
|
| Storage |
- 2 x 2.5" HDD/SSD bay (7/9.5 mm height) supporting RAID 0,1 (R680E)
- 1 x M.2 Key M 2280 socket (PCIe x4)
|
| Expansion |
- 1 x Full-size PCI Express Mini Card socket (USB & PCIe interface) with SIM slot
- 1 x M.2 Key E 2230 socket
- 1 x PCIe x16 Gen3 slot (up to 150W power for add-in card)
|
| Others |
- TPM 2.0
- 1 x HDD/SSD access LED
- 3 x User's LED
|
| Power |
- Input: 18VDC-36VDC
- 1 x 3-pin terminal block for DC input, ignition control, and AT/ATX mode by BIOS setting
- 1 x Power on/off button with LED (default ATX)
- 1 x Remote power switch
|
| Vibration |
- IEC 60068-2-64 (with SSD: 3Grms, random, 5 to 500 Hz, IPC920-H-F1, IPC920-R-F1)
- IEC 60068-2-64 (with SSD: 1Grms, random, 5 to 500 Hz, IPC920-R-F1E)
- MIL-STD-810H, Method 514.8, and Category 20 (IPC920-H-F1, IPC920-R-F1, IPC920-R-F1)
|
| Shock |
- IEC 60068-2-27 (with SSD: 50G, half sine, 11ms duration)
- MIL-STD-810H, Method 516.8, Procedure I
|
| Construction |
- Aluminum extrusion heavy-duty cold-rolled steel
|
| IP Rating |
- IP40 with connector cables installed
|
| Operating Temperature |
- -20°C to +60°C with 14th/13th/12th Gen Intel® Core™ processor and industrial wide temperature SSD, 0.7m/s airflow
|
| Relative Humidity |
- 10% to 90% relative humidity, non-condensing
|
Dimensions
(W x H x D) |

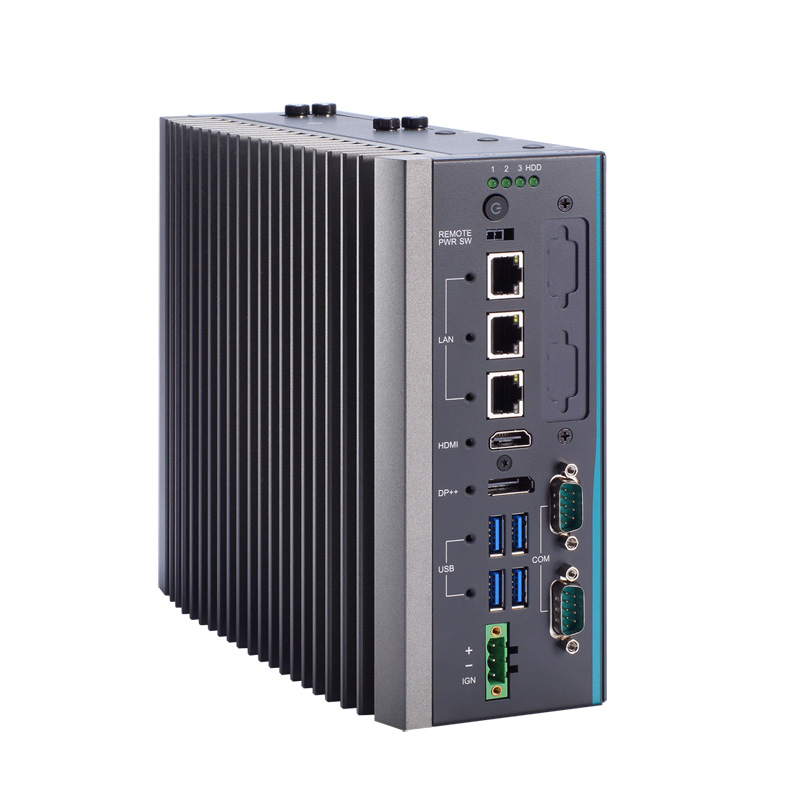

- IPC920-H-F1, IPC920-R-F1: 83.5 x 192 x 230 mm (3.29" x 7.56" x 9.06")

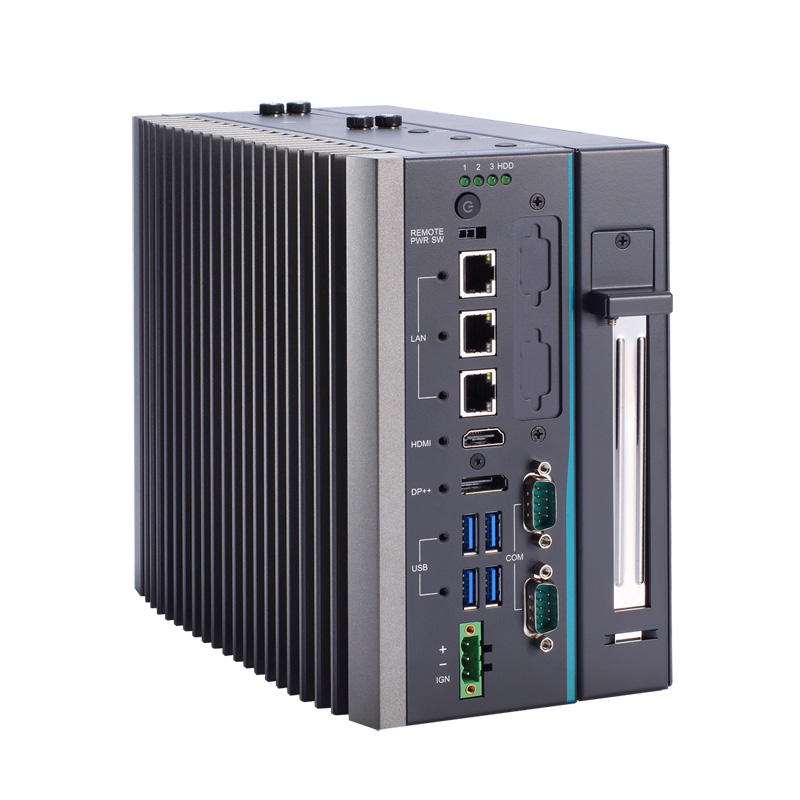

- IPC920-R-F1E: 118.5 x 192 x 230 mm (4.67" x 7.56" x 9.06")
|
| Weight (net/gross) |
- IPC920-H-F1, IPC920-R-F1: 3.2 kg (7.06 lb)/4.9 kg (10.80 lb)
- IPC920-R-F1E: 3.7 kg (8.16 lb)/5.4 kg (11.91 lb)
|
| EOS Support |
- Win 10, Win 11, Win 10 IoT, Win 11 IoT, and Linux OS
|
| Software Support |
|
| Certifications |
- CE (EN 61000-6-4/EN 61000-6-2), FCC
|
