AX61400

Status : Available

4U 14-slot Rackmount Chassis

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
AX61400
AX61400
AX61400
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Three 5.25" and max. two 3.5" HDD drive bays
  • One 12cm ball-bearing fan
  • Supports 14-slot backplane or ATX MB
  • Single PS/2 size power supply supported

Specifications

Height
  • 4U
Expansion
  • 14-slot
Drive Bay
  • 3 x 5.25" HDD drive bay
  • 2 x 3.5" HDD drive bay
Cooling System
  • 1 x 12 cm ball-bearing fan (78 CFM/each) with a removable filter
System Board
  • SBCs
  • 12" x 9.6" ATX or IMB motherboard
Backplane Options
  • FAB100, FAB101, FAB112, FAB113, FAB114, FAB118, FAB119
  • ATX6022/14, ATX6022/14G, ATX6022/13L, ATX6022/14GP7
I/O Interface
  • 2 x USB
  • 1 x PS/2 mini-din keyboard
  • 1 x 0.4W speaker
Front Panel Indicators
  • 1 x power on/off
  • 1 x HDD
Front Panel Controls
  • 1 x power on/off
  • 1 x system reset
Power
  • PS/2 type
Operating Temperature
  • 0°C ~ +40°C (+32°F ~ +104°F)
Dimensions
(W x D x H)
  • 482.6 x 450 x 177 mm (19" x 17.7" x7")
Weight (net/gross)
  • 15 kg (33.07 lb)/16.3 kg (35.94 lb)
Certifications
  • CE

Ordering Information

  • AX61400T(W)B/X400
    14-slot version, with one 12 cm fan, ATX 400W power supply
  • AX61400T(W)B/X300
    14-slot version, with one 12 cm fan, ATX 300W power supply
  • AX61400T(W)M/X400
    MB version, with one 12 cm fan, ATX 400W power supply
  • AX61400T(W)M/X300
    MB version, with one 12 cm fan, ATX 300W power supply

Download

Drivers

Software

Manual

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/11/21 CE-Conformity Declaration
2023/11/21 UKCA Declaration of Conformity

You Might Also Like

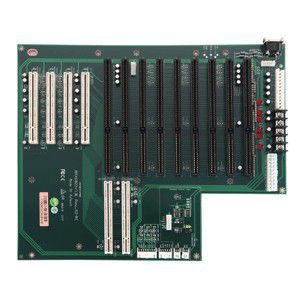

Picture of ATX6022/13L
