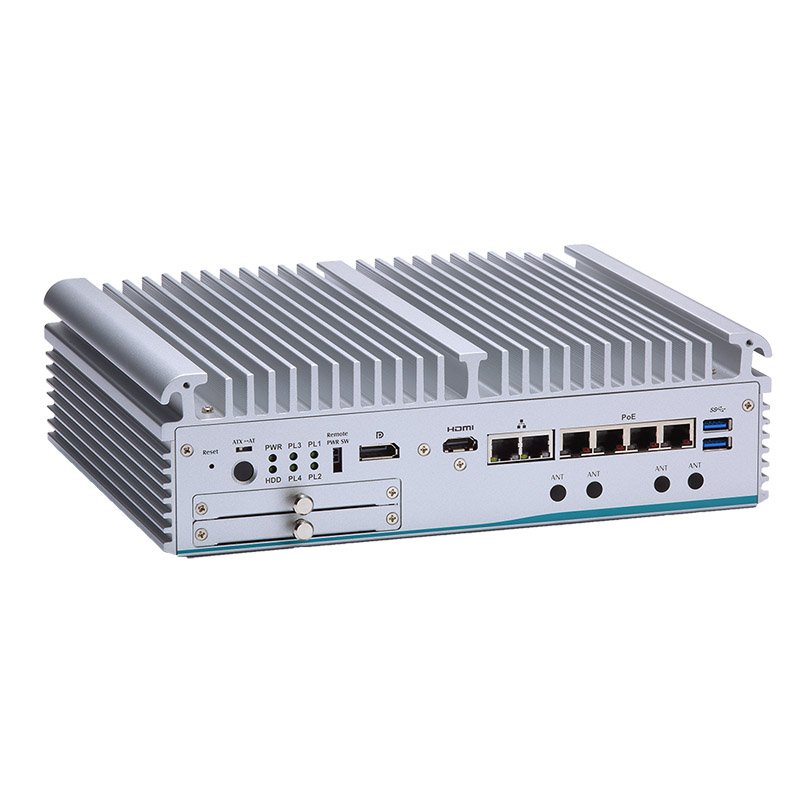

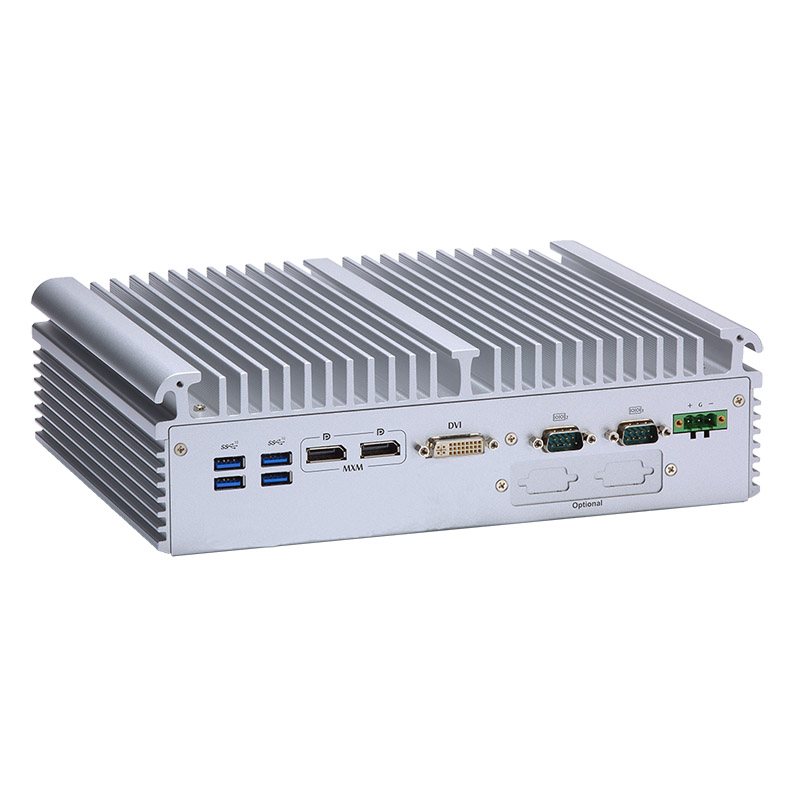

eBOX671-521-FL

Status : Available

Fanless Embedded System with LGA1151 9th/8th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor, 4-CH PoE, and MXM 3.1 Type A

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
eBOX671-521-FL
eBOX671-521-FL
Fanless

Fanless

MXM

MXM

PoE

PoE

Triple-View

Triple-View

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • 9th/8th gen Intel® Core™ i7/i5/i3 & Celeron® with Intel® Q370 chipset
  • 4-CH PoE (IEEE802.3at compliance)
  • Dual swappable 2.5" SATA HDD drive bays with RAID 0 &1
  • Supports MXM 3.1 type A graphics module (optional)
  • DVI-I, HDMI, and DisplayPort with triple-view supported
  • ECC memory supported by optional Intel® C246 (Intel® Core™ i3 & Celeron®)

Specifications

CPU
  • LGA1151 9th gen Intel® Core™ i7/i5/i3 & Celeron® processors (35W)
  • LGA1151 8th gen Intel® Core™ i7/i5/i3 & Celeron® processors (35W/65W)
Chipset
  • Intel® Q370
  • Intel® C246 (optional)
System Memory
  • 2 x 260-pin DDR4-2666 SO-DIMM, up to 64GB (ECC supported by Intel® C246 PCH)
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
USB
  • 4 x USB 3.1 Gen2
  • 2 x USB 3.1 Gen1
Ethernet/PoE
  • 2 x 10/100/1000 Mbps (Intel® i210-IT & i219-LM)
  • 4 x Power over Ethernet (IEEE802.3at), up to 60W
Display
  • 2 x DisplayPort via optional MXM kit
  • 1 x HDMI
  • 1 x DisplayPort
  • 1 x DVI-I
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • 2 x 2.5" HDD drive bay (max. up 9.5 mm height)
  • 1 x mSATA (enabled in BIOS setting)
Expansion
  • 2 x Full-size PCI Express Mini Card slot (USB + PCIe signal)
  • 2 x SIM slot
  • 1 x MXM3.1 type A connector
Others
  • 1 x Flexible I/O window (Default : 2 x DB9 half cut bracket)
  • 4 x SMA-type antenna connector
  • TPM 2.0
Power
  • 24 VDC
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • Without MXM module:
  • -40°C to +60°C (-40°F to +140°F) (with W.T. DRAM & SSD, CPU TDP 35W)
  • -40°C to +50°C (-40°F to +122°F) (with W.T. DRAM & SSD, CPU TDP 65W)
  • With MXM module:
  • -40°C to +50°C (-40°F to +122°F) (with W.T. DRAM & SSD & MXM Kit, CPU TDP 35W)
Relative Humidity
  • 10% to 90%, non-condensing
Shock
  • IEC 60068-2-27 (w/ SSD: 50G, half-sine, 11 ms duration)
Vibration
  • IEC 60068-2-64 (w/ SSD: 3Grms STD, random, 5 - 500 Hz, 1 hr/axis)
Dimensions
(W x D x H)
  • 280 x 210 x 80.5 mm (11.02" x 8.26" x 3.16")
Weight (net/gross)
  • 4.8 kg (10.58 lb)/5.6 kg (12.34 lb)
Certifications
  • CE, FCC Class A, UKCA
EOS Support
  • Win 10 IoT, Win 11 IoT, Linux
Mounting
  • Wall mount kit
  • DIN-rail kit
Software Support
  • N/A

Ordering Information

  • eBOX671-521-FL-DC4PoE (P/N-E36K671105)
    Fanless embedded system with LGA1151 9th/8th Gen Intel® Core™ i7/i5/i3 or Celeron® processor, Intel® Q370, DVI-I, HDMI, dual HDD, 4 PoE, 2 GbE LAN, 6 USB, 2 COM, and 24 VDC (PoE version, MXM module not supported)
  • eBOX671-521-FL-DC6GbE (P/N-E36K671106)
    Fanless embedded system with LGA1151 9th/8th Gen Intel® Core™ i7/i5/i3 or Celeron® processor, Intel® Q370, DVI-I, HDMI, dual HDD, 6 GbE LAN, 6 USB, 2 COM, and 24 VDC (GbE version, MXM module supported)
  • 2.5" SATA HDD
    80GB or above
  • 2.5" SATA SSD
    100GB or above
  • DDR4 SO-DIMM
    8GB to 32GB
  • mSATA
    64GB or above
  • E29R129104
    Wall mount kit
  • E29R129119
    DIN-rail kit
  • Wi-Fi/LTE module
  • E29R129127
    ACC129-T1000-WT (W.T. NVIDIA RTX™ T1000 MXM module)(M3T1000-PN-A)
  • E29R129128
    ACC129-T1000-STD (NVIDIA RTX™ T1000 MXM module)(M3T1000-PN)
  • 509000001500
    24V 120W power adapter
  • 50906A24000E
    24V 230W power adapter (for MXM/PoE use)
  • Power cord
  • E392903102
    AX92903 CANbus PCI Express Mini module
  • E392902103
    AX92902 LAN PCI Express Mini module
  • 590000048500
    RS-232 cable, L=200 mm for COM3/4
  • 592000000100
    DIO cable for optional 1 x 8-CH DIO (4-in/4-out)
  • E392905103
    AX92905 Audio PCI Express Mini module
  • E392918103
    AX92918 Dual LAN PCI Express Mini module

Download

Drivers

Date Description Version Download File
2023/05/09 Intel ME Driver_Windows 10 VA1.2
2023/05/09 Intel RST Driver_Windows 10 VA1.2
2023/04/12 LEDs Demo tool_Windows 11 VA1.2
2023/04/12 MXM Graphic Driver_Windows 11 VA1.2
2023/04/12 Intel RST Driver_Windows 11 VA1.2
2023/04/12 Intel ME Driver_Windows 11 VA1.2
2023/04/12 LAN Driver_Windows 11 VA1.2
2023/04/12 Audio Driver_Windows 11 VA1.2
2023/04/12 Graphic Driver_Windows 11 VA1.2
2023/04/12 Chipset Driver_Windows 11 VA1.2
2023/04/12 LEDs Demo_Windows 10 VA1.2
2023/04/12 MXM Graphic Driver_Windows 10 VA1.2
2023/04/12 LAN Driver_Windows 10 VA1.2
2023/04/12 Audio Driver_Windows 10 VA1.2
2023/04/12 Graphic Driver_Windows 10 VA1.2
2023/04/12 Chipset Driver_Windows 10 VA1.2

Software

Manual

Date Description Version Download File
2023/05/09 User Manual VA5
2023/04/12 Quick Manual VA1_05-15-2019 VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2022/07/29 UKCA Declaration of Conformity
2022/07/29 FCC Verification
2022/07/29 CE-Conformity Declaration
2022/07/29 CE EMC Verification

Frequently Asked Questions

You Might Also Like

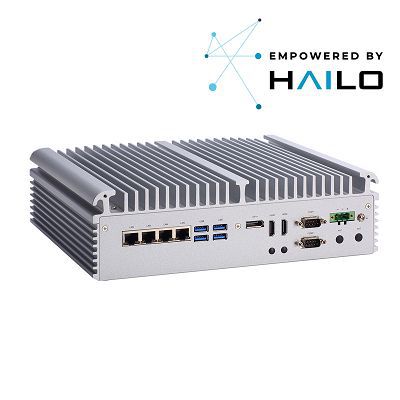

Picture of eBOX671B
