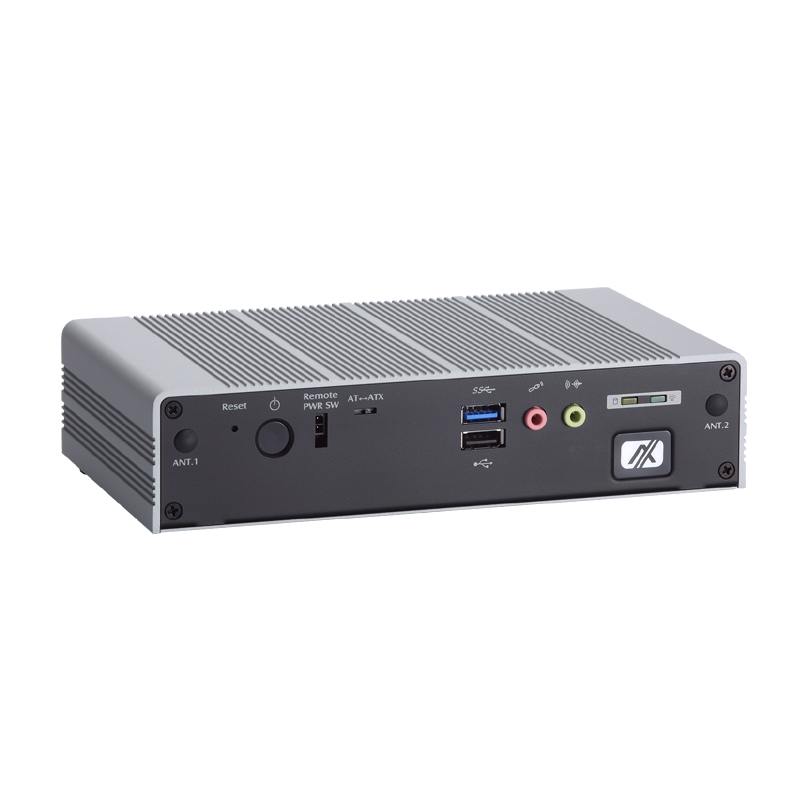

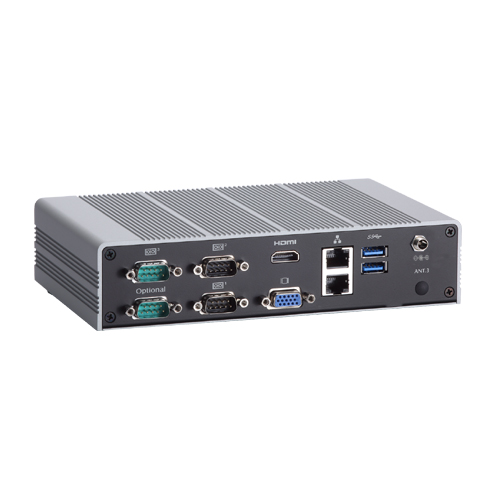

eBOX625-853-FL

Status : Available

Fanless Embedded System with Intel® Celeron® Processor N3160, VGA, HDMI, 4 COM, 2 GbE LAN, 4 USB, and 2 PCI Express Mini Card Slots

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
eBOX625-853-FL
eBOX625-853-FL
Dual-View

Dual-View

Fanless

Fanless

IP40 Rating

IP40 Rating

Low Power

Low Power

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Celeron® processor N3160 2.24 GHz (Braswell)
  • HDMI and VGA with dual-view supported
  • Supports 4 COM and 4 USB
  • 2 GbE LAN supporting WoL, Teaming, and PXE
  • 2 PCI Express Mini Card slots for WLAN/WWAN/mSATA
  • -20°C to +60°C operating temperature range
  • Intel® Virtualization Technology (Intel® VT-x)

Specifications

CPU
  • Intel® Celeron® processor N3160 2.24 GHz (2M Cache, up to 2.24 GHz)
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin DDR3L-1333/1600 SO-DIMM, up to 8GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485
  • 3 x RS-232
USB
  • 3 x USB 3.0
  • 1 x USB 2.0
Ethernet/PoE
  • 2 x 10/100/1000 Mbps Ethernet (Intel® I210-AT)
Display
  • 1 x HDMI (4K supported)
  • 1 x VGA
Digital I/O
  • N/A
Audio
  • 1 x Audio (Mic-in/Line-out)
Storage
  • 1 x 2.5” HDD drive bay (max. up 15 mm height)
  • 1 x mSATA (enabled in BIOS setting)
Expansion
  • 2 x Full-size PCI Express Mini Card slot (PCI Express + USB signal)
  • 1 x SIM slot
Others
  • 3 x Antenna opening
  • 1 x Screw type VDC power input connector
Power
  • Input: AC 90-264V, AC 36 W adapter with lock
  • Output: DC 12V@3A
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -20°C to +60°C (-4°F to +140°F) (with W.T. SSD/DRAM)
Relative Humidity
  • 10% to 95%, non-condensing
Vibration
  • 3 Grms with SSD (5 to 500Hz, X, Y, Z directions)
Shock
  • N/A
Dimensions
(W x D x H)
  • 200 x 120 x 46 mm (7.87” x 4.72” x 1.81”)
Weight (net/gross)
  • 1.2 kg (2.65 lb)/1.9 kg (4.19 lb)
Certifications
  • CE, UKCA
EOS Support
  • WES7, WE8S, Win10 IoT, Linux
Software Support
  • N/A
Mounting
  • Wall mount
  • DIN-rail
  • VESA mount

Ordering Information

  • eBOX625-853-FLDCN3160 (P/N-E36K625118)
    Fanless embedded system with Intel® Celeron® N3160, VGA, HDMI, 4 COM, 2 GbE LAN, 4 USB, and 2 PCI Express Mini Card slots
  • 2.5" SATA HDD
    64GB or above
  • 2.5" SATA SSD
    100GB or above
  • DDR3L SO-DIMM
    2GB to 8GB
  • mSATA
    64MB or above
  • E29R129100
    Wall mount kit
  • E29R129113
    VESA mount kit
  • E29R129114
    DIN-rail kit
  • Wi-Fi/LTE module
  • 50956A24030E
    Screw-type 12V 36W power adapter
  • Power cord
