eBOX570

Status : Available

Fanless Embedded System with 13th Gen Intel® Core™ i7/i5/Celeron® Processor, 2 HDMI, 2 LANs, 8 USB, 2 COM, and 12 VDC

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
eBOX570
eBOX570
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • 13th gen Intel® Core™/Celeron® processor (Raptor Lake P)
  • Wide operating temperature from -40°C to +70°C
  • 1 DDR4 SO-DIMM for up to 32GB of memory
  • 8 USB ports and 2 COM ports for enhanced I/O connectivity
  • Supports high-speed NVMe storage (M.2 Key M 2280)
  • Supports Intel® vPro and TPM 2.0
  • Ideal for AGV, AMR, and AIV robotics applications
High-performance CPU
High-performance CPU

13th Gen Intel® Core™ Processor

Rugged Design
Rugged Design

Operating temperature -40°C to +70°C

Ample Connectivity
Ample Connectivity

Up to 8 USB Ports



Enhanced Security

To enhance system integrity and efficiency, the rugged edge computing system eBOX570 supports Intel® vPro and TPM 2.0 to provide advanced security features and remote management capabilities.



Supports ROS 2 Software

The eBOX570 is designed to seamlessly integrate with ROS 2 and its ecosystem, such as image cameras and sensors. This guarantees smoother development process and improved synergy between hardware and software.



Environmentally Sustainable Design

Designed with environmental sustainability in mind, the eBOX570 utilizes lead-free components to minimize its environmental impact and ensure a greener future for generations to come. This commitment to eco-friendly practices highlights Axiomtek’s dedication to corporate social responsibility and environmental stewardship.

Wi-Fi 6E Connectivity

The eBOX570 features an M.2 Key E 2230 socket supporting PCIe and USB 2.0 for Wi-Fi 6E, along with a full-size PCI Express Mini Card slot for flexible expansion.

Wi-Fi 6E Connectivity

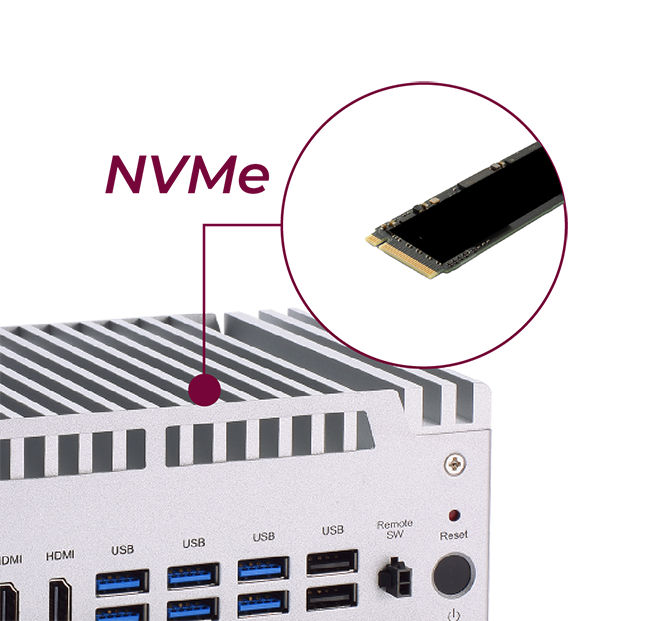

High-Speed NVMe Storage

A dedicated M.2 Key M 2280 socket supports high-speed NVMe storage, enabling fast data processing and significantly improving system performance.

High-Speed NVMe Storage

Great Expandability

  • 1 x Full-size PCI Express Mini Card slot: USB 2.0, PCIe, SIM
  • 1 x M.2 Key E 2230: Wi-Fi 6E, USB 2.0, PCIe
  • 1 x M.2 Key M 2280: NVMe PCIe x4 Gen3 or SATA (BIOS selectable)

Rich I/O Interfaces

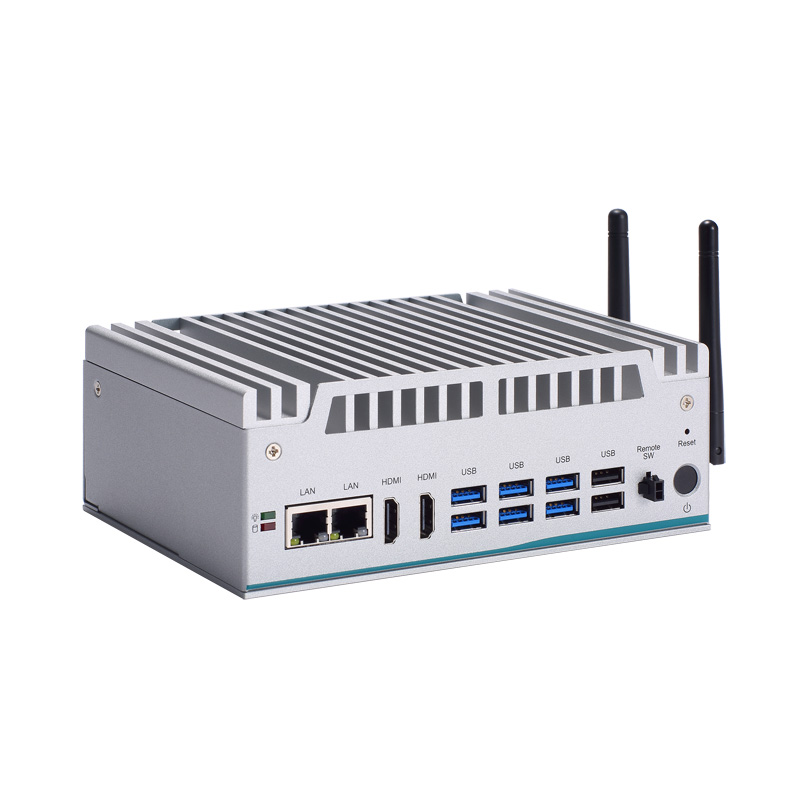

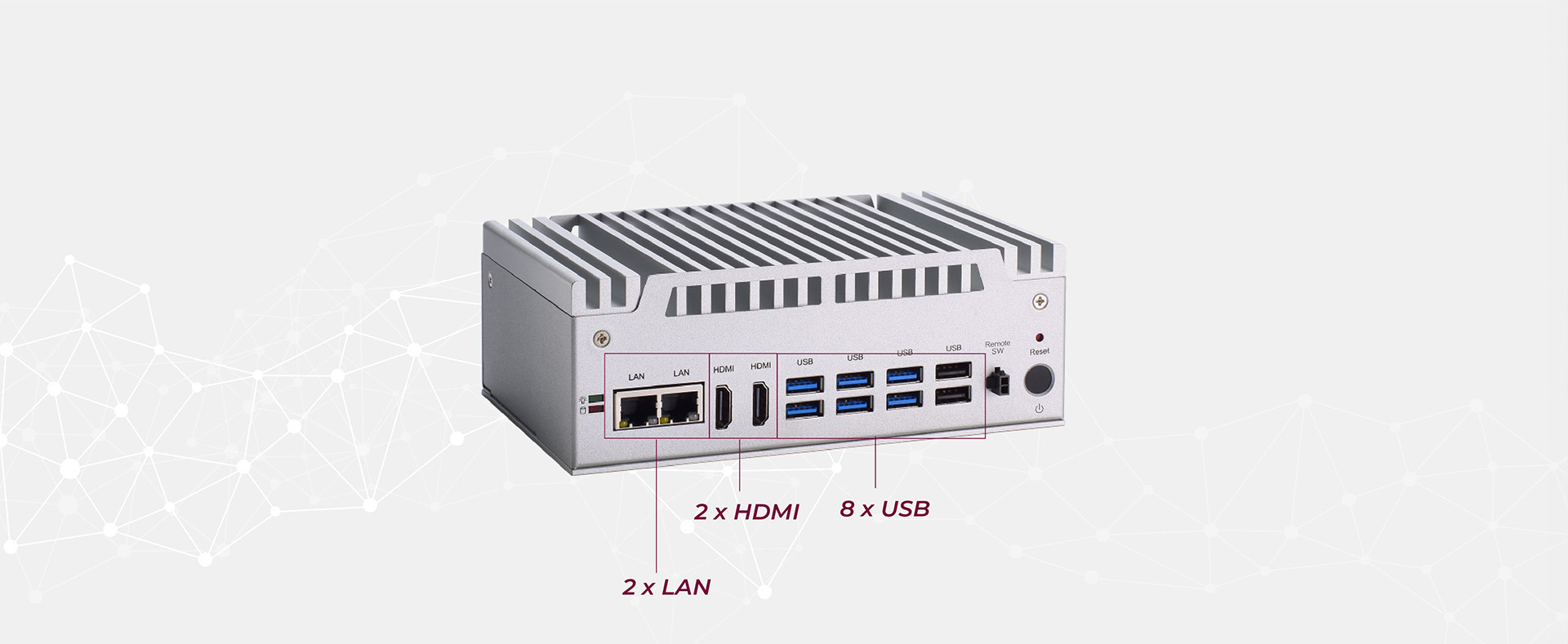

Front View
eBOX570 Front I/O

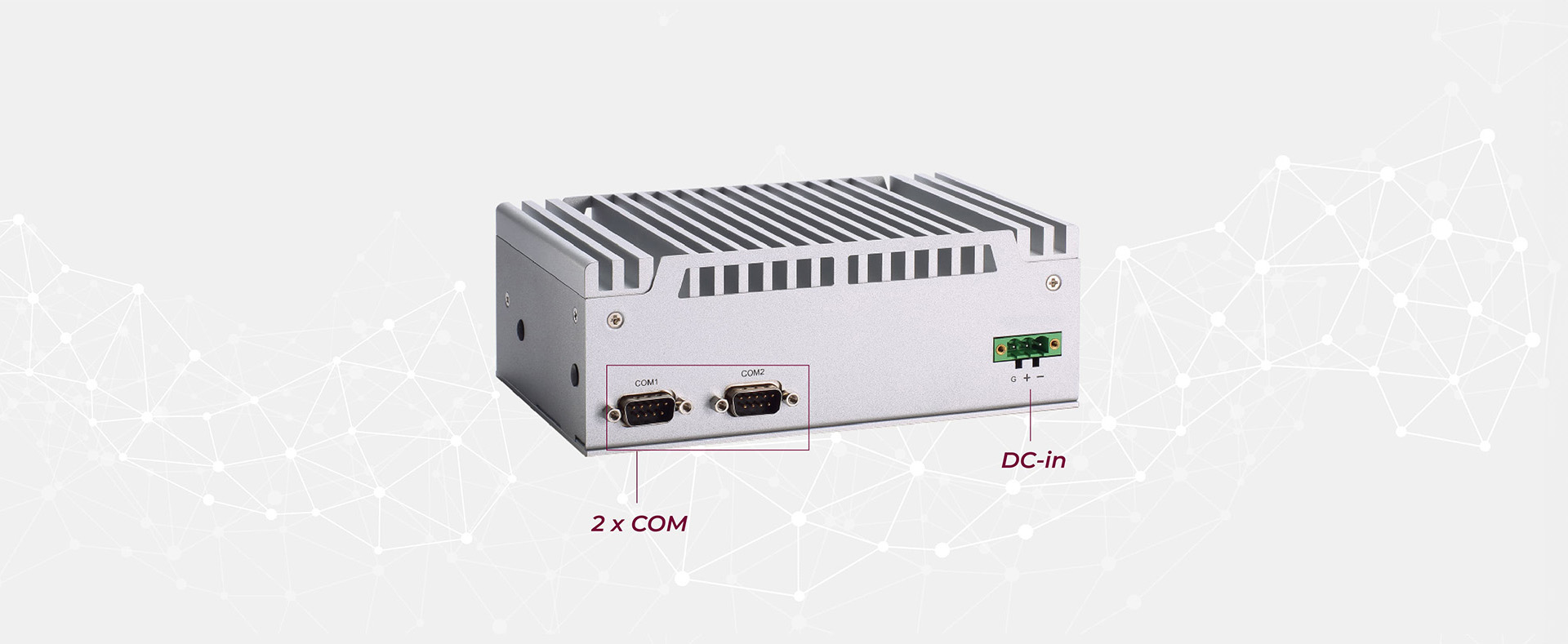

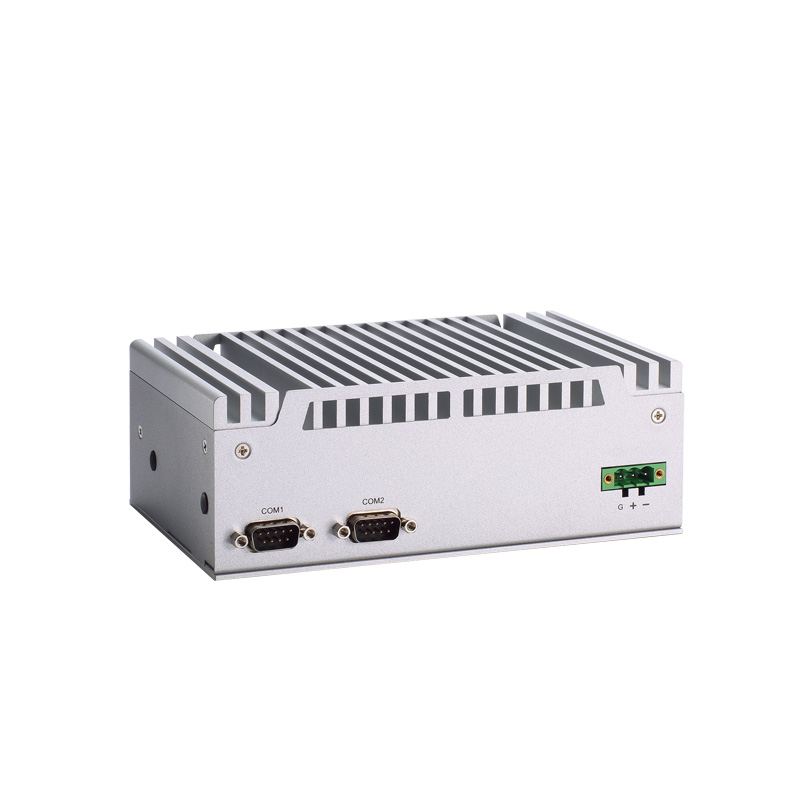

Rear View
eBOX570 Rear I/O

Specifications

CPU
  • Intel® Core™ i7-1365UE, Core™ i5-1335UE or Celeron® U300E (TDP up to 15W)
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR4-3200 SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
USB
  • 4 x USB 3.2 Gen2x1 (10G) type A
  • 2 x USB 3.2 Gen1x1 (5G) type A
  • 2 x USB 2.0
Ethernet/PoE
  • 1 x 10/100/1000 Mbps (Intel® I210-IT)
  • 1 x 10/100/1000 Mbps (Intel® I219-LM, supporting Intel® AMT)
Display
  • 2 x HDMI 1.4b @30Hz with 4096 x 2160 resolution
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • 1 x M.2 Key M 2280 socket (for NVMe storage with PCIe x4 Gen3 or SATA signal, selectable through the BIOS)
Expansion
  • 1 x Full-size PCI Express Mini Card slot (USB 2.0, PCIe, and SIM signal)
  • 1 x M.2 Key E 2230 socket (for Wi-Fi 6E) (USB 2.0 and PCIe signal)
Others
  • 1 x Power button
  • 1 x Reset switch connector
  • 1 x Remote switch
  • 2 x Antenna Opening
  • TPM 2.0
Power
  • 12 VDC ±5%
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F) (with W.T. DRAM & SSD, CPU TDP 15W)
  • -40°C to +65°C (-40°F to +149°F) (with STD DRAM & SSD, CPU TDP 15W)
Relative Humidity
  • 10% to 95%, non-condensing
Shock
  • IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
Vibration
  • IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Dimensions
(W x D x H)
  • 120 x 178 x 65 mm (4.72" x 7.01" x 2.56")
Weight (net/gross)
  • 2 kg/2.5 kg
Certifications
  • CE (EN 61000-6-4/EN 61000-6-2), FCC Class A, UKCA
EOS Support
  • Win 10 IoT, Win 11 IoT, Linux
Mounting
  • Wall mount kit
  • DIN-rail kit
  • VESA mount kit
Software Support
  • N/A

Ordering Information

  • eBOX570-13P-i7 (P/N-E36K570100)
    Fanless embedded system with Intel® Core™ i7-1365UE, 2 HDMI, 2 LANs, 8 USB, 2 COM, and 12 VDC
  • eBOX570-13P-i5 (P/N-E36K570101)
    Fanless embedded system with Intel® Core™ i5-1335UE, 2 HDMI, 2 LANs, 8 USB, 2 COM, and 12 VDC
  • eBOX570-13P-Cel (P/N-E36K570102)
    Fanless embedded system with Intel® Celeron® U300E, 2 HDMI, 2 LANs, 8 USB, 2 COM, and 12 VDC
  • M.2 NVMe
    128GB or above
  • DDR4 SO-DIMM
    4GB or above
  • E29R129124
    Wall mount kit
  • E29R129125
    DIN-rail kit
  • E29R129126
    VESA mount kit
  • 509000004800
    12V 96W power adapter
  • Power cord
  • Wi-Fi/LTE module
