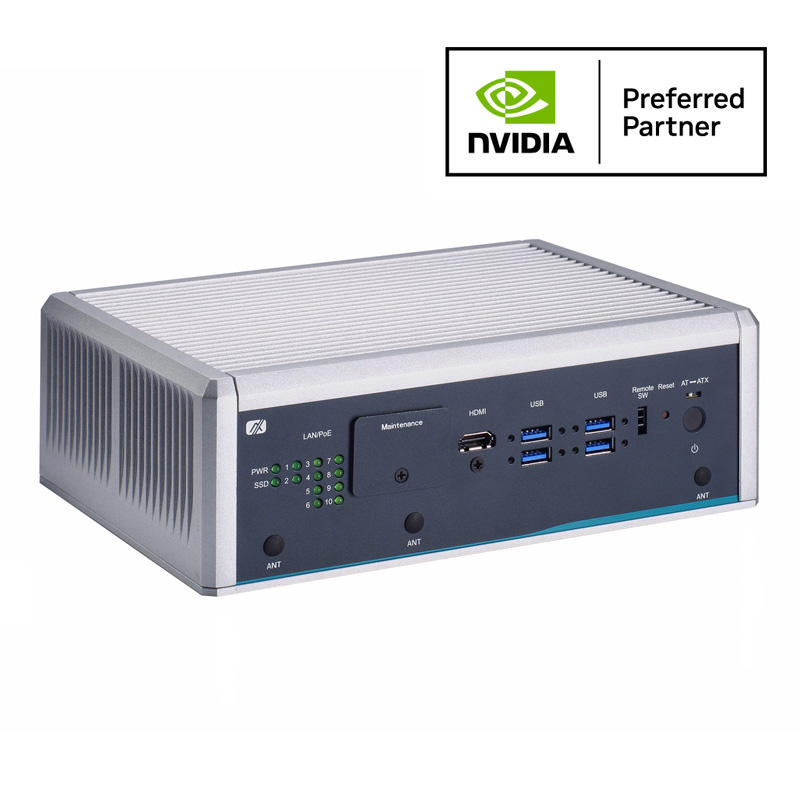

AIE900A-AO

Status : Available

Fanless Edge AI System with NVIDIA® Jetson AGX Orin™, 1 HDMI, 2 2.5GbE, 8 PoE, 6 USB, 8-CH DI/DO, and 2 COM/CAN for 5G and Robotics Applications

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
AIE900A-AO
AIE900A-AO
AIE900A-AO
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • NVIDIA® Jetson AGX Orin™ (up to 275 TOPS)
  • Seamless connectivity with 5G, Wi-Fi 6E, and 2.5 GbE combined
  • 9 to 36VDC with Ignition (E-Mark compliance)
  • Supports 8 PoE and GMSL for camera and LiDAR connectivity
  • -25°C to +60°C operating temperature range
  • Supports device management and optional OTA deployment, powered by Allxon
High-Performance AI Computing
High-Performance

NVIDIA® Jetson AGX Orin™

Rugged Design
Rugged Design

E-Mark certified
Operating temperature -25°C to +50°C

Machine Vision Connectivity
Machine Vision

8 PoE and GMSL



200 TOPS Computing Performance

The AIE900A-AO is powered by the NVIDIA® Jetson AGX Orin™ platform, featuring an Arm® Cortex®-A78AE v8.2 64-bit CPU and a 1792-core NVIDIA Ampere™ GPU with 56 Tensor Cores and deep learning accelerators, delivering up to 200 TOPS of AI performance.

Camera and Sensor Deployment

The design of AIE900A-AO prioritizes vision applications by featuring lockable USB interfaces for seamless connectivity with USB3 Vision cameras. This ready-to-use edge AI embedded system also comes with 8 PoE and GMSL for camera and LiDAR connectivity, getting a head start to provide advanced opportunities to our customers developing and deploying AI-driven autonomous machines.




Rugged, E-mark Certified Design

The AIE900A-AO comes with E-mark compliance, supports 9 to 36 VDC with ignition power control. It can operate over a wide temperature range from -25°C to +60°C and at vibrations up to 3 Grms. This makes it ideal for transportation, fleet management, and outdoor edge AI deployments.

Wireless Connectivity

The AIE900A-AO supports 5G and Wi-Fi 6E connectivity via M.2 slots, boosting the efficiency of next-generation robotics, AMRs, and other autonomous machines.

Wireless Connectivity

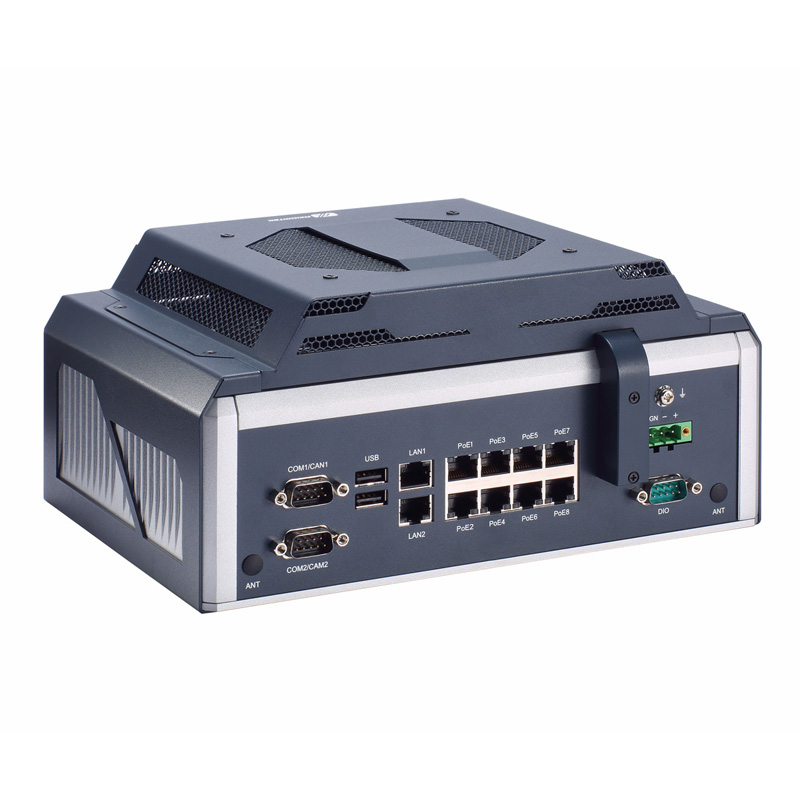

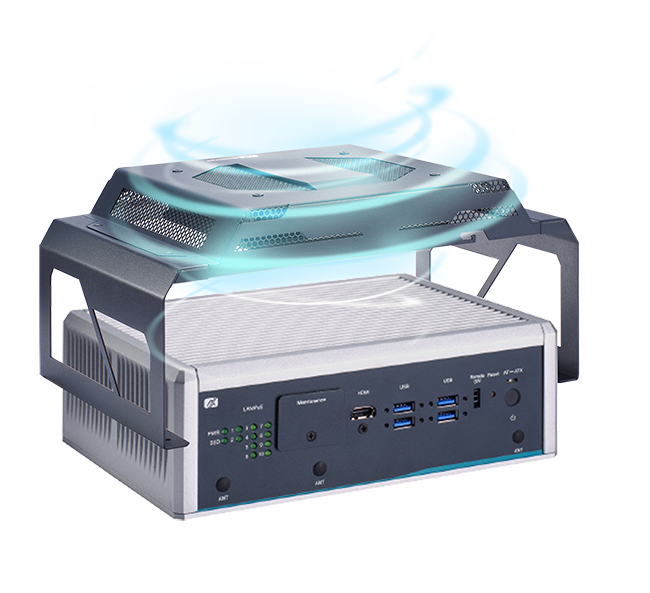

Optional Fan Kit

With the external fan kit, the AIE900A-AO can withstand an extended operating temperature as well as maximize the AI performance.

Optional Fan Kit

Great Expandability

  • 8-CH GMSL/FPD-LINK/V-by-One Automotive camera interfaces (optional)
  • 1 x Full-size PCI Express Mini Card slot (USB + PCIe)
  • 1 x M.2 Key E 2230 slot for Wi-Fi 6(E)
  • 1 x M.2 Key B 3052/3042 slot for 5G/LTE
  • 2 x Nano SIM card slots for easy access to the network

Rich I/O Interfaces

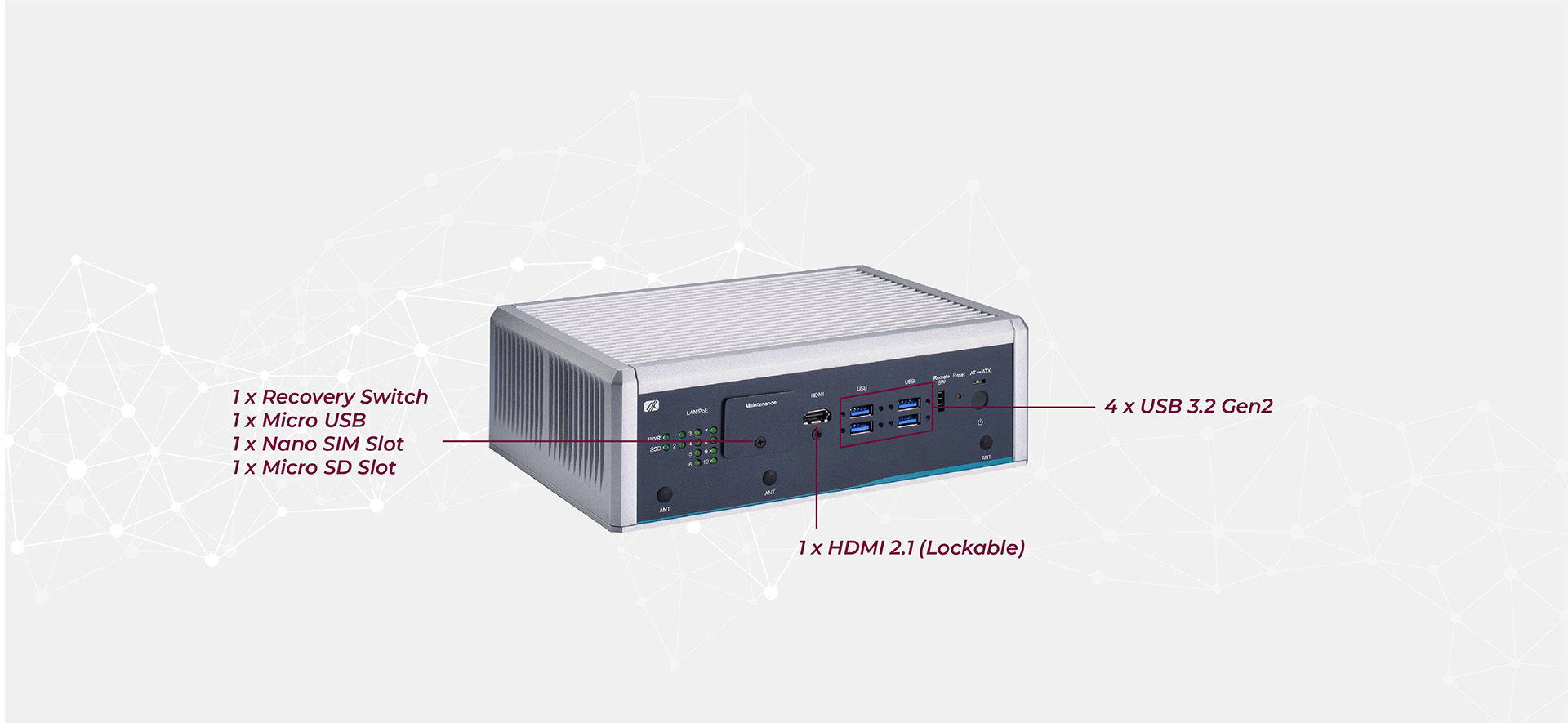

Front View
AIE900A-AO Front I/O

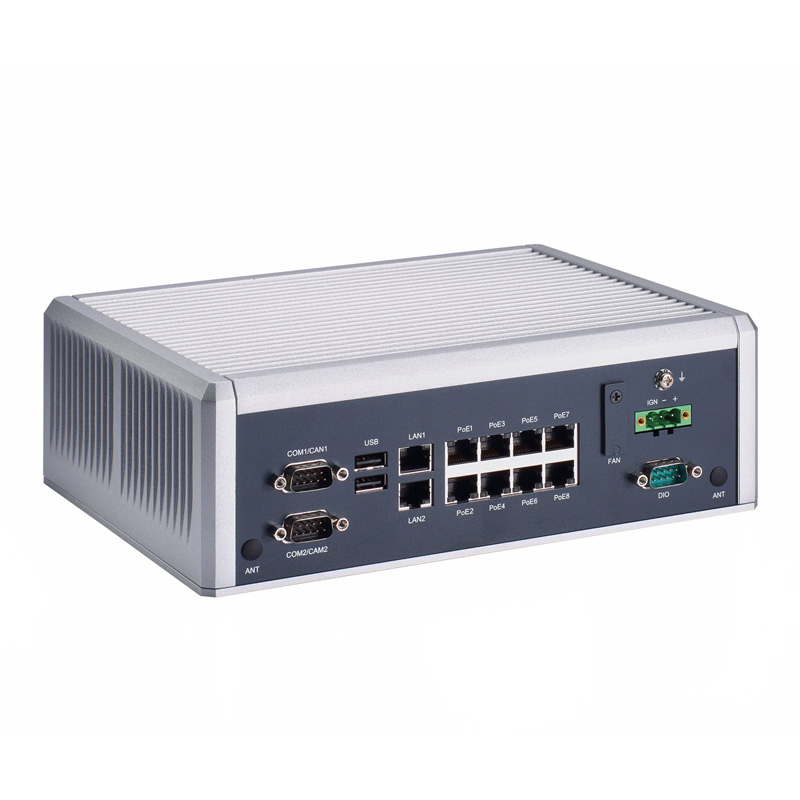

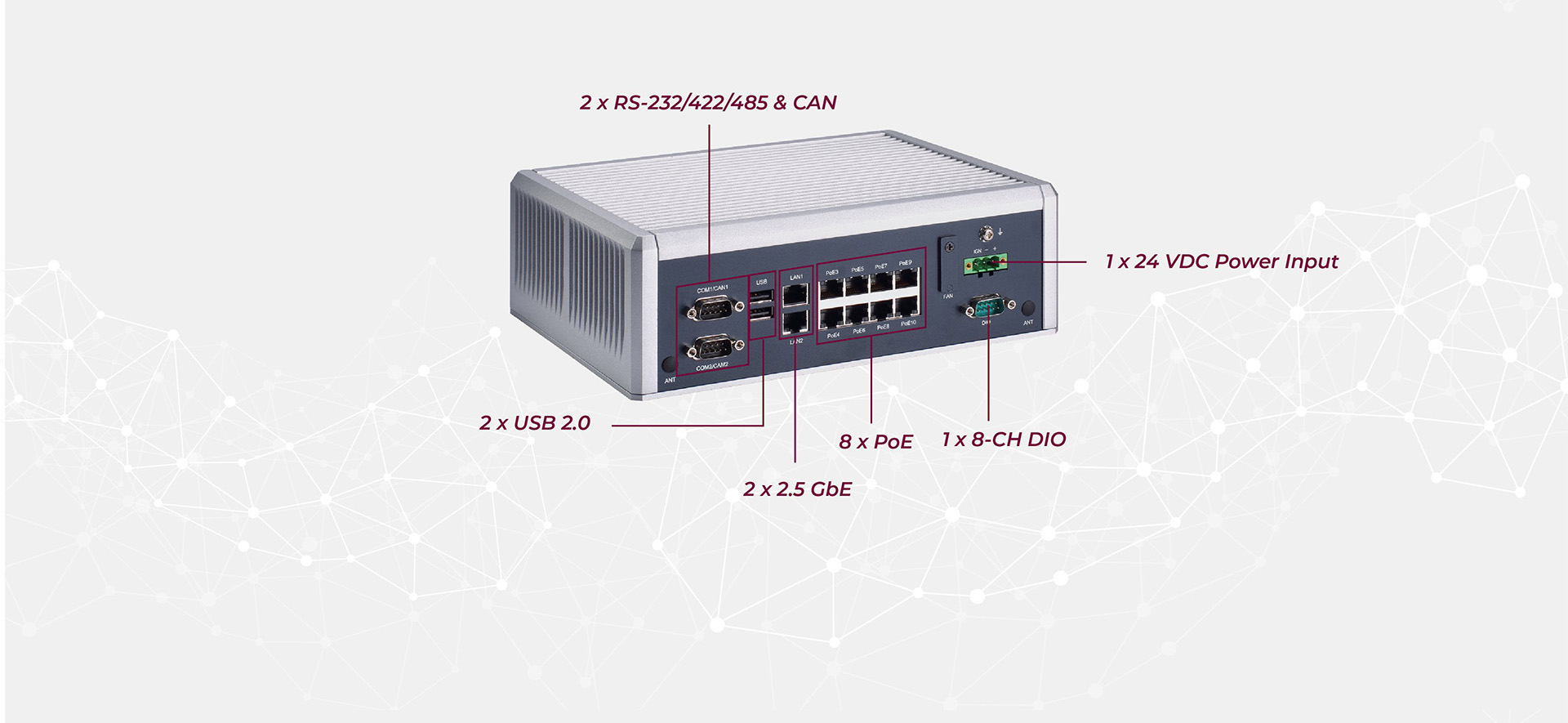

Rear View
AIE900A-AO Rear I/O

Specifications

AI Accelerator
  • NVIDIA® Jetson AGX Orin™ 32GB (200 TOPS)
CPU
  • 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
GPU
  • 1792-core NVIDIA Ampere™ GPU with 56 Tensor Cores
Chipset
  • SoC integrated
System Memory
  • 32GB 256-bit LPDDR5 204.8GB/s
COM
  • 2 x DB9 for CAN & RS-232/422/485
USB
  • 4 x USB 3.2 Gen2
  • 2 x USB 2.0
Ethernet/PoE
  • 2 x 10/100/1000/2500 Mbps Ethernet (Intel® I226)
  • 8 x 10/100/1000 Mbps PoE (up to 60W) (via LAN switch, 1 Gbps switching capacity)
Display
  • 1 x Lockable HDMI 2.0 with 4K2K supported
GMSL
  • 8-channel GMSL (optional)
Digital I/O
  • 1 x 8-CH DI/DO
Audio
  • N/A
Storage
  • Onboard 64GB eMMC (via Jetson AGX Orin™)
  • 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot
  • 1 x Micro SD slot
Expansion
  • 8CH GMSL/FPD-LINK/V-by-One Automotive camera interfaces (optional)
  • 1 x Full-size PCI Express Mini Card slot (USB + PCIe)
  • 1 x M.2 Key E 2230 slot for Wi-Fi 6(E)
  • 1 x M.2 Key B 3052/3042 slot for 5G/LTE
  • 1 x Nano SIM slot
Others
  • 1 x Remote switch
  • 1 x Reset button
  • 1 x Power button
  • 1 x AT/ATX switch
  • 1 x Micro USB
  • 1 x Recovery switch (for image update)
  • 5 x SMA-type antenna opening
Power Supply
  • 9 to 36 VDC (typical 12/24 VDC) with ignition power control
Watchdog Timer
  • Built-in AGX Orin
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -25°C to +60°C (-13°F to +140°F)
Relative Humidity
  • 10% to 95%, non-condensing
Shock
  • IEC 60068-2-27 (with SSD: 50G, half-sine, 11 ms duration)
Vibration
  • IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis
Dimensions (W x D x H)
  • 239 x 185.3 x 79.4 mm (9.41" x 7.3" x 3.13")
Weight (net/gross)
  • 3.2 kg (7.05 lb)/4.9 kg (10.8 lb)
Certifications
  • CE, FCC Class A, UKCA
EOS Support
  • Linux Ubuntu 20.04 or later
Mounting
  • Wall mount kit
  • DIN-rail kit
  • VESA mount kit

Ordering Information

  • AIE900A-AO-2L8P (P/N-E27H900A00)
    Fanless edge AI system with NVIDIA® Jetson AGX Orin™ 32GB, 1 HDMI, 2 2.5GbE, 8 PoE, 6 USB, 8-CH DI/DO, and 2 COM/CAN
  • E29R150110
    Wall mount kit
  • E29R150112
    DIN-rail kit
  • E29R150111
    VESA mount kit
  • E29R150109
    External fan kit
  • M.2 NVMe SSD
    128GB or above
  • Power cord
  • 5G module kit
  • LTE module kit
  • Wi-Fi module kit
  • 50906A24000E
    24V/230W adapter

Download

Drivers

Software

Manual

Date Description Version Download File
2023/09/27 User's Manual VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2024/12/04 UKCA Declaration of Conformity
2024/12/04 CE-Conformity Declaration
2024/12/04 FCC Verification
2024/12/04 CE EMC Verification
