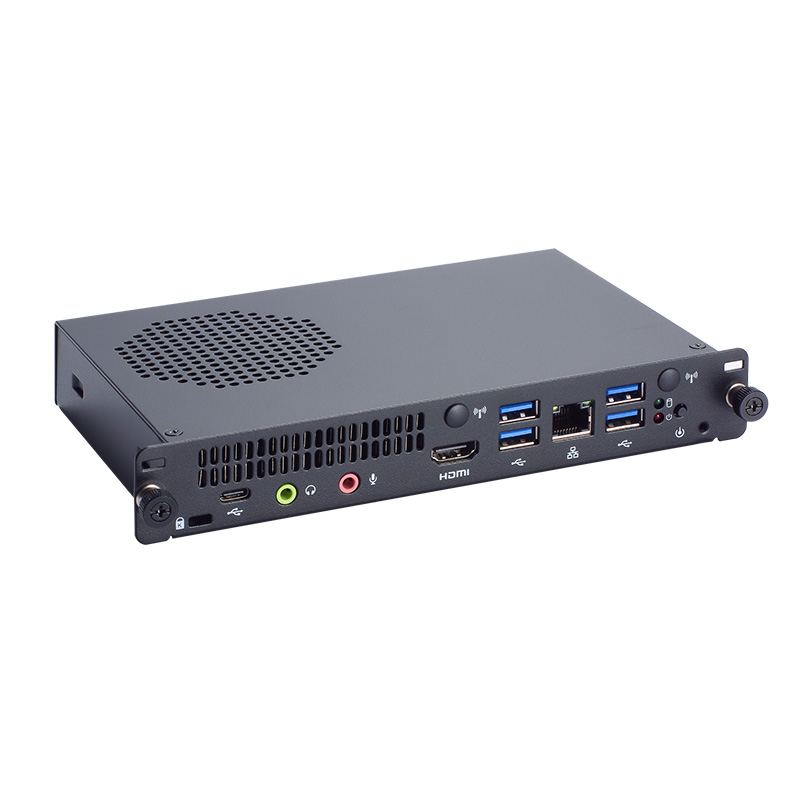

What is the OPS530 designed for? + The OPS530 is an OPS-compliant digital signage player designed for interactive whiteboards, interactive flat panel displays (IFPDs), digital signage, and educational environments. It is ideal for smart classrooms, retail displays, and public interactive systems.
What processors does the OPS530 support? + It supports 13th and 12th generation Intel® Core™ i7/i5 processors (Alder Lake-P/U series), delivering strong performance for multimedia and interactive applications.
Does the OPS530 support high-resolution displays? + Yes, the OPS530 supports dual independent 4K displays, enabling high-quality visuals for immersive presentations, digital signage, and interactive content.

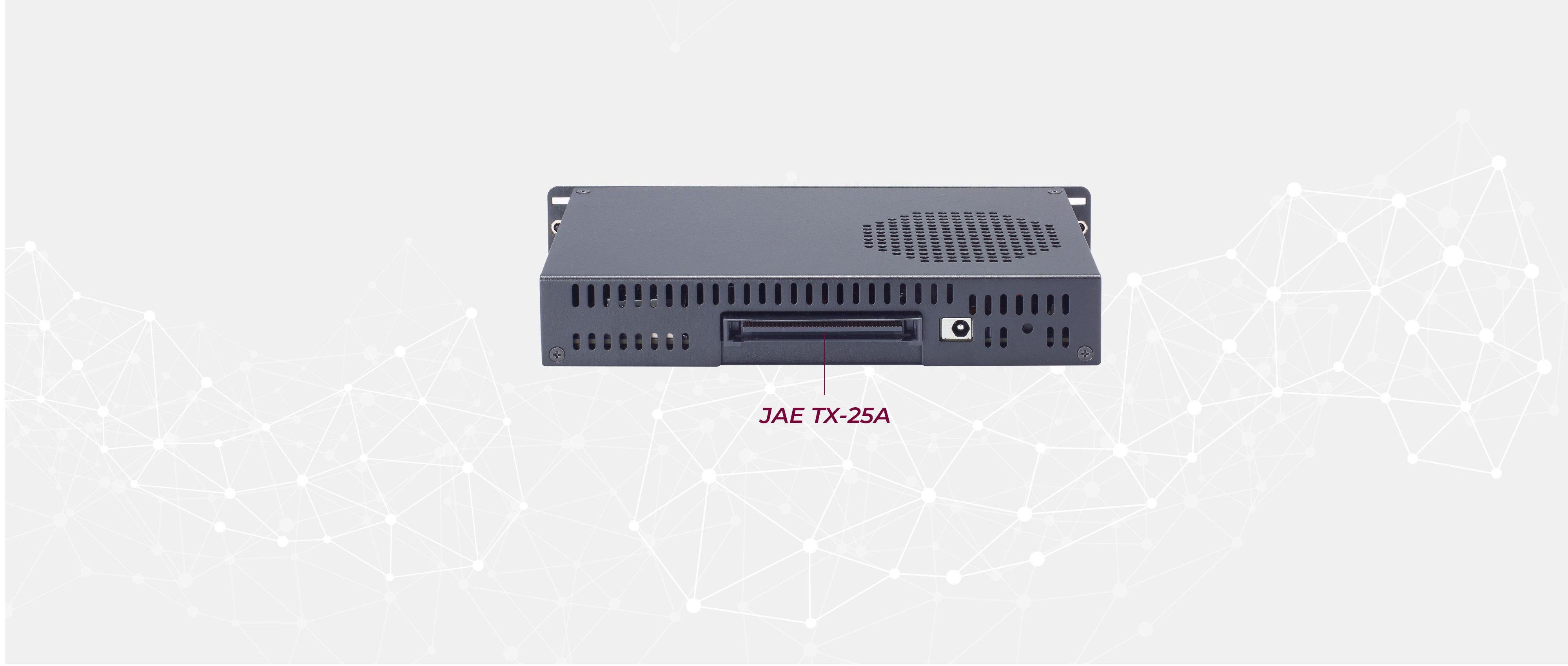

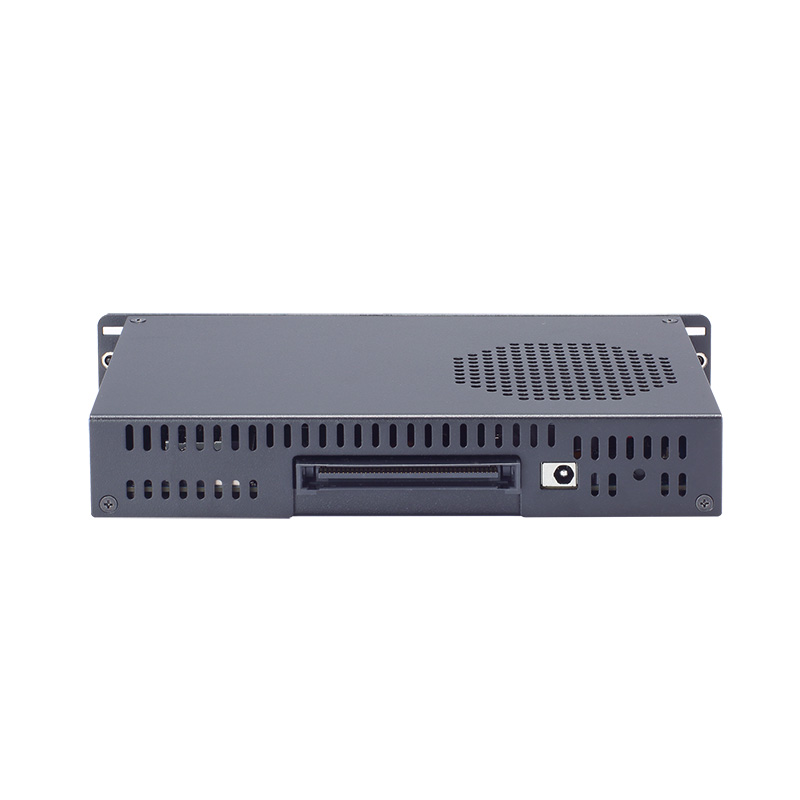

What are the benefits of the OPS form factor? + The OPS (Open Pluggable Specification) design allows seamless integration with OPS-compliant displays via the JAE TX-25A connector. This reduces cable clutter and simplifies installation, maintenance, and upgrades.

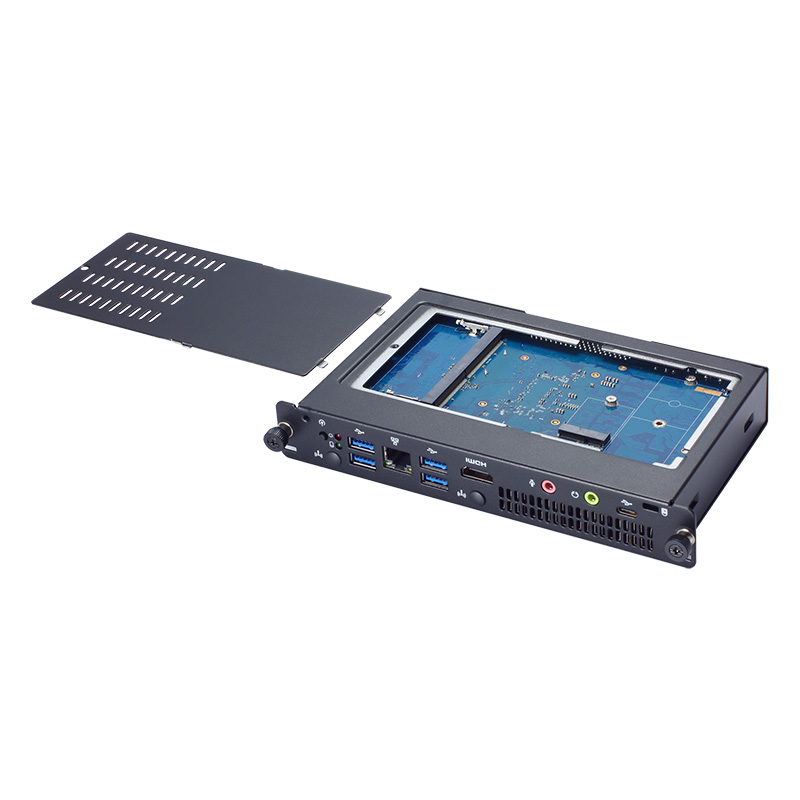

What memory and storage options are available? + The OPS530 supports two DDR4-3200 SO-DIMM slots for system memory. For storage, it includes an M.2 Key M 2280 slot supporting both SATA and NVMe SSDs.
Does the OPS530 support wireless connectivity? + Yes, it features an M.2 Key E 2230 slot for Wi-Fi and Bluetooth modules, along with dual antenna openings for reliable wireless communication.

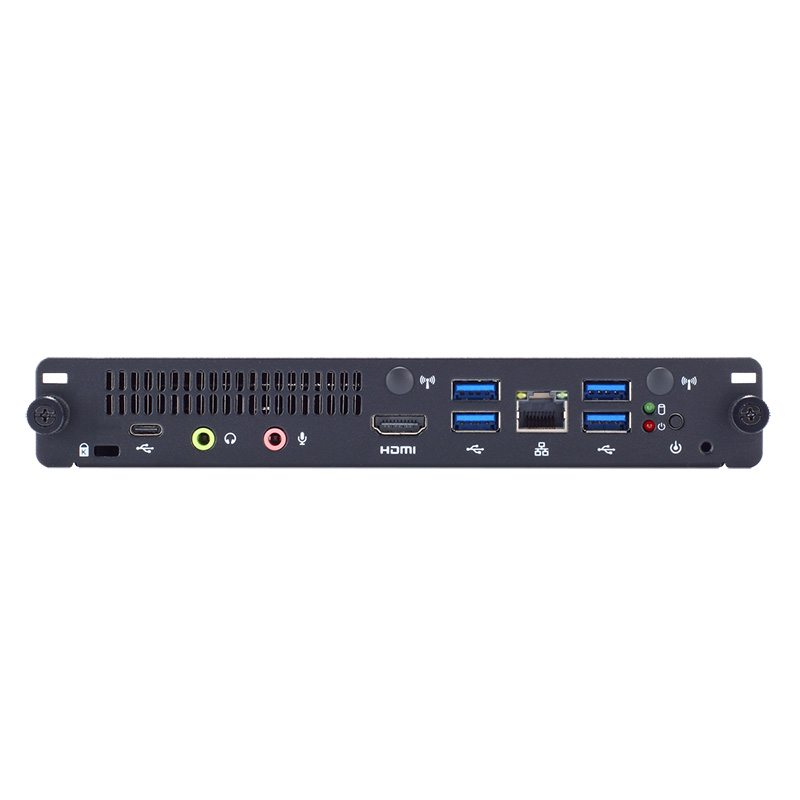

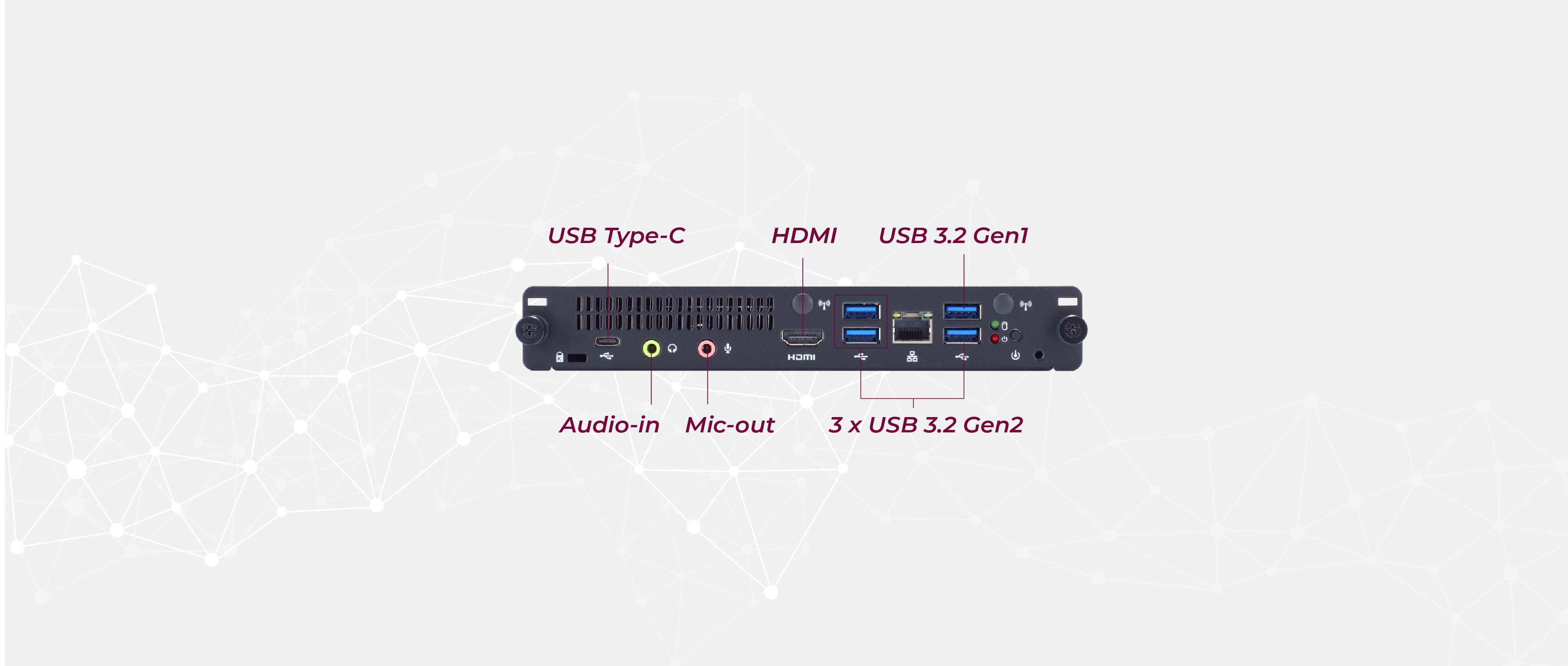

What I/O interfaces does the OPS530 provide? + It includes one USB Type-C, four USB 3.2 ports, one HDMI 1.4b, one GbE LAN port, and audio interfaces. Additional signals such as DisplayPort, USB, and UART are supported through the OPS connector.
How does the OPS530 ensure system security and manageability? + The system supports optional Intel vPro® for remote management and TPM 2.0 for hardware-based security, ensuring safe and efficient device operation.
Is the OPS530 easy to install and maintain? + Yes, its compact OPS form factor and standardized connector design enable quick installation, easy upgrades, and simplified maintenance.
What makes the OPS530 suitable for modern digital signage applications? + Its combination of powerful processing, dual 4K display support, flexible expansion, and simplified integration makes it a cost-effective and future-ready solution for a wide range of interactive and display-driven applications.
