GOT712S

Status : Available

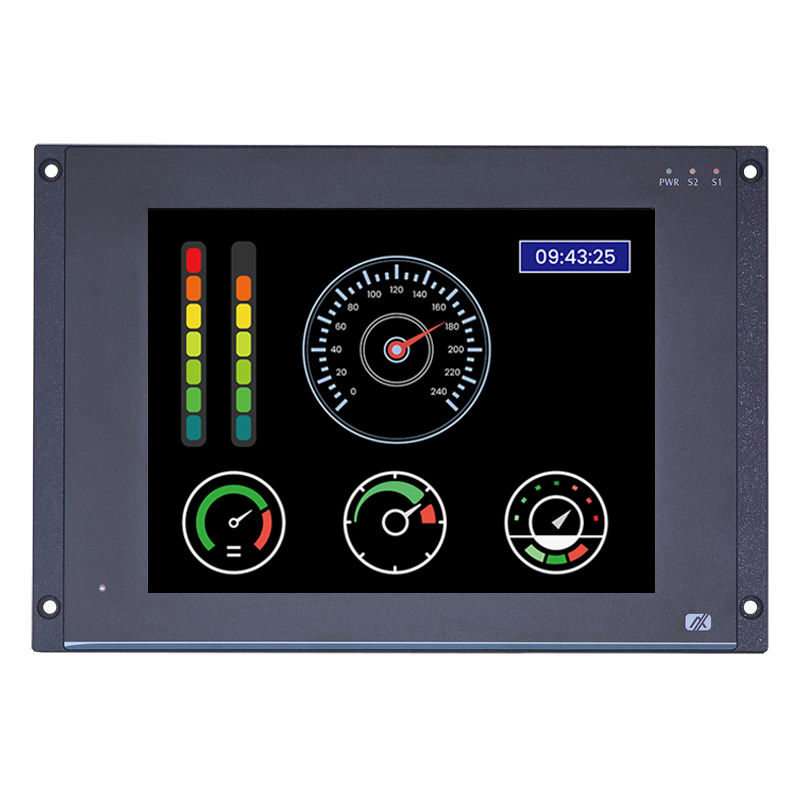

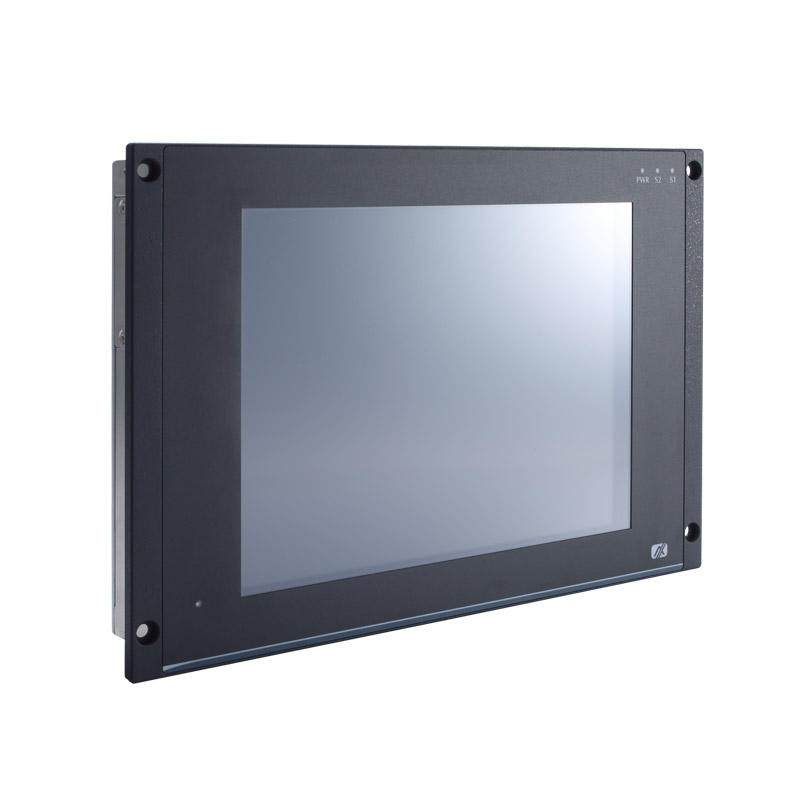

EN50155 S3 12.1" XGA TFT LCD Railway Fanless Touchscreen Panel PC with Intel Atom® Processor E3845 1.91 GHz (-40°C to +70°C)

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
GOT712S
GOT712S
GOT712S
EN 50155

EN 50155

Fanless

Fanless

Low Power

Low Power

M12 Connector

M12 Connector

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • Sunlight readable 12.1" XGA TFT LCD with 800 nits of high brightness
  • Fanless with Intel Atom® processor E3845 1.91 GHz
  • All lockable connector design
  • Auto-dimming for different environments
  • -40°C to +70°C wide temperature range
  • Typical 24 to 110 VDC wide power input range, EN 50155
  • Class S3 20ms power interruption protection
  • EN 50155, EN 45545-2 certified for railway application

Specifications

LCD Panel
  • 12.1" XGA TFT LCD
  • 800 nits
  • 1024 x 768 pixels
CPU
  • Intel® Atom™ processor E3845 1.91 GHz (Bay Trail)
Chipset
  • SoC integrated
System Memory
  • DDR3L 4GB onboard
BIOS
  • AMI

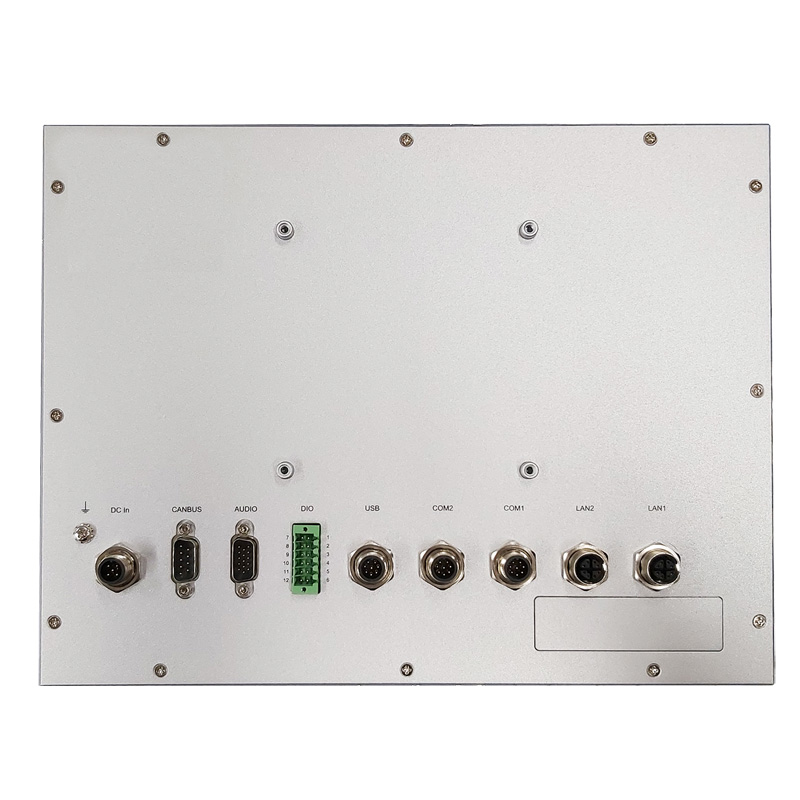

COM
  • 2 x Isolated M12 A-coded RS-232/422/485 (isolation level 1.5kV)
USB
  • 1 x M12 A-coded USB 2.0 (2 port signal)
Ethernet
  • 2 x Isolated M12 X-coded GbE (isolation level 1.5kV)
Display
  • N/A
Audio
  • 1 x DB15 audio (line-in/mic-in/speaker-out/line-out)
DIO
  • 1 x Isolated terminal block DIO (6-in/2-out, isolation level 1.5kV)
Storage
  • 1 x mSATA
CANbus
  • 1 x Isolated DB9 CANbus (isolation level 1.5kV)
Expansion
  • 2 x PCI Express Mini Card slot (slot2 for mSATA use only)
Others
  • N/A
Touchscreen
  • 5-wire resistive touchscreen
Front Bezel
  • IP65-rated aluminum front bezel and IP40-rated rear
  • protection
Power Supply
  • 1 x M12 A-coded DC-in
  • Typical 24 to 110 VDC
  • EN 50155 S3 20ms power interruption protection
Power Comsumption
  • 24-110VDC, 1.7-0.32A
Watchdog Timer
  • 255 levels, 1 to 255 seconds
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F)
Relative Humidity
  • 10% to 95% @ +40°C, non-condensing
Vibration
  • N/A
Dimensions (W x D x H)
  • 330 x 61.5 x 245 mm (13" x 2.42" x 9.65")
Weight (net/gross)
  • 2.95 kg (6.50 lb)/5.35 kg (11.79 lb)
Certifications
  • CE/FCC Class A, EN 50155, EN 50121-3-2, EN 61373, EN 45545-2 certified
EOS
  • Windows® 10, Windows® 10 IoT, Windows® 7, WES 7
Mounting
  • Wall mount,
  • VESA mount

Ordering Information

  • GOT712S-R-E3845-24-110VDC (P/N-E22B712102)
    12" XGA railway fanless touch panel computer with Intel Atom® E3845, sunlight readable LCD (800 nits), 5-wire resistive touchscreen, and 24 to 110 VDC power input, S3 20ms power interruption protection
  • 822B7100140E
    GOT712 3G+GPS kit
  • 8812B7100A0E
    GOT712 Wi-Fi kit
  • 594B8122820E
    M12 A-coded USB cable
  • 594B7102100E
    RS-232 cable
  • 594B7102700E
    M12 X-coded LAN cable
  • 594B7100B00E
    M12 DC-in power cable with ACC signal, length 1.8M

Download

Drivers

Date Description Version Download File
2023/09/07 Win10_Penmount Touch VA1.1
2023/09/07 Win10_Trusted Execution Engine VA1.1
2023/09/07 Win10_Sideband Fabric Device VA1.1
2023/09/07 Win10_Graphic VA1.1
2023/09/07 Win10_HD Audio VA1.1
2023/09/07 Win10_LAN VA1.1
2023/09/07 Win10_Chipset VA1.1
2023/09/07 Win7_LAN VA1.1
2023/09/07 Win7_Penmount Touch VA1.1
2023/09/07 Win10_CAN bus Drivers VA1.1
2023/09/07 Win7_HD Audio VA1.1
2023/09/07 Win7_IO Drivers VA1.1
2023/09/07 Win7_Chipset VA1.1
2023/09/07 Win7_Graphic VA1.1
2023/09/07 Win7_CAN bus Drivers VA1.1

Software

Date Description Version Download File
2023/09/07 Library v1.2.1 VA1.1

Manual

Date Description Version Download File
2023/06/15 GOT712S-837-24-110V User's Manual VA2

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/04/28 EN50155 Certificate
2021/10/04 CE LVD Vertification
2021/10/04 CE EMC Verification
2021/10/04 FCC Verification
2021/10/04 CE-Conformity Declaration
2021/08/18 UKCA-Conformity Declaration
