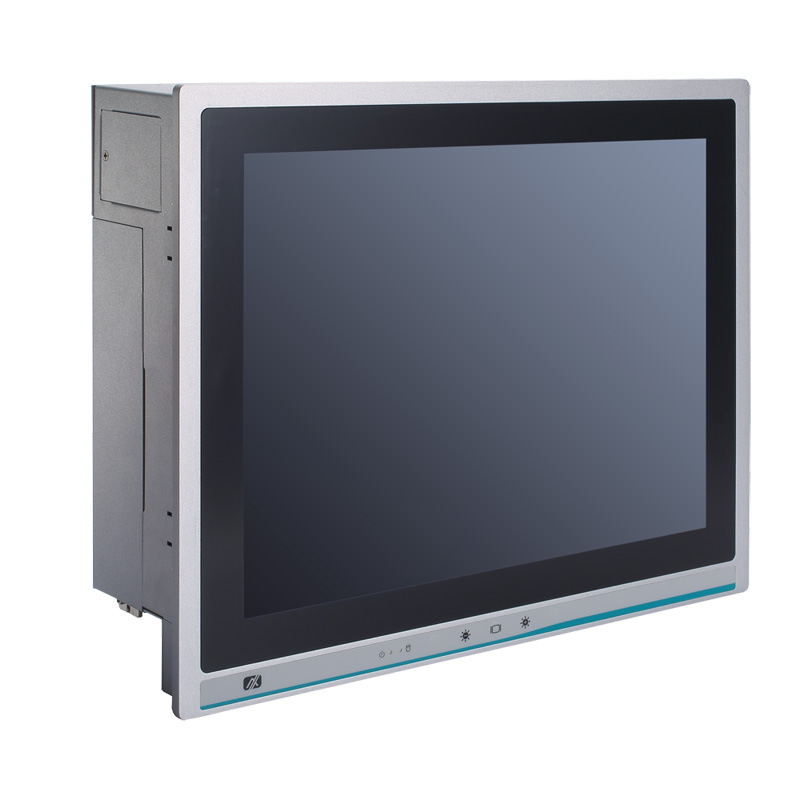

Which industries is the P117-ADL-TRA designed for? + The P117-ADL-TRA is a 17-inch industrial touch panel PC designed for heavy-duty industries, factory automation, and multimedia kiosks, delivering rugged durability, high performance, and flexible connectivity to support mission-critical operations.
Which processor and chipset power the P117-ADL-TRA? + It is powered by scalable 13th/12th Gen Intel® Core™ i7/i5/i3 or Pentium® processors with the Intel® H610 chipset from Intel Corporation, providing reliable computing performance for industrial workloads.

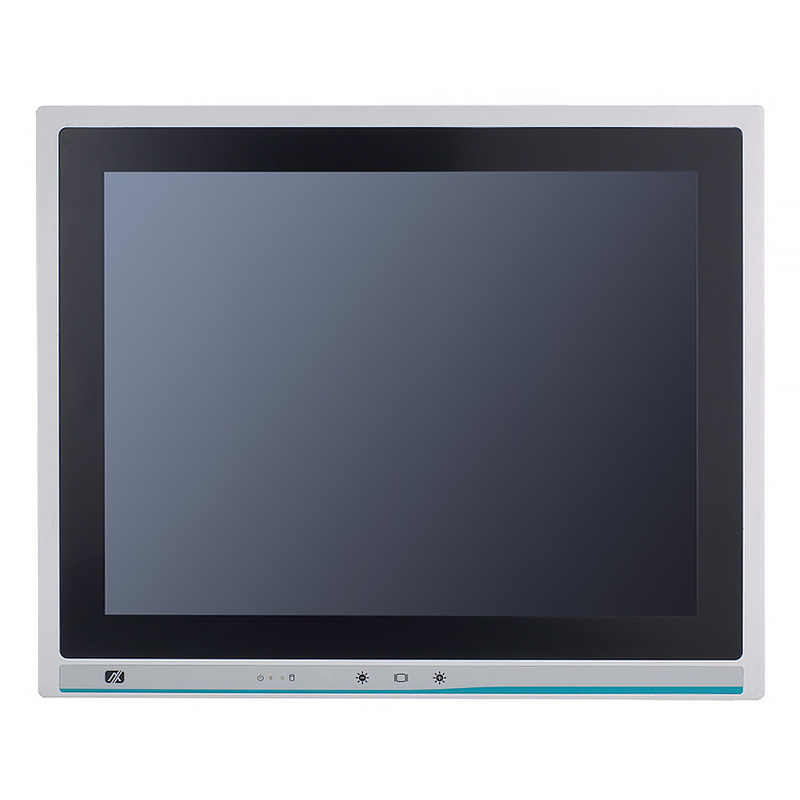

What display and touch capabilities does the P117-ADL-TRA offer? + The panel PC features a 17-inch XGA TFT LCD with a 5-wire resistive touchscreen and 250 nits of brightness, delivering clear visuals and an enhanced user experience for industrial and multimedia applications.
How much memory and storage does it support? + It has dual 260-pin DDR4-3200/2666/2400 SO-DIMM slots supporting up to 64GB of system memory and a 2.5” SATA HDD/SSD slot (optional), providing scalable storage and performance for demanding applications.

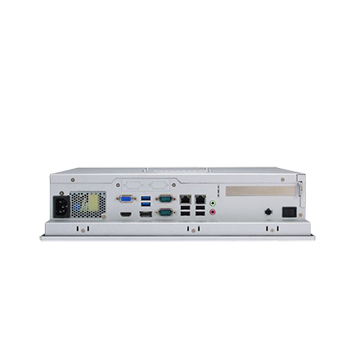

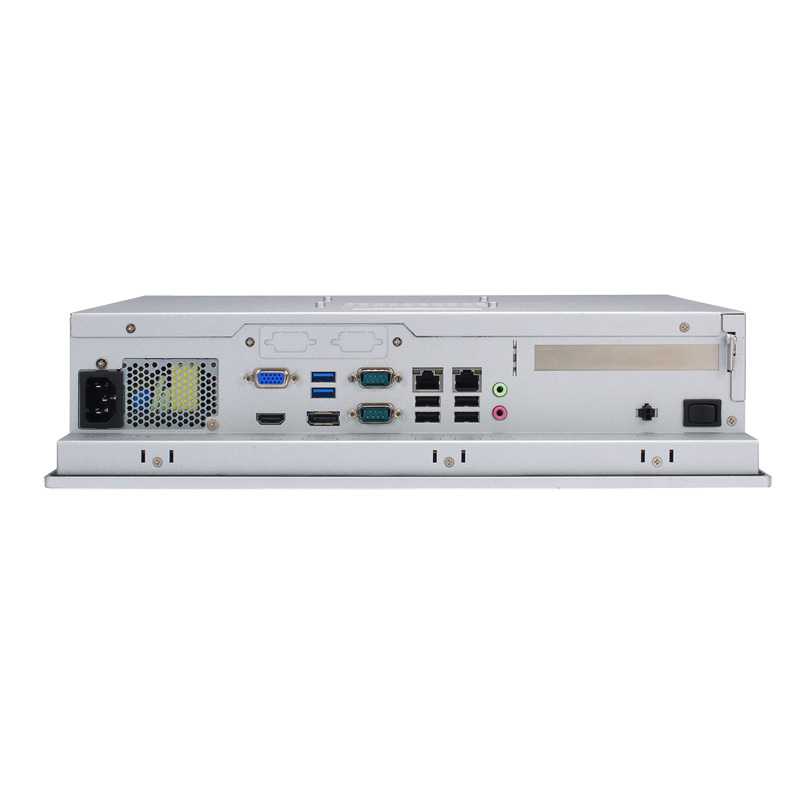

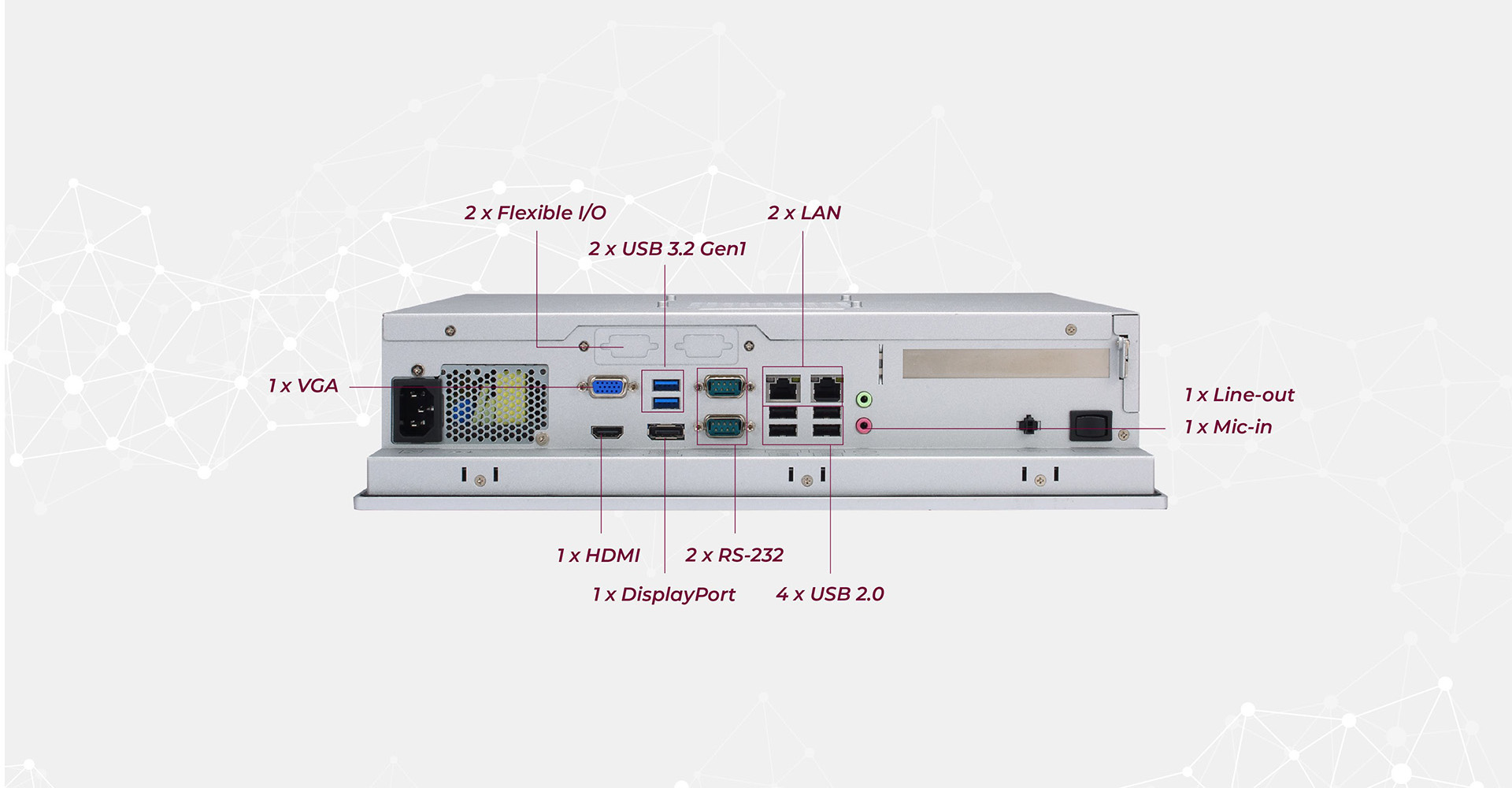

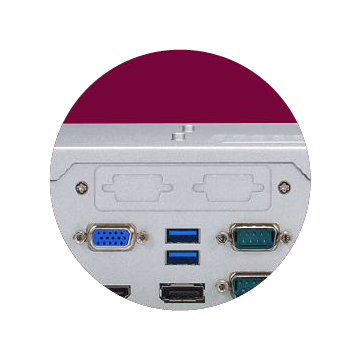

What I/O and expansion options are available? + The P117-ADL-TRA offers extensive connectivity, including two USB 3.2 Gen1, four USB 2.0, RS-232, RS-232/422/485, GbE LAN, 2.5GbE LAN, audio interfaces, VGA, HDMI, DisplayPort, a PCIe x16 slot for AI accelerators, vision or motion cards, and a flexible I/O window for optional modules and WLAN connectivity.
How does the P117-ADL-TRA ensure durability in harsh environments? + With an IP65-rated front bezel, rugged construction, and a wide operating temperature range of 0°C to +45°C, the P117-ADL-TRA is designed to operate reliably in dusty, industrial, or factory settings.
What mounting and integration options are available? + The panel PC supports panel, VESA, and wall mounting kits, enabling flexible deployment across a wide range of industrial environments.
Which operating systems are supported? + It is compatible with Windows® 11 and Windows® 11 IoT, allowing for versatile software deployment in industrial applications.
What features make maintenance and customization easy? + The P117-ADL-TRA features a two-screw back chassis for quick access, reducing downtime during servicing, while its PCIe x16 slot and optional I/O modules allow customers to expand functionality to meet specific application needs.
