AGD202

Status : Available

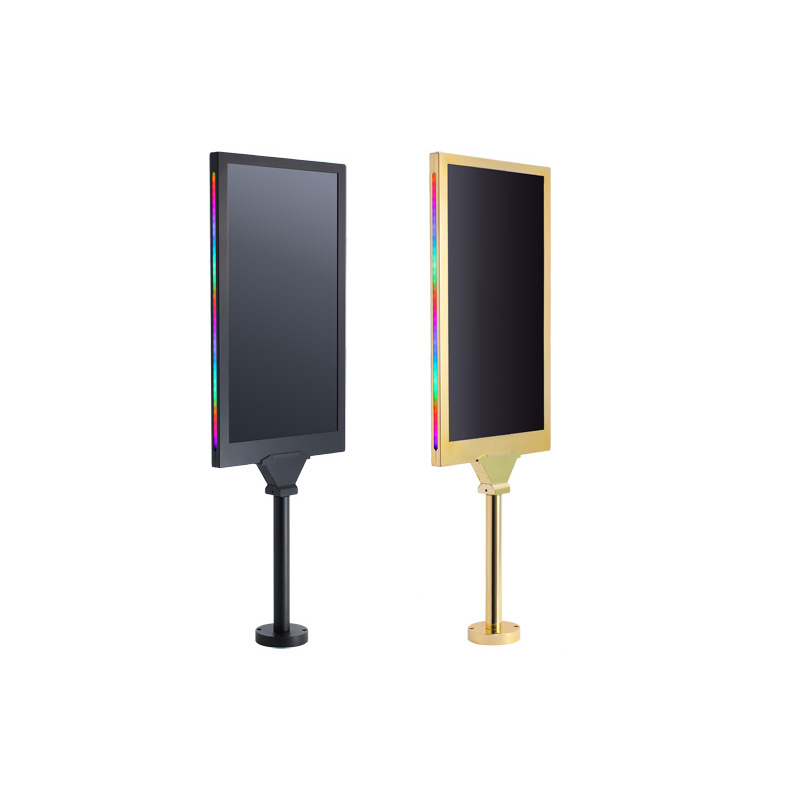

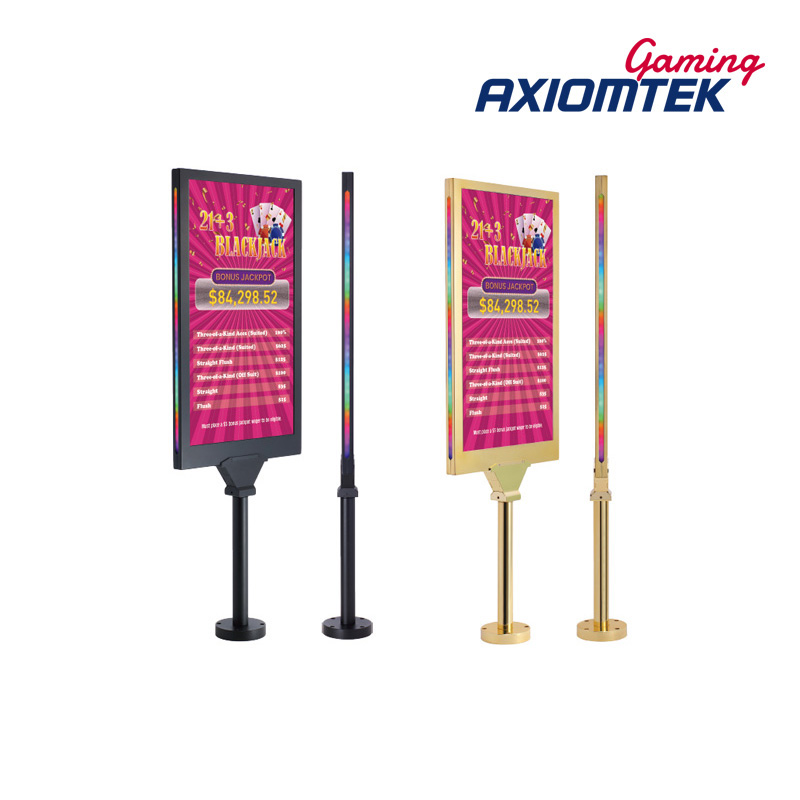

21.5” Lightweight and Slim Double-Sided Monitor for Table Gaming Applications

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
AGD202
AGD202
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • Extremely slim double-sided monitor with only 28mm thickness
  • Panel lifetime up to 50,000 hours
  • Resolution up to 1920 x 1080@60Hz
  • Supports HDMI and DP interface
  • Adjustable screen brightness level
  • Supports tailoring LED pattern in one minute by AxLED software
  • LED light bar pattern controlled by USB interface
  • Lightweight design with only 6 kg
  • Supports trigger LED strip pattern with the game or customized events
  • Built-in LED light bar pattern for more than 13 modes

Specifications

Panel Size
  • 21.5-inch color TFT LCD
Aspect Ratio
  • 16:9 (portrait)
Backlight
  • LED backlight
Resolution
  • 1920 x 1080 @60Hz (max.)
Active Area
  • 476.064 mm x 267.786 mm
Pixel Pitch
  • 247.95um
Viewing Angle (H/V)
  • 178°/178° (typ.)
Contrast Ratio
  • 1000:1 (typ.)
Luminance
  • 250 cd/m2 (typ.)
Response Time
  • 22ms
Surface Treatment
  • Anti-Glare, 3H
Display
  • HDMI x 1
  • DP x 1
I/O
  • HDMI x 1
  • DP x 1
  • USB x 1 (LED strip pattern control)
Power Input
  • 12V/60W DC Input
Operating Temperature
  • 0°C to 40°C (32°F to 104°F)
Dimensions (H x W x D)
  • 565 mm x 332 mm x 28 mm (without stand pole)
  • 981 mm x 332 mm x 122mm (with stand pole)
Weight
  • 6 kg (exclude cables and adapter)

Ordering Information

  • AGD202
    21.5” lightweight and slim double-sided monitor (Black)
  • AGD202-G
    21.5” lightweight and slim double-sided monitor (Gold)
