GOT815A-TGL-WCD

Status : Available

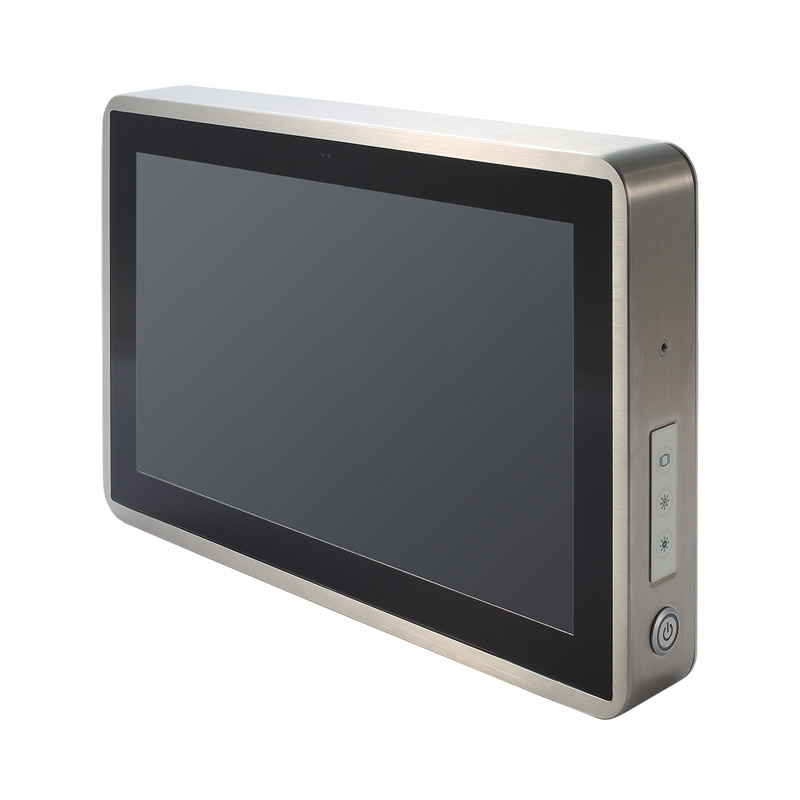

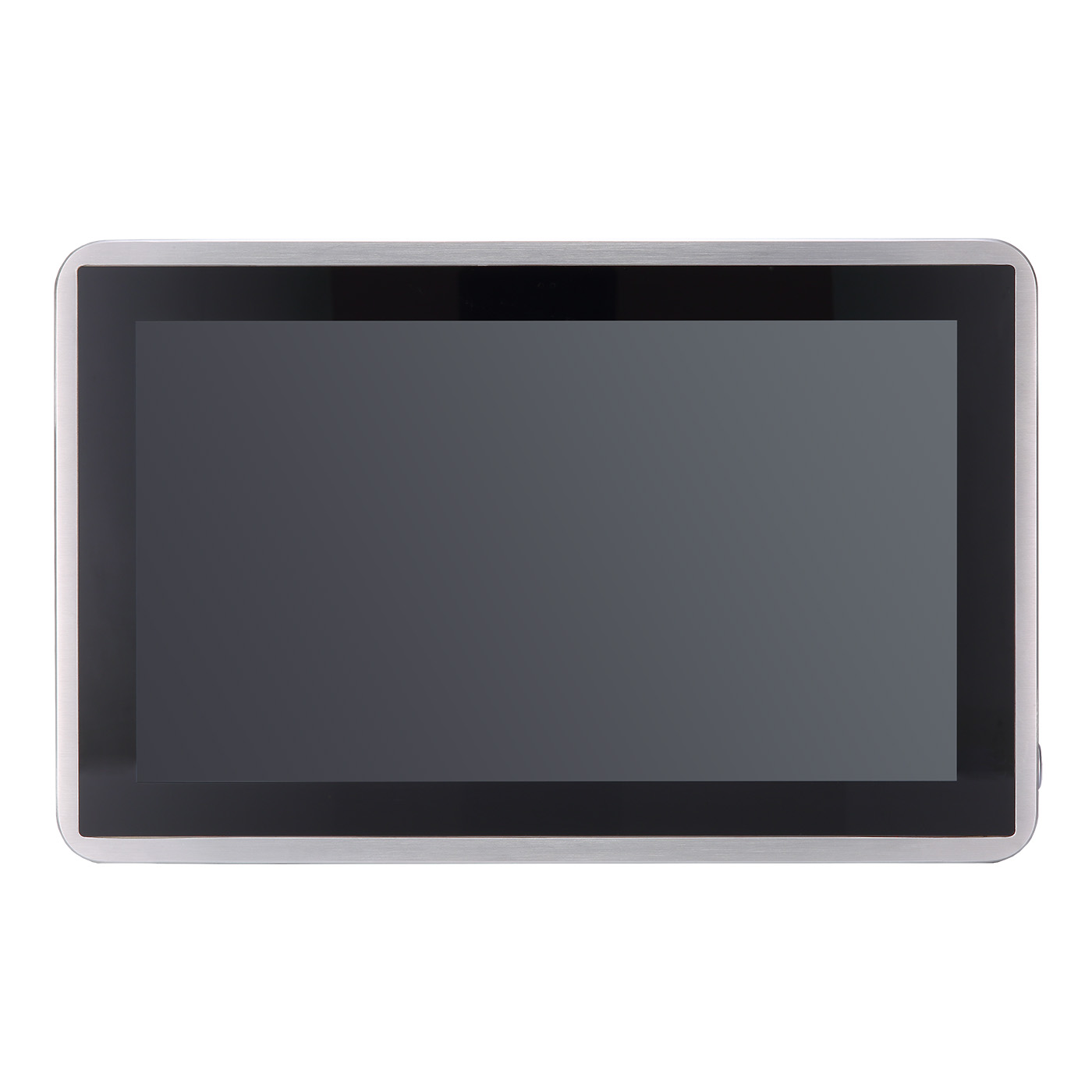

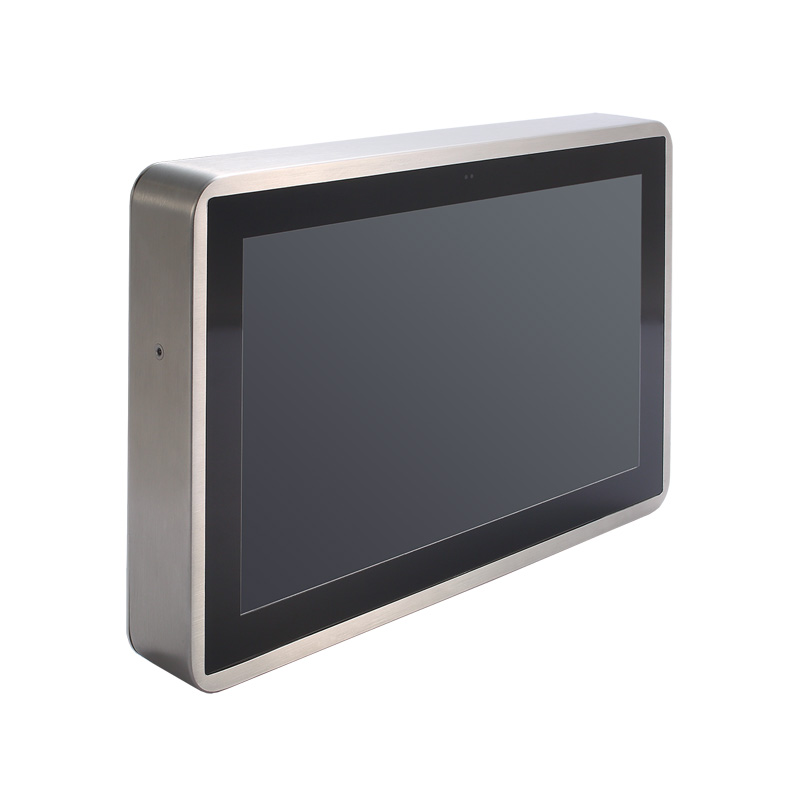

15.6" WXGA TFT IP66 & IP69K-rated Stainless Steel Fanless PCT Panel Computer with Intel® Core™ i5-1145G7E or Celeron® 6305E Processor and Flat Bezel Design (-20°C to +50°C)

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
GOT815A-TGL-WCD
GOT815A-TGL-WCD
GOT815A-TGL-WCD
GOT815A-TGL-WCD
GOT815A-TGL-WCD
GOT815A-TGL-WCD
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • 15.6" WXGA TFT flat bezel LCD display
  • IP66/IP69K-rated (NEMA 4) water/dust design
  • Full stainless-steel enclosure with SUS 304
  • -20°C to +50°C wide operating temperature range
  • Fanless design with Intel® Core™ i5-1145G7E or Celeron® 6305E processor
  • Wi-Fi kit for wireless network connectivity (optional)
  • Supports VESA mount
  • M12-type connectors for harsh environments
  • Supports proximity and light sensors (optional)
IP66 and IP69K Washdown Durability
Durability & Resistance

IP66 & IP69K rating
CID2 certified

Rugged Industrial Design
Rugged Design

-20 °C to +50 °C operating temperature
12 to 24 VDC power input

Projected Capacitive PCAP Multi-Touch Screen
Smooth User Interaction

Projected Capacitive Multi-Touch



Class I Division 2 (CID2) Certified

The GOT815A-TGL-WCD has obtained the CID2 certification to mitigate safety risks in hazardous environments such as oil, gas, and chemical manufacturing.

Water and Dust Resistance

To withstand high-pressure and steam cleaning, the GOT815A-TGL-WCD is fully waterproof with an IP69K-rated stainless steel enclosure and IP66-rated M12-type I/O connectors. This rugged design ensures complete protection against dust ingress and powerful water jets, making it ideal for washdown environments commonly found in food processing, pharmaceutical manufacturing, and chemical industries.

Focus Industries Segment

The GOT815A-TGL-WCD is completely dustproof and can withstand high-pressure, high-temperature water ingress to be applied in food processing, chemical plants, and pharmaceutical manufacturing. This robust stainless panel PC is also certified to Class I Division 2 (CID2) as an option, making it ready for more demanding environments, such as oil and gas applications or other industries with extreme operating conditions.

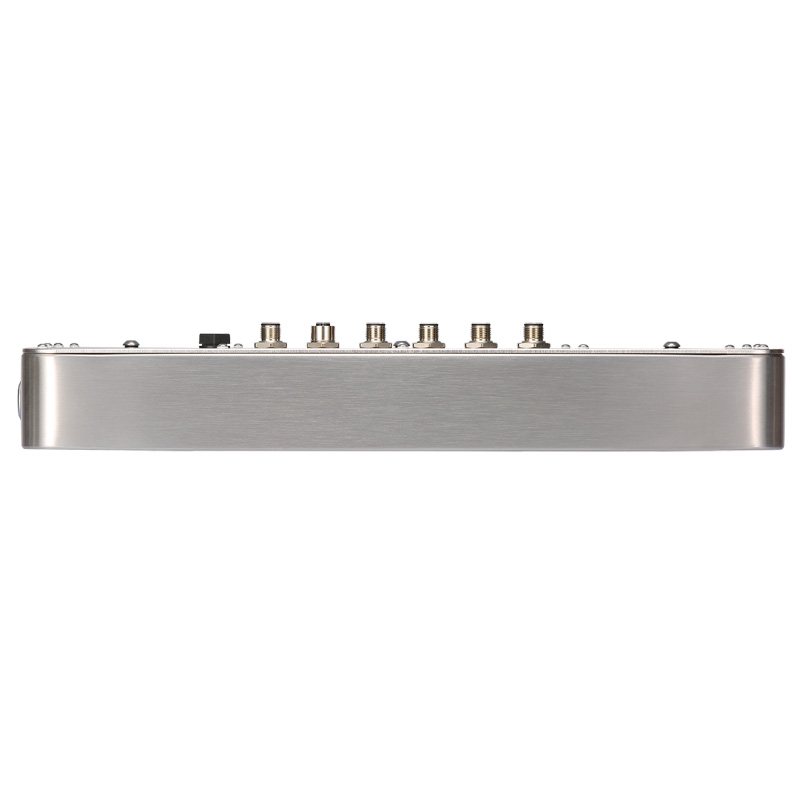

M12 Connectors

This robust GOT815A-TGL-WCD features abundant I/O ports by using M12 connectors, including two RS-232/422/485, four USB 2.0 ports, one 2.5 GbE LAN port, and one DC power connector.

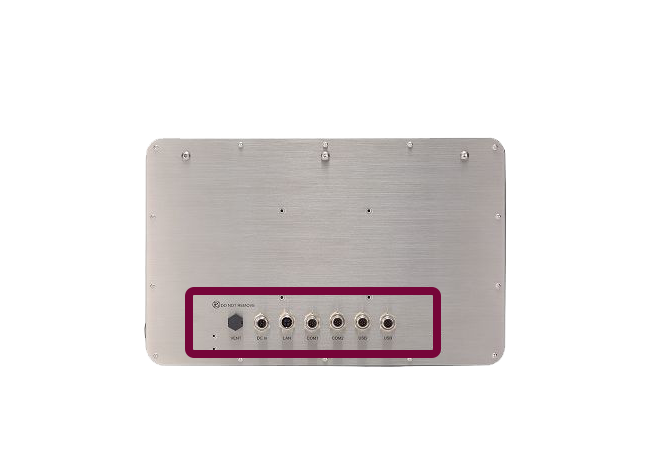

GOT815A-TGL-WCD Abundant M12-type Waterproof I/O Connectors Layout

For Strict Hygiene Requirements

The GOT815A-TGL-WCD adopts a SUS 304/316 stainless steel enclosure and a full flat front bezel for better reliability and strict hygiene demands.

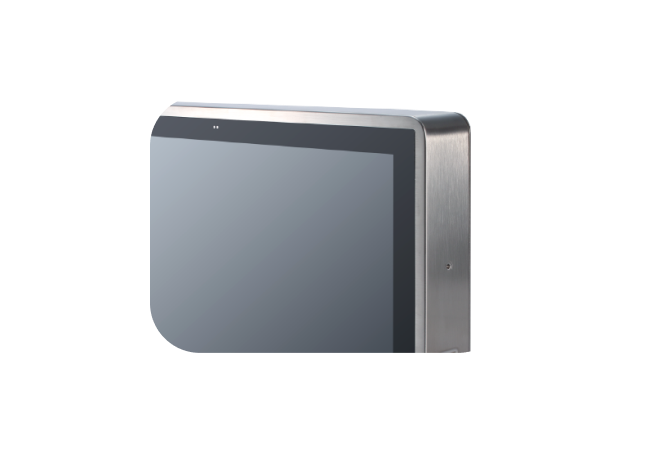

GOT815A-TGL-WCD 15.6-inch Full Flat Front Bezel with SUS 304/316 Stainless Steel Enclosure

Rich I/O Interfaces

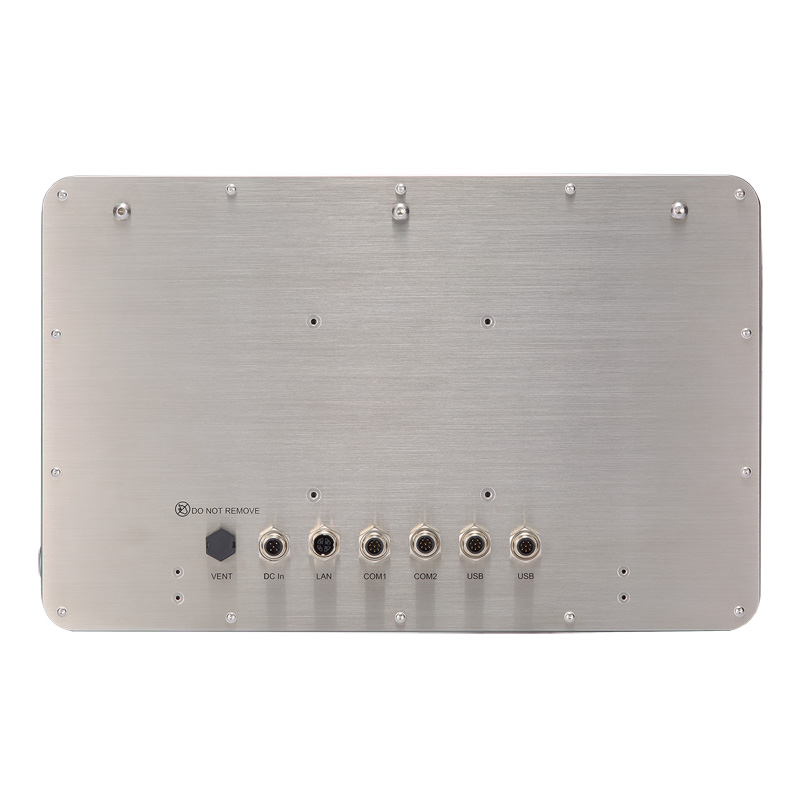

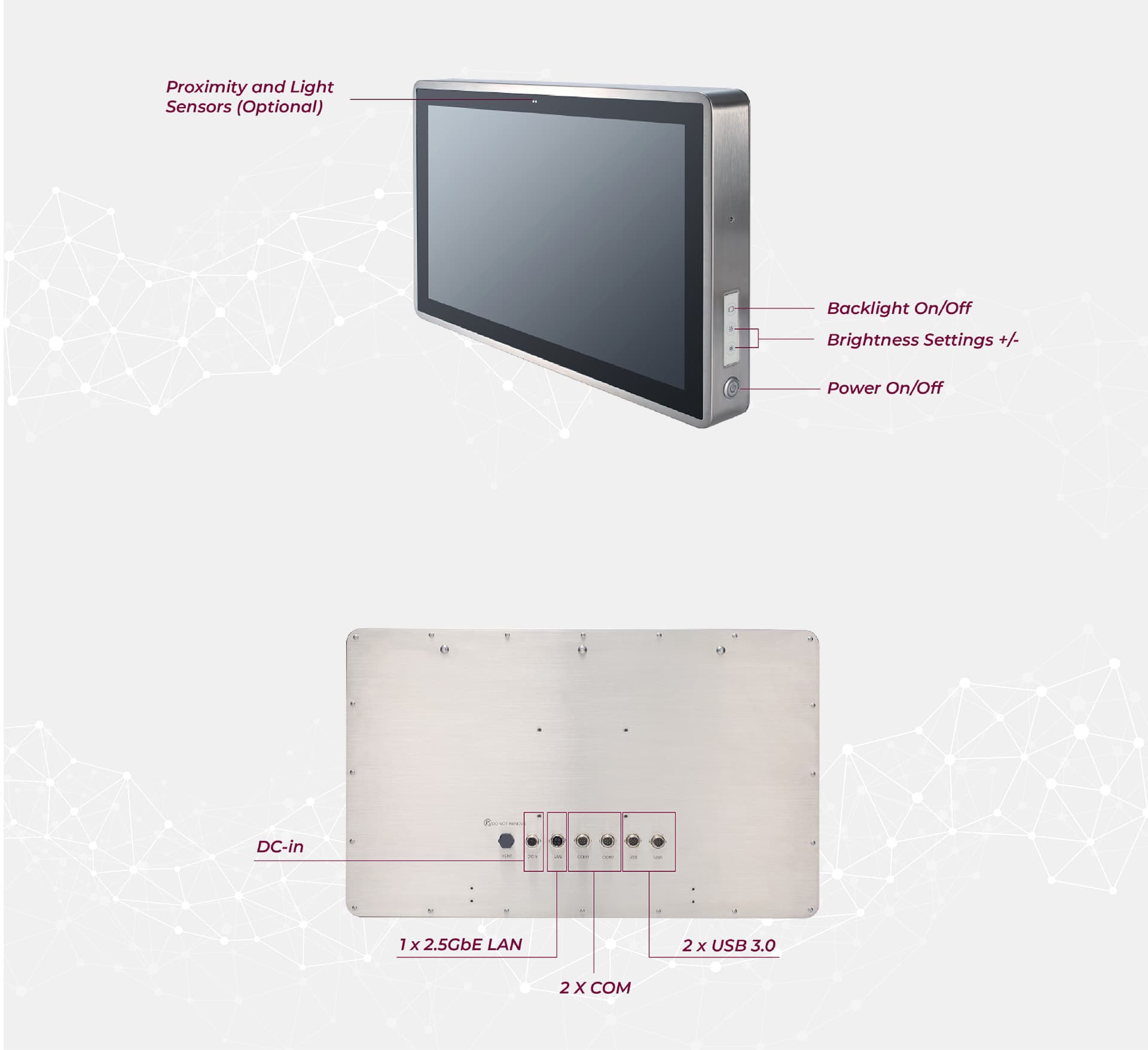

Axiomtek GOT815A-TGL-WCD Stainless Steel IP69K Touch Panel PC I/O View Layout

Specifications

LCD Panel
  • 15.6" WXGA TFT LCD
  • 400 nits
  • 1366 x 768 pixels
CPU
  • Intel® Core™ i5-1145G7E 2.6 GHz or Celeron® 6305E 1.8GHz
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR4-3200 SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485 (default RS-232, A-coded)
USB
  • 4 x USB 2.0 (A-coded)
Ethernet
  • 1 x 2.5GBase-T Ethernet with Intel® I225 (X-coded)
Display
  • N/A
Audio
  • N/A
Storage
  • 1 x 2.5" SATA SSD (9.5mm height)
Expansion
  • 1 x M.2 Key E 2230 slot (with PCIe x1 and USB 2.0 supported)
Others
  • TPM 2.0 onboard
Touchscreen
  • Projected capacitive multi-touch
Enclosure
  • Stainless steel (SUS) 304 or 316 (optional)
Power Supply
  • 12 to 24 VDC
Power Comsumption
  • 72W
Watchdog Timer
  • 65536 levels, 0 to 65535 sec.
Operating Temperature
  • -20°C to +50°C (-4°F to +122°F)
Relative Humidity
  • 10% - 95% @ +40°C, non-condensing
Vibration
  • 1G, 5 - 500Hz, random for 2.5" SSD
Dimensions (W x D x H)
  • 414.8 x 55 x 265.1 mm (16.33" x 2.2" x 10.44")
Weight (net/gross)
  • 5.8 kg (12.78 lb)/ 8.8 kg (19.40 lb)
Certifications
  • CE, EN 61000-6-2, EN 61000-6-4, and FCC Class A
  • C1D2 certified (must install I/O cover, 882B815A0A0E/ 882B815A1A0E)
EOS
  • Windows® 10 IoT, Windows® 11 IoT
Mounting
  • VESA mount

Ordering Information

  • GOT815A-TGL-WCD (P/N-E22B815A00)
    15.6" WXGA fanless IP66 & IP69K-rated stainless steel touch panel computer with Intel® Core™ i5-1145G7E, projected capacitive touch screen, 400 nits LCD, and 12 to 24 VDC power input
  • GOT815A-11C-WCD (P/N-E22B815A01)
    15.6" WXGA fanless IP66 & IP69K-rated stainless steel touch panel computer with Intel® Celeron 6305E, projected capacitive touch screen, 400 nits LCD, and 12 to 24 VDC power input
  • 594B8122100E
    Water-proof COM cable (1.8 m)
  • 594B7102700E
    Water-proof LAN cable (1.8 m)
  • 594B8152820E
    Water-proof USB cable (1.8 m)
  • 509000002200
    Adapter 24V 90W, M12 A-code 5P
  • 882B815A0A0E
    GOT815A-C1D2-Cover-DN Kit
  • 882B815A1A0E
    GOT815A-C1D2-Cover-UP Kit
  • E9C1000016
    WT DDR4 3200 SO-DIMM 32GB 260P SEC
  • E9C1000037
    WT DDR4 3200 SO-DIMM 16GB 260P SEC
  • E9C1000074
    WT DDR4 3200 SO-DIMM 8GB 260P Micron
  • E9C1000087
    WT DDR4 3200 SO-DIMM 4GB 260P SEC
  • E9C2F1512H
    WT 2.5" SSD 512GB FSA512GMW5T-DN MLC
  • E9C2F1256N
    WT 2.5" SSD 256GB FSA256GMW5T-DN MLC
  • E9C2F01280
    WT 2.5" SSD 128GB FSA128GMW5T-DN MLC
  • 822B815A050E
    GOT8xxA WiFi5 M2/WT 40/40CM C1D2 SFP

Download

Drivers

Date Description Version Download File
2023/04/21 Step 5. Graphics-part2 VA1.0
2023/04/21 Step 5. Graphics-part1 VA1.0
2023/04/21 Step 3. ME VA1.0
2023/04/21 Step 4. Serial IO VA1.0
2023/04/21 Step 2. LAN VA1.0
2023/04/21 Step 1. Chipset VA1.0

Software

Manual

Date Description Version Download File
2023/04/21 User's manual VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/09/28 UL CID2 Certificate
2023/09/28 UL62368-1 Certificate
2023/08/31 UKCA Declaration of Conformity
2023/08/31 CE-Conformity Declaration
2023/08/31 FCC Verification
2023/08/31 CE EMC Verification
