GOT5152T-845

Status : Available

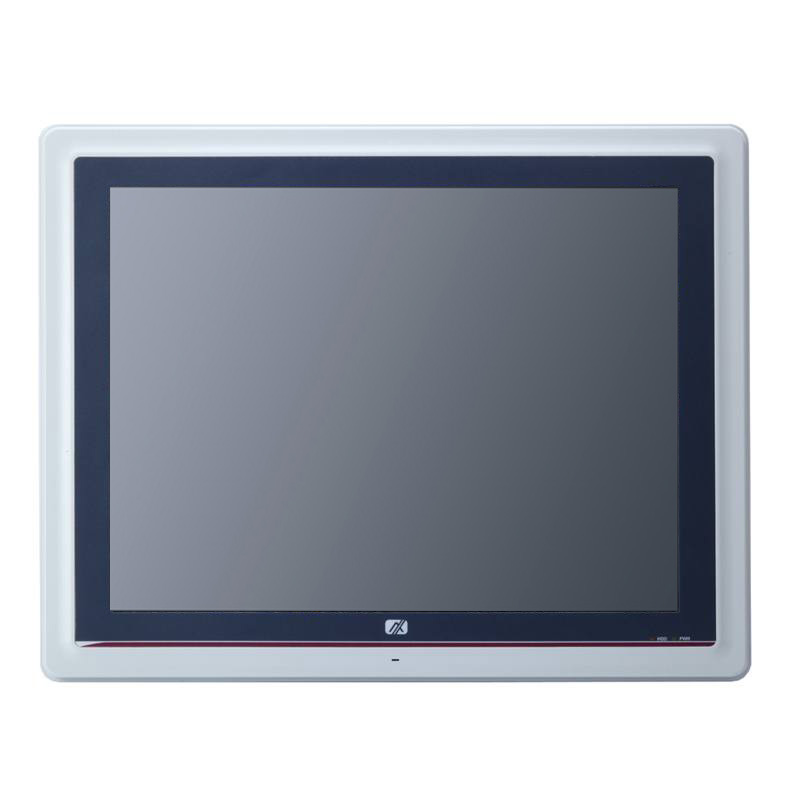

15" XGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3060

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
GOT5152T-845
GOT5152T-845
Dual-View

Dual-View

Fanless

Fanless

IP65 Rating

IP65 Rating

Low Power

Low Power

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 15" XGA TFT LCD display with LED backlight
  • Fanless cooling system with Intel® Celeron® processor N3060
  • WLAN module and internal antenna

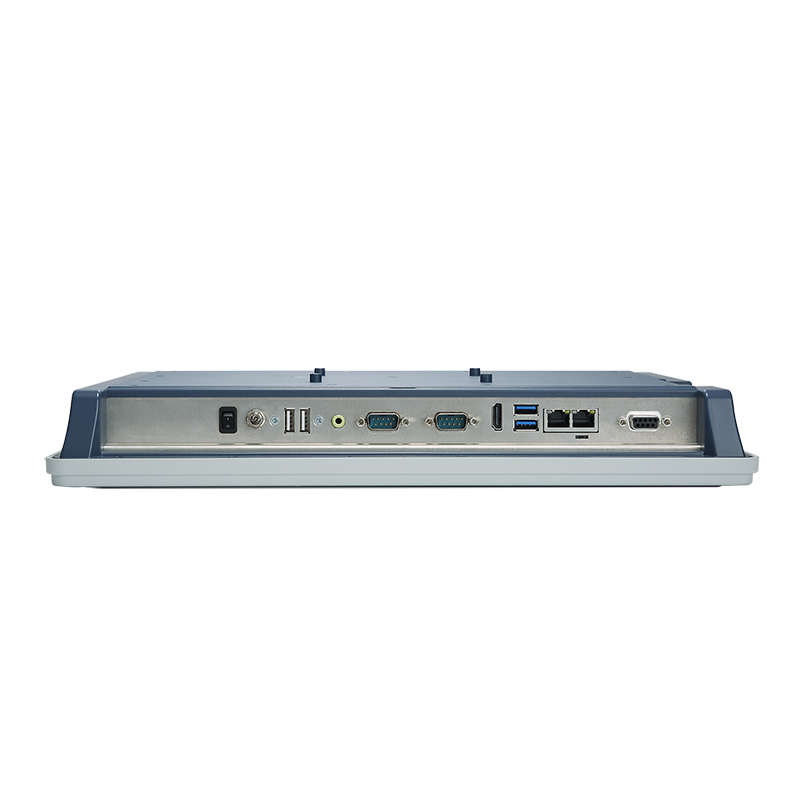

  • 2 GbE LAN, 4 USB and 2 COM
  • PCI Express Mini Card slot for easy expansion
  • Supports optional panel mount/wall mount/desktop stand
  • Supports RFID (optional)
  • Plastic and IP65-rated front bezel

Specifications

LCD Panel
  • 15" XGA TFT LCD with LED backlight
  • 450 nits
  • 1024 x 768
CPU
  • Intel® Celeron® processor N3060 (up to 2.48 GHz)
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1600, up to 8GB
BIOS
  • AMI
COM
  • 1 x RS-232
  • 1 x RS-232/422/485
USB
  • 2 x USB 2.0
  • 2 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® I210-AT)
Display
  • 1 x HDMI
Audio
  • 1 x Audio (Line-out)
Storage
  • 1 x 2.5" SATA HDD (9.5 mm)
  • 1 x mSATA
Expansion
  • 1 x Full-size PCI Express Mini Card with mSATA
  • 1 x Full-size PCI Express Mini Card with SIM slot
Others
  • 1 x 8-bit DIO port (programmable, DB9)
  • 1 x switch for power on/off
  • 1 x AT/ATX mode selection switch
Touchscreen
  • 5-wire resistive touch
Front Bezel
  • IP65, NEMA 4 rugged protection, plastic front bezel
Power Supply
  • DC version: 24 VDC over current protection fuse
  • AC version: 100 to 240V AC-DC, 60W power adapter
Power Comsumption
  • 32 W
Watchdog Timer
  • 255 levels, 0 - 255 sec.
Operating Temperature
  • 0°C to +50°C (+32°F to +122°F)
Relative Humidity
  • 20% to 90% @ +40°C; non-condensing
Shock/Vibration
  • 2G, 10 to 500Hz, random for SSD
Dimensions
(W x D x H)
  • 387.9 x 54.6 x 307.7 mm (15.27" x 2.14" x 12.11")
Weight (net/gross)
  • 3.2 kg (7.05 lb)/5.1 kg (11.24 lb)
Certifications
  • CE, FCC, UL60950-1
EOS
  • WES 7, Windows® 7, WE8S (64-bit), Windows® 8.1 (64-bit), Windows® 10
Mounting
  • Panel mount
  • Wall mount
  • VESA arm
  • Desktop stand

Ordering Information

  • GOT5152T-845 24 VDC (P/N-E225152115)
    15" XGA TFT Cost-effective fanless touch panel computer with Intel® Celeron® processor N3060, 5-wire resistive touch screen, 24 VDC power input (terminal block connector), and EMI class A no logo version
  • GOT5152T-845 24 VDC (P/N-E225152115)
    15" XGA fanless touch panel computer with Intel® Celeron® processor N3060, 5-wire resistive touch screen and 24 VDC power input (terminal block connector)
  • GOT5152T-845 J (P/N-E225152116)
    15" XGA fanless touch panel computer with Intel® Celeron® processor N3060, 5-wire resistive touch screen, AC-DC 60W power adapter (screw type connector), and EMI class B
  • Wi-Fi + Bluetooth kit
  • Speaker kit
  • E29R131105
    Panel mount kit
  • E29R131103
    Wall mount kit
  • E226171106
    Stand kit
  • E29R334100
    RFID kit

Download

Drivers

Date Description Version Download File
2017/07/11 Step8 Penmount Touch Driver (Only for Resistive touch ) VA1.0
2017/07/11 Step5 HD Audio VA1.0
2017/07/11 Step6 Intel USB 3.0 Driver VA1.0
2017/07/11 Step7 Volume Sync (Only for GOT5103&GOT5153) VA1.0
2017/07/11 Step4 LAN VA1.0
2017/07/11 Step3 TXE VA1.0
2017/07/11 Step2 Graphic VA1.0
2017/07/11 Step1 Chipset VA1.0

Software

Date Description Version Download File
2017/07/11 Wifi Module.part1 VA1.0
2017/07/11 Wifi Module.part2 VA1.0
2017/07/11 AX-USB30-Utility VA1.0
2017/07/11 PCT TOUCH Calibration (For GOT5103) VA1.0

Manual

Date Description Version Download File
2017/07/11 GOT5152T-845 User's Manual_VA1_06-08-2017 VA1.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2022/10/13 UKCA Declaration of Conformity
2022/10/13 FCC Verification
2022/10/13 CE-Conformity Declaration
2022/10/13 CE EMC Verification
2019/02/11 UL Certificate
2018/02/26 CE LVD Verification

You Might Also Like

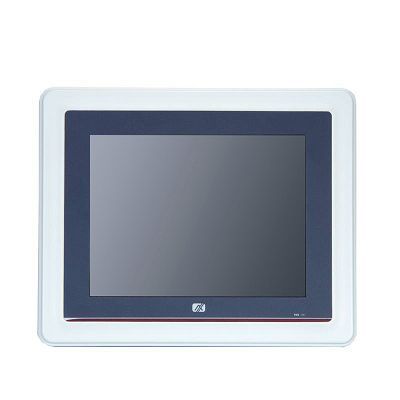

Picture of GOT5840T-845
