SCM330

Status : Available

SMARC Module with Intel® Core™/Pentium®/Celeron® or Intel Atom® Processors x7000 Series

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote

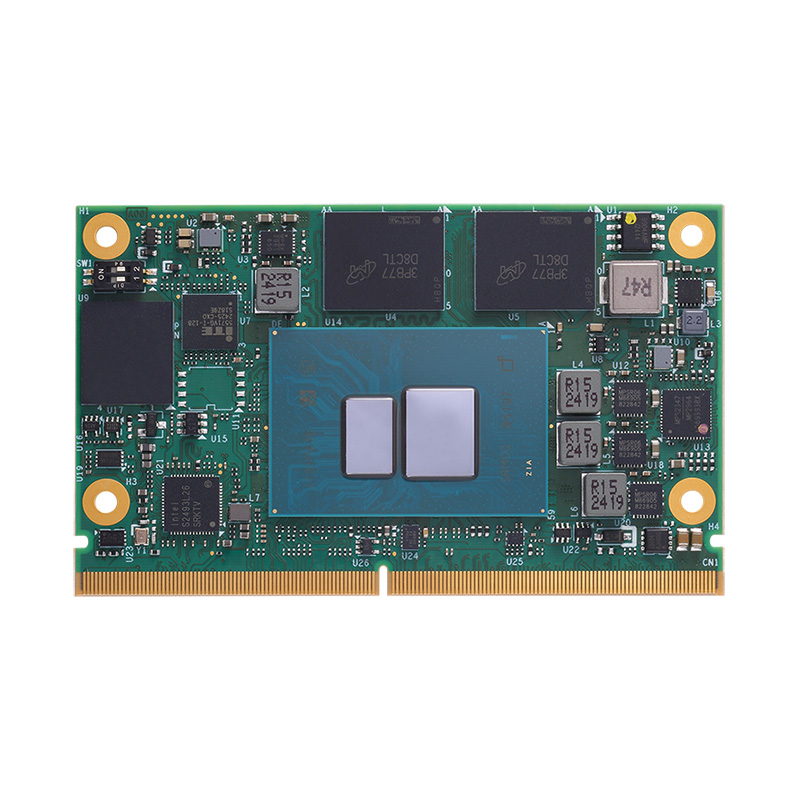

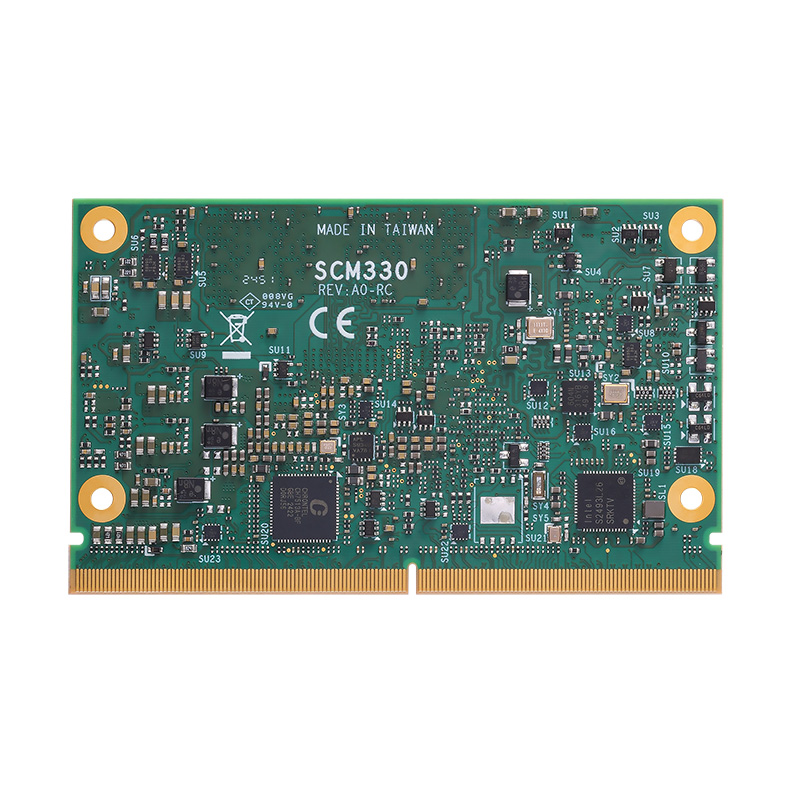

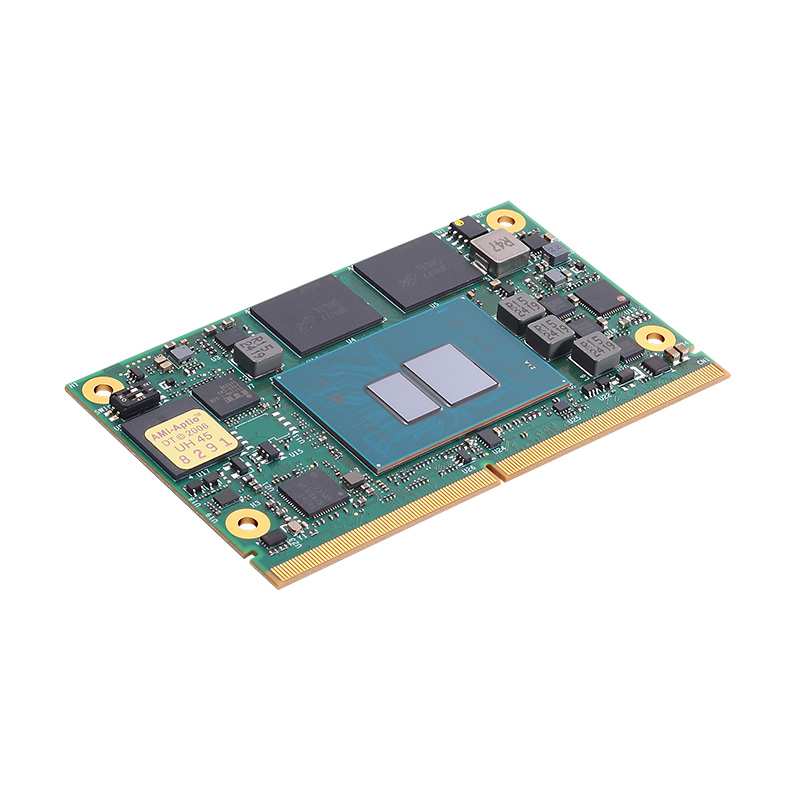

SCM330
SCM330
SCM330
DDR5

DDR5

Low Power

Low Power

TPM

TPM

Triple-View

Triple-View

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Core™/Pentium®/Celeron® or Intel Atom® processors x7000 series
  • LPDDR5-4800 with IBECC support, up to 16GB
  • Up to 4 lanes of PCI Express
  • 1 SATA Gen3
  • 2 USB 3.2 Gen.1 and 6 USB 2.0
  • Supports eMMC5.1 for up to 128GB of memory
  • Supports fTPM
  • SMARC2.1.1 pinout compliance

Specifications

CPU
  • Intel® Core™/Pentium®/Celeron® or Intel Atom® processors x7000 series
Chipset
  • SoC integrated
System Memory
  • LPDDR5-4800 with IBECC support, up to 16GB
BIOS
  • SoC integrated
COM
  • 4 x UART
USB
  • 2 x USB 3.2 Gen1
  • 6 x USB 2.0
Ethernet
  • 2 x 10/100/1000/2500 Mbps Ethernet (Intel® I226)
Display
  • 1 x LVDS; 18/24-bit single/dual-channel (optional eDP 1.4b)
  • 1 x HDMI
  • 1 x DisplayPort/HDMI
SPI
  • 1 x SPI
GSPI
  • 1 x GSPI (optional 1 x eSPI)
I2C
  • 2 x I2C
CAN
  • 2 x CANbus
GPIO
  • 7-CH in and 7-CH out (shared with Fan & HDA)
Audio
  • HDA link interface to baseboard for codec
Storage
  • eMMC5.1, up to 128GB
  • 1 x SATA Gen3
Expansion
  • 3 x PCIe x1 (default)
  • 1 x PCIe x4 or 4 x PCIe x1 (optional)
Smart Battery
  • N/A
SMBus
  • Yes
Hardware Monitoring
  • Yes
Others
  • fTPM
Battery
  • Battery Lithium
Power Requirement
  • ATX: Vin, VSB; AT: Vin
  • Vin: 4.75 to 5.25V, RTC battery: 2.0V to 3.3V
Operating Temperature
  • Industrial: -40°C to +85°C (-40°F to +185°F) with a system thermal solution
  • Standard: 0°C to +60°C (32°F to +140°F) with operation
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 82 x 50 mm
Board Thickness
  • 1.2 mm
Vibration
  • 3.5 Grms
Certifications
  • CE

Ordering Information

  • SCM330-i3N305
    SMARC R2.1.1 i3N305 with 16GB RAM, 1 HDMI, 1 HDMI/DisplayPort, 1 LVDS, 64GB eMMC, and two 2.5GbE LAN
  • SCM330-N97
    SMARC R2.1.1 N97 with 8GB RAM, 1 HDMI, 1 HDMI/DisplayPort, 1 LVDS, 32GB eMMC, and two 2.5GbE LAN
  • SCM330-x7835RE
    SMARC R2.1.1 x7835RE with 16GB RAM, 1 HDMI, 1 HDMI/DisplayPort, 1 LVDS, 64GB eMMC, and two 2.5GbE LAN
  • SCM330-x7211RE
    SMARC R2.1.1 x7211RE with 8GB RAM, 1 HDMI, 1 HDMI/DisplayPort, 1 LVDS, 32GB eMMC, and two 2.5GbE LAN
  • SCM330 heat spreader
  • SCM330 heat sink without fan
  • SCM330 heat sink with fan
