Q7B301

Status : Available

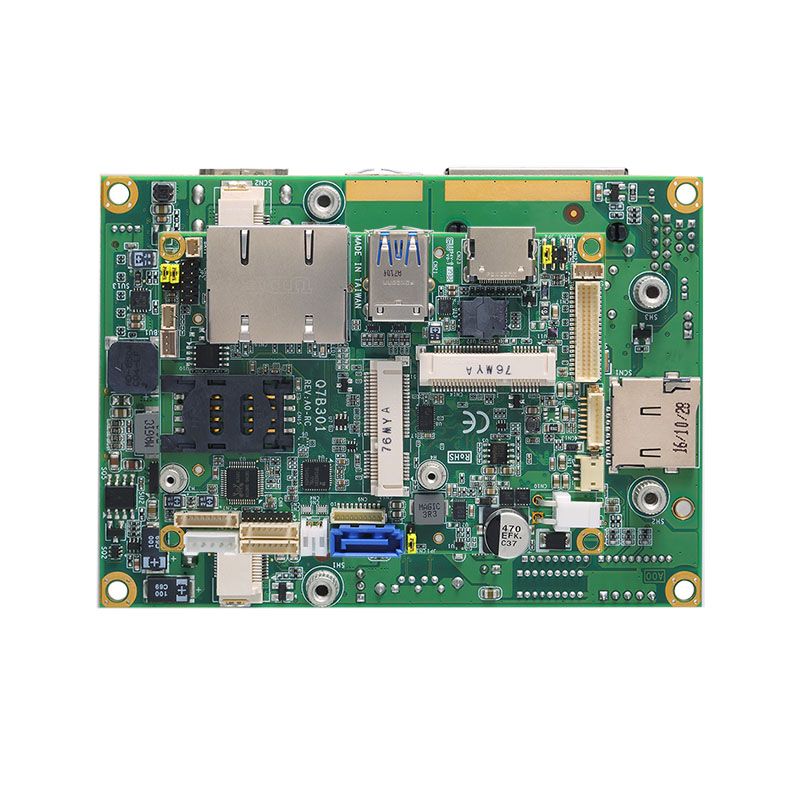

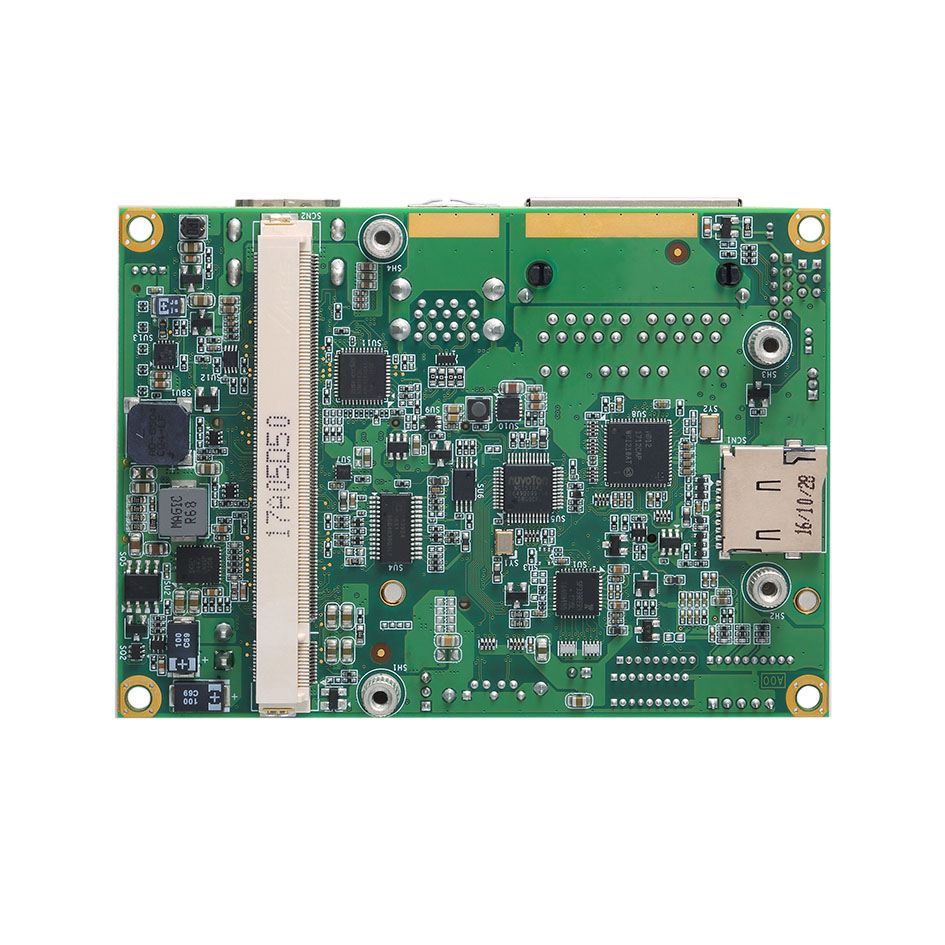

Qseven Rev 2.1 Application Board with LVDS, HDMI, Dual LAN and Audio

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
Q7B301
Q7B301
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 100 x 72 mini size form factor
  • 2 GbE LAN
  • SATA-600
  • LVDS and HDMI
  • 1 USB 2.0 and 2 USB 3.0
  • 2 PCI Express Mini Card slots

Specifications

CPU
  • On the module
Chipset
  • On the module
System Memory
  • On the module
BIOS
  • On the module
COM
  • 2 x RS-232/422/485
USB
  • 1 x USB 2.0
  • 2 x USB 3.0
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® i210IT)
  • 1 x 10/100/1000Mbps (routed from CPU module)
Display
  • 1 x LVDS
  • 1 x HDMI
Audio
  • HD audio with Line-out & MIC-in
I2C
  • 1 x I2C
GPIO
  • 4-IN & 4-OUT
CAN
  • N/A
Storage
  • 1 x SATA-600
SPI
  • N/A
Expansion
  • 1 x Full-Size PCI Express Mini Card Slot (mSATA supported)
  • 1 x Half-size PCI Express Mini Card slot
  • 1 x SIM card slot
Others
  • 1 x SMBus
Battery
  • N/A
Power Requirement
  • 2-pin DC-in 12V connector
Watchdog Timer
  • On the module
Hardware Monitoring
  • Yes
Operating Temperature
  • -40ºC to +85ºC (-40ºF to +185ºF)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 100 x 72 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • Q7B301LVDS (P/N-E399301100)
    Qseven Rev 2.1 application board with 2 PCI Express Mini Card slots, 2 GbE LAN, LVDS and HDMI

Download

Drivers

Date Description Version Download File
2018/11/20 Audio Driver VA1
2018/11/20 LAN Driver VA1

Software

Manual

Date Description Version Download File
2018/11/20 User Manual VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/08 UKCA Declaration of Conformity
