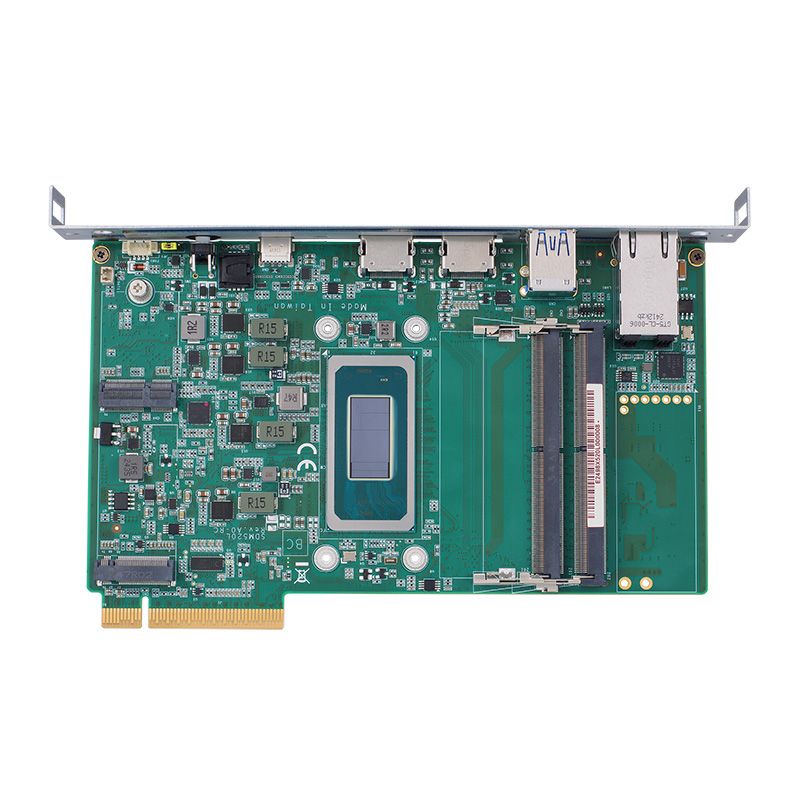

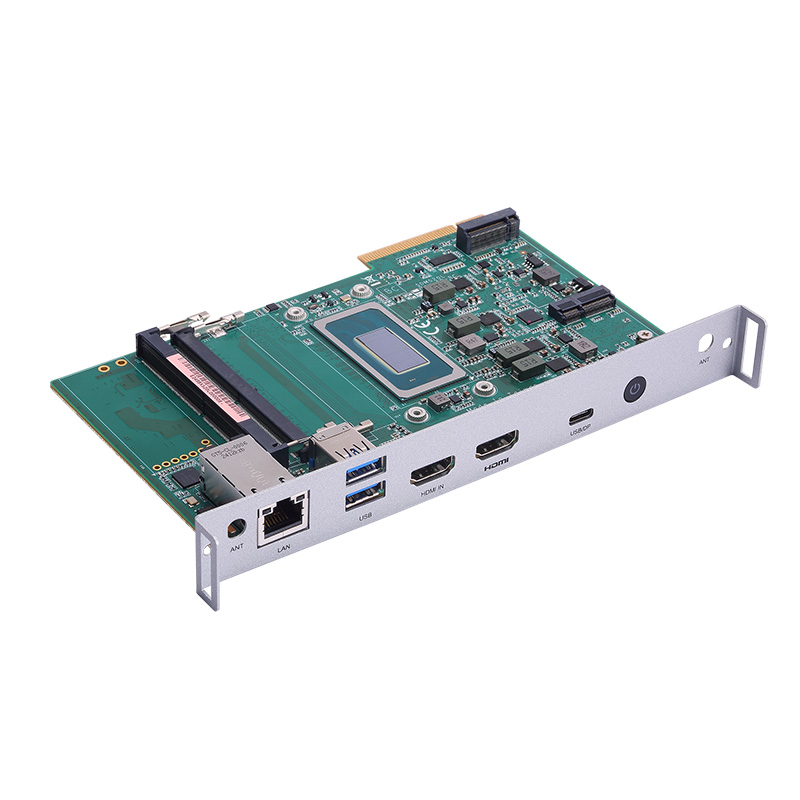

SDM520L

Status : Available

Intel® Smart Display Module Large (Intel® SDM-L) with Intel® Core™ Ultra 7/5 Processors (Meteor Lake-U), Integrated NPU AI Solution, PoE, 4K HDMI Input, and 8K HDMI Output Support

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
SDM520L
SDM520L
SDM520L
2.5G LAN

2.5G LAN

8K

8K

AI Computing

AI Computing

DDR5

DDR5

PoE

PoE

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • Intel® Core™ Ultra 7/5 processors (Meteor Lake-U)
  • 2 DDR5 SO-DIMM slots for up to 96GB memory
  • One 2.5GbE LAN with optional PoE module support for Pro-AV applications
  • Supports one 4K HDMI input and one 8K HDMI output for Audio Visual market
  • Supports dTPM2.0

Specifications

CPU
  • Intel® Core™ Ultra 7/5 processors (Meteor Lake-U)
Chipset
  • SoC integrated
  • AMI
  • Lithium 3V/220 mAH
System Memory
  • 2 x 262-pin DDR5-5600 SO-DIMM
SDM Edge connector
  • 1 x HDMI 2.1
  • 1 x DisplayPort 1.4
  • 1 x USB 3.2 Gen 2 x1
  • 1 x 1GbE LAN
  • 1 x Serial TX/RX
  • 1 x I2C

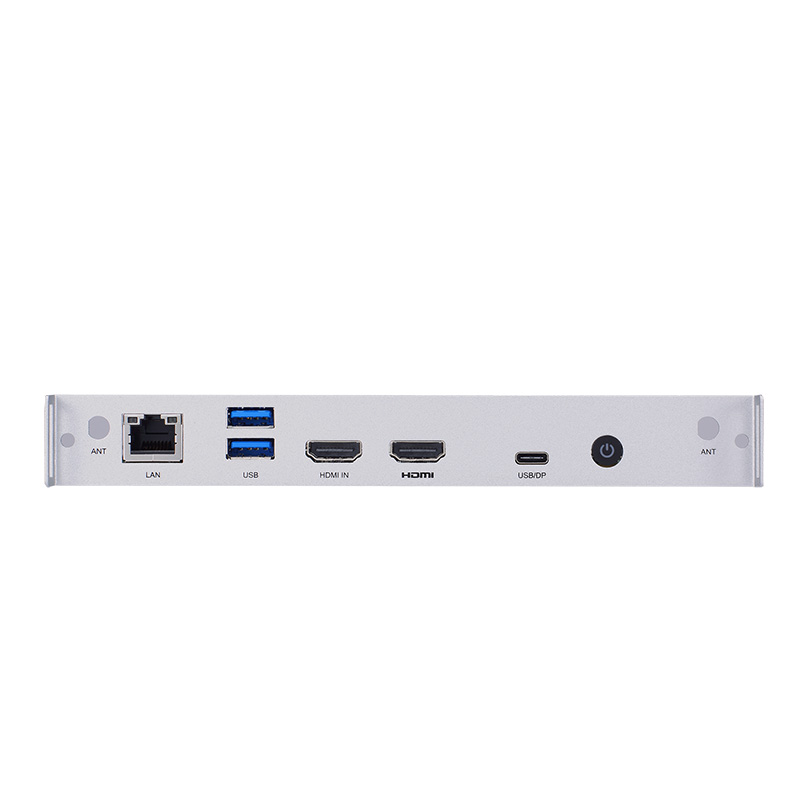

I/O
  • 1 x HDMI output 2.1 (8K @ 60Hz)
  • 1 x HDMI input 2.0 (4K @ 60Hz)
  • 1 x DisplayPort via Type-C (8K @ 60Hz)
  • 1 x 2.5GbE LAN (Intel® I226V)
  • 2 x USB 3.2 Gen 2 Type-A
  • 1 x USB 3.2 Gen 2 Type-C
  • 1 x PoE LAN (optional; 72W power input)
Storage
  • 1 x M.2 Key M 2280 slot (PCIe x4 + SATA signal)
Expansion
  • 1 x M.2 Key E 2230 slot for Wi-Fi 7/6E and Bluetooth 6.0/5.2
Power Input
  • Through the SDM golden finger
  • +12V and +3.3VSB
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Dimensions
  • 175 x 110 mm
Weight (net/gross)
  • 252g/340g
Board Thickness
  • 1.6 mm
Operation Humidity
  • 10% to 95% relative humidity, non-condensing
Operating Temperature
  • 0°C to +55°C (+32°F to +140°F)

Ordering Information

  • SDM520L-125U-STD (P/N-E38X520L01)
    SDM-L module with Intel® Core™ Ultra 5, 125U processor (15W), 2 SO-DIMM, 1 M.2 SSD, 1 HDMI output, 1 HDMI input, 1 LAN, 2 USB 3.2 Gen 2, and 1 x USB 3.2 Gen 2 Type-C
  • SDM520L-155U-STD (P/N-E38X520L00)
    SDM-L module with Intel® Core™ Ultra 7, 155U processor (15W), 2 SO-DIMM, 1 M.2 SSD, 1 HDMI output, 1 HDMI input, 1 LAN, 2 USB 3.2 Gen 2, and 1 x USB 3.2 Gen 2 Type-C
