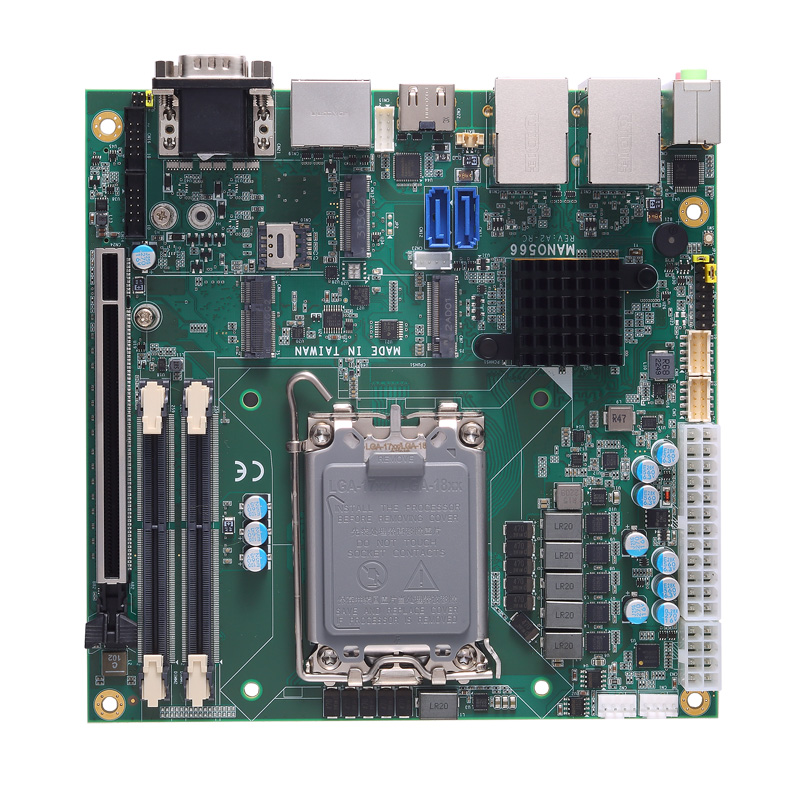

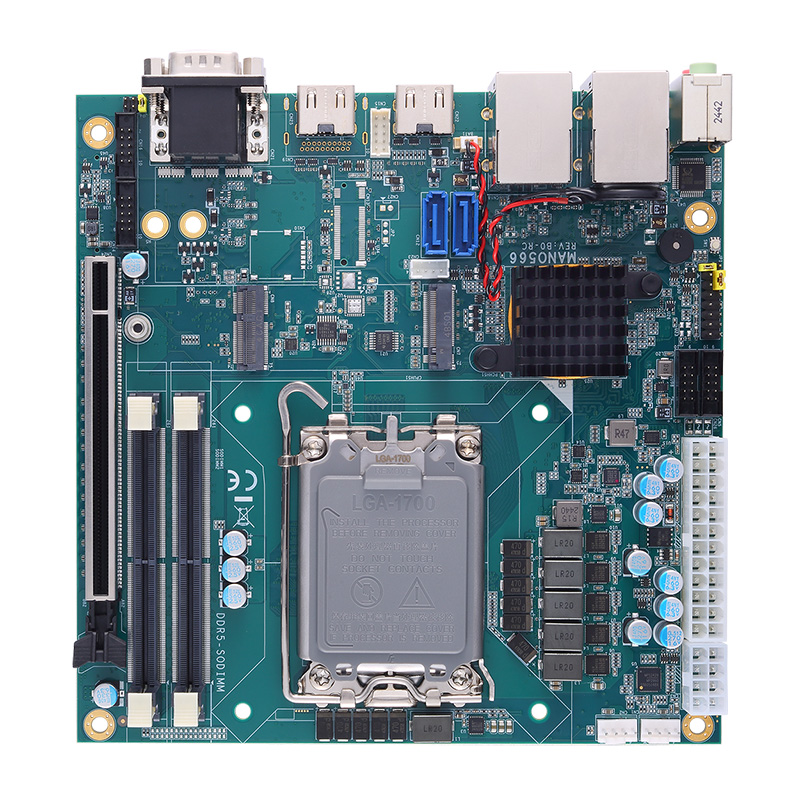

Which processors does the MANO566 support? + The MANO566 from Axiomtek supports 14th, 13th, and 12th Gen Intel® Core™ i9, i7, i5, and i3 processors, paired with Intel® Q670E, R680E, or H610E chipsets to deliver scalable computing performance.
What memory and storage options are available on the MANO566? + The motherboard supports either two 260-pin DDR4-3200 slots (up to 64GB) or two DDR5 SO-DIMM slots (up to 96GB), and offers flexible storage with two SATA-600 ports and an M.2 Key M 2280 slot for SATA modules.

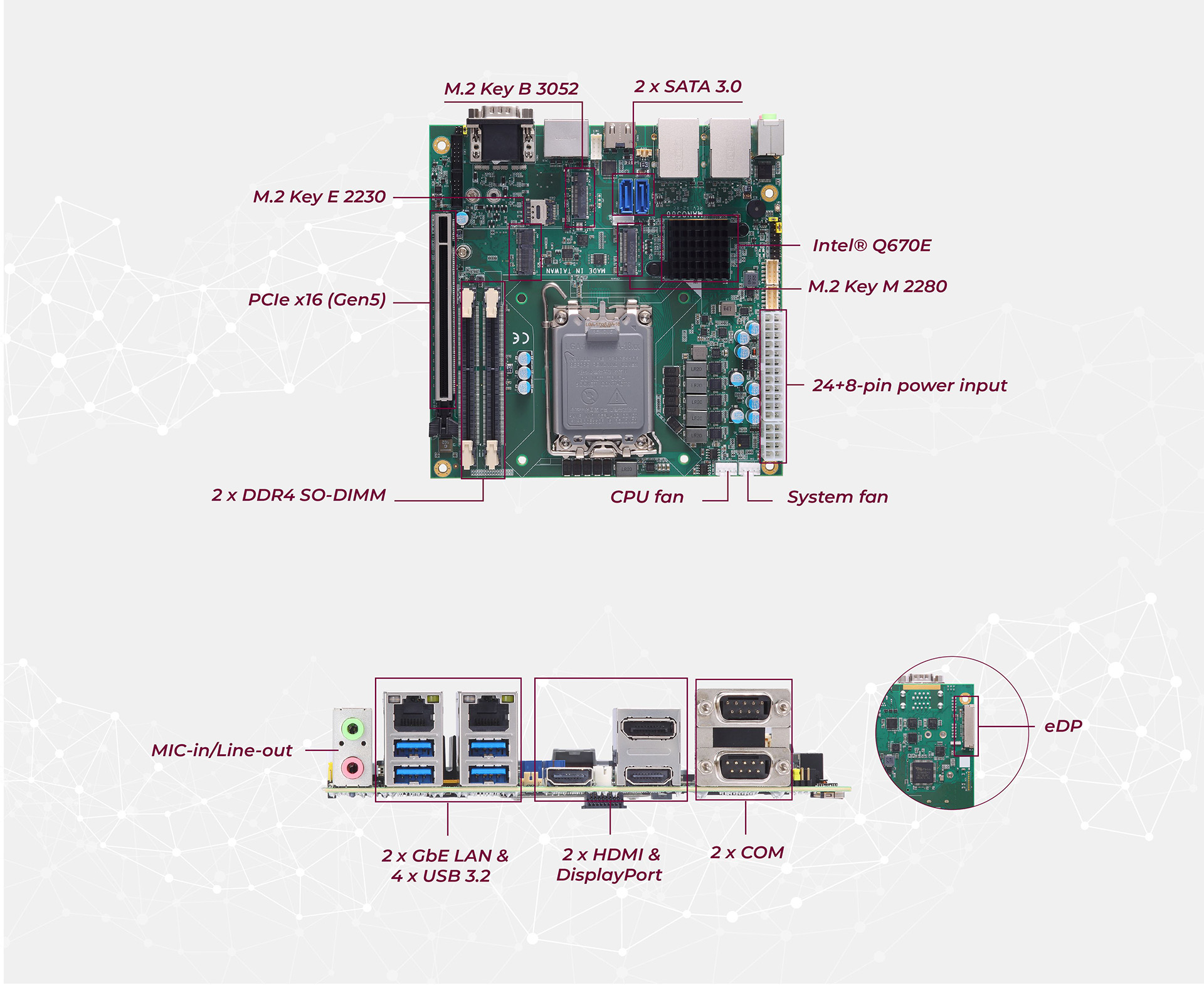

What expansion options does the MANO566 provide? + It includes one PCIe x16 Gen5 slot, one M.2 Key M 2280 for storage, one M.2 Key B slot for 5G modules, and one M.2 Key E slot for Wi-Fi/Bluetooth.

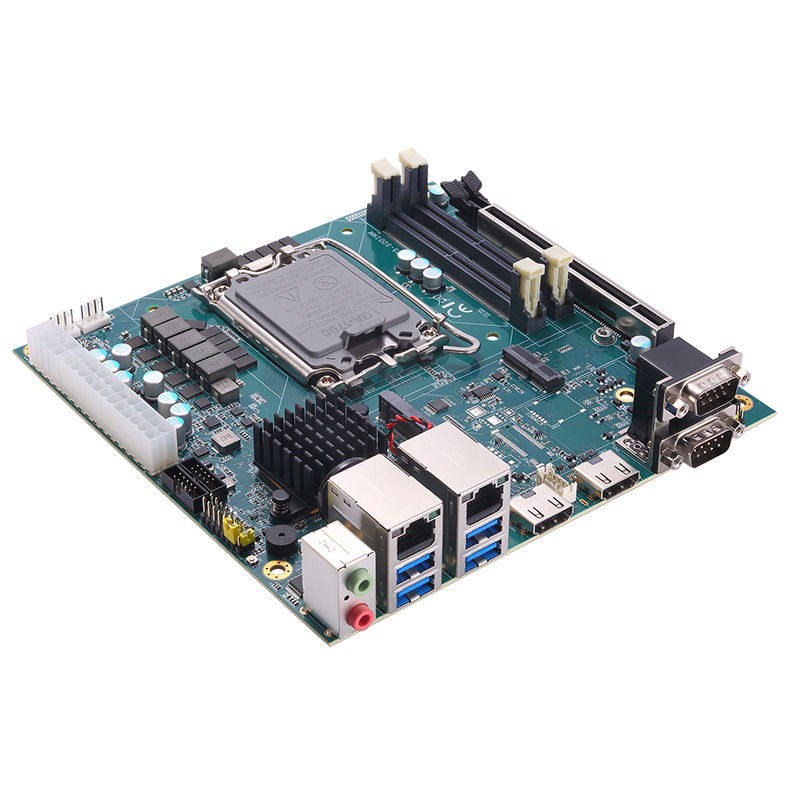

How does the MANO566 handle graphics and display output? + Powered by Intel® UHD Graphics 700 series, the board supports up to four independent displays through DisplayPort++, eDP, and dual HDMI interfaces—ideal for multi-screen kiosk and digital signage applications. It also offers eight USB ports, including four USB 3.2 and four USB 2.0, for versatile peripheral connectivity.
What networking and communication interfaces are supported? + ports supporting RS-232/422/485, ensuring reliable communication with industrial devices and automation equipment.
What power and reliability features does the MANO566 provide? + It features a 24+4-pin ATX power connector with AT mode auto-power function, operates reliably within a temperature range of 0°C to 60°C, and includes a watchdog timer to ensure continuous system operation.
How does the MANO566 enhance system security? + The motherboard integrates onboard TPM 2.0, providing hardware-based security to protect sensitive data and ensure system integrity in commercial and industrial deployments.
What types of applications benefit most from the MANO566? + The MANO566 is ideal for smart kiosks, self-service terminals, industrial automation, machine vision, entry-level medical imaging, and interactive retail systems that demand performance, flexibility, and dependable operation.
