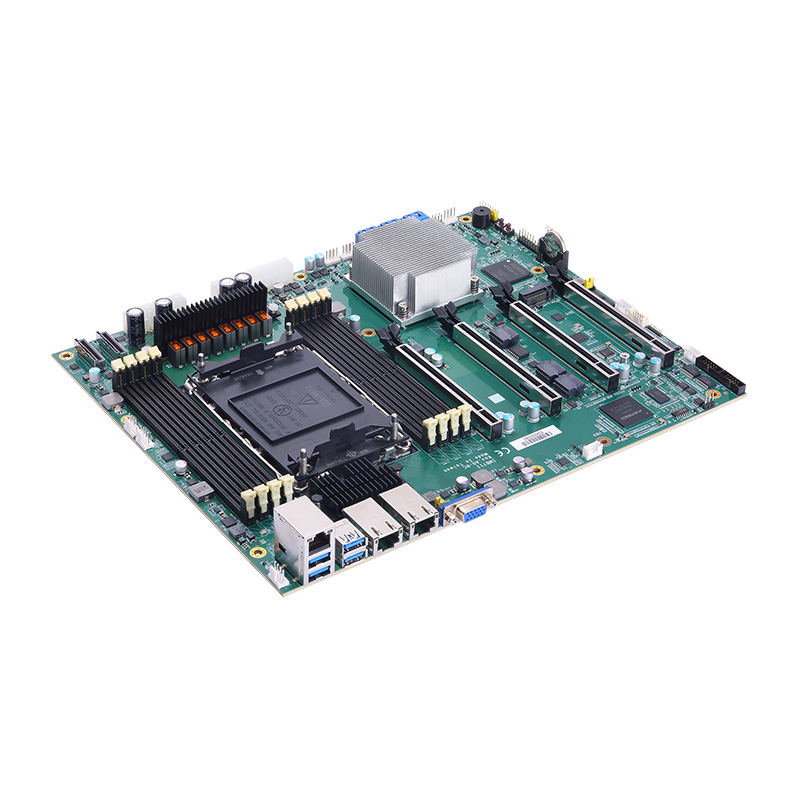

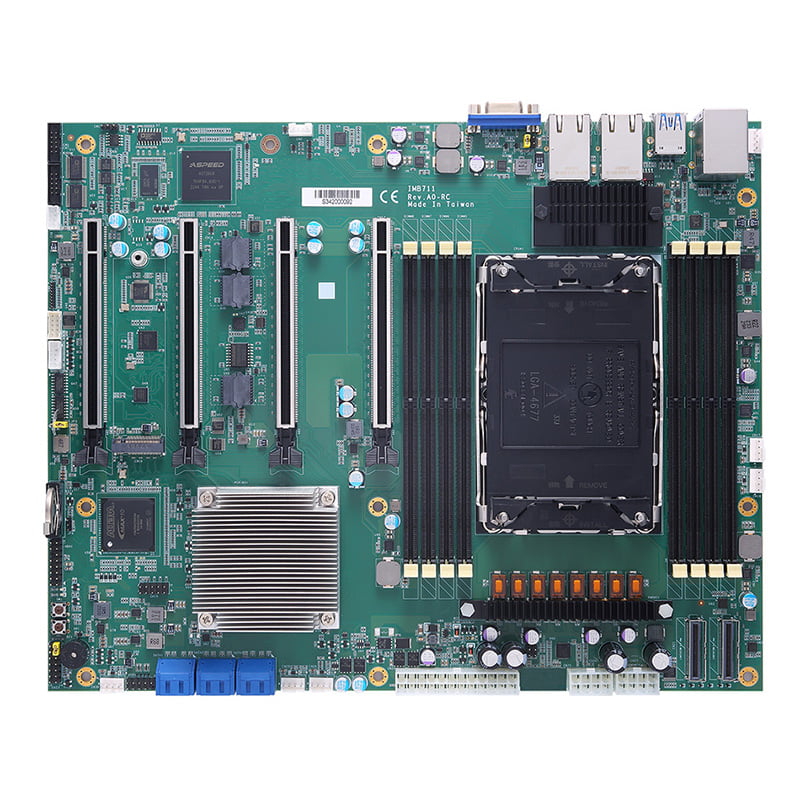

IMB711

Status : Available

IEC 60601-1 Ready Medical-Grade ATX Motherboard with LGA4677 Socket 5th/4th Gen Intel® Xeon® Scalable Processors, Intel® C741, 4 PCIe x16, VGA, and NVMe

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
IMB711
IMB711
IPMI

IPMI

Medical Grade

Medical Grade

PCIe Expansion

PCIe Expansion

Redundant BIOS

Redundant BIOS

TPM

TPM

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • 5th/4th Gen Intel® Xeon® Scalable processors
  • 8 DDR5-5200 ECC RDIMM
  • Supports up to 4 PCIe x16 double-slot expansion cards
  • Supports 2 Mini Cool Edge IO (MCIO) connectors with PCIe Gen 5 x8
  • Supports dual 10GbE LAN ports and 1 dedicated IPMI LAN port
  • Supports TPM 2.0
  • Supports redundant BIOS and BMC

Specifications

CPU
  • 5th/4th Gen Intel® Xeon® Scalable processors, up to 270W
Chipset
  • Intel® C741
System Memory
  • 8 x 288-pin DDR5-5200 ECC RDIMM memory
BIOS
  • AMI
COM
  • 2 x RS-232 (internal box header; supports SOL)
USB
  • 4 x USB 3.2 Gen 1
  • 2 x USB 2.0 with 1 internal box header
Ethernet
  • 2 x 10GbE RJ-45 port with Intel® X550-AT2
  • 1 x GbE RJ-45 port with a dedicated IPMI LAN, powered by Realtek RTL8211F
Display
  • 1 x VGA
Digital I/O
  • 8-channel programmable
Audio
  • MIC-in/Line-in/Line-out/Speaker-out with audio kit AX93242 (optional)
Storage
  • M.2 key M 2280 with PCIe x4 signal
  • 6 x SATA-600 with RAID 0/1/5/10
Expansion
  • Slot 1, 2 & 3: PCIe x16 (Gen 5 x16 link)
  • Slot 4: PCIe x16 (Gen 5 x8 link)
  • Slot 5: M.2 Key M 2280 (PCIe Gen 4 x4 signal)
  • 2 x MCIO (PCIe Gen 5 x8)
Others
  • SMBus
  • PMBus
  • IPMB
Battery
  • N/A
TPM
  • TPM 2.0 module
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F), depends on cooler solution
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 305 x 244 mm
Board Thickness
  • 2.54 mm
Certifications
  • IEC 60601-1

Ordering Information

  • IMB711 Single Pack (P/N-E38F711101)
    ATX motherboard with LGA4677 Socket 5th/4th Gen Intel® Xeon® Scalable processors, Intel® C741, 4 PCIe x16, VGA, and NVMe; single packing
  • IMB711 Bulk Pack (P/N-E38F711102)
    ATX motherboard with LGA4677 Socket 5th/4th Gen Intel® Xeon® Scalable processors, Intel® C741, 4 PCIe x16, VGA, and NVMe; bulk packing
  • 5938A808010E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=190 mm
  • 5938A808020E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=400 mm
  • E393242100
    AX93242-RC HD audio converter kit
  • 593826A0000E
    SATA signal cable/red, L=500 mm

Download

Drivers

Date Description Version Download File
2026/01/12 RNDIS VA1
2026/01/12 QAT2.0.W.2.4.0-0010 1 VA1
2026/01/12 LAN VA1
2026/01/12 CSME VA1
2026/01/12 CHIPSET VA1
2026/01/12 GRAPHIC VA1
2026/01/12 AUDIO VA1

Software

Manual

Date Description Version Download File
2026/01/12 IMB711 User's Manual VA1_11-20-2025 VA1

Design Guide

Technical Announcement

Certificates

Frequently Asked Questions

You Might Also Like

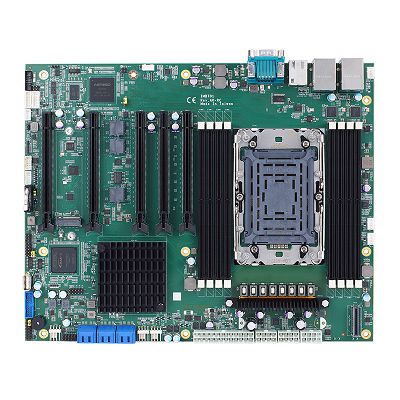

Picture of IMB701
