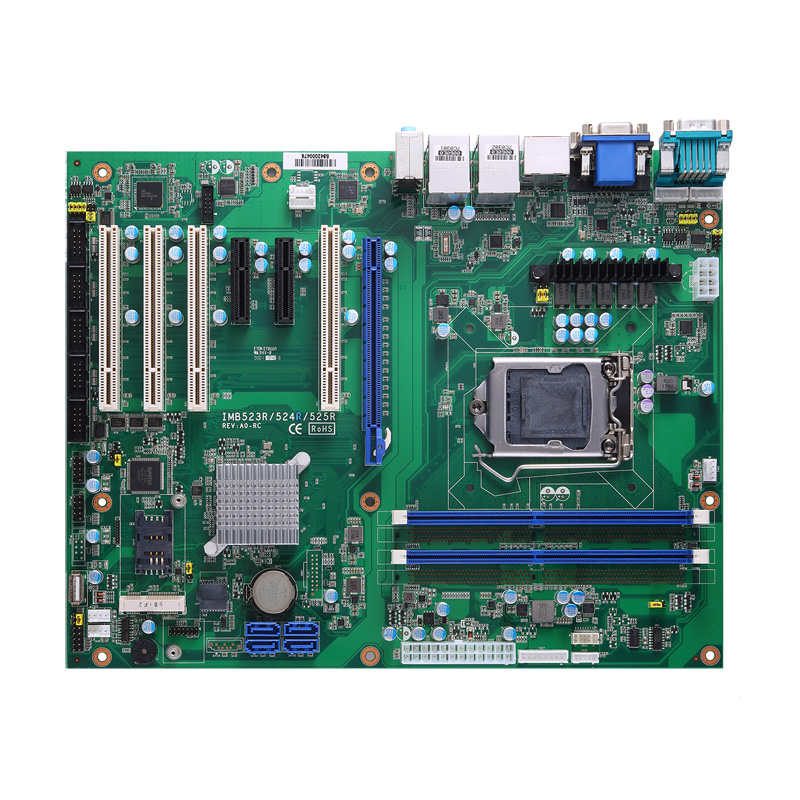

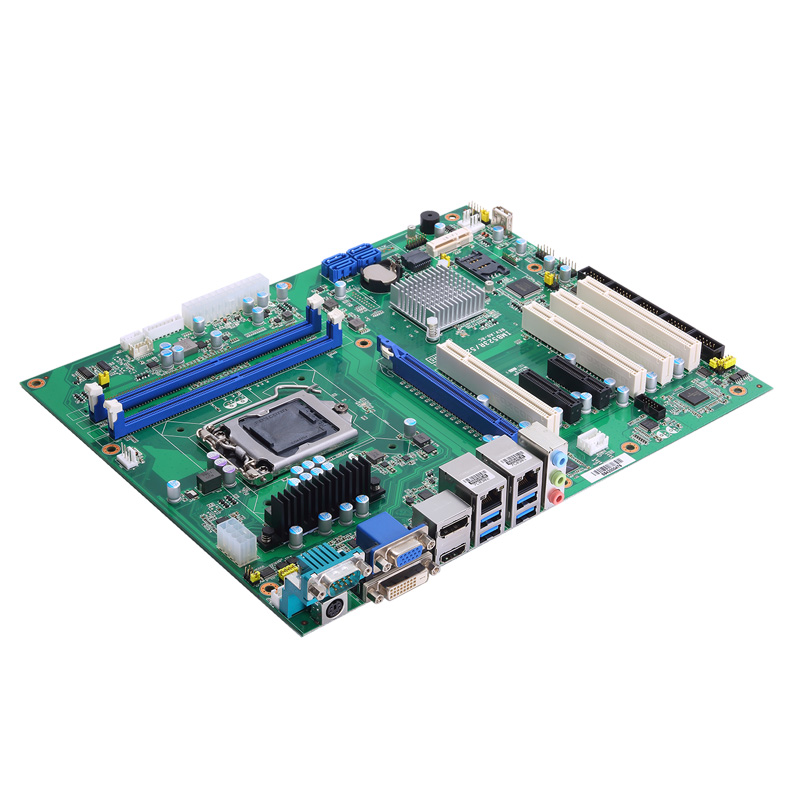

IMB524R

Status : Available

ATX Motherboard with LGA1151 Socket 9th/8th Gen Intel® Core™ Processor, Intel® H310, USB 3.2 Gen1, SATA 3.0, PCI Express Mini Card Slot, VGA, DisplayPort++, DVI-D, and HDMI

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
IMB524R
IMB524R
Dual-View

Dual-View

PCIe Expansion

PCIe Expansion

TPM

TPM

USB 3.2

USB 3.2

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor (Coffee Lake Refresh)
  • Two 288-pin DDR4-2666/2400 DIMM for up to 64GB of memory
  • DisplayPort++, DVI-D, HDMI and VGA with dual-view supported
  • 4 SATA-600
  • 1 PCI Express Mini Card slot
  • 4 USB 3.2 Gen1 and 5 USB 2.0
  • TPM 2.0 supported (optional)

Specifications

CPU
  • LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor (up to 95W)
Chipset
  • Intel® H310
System Memory
  • 2 x 288-pin DDR4-2666/2400 DIMM, up to 64GB
BIOS
  • AMI
COM
  • 4 x RS-232 (Internal box header)
  • 2 x RS-232/422/485 (COM 1: rear I/O; COM 2: internal box header)
USB
  • 4 x USB 3.2 Gen 1x1 (5Gbps, rear I/O)
  • 5 x USB 2.0 (pin header, 180D type A)
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® I219-LM)
  • 1 x 10/100/1000 Mbps (Intel® I210-AT)
Display
  • 1 x VGA
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x DisplayPort++
Digital I/O
  • 8-channel programmable
Audio
  • HD Codec audio as MIC-in/Line-in/Line-out with Realtek ALC888
Storage
  • 4 x SATA-600
Expansion
  • 1 x PCIe x16 slot
  • 2 x PCIe x4 slot (2 PCIe x1 signal)
  • 4 x PCI slot
  • 1 x PCIe Mini Card slot with PCIe x1 & USB 2.0
Others
  • 1 x PS/2 keyboard and mouse
  • SMBus
Battery
  • Lithium 3V/ 220mAH
TPM
  • TPM 2.0 (optional)
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 305 x 244 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • IMB524RVDHGGA-H310 (P/N-E38F524103)
    ATX motherboard with LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor, Intel® H310, USB 3.2 Gen1, SATA 3.0, 2 GbE LAN, VGA, DisplayPort, DVI-D and HDMI
  • 5938A808010E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=190 mm
  • 5938A808020E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=400 mm
  • 5948C122800E
    2 x USB 3.2 Gen 1x1 cable with bracket, L=400 mm
  • 59380000290E
    PS/2 keyboard & mouse cable with bracket
  • 593826A0000E
    SATA signal cable/red, L=500 mm
  • 59384500100E
    Audio cable with bracket, P=2.0 mm, L=450 mm
  • 59380402010E
    1 x COM port cable with bracket, P=2.54 mm, L=300 mm
  • 59380703000E
    2 x COM port cable with bracket, P=2.54 mm, L=300 mm
  • 83935151000E
    TPM 2.0 module (AX93515)
  • 5076E510000E
    CPU heatsink for 1U chassis (AX61135TM)
  • 50761222000E
    CPU cooler for 2U, 4U, and wall mount chassis

Download

Drivers

Date Description Version Download File
2023/11/20 4. Intel LAN Driver VA1.3
2023/11/20 5. Intel ME Driver VA1.3
2023/11/20 6. Intel RST Driver VA1.3
2023/11/20 3. Realtek Audio Driver VA1.3
2023/11/20 2. Intel Graphic Driver VA1.3
2023/11/20 1. Intel Chipset Driver VA1.3

Software

Manual

Date Description Version Download File
2020/07/21 User Manual VA2

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/03 UKCA Declaration of Conformity
