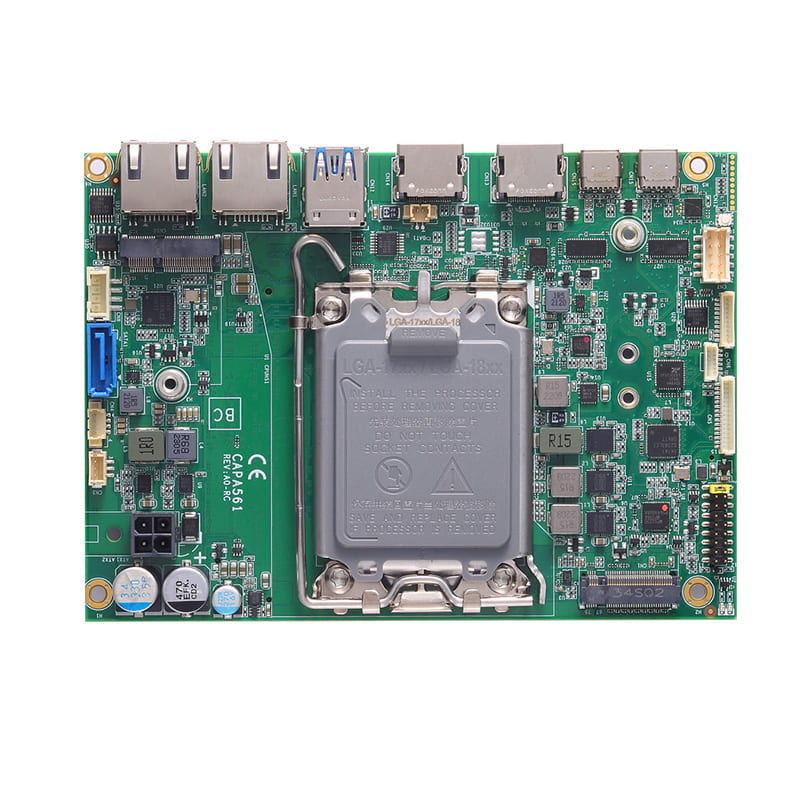

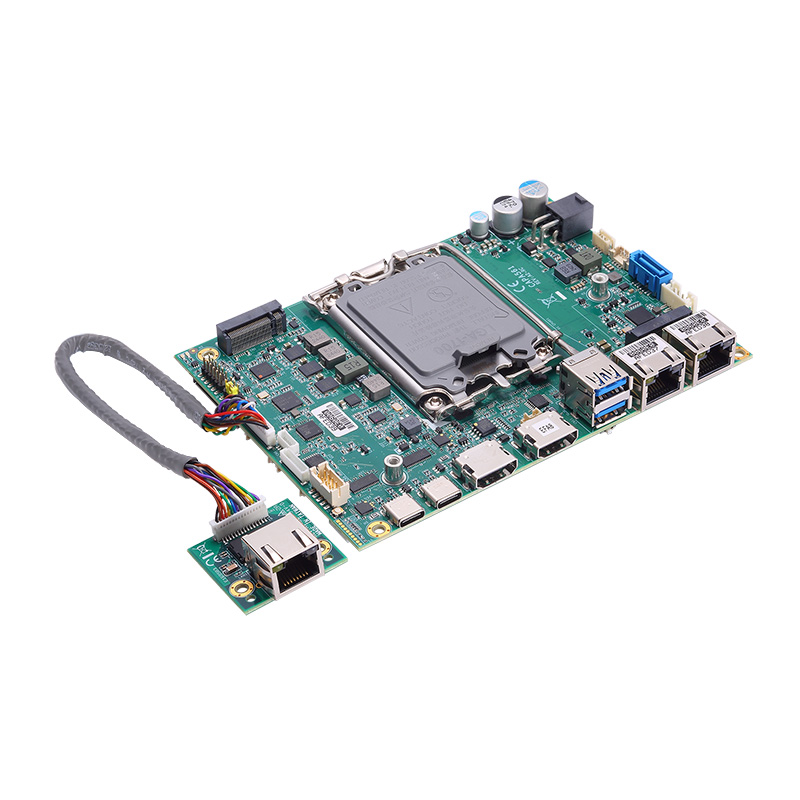

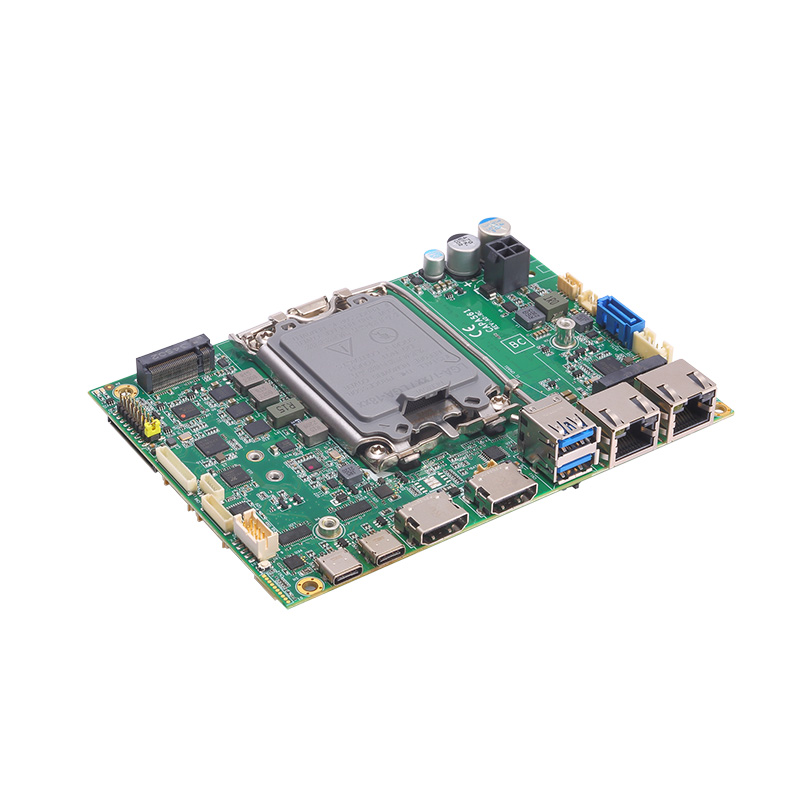

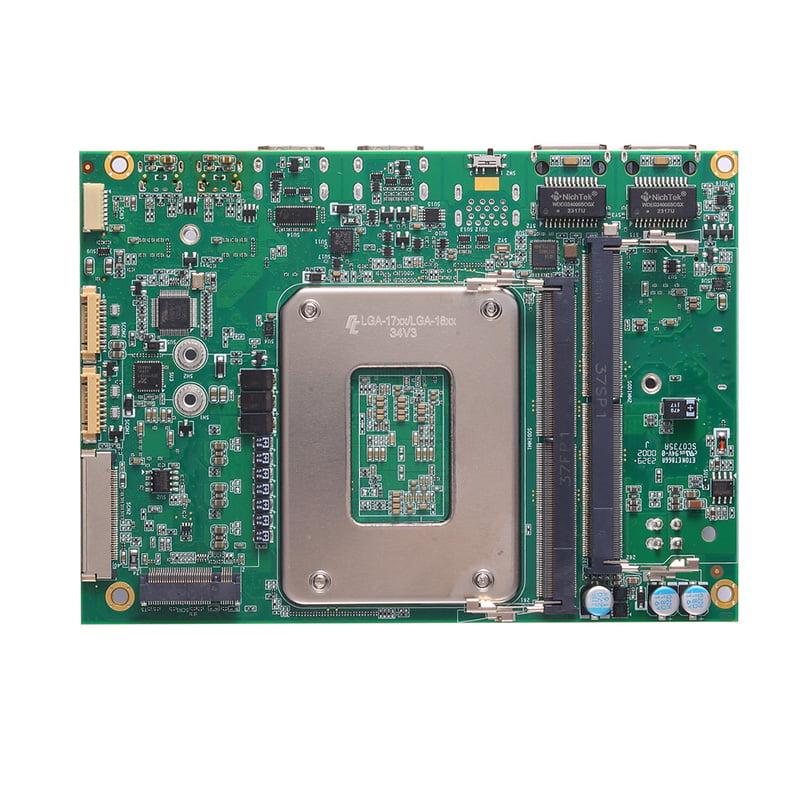

What is the CAPA561 designed for? + The CAPA561 is a high-performance 3.5-inch embedded single board computer tailored for edge AI, industrial automation, smart retail, and multi-display applications requiring reliable computing in compact form factors.
Which processors are supported? + It supports 13th/12th Gen Intel® Core™ i7/i5/i3 and Celeron® processors (up to 15W TDP) from Intel Corporation, delivering scalable performance and energy efficiency for AI inference, machine vision, and embedded industrial workloads. The LGA1700 socket allows easy CPU upgrades, extending product longevity.
How much memory does the CAPA561 support? + It features dual SO-DIMM slots supporting up to 64GB of DDR5-4800 memory, ensuring fast data throughput and smooth multitasking for computation-intensive edge applications.
How many displays can the CAPA561 drive? + The CAPA561 supports up to four independent displays via five interfaces: two HDMI 1.4 ports, one eDP port, and two DisplayPort connections via USB Type-C (DP Alt Mode). This enables immersive multi-screen setups for digital signage, industrial monitoring, and control systems without the need for additional graphics modules.
What expansion and connectivity options are available? + The board offers three M.2 slots (Key E for Wi-Fi, Key B for LTE/5G, Key M for NVMe SSD), three LAN ports (dual 2.5GbE + one GbE), USB interfaces (two USB 3.2 Type-A, two USB 3.2 Type-C with DisplayPort support, and two USB 2.0), and a TPM 2.0 module for hardware-level security. This ensures flexible integration and ultra-fast connectivity for industrial and AI systems.
What are the operating conditions and durability? + The CAPA561 operates reliably in -20°C to +60°C with 10%–95% relative humidity, making it suitable for factory automation, medical equipment, transportation, and surveillance applications. Its compact 146 x 104 mm footprint allows deployment in space-constrained environments.
Why choose CAPA561 for industrial or retail applications? + The CAPA561 combines high-performance CPU and DDR5 memory, quad-display capability, flexible M.2 expansion, and a rugged, compact design. This makes it ideal for embedded AI, real-time monitoring, and multi-display industrial applications with long lifecycle support.
