CAPA13S

Status : Available

3.5" Embedded SBC with AMD Ryzen™ Embedded V1807B/V1605B APU, DisplayPort++, 2 HDMI, eDP, and 3 GbE LAN

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote

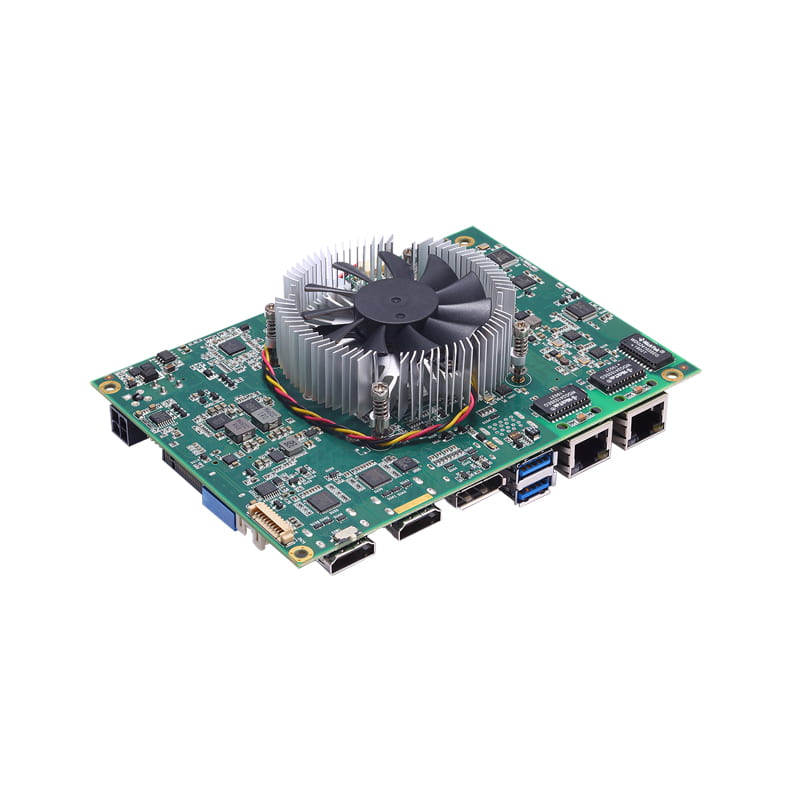

CAPA13S

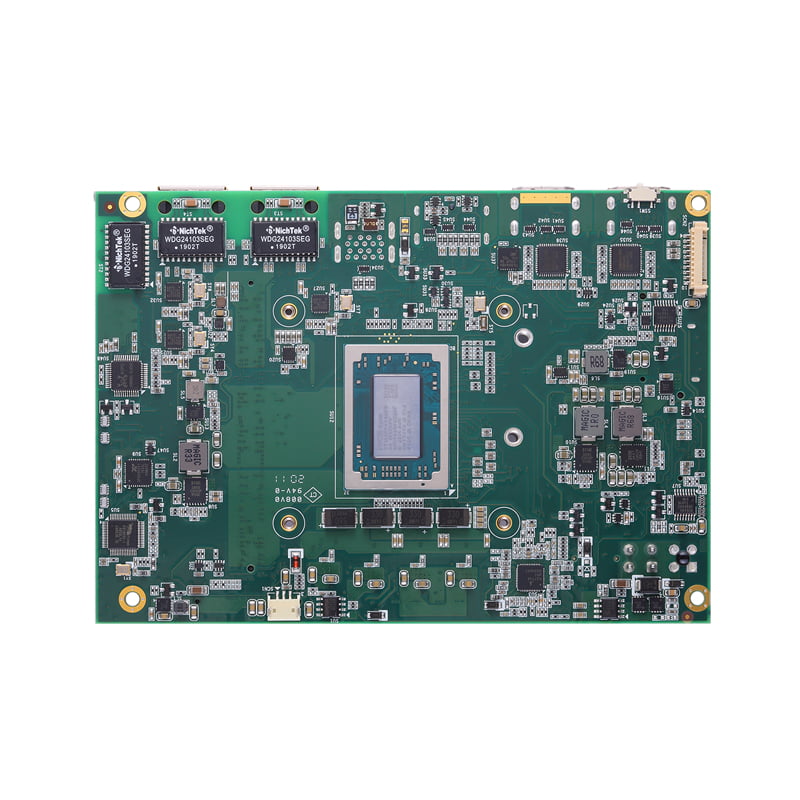

CAPA13S

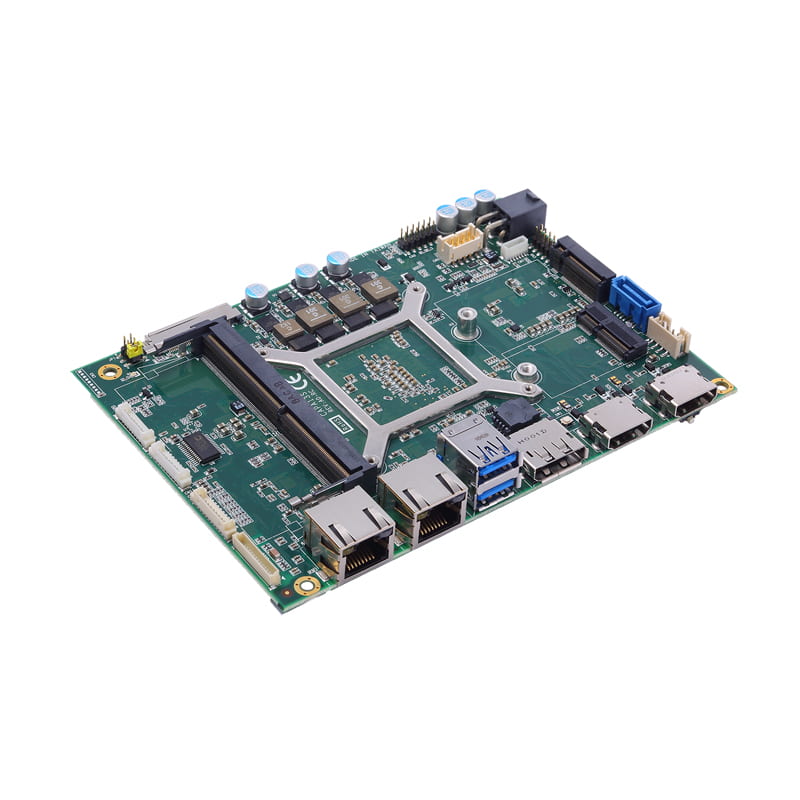

CAPA13S

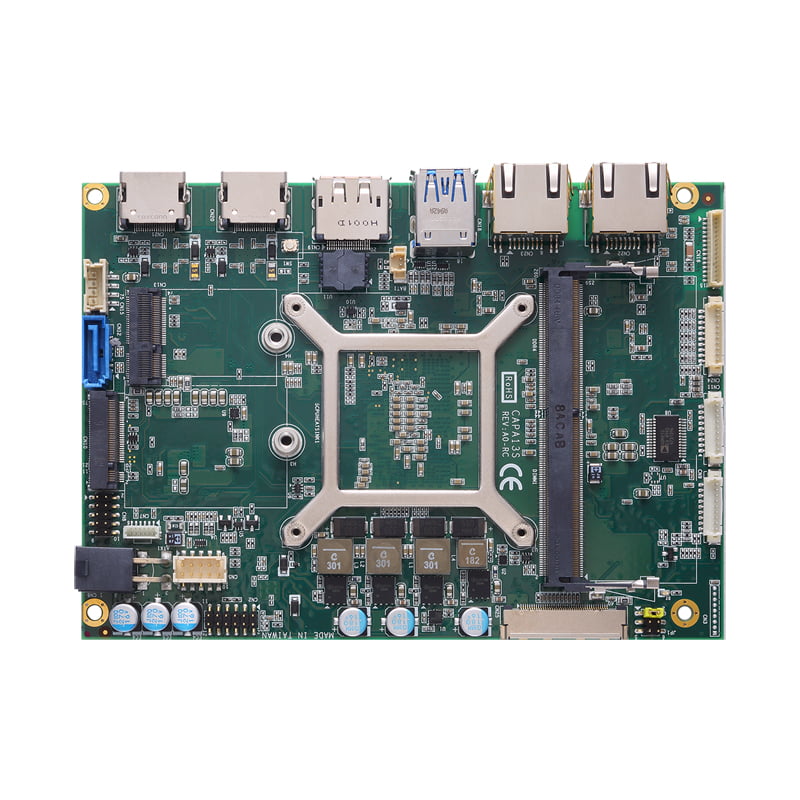

CAPA13S
Quad-View

Quad-View

Solid CAP

Solid CAP

TPM

TPM

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • AMD Ryzen™ Embedded V1807B and V1605B APU
  • 1 DDR4 SO-DIMM for up to 16GB of memory
  • Supports quad-view 4K/2K display
  • 3 GbE LAN
  • M.2 Key E
  • M.2 Key B

Specifications

CPU
  • AMD Ryzen™ Embedded V1807B/V1605B APU onboard
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR4-2400 (V1605B)/DDR4-3200 (V1807B) SO-DIMM, up to 16GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485
  • 1 x RS-232
USB
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen2
Ethernet
  • 2 x10/100/1000 Mbps Ethernet (Realtek RTL8111G)
  • 1 x10/100/1000 Mbps Ethernet (Realtek RTL8111G)(optional)
Display
  • 1 x DisplayPort++
  • 2 x HDMI
  • 1 x eDP
Digital I/O
  • 8-channel in/out programmed
Audio
  • Mic-in/Line-in/Line-out
Storage
  • 1 x SATA-600
  • 1 x M.2 Key B (SATA, USB 2.0, PCIe x2 for optional) in 22 x 42 or 30 x 42
Expansion
  • 1 x M.2 Key E (PCIe x1, USB 2.0) in 22 x 30
Others
  • TPM 2.0
Battery
  • Lithium 3V/220 mAh
Power Input
  • 2 x 2-pin connector
  • +12V DC-in only
  • AT Auto Power On function supported
Power Requirements
  • AMD V1605B @2.0 GHz 16GB DDR4, min. RMS. +12V@3.1A
  • AMD V1807B @3.35 GHz 16GB DDR4, min. RMS. +12V@5.1A
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -20°C to +60°C (-4°F to 140°F)
Relative Humidity
  • 10% - 95% relative humidity, non-condensing
Dimensions
  • 146 x 104 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
Industrial Chassis
  • N/A

Ordering Information

  • CAPA13S-3GA-V1605B FAN (P/N-E38E13S101)
    3.5” Embedded SBC with AMD Ryzen™ V1605B (2.0-3.6 GHz, 2MB Cache, 15W), DisplayPort++, 2 HDMI, eDP, 3 GbE LAN, audio, and fan
  • CAPA13S-3GA-V1807B FAN (P/N-E38E13S100)
    3.5” Embedded SBC with AMD Ryzen™ V1807B (3.35-3.8 GHz, 2MB Cache, 45W), DisplayPort++, 2 HDMI, eDP, 3 GbE LAN, audio, and fan
  • CAPA13S-GGA-V1605B FAN (P/N-E38E13S103)
    3.5” Embedded SBC with AMD Ryzen™ V1605B (2.0-3.6 GHz, 2MB Cache, 15W) DisplayPort++, 2 HDMI, eDP, 2 GbE LAN, audio, and fan
  • CAPA13S-GGA-V1807B FAN (P/N-E38E13S102)
    3.5” Embedded SBC with AMD Ryzen™ V1807B (3.35-3.8 GHz, 2MB Cache, 45W) DisplayPort++, 2 HDMI, eDP, 2 GbE LAN, audio, and fan
  • 594H3186800E
    Buzzer cable 9 x 55 mm 2-pin, L=400 mm
  • 59380880250E
    COM port cable DB9--9 x 1P, P=1.25, L=250 mm
  • 594E8422800E
    2 x USB 2.0 cable with bracket, 180 mm
  • 7128E13R000E
    Heatspreader

Download

Drivers

Date Description Version Download File
2022/04/25 Ethernet Driver VA1.0
2022/04/25 AMD FP5 Driver VA1.0
2022/04/25 Audio Driver VA1.0

Software

Manual

Date Description Version Download File
2022/04/25 User Manual VA1
2022/04/25 Quick Manual VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/06 UKCA Declaration of Conformity

Frequently Asked Questions

You Might Also Like

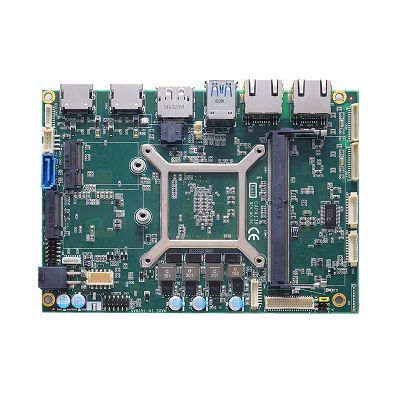

Picture of CAPA13R
