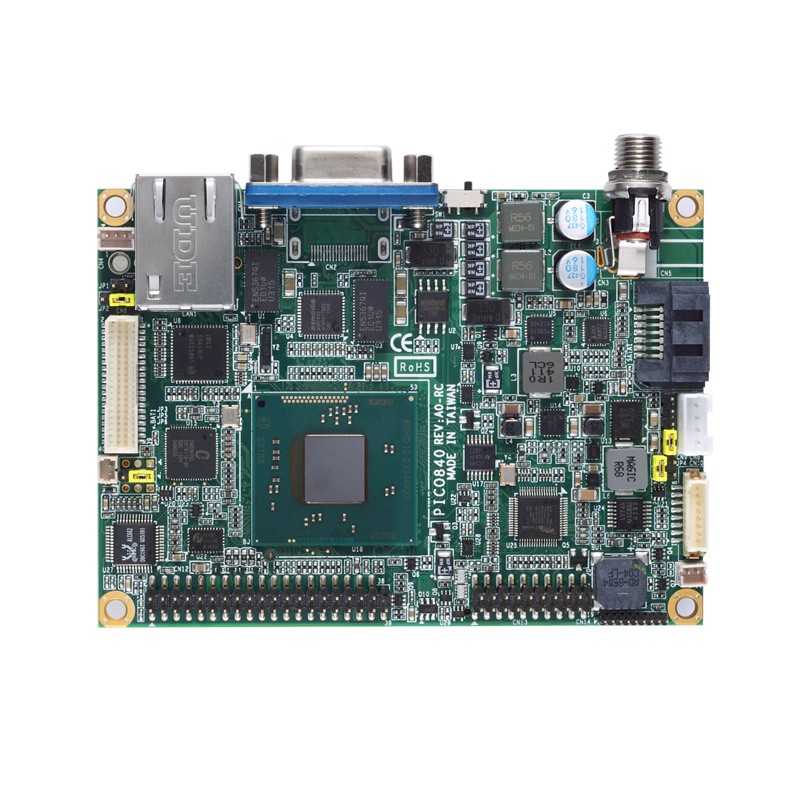

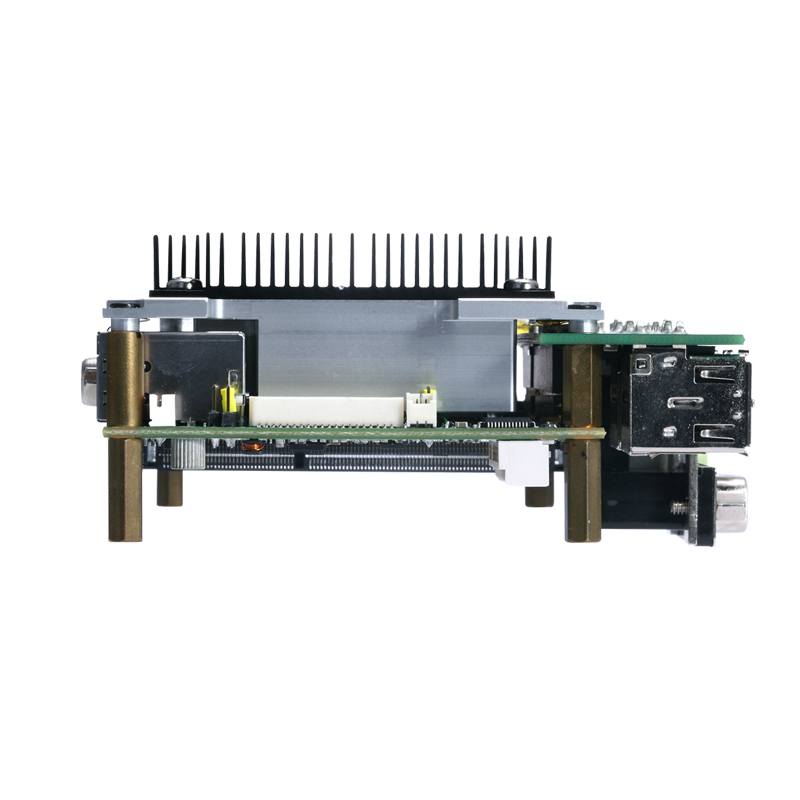

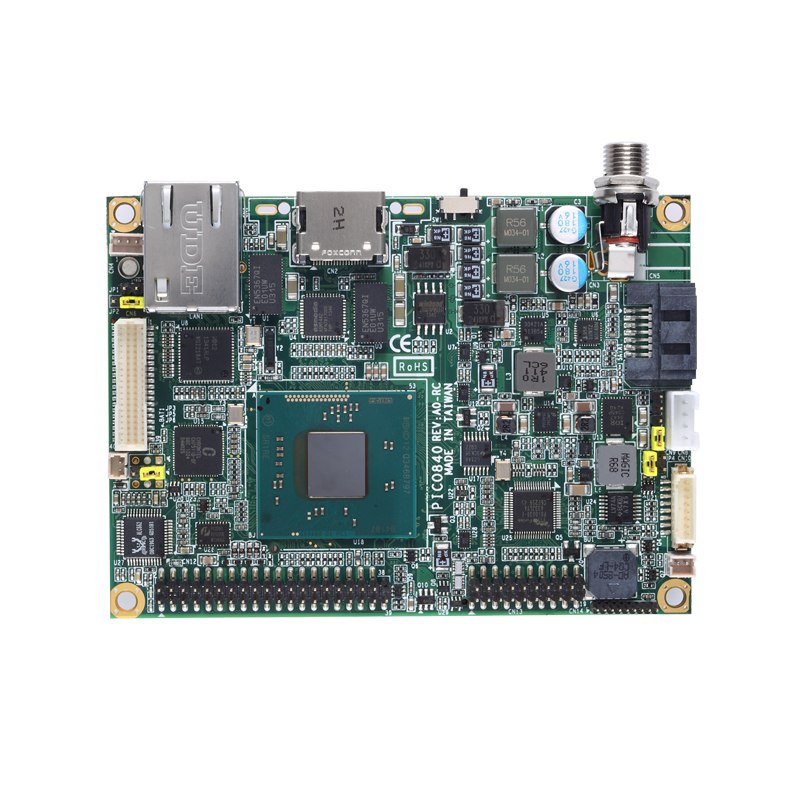

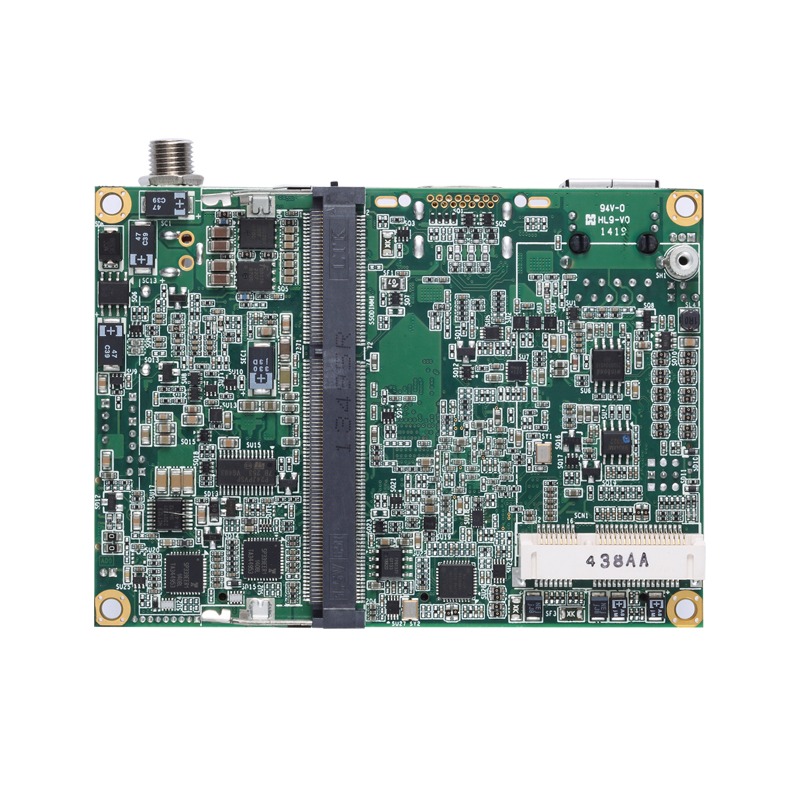

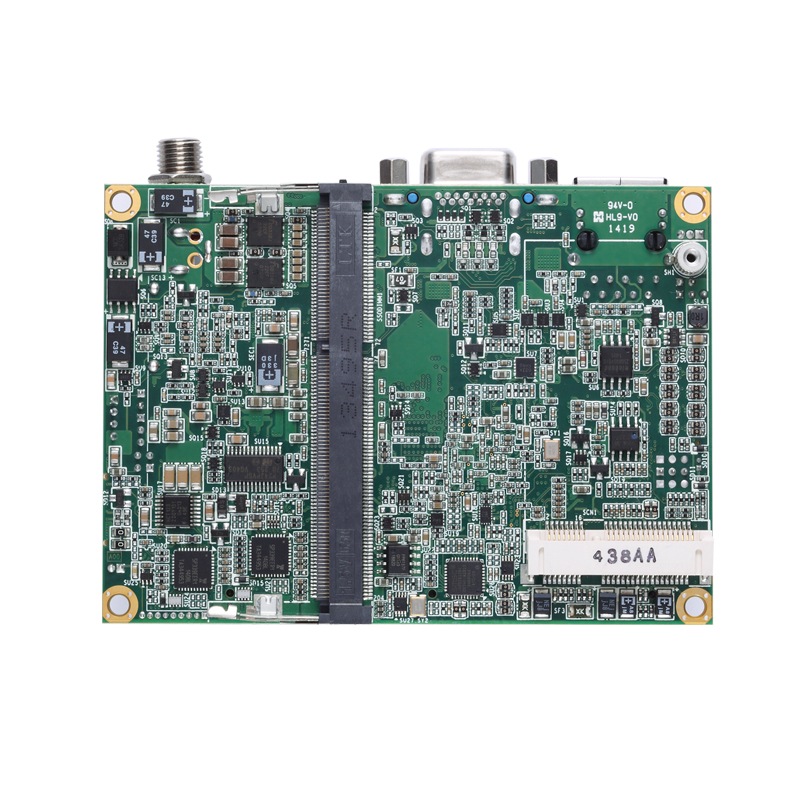

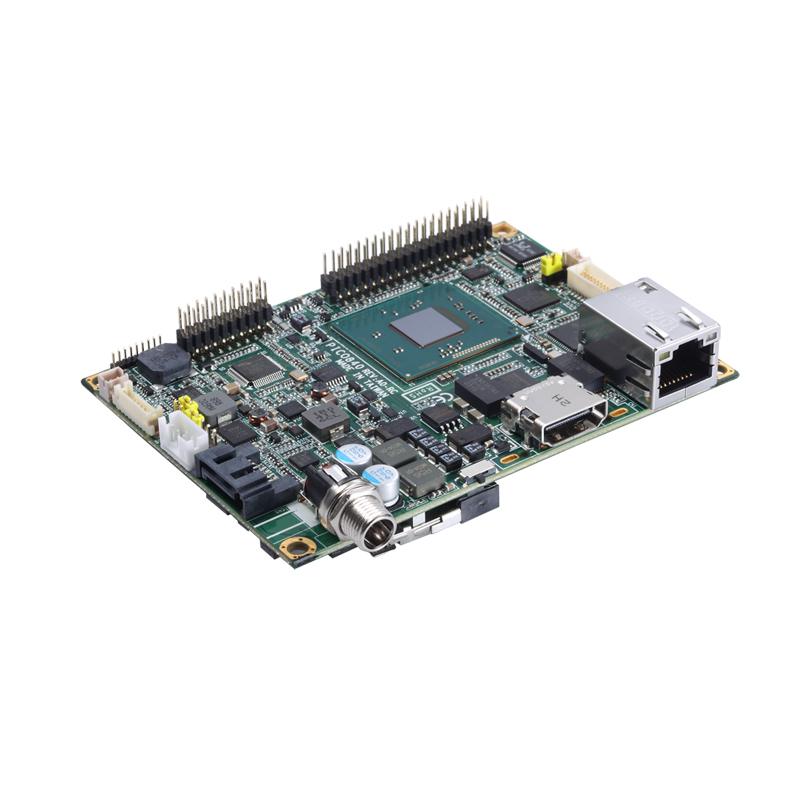

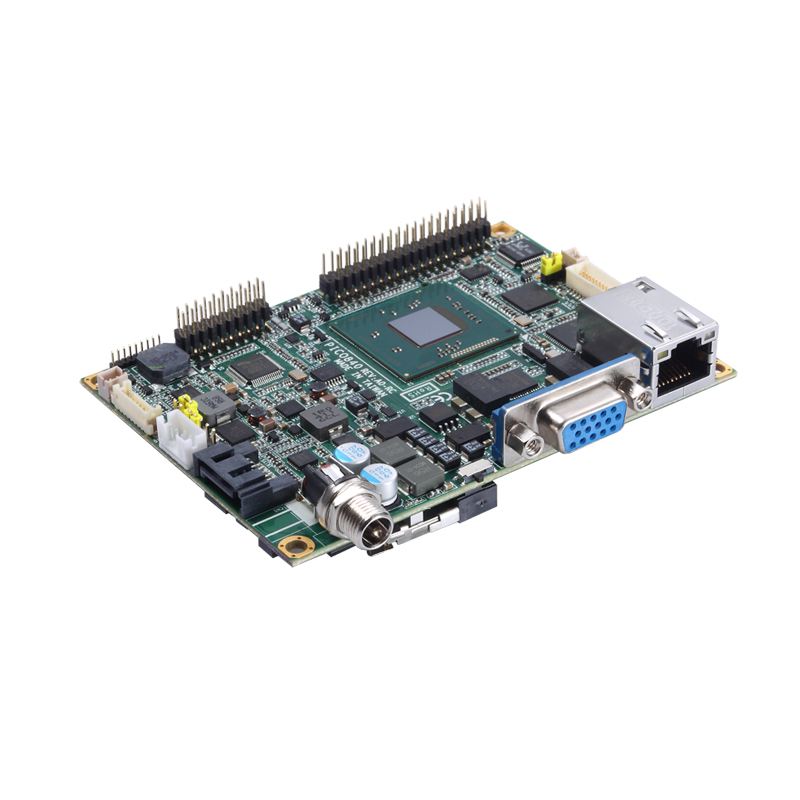

PICO840

Status : Available

Pico-ITX SBC with Intel® Atom® Processor E3845/E3827, LVDS/ VGA (HDMI), LAN and Audio

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
PICO840
PICO840
PICO840
PICO840
PICO840
PICO840
PICO840
PICO840
Dual-View

Dual-View

Fanless

Fanless

Low Power

Low Power

TPM

TPM

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Atom® processor E3845/E3827 (Bay Trail SoC)
  • 1 DDR3L-1066/1333 SO-DIMM, up to 8GB
  • 4 USB 2.0 ports
  • 2 COM ports (RS-232/422/485 selectable)
  • PCI Express Mini Card slot with mSATA supported

Specifications

CPU
  • Intel® Atom® processor E3845 1.91GHz quad core, E3827 1.75GHz dual core onboard (Bay Trail)
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1066/1333, up to 8 GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
USB
  • 4 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® i210IT)
Display
  • 1 x VGA or 1 x HDMI
  • 1 x LVDS
Digital I/O
  • N/A
Audio
  • MIC-in/Line-out
Storage
  • 1 x SATA-300
Expansion
  • 1 x Full-size PCI Express Mini Card slot with mSATA
Others
  • SMbus
  • ST ST33TPM12LPC with TPM 1.2 compliant
Battery
  • Lithium 3 V/220 mAH
Power Input
  • DC power jack connector
  • +12V DC-in only
  • AT Auto Power On function supported
Power Requirements
  • Intel® Atom® E3845 @ 1.91 GHz, 8 GB DDR3L:
  • Max. RMS: +12V @ 1.33A
  • Intel® Atom® E3827 @ 1.75 GHz, 8 GB DDR3L:
  • Max. RMS: +12V @ 1.2A
Watchdog Timer
  • 255 levels, 1~255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -40°C ~ +70°C (-40°F ~ 158°F)
Relative Humidity
  • 10% ~ 95% relative humidity, non-condensing
Dimensions
  • 100 x 72 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
Industrial Chassis
  • N/A

Ordering Information

  • PICO840VGA-E3845 (P/N-E38H840100)
    Pico-ITX SBC with Intel® Atom® processor E3845 (1.91 GHz, 2MB Cache, 10W), and VGA/LVDS, 1 GbE LAN, audio and gift box

Download

Drivers

Date Description Version Download File
2017/07/12 Function driver for Windows 10 VA1.3
2017/07/12 Function driver for Windows 8 VA1.3
2017/07/12 Function driver for Windows 7 VA1.3

Software

Manual

Date Description Version Download File
2017/07/12 User Manual VA1.3
2017/07/12 Quick Manual VA1.3

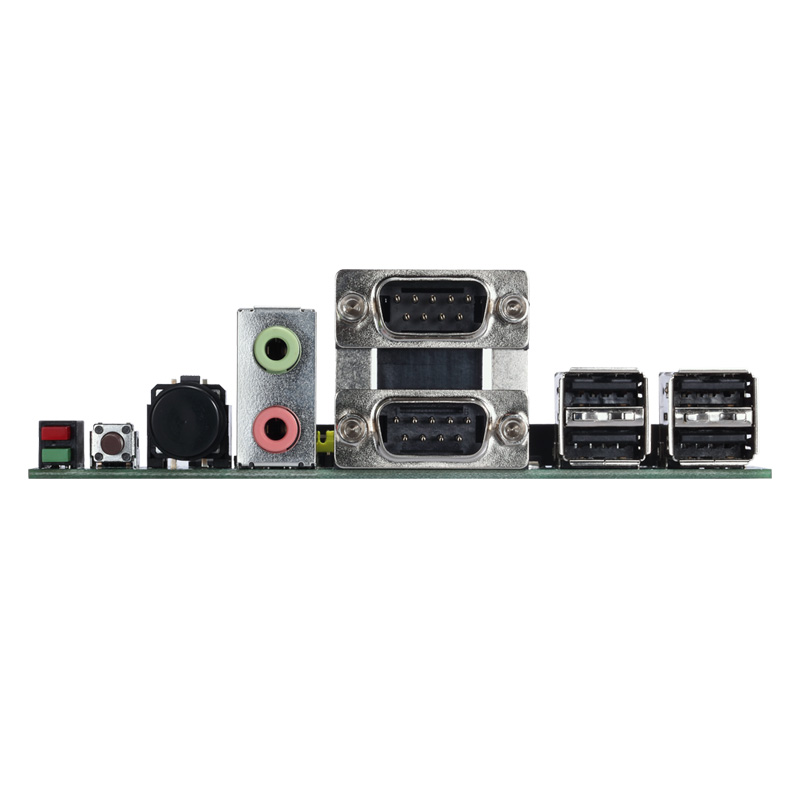

2017/07/12 AX93283 Quick Manual VA1.3
