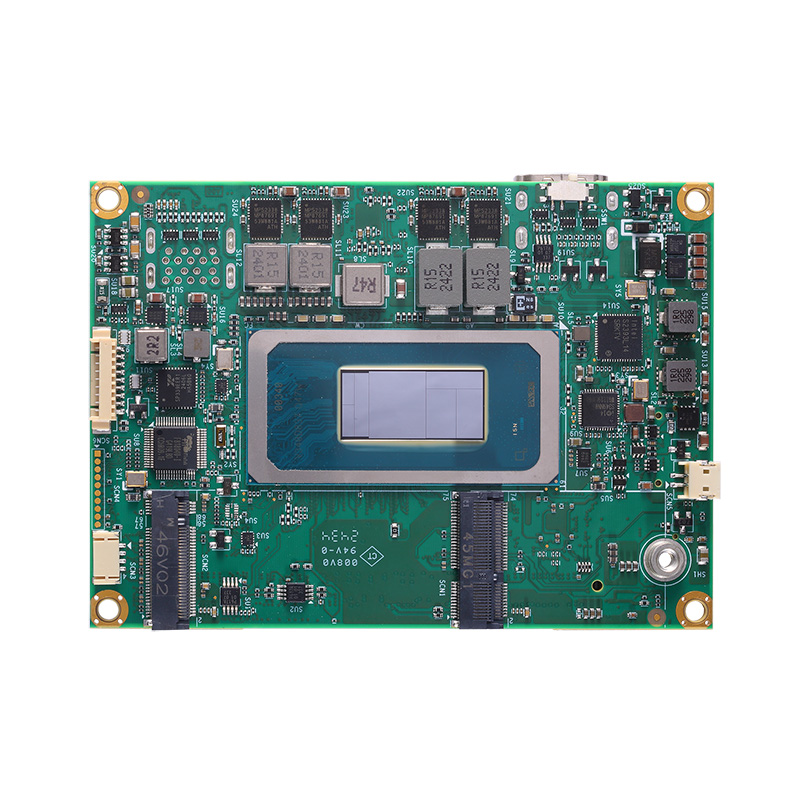

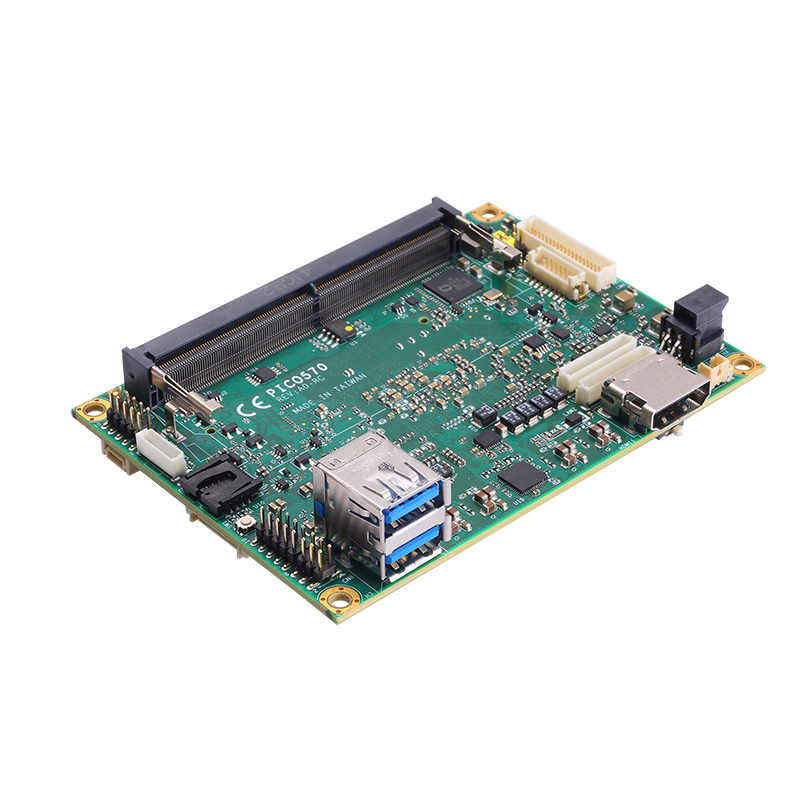

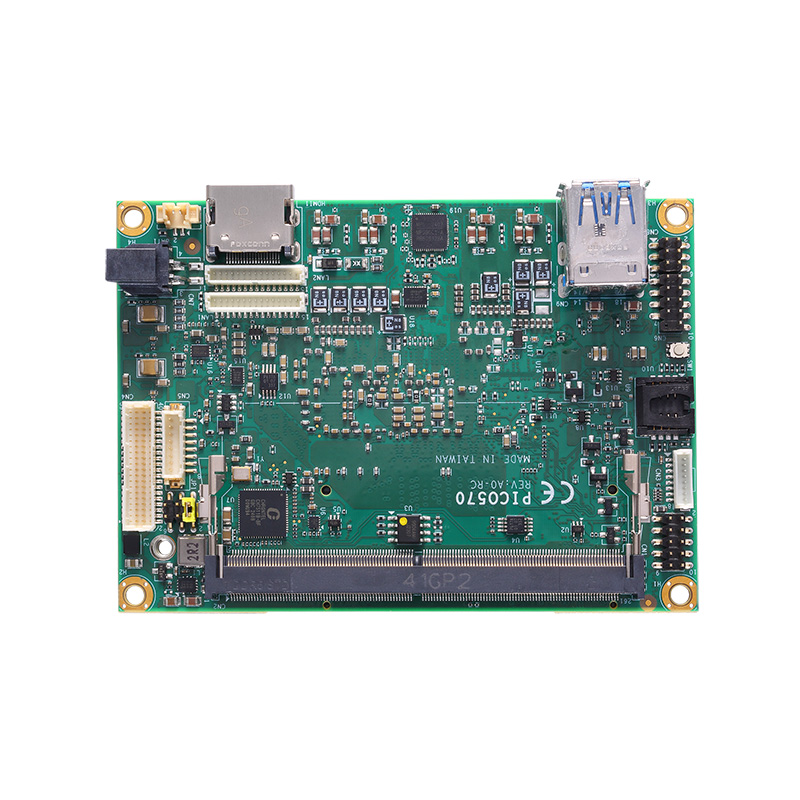

PICO570

Status : Available

Pico-ITX SBC with Intel® Core™ Ultra Processors (Series 1), HDMI, LVDS, 2.5GbE LAN, and GbE LAN

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
PICO570
PICO570
PICO570
PICO570
2.5G LAN

2.5G LAN

Dual-View

Dual-View

Pocket Size

Pocket Size

TPM

TPM

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • Intel® Core™ Ultra processors (series 1)
  • 1 DDR5 SO-DIMM, up to 64GB
  • 2.5GbE LAN and GbE LAN
  • M.2 Key E
  • M.2 Key M

Specifications

CPU
  • Intel® Core™ Ultra processors (series 1) onboard
Chipset
  • SoC integrated
System Memory
  • 1 x 262-pin DDR5-5600 SO-DIMM, up to 64GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485
USB
  • 2 x USB 2.0
  • 2 x USB 3.2
Ethernet
  • 1 x 10/100/1000 Mbps Ethernet (Intel® I219-LM)
  • 1 x 10/100/1000/2500 Mbps Ethernet (Intel® I226-V)
Display
  • 1 x HDMI
  • 1 x LVDS; 18/24-bit single/dual channel
Digital I/O
  • 4-channel in/out programmable
Audio
  • HD Audio link via pin header
Storage
  • 1 x M.2 Key M 2280 (PCIe x4)
Expansion
  • 1 x M.2 Key E 2230 (PCIe x1, USB 2.0)
Others
  • fTPM 2.0 supported by Intel® Platform Trust Technology (PTT)
Battery
  • Lithium 3V/220 mAh
Power Input
  • +12V DC-in only
Power Requirements
  • TBD
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -20°C to +60°C (-4°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 100 x 72 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
Industrial Chassis
  • N/A

Ordering Information

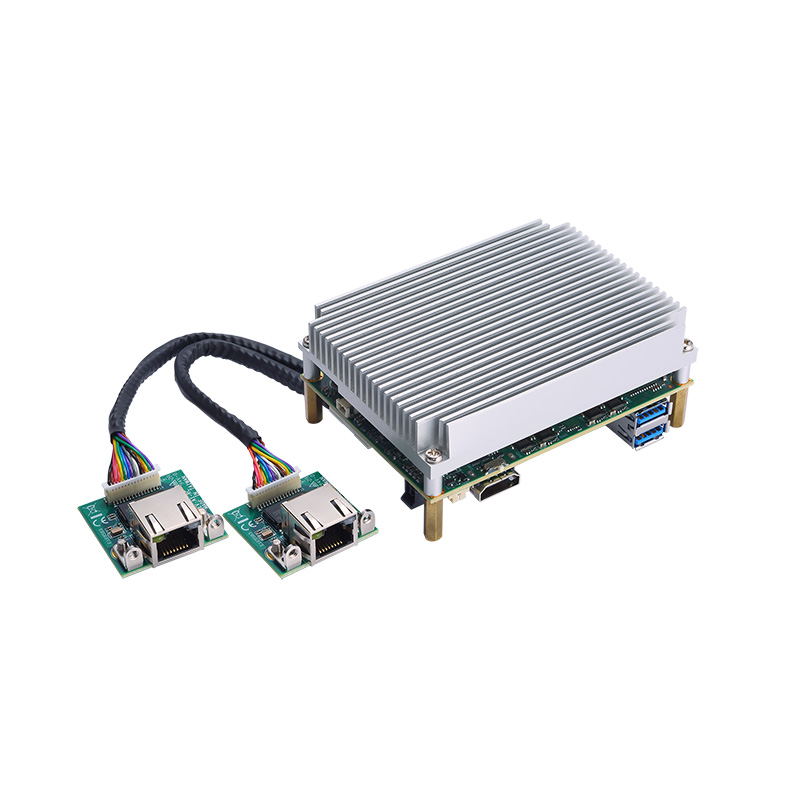

  • PICO570-U7
    Pico-ITX SBC with Intel® Core™ Ultra 7 processor 155U, HDMI, LVDS, GbE LAN, 2.5GbE LAN, and heatsink
  • PICO570-U5
    Pico-ITX SBC with Intel® Core™ Ultra 5 processor 125U, HDMI, LVDS, GbE LAN, 2.5GbE LAN, and heatsink
  • AX93A22 (P/N-E393A22100)
    HD codec audio board for Mic-in/Line-in/Line-out
  • 594H51R2810E
    USB cable, 2 × 5P DuPont P2.0 to 2 × USB 4P, L=18 cm
  • 59380880250E
    COM port cable DB-9 x 1P, P=1.25 mm, L=250 mm
