PICO319

Status : Available

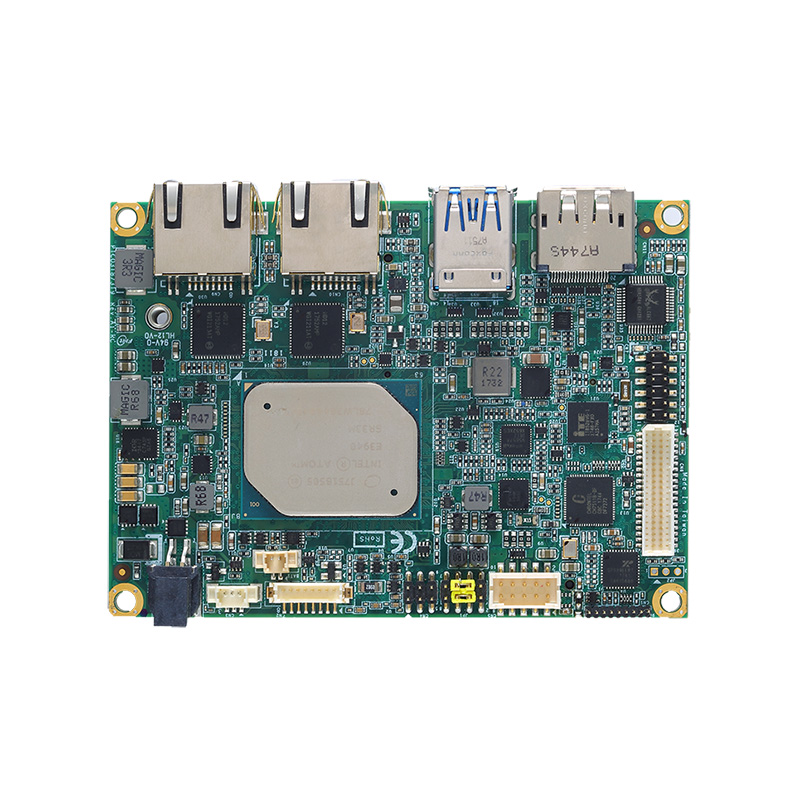

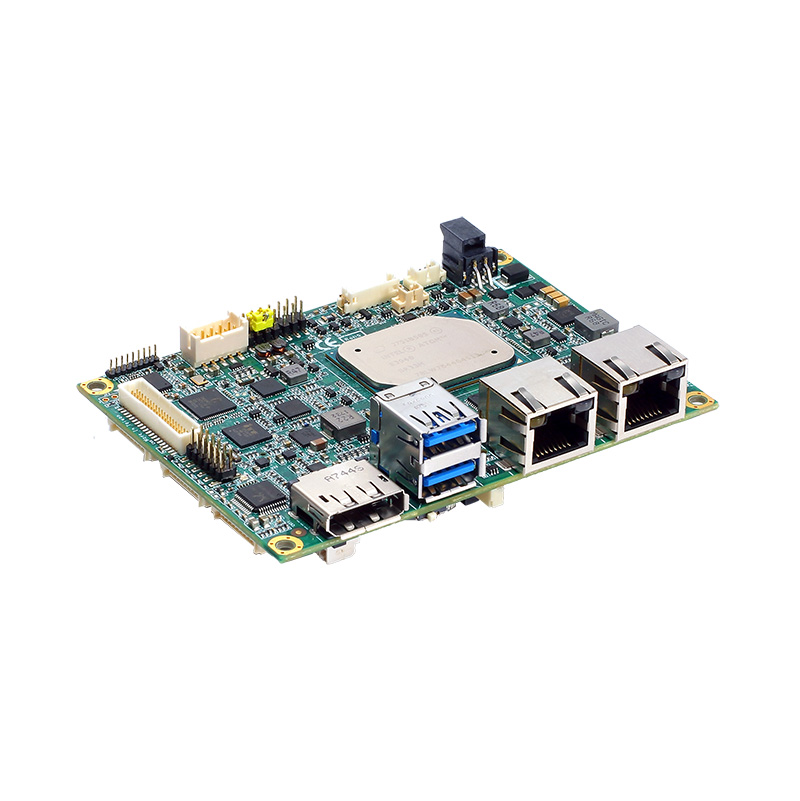

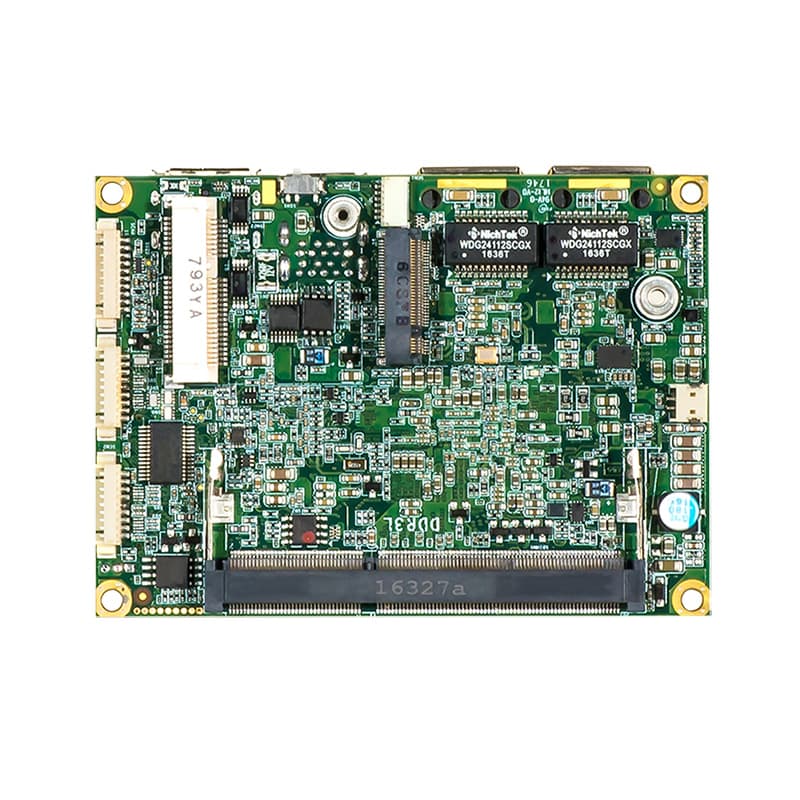

Pico-ITX SBC with Intel Atom® x5-E3940 Processor, DisplayPort++, LVDS, 2 GbE LAN, and Audio

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
PICO319
PICO319
PICO319
Dual-View

Dual-View

Low Power

Low Power

Pocket Size

Pocket Size

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Atom® x5-E3940 processor
  • 1 DDR3L SO-DIMM for up to 8GB of memory
  • 2 GbE LAN
  • 1 PCI Express Mini Card slot with mSATA supported
  • Supports M.2 Key B

Specifications

CPU
  • Intel® Atom® x5-E3940 processor onboard
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin DDR3L-1867 SO-DIMM, up to 8GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485
  • 1 x RS-232
USB
  • 2 x USB 2.0
  • 2 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® I210-AT)
Display
  • 1 x LVDS
  • 1 x DisplayPort++
Digital I/O
  • 4-channel in/out programmed
Audio
  • MIC-in/Line-in/Line out
Storage
  • 1 x M.2 Key B (SATA, USB 2.0, USB 3.0, PCIe x2 optional) in 22 x 42 or 30 x 42
  • 1 x mSATA (optional)
Expansion
  • 1 x Half-size PCI Express Mini Card slot
Others
  • SMBus; compatible with I2C
Battery
  • Lithium 3V/220 mAH
Power Input
  • 2 x 2-pin connector
  • +12V DC-in only
  • AT Auto Power On function supported
Power Requirements
  • Intel® Atom® x5-E3940 @1.6 GHz 8GB DDR3L
  • Max RMS: +12V @1.3A
Watchdog Timer
  • 65536 levels, 1 to 65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -40°C to +70°C (-40°F to 158°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 100 x 72 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
Industrial Chassis
  • N/A

Ordering Information

  • PICO319PGGA-E3940 (P/N-E38H319100)
    Pico-ITX SBC with Intel® Atom® x5-E3940 processor (1.6 - 1.8 GHz, 2MB cache, 9.5W), DisplayPort++, LVDS, 2 GbE LAN, 2 USB 2.0, and 2 USB 3.0 (without heatsink)
  • PICO319PGGA-E3940 70°C (P/N-E38H319101)
    Pico-ITX SBC with Intel® Atom® x5-E3940 processor (1.6 - 1.8 GHz, 2MB cache, 9.5W), DisplayPort++, LVDS, 2 GbE LAN, 2 USB 2.0, and 2 USB 3.0 (with heatsink)
  • 7128H319000E
    Heatspreader
  • 590000086600
    Power cable for adapter, L=180mm
  • 50966124050E
    Adapter 12V 60W FSP060-DHAN3 with screw
  • 59312260020E
    Audio cable with bracket, P=1.25 mm, L=450 mm
  • 59380880250E
    COM port cable DB9-9 x 1-pin, P=1.25 mm, L=250 mm
  • 594E8422800E
    2 x USB 2.0 cable with bracket, L=180 mm
  • 594H3186800E
    Buzzer cable 9 x 5.5 mm 2-pin, L=40 mm
  • E393A19100
    AX93A19 SIM card slot board
