GMB850

Status : Available

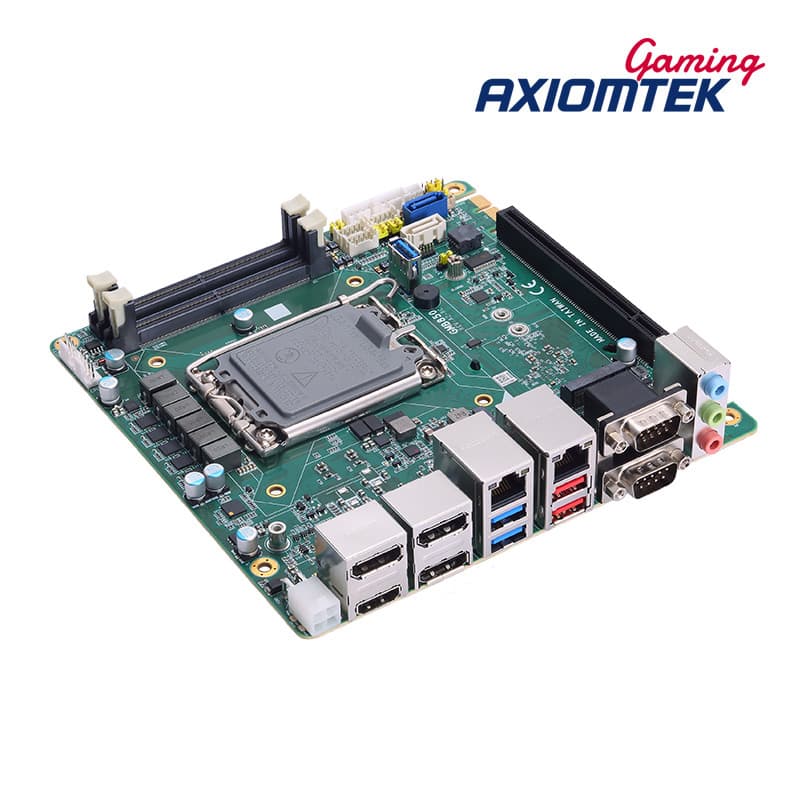

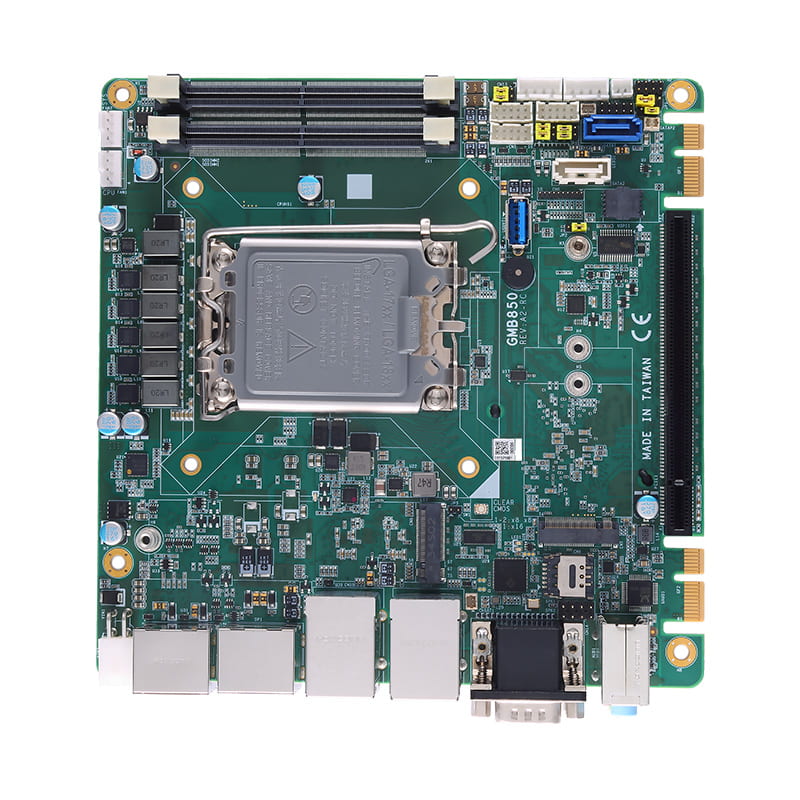

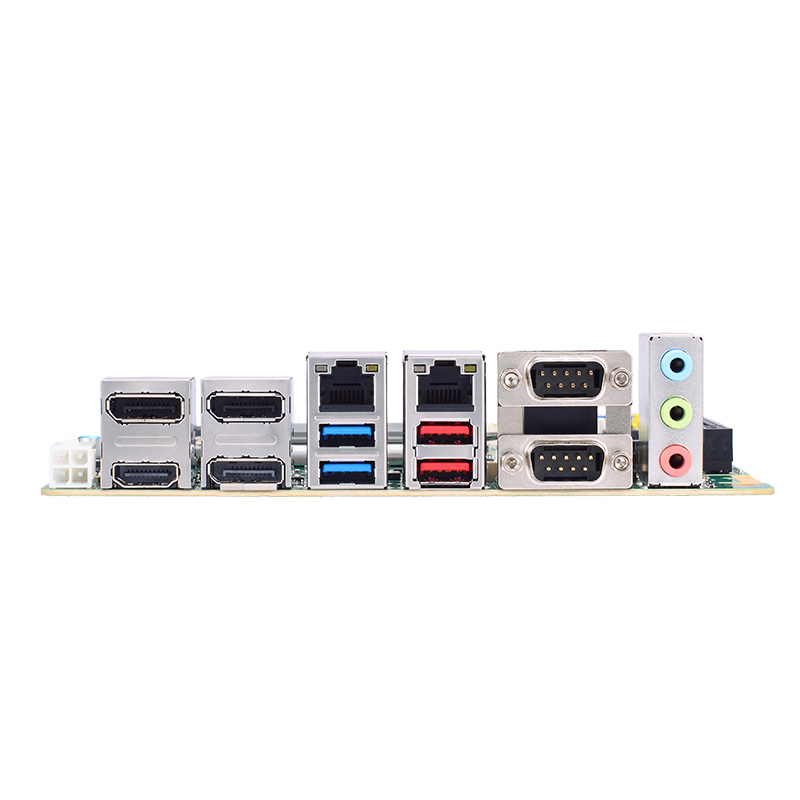

Mini-ITX Gaming Board with 12th/13th/14th Gen Intel® Core™

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
GMB850
GMB850
GMB850
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • High performance Intel® platform with PCIe Gen5
  • GLI verified TrustedBoot
  • Up to quadruple independent displays
  • NVMe M.2 M Key storage & M.2 B Key expansion support
  • Lifetime long-term supply

Specifications

CPU
  • LGA1700 socket 12th/13th/14th Gen Intel® Core™
  • i9/i7/i5/i3/Pentium®/Celeron® Processor
Chipset
  • Intel® Q670(E) / H610(E)
System Memory
  • 2 x 262-pin DDR5 SO-DIMM up to 6400 MHz, max. up to 64GB
BIOS
  • AMI -uEFI
Watchdog Timer
  • 1 sec to 255 min
USB
  • 4 x USB 2.0 pin header
  • 1 x USB 3.2 Gen1x1 (5Gb/s) (Vertical USB Type A)
  • 2 x USB 3.2 Gen2x1 (10Gb/s) (USB Type A)
  • 2 x USB 3.2 Gen1x1 (5Gb/s) (USB Type A)
Serial Interface
  • 2 x Full RS-232 DB9 (COM1 supports RS-232/422/485)
  • 3 x Simple RS-232 for internal pin header (Two support ccTalk/ One supports TTL)
Ethernet
  • 2 x GbE LAN
Audio
  • HD Audio Line-in/ Line-out/ Mic-in phone jack (7.1 Ch.)
  • 1 x Expansion pin header for Stereo 6W + 6W audio amplier outputs
  • 1 x SPDIF output pin header
Display
  • 1 x HDMI 2.0 (up to 4096 x 2160 @60Hz)
  • 3 x DP++ (up to 4096 x 2160 @60Hz)
  • H610 supports triple displays
GPIO
  • N/A
Expansion
  • 1 x PCIe x16 Slot (Gen5)
  • 1 x M.2 Key B 3052/3042/2242/2280 with SIM holder (PCIe x2 / USB 2.0)
  • 2 x PCIe golden nger expansion for Axiomtek Gaming I/O Module
Storage
  • 2 x SATA 6Gb/s (One supports pin-7 power SATA DOM) (Q670 supports RAID 0/1)
  • 1 x M.2 Key M 2280 (PCIe x4) NVMe support
Security
  • Intel® PTT (TPM 2.0)
  • RSA2048 and AES256 hybrid encryption
Power Input
  • DC +12V
Dimensions
  • 170 mm x 170 mm
Operating Temperature
  • 0°C to 60°C (32°F to 140°F)
Humidity
  • 10 % to 90 %, non-condensing
OS
  • Windows® 11 Enterprise & IoT Enterprise, 64-bit Linux Kernel
Software
  • SAS 6.02 COM port driver provided (via Gaming I/O module)

Ordering Information

  • GMB850-Q670 (PN-E38V850100)
    12th/13th/14th Generation Intel® Core™ Mini-ITX board with Q670 PCH, DP++, HDMI, 2 x GbE, 5 x COM, 9 x USB, 12V DC-in
  • GMB850-H610 (PN-E38V850101)
    12th/13th/14th Generation Intel® Core™ Mini-ITX board with H610 PCH, DP++, HDMI, 2 x GbE, 5 x COM, 9 x USB, 12V DC-in
  • 59403208000E
    SATA cable 180D to 180D with lock L
  • 594Q3002800E
    USB2.0 cable HS2 x 5P P2.0/USB x 2 stack AF 20cm
  • 713000001500
    LGA1700 cooler kit, 1U chassis compatible, 65W
  • 713000001600
    LGA1700 cooler kit, 1U chassis compatible, 35W
  • 594Q3002810E
    USB3.0 cable 90D 9P AM/9P AF 20cm
  • 594Q3102110E
    COM Port cable, 3xDSUB-9P/HS2x5P, L=30CM

Download

This object is currently under update, please visit later.

You Might Also Like

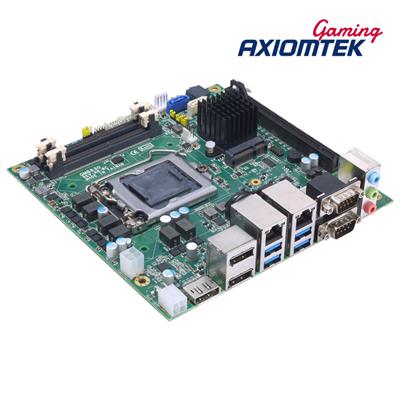

Picture of GMB830
