GMB142

Status : Available

Mini-ITX Gaming Board with AMD Ryzen™ Embedded R2000 SoC

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote

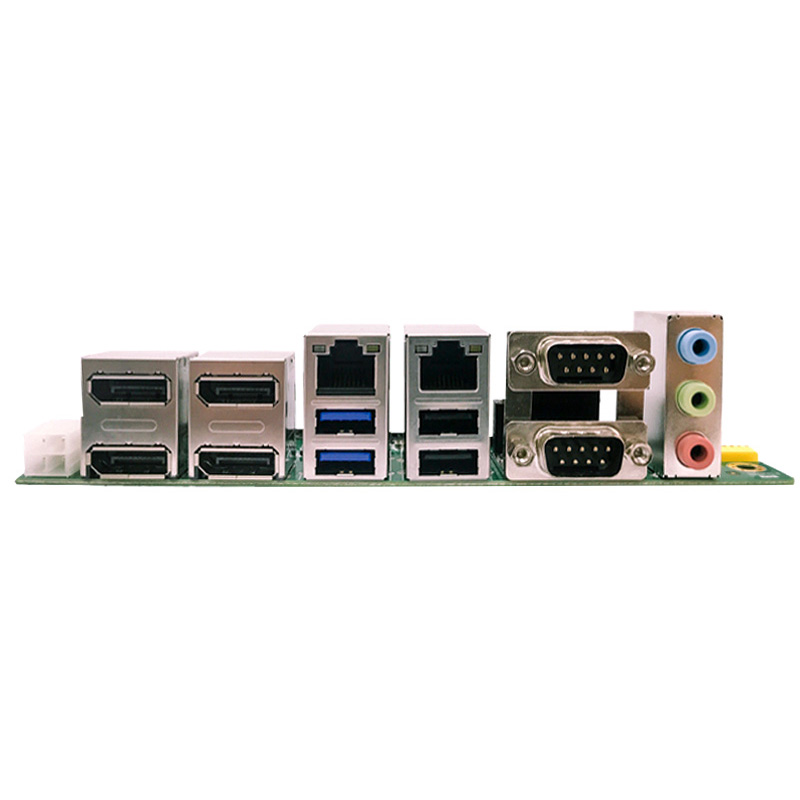

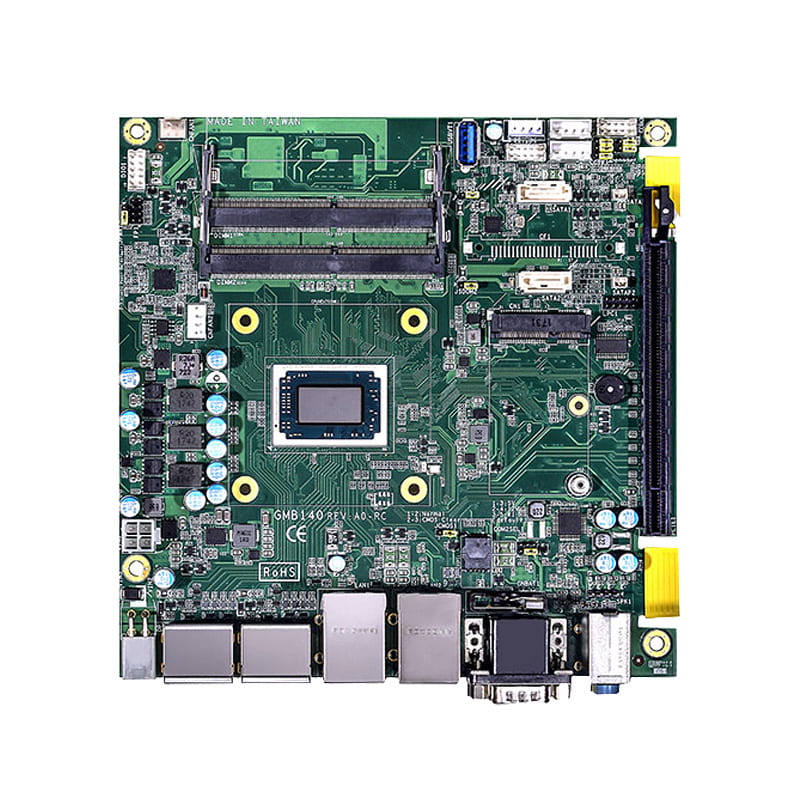

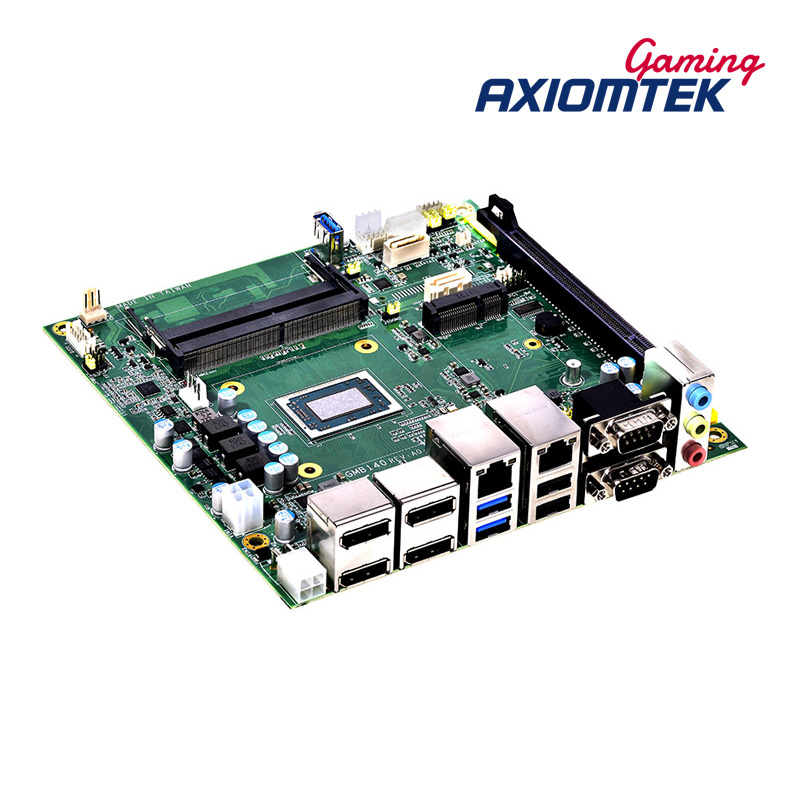

GMB142
GMB142
GMB142
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • High performance AMD platform
  • GLI verified TrustedBoot
  • PCIe golden finger expansion for Gaming I/O Module
  • Optional support for a 9-bit serial port for SAS 6.02
  • Lifetime long-term supply

Specifications

CPU
  • AMD Ryzen™ Embedded R2544, Quad Core, 8 CU, 3.35GHz (3.7GHz), 35-54W
  • AMD Ryzen™ Embedded R2514, Quad Core, 8 CU, 2.1GHz (3.7GHz), 12-35W
  • AMD Ryzen™ Embedded R2314, Quad Core, 6 CU, 2.1GHz (3.5GHz), 12-35W
  • AMD Ryzen™ Embedded R2312, Dual Core, 3 CU, 2.7GHz (3.5GHz), 12-25W
Chipset
  • SoC integrated
System Memory
  • 2 x DDR4 SO-DIMM up to 3200 MHz, max. up to 32 GB
BIOS
  • AMI-uEFI
  • TrustedBoot (BIOS secure boot) secure hash and public key algorithm
Watchdog Timer
  • 1 sec to 255 min
USB
  • 2 x USB 3.2 Gen1x1 (5Gb/s)
  • 2 x USB 2.0
  • 1 x USB 3.2 Gen1x1 (5Gb/s)
  • 2 x USB 2.0 box header
Serial Interface
  • 2 x Full RS-232 DB9 (COM1 supports RS-232/422/485)
  • 4 x Simple RS-232 box header (Two support ccTalk/ Two support TTL)
Ethernet
  • 2 x GbE LAN port
Audio
  • HD Audio Line-in/ Line-out/ Mic-in phone jack (7.1 Ch.)
  • Stereo 6W + 6W audio amplier outputs pin header
  • SPDIF output pin header
Display
  • 4 x DP++ (up to 3840 x 2160 @60Hz)
  • R2312 supports triple displays
GPIO
  • 8-bit GPIO
Expansion
  • 1 x PCIe x16 (PCIe x8 signal)
  • 1 x Full-size Mini-PCIe (PCIe x1 & USB 2.0 signal)
  • 2 x PCIe golden finger expansion for Axiomtek Gaming I/O Module
Storage
  • 2 x SATA 6Gb/s (support pin-7 power SATA DOM)
Security
  • TPM 2.0 engine
  • RSA2048 and AES256 hybrid encryption
Power Input
  • DC +12 V
Dimensions
  • 170 mm x 170 mm
Operating Temperature
  • 0°C to 60°C (32°F to 140°F)
Humidity
  • 10% to 90%, non-condensing
OS
  • Windows® 11 GAC & Windows® 10 IoT Enterprise, 64-bit Linux Kernel
Software
  • Optional SAS 6.02 COM port driver (via Gaming I/O module)

Ordering Information

  • GMB142-R2544 (P/N-E38V142100)
    Mini-ITX board supports AMD Ryzen™ Embedded R2544 w/ VEGA graphics, 4 x DP++, 6 x COM, 7x USB, 2 x GbE, Audio, PCIe x8 and Mini-PCIe, DC 12V input
  • GMB142-R2314 (P/N-E38V142102)
    Mini-ITX board supports AMD Ryzen™ Embedded R2314 w/ VEGA graphics, 4 x DP++, 6 x COM, 7x USB, 2 x GbE, Audio, PCIe x8 and Mini-PCIe, DC 12V input
  • GMB142-R2514 (P/N-E38V142101)
    Mini-ITX board supports AMD Ryzen™ Embedded R2514 w/ VEGA graphics, 4 x DP++, 6 x COM, 7x USB, 2 x GbE, Audio, PCIe x8 and Mini-PCIe, DC 12V input
  • GMB142-R2312 (P/N-E38V142103)
    Mini-ITX board supports AMD Ryzen™ Embedded R2312 w/ VEGA graphics, 3 x DP++, 6 x COM, 7x USB, 2 x GbE, Audio, PCIe x4 and Mini-PCIe, DC 12V input

Download

This object is currently under update, please visit later.

You Might Also Like

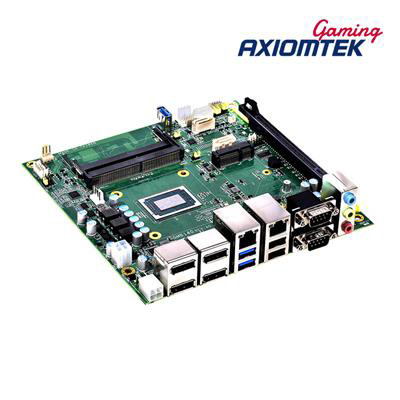

Picture of GMB140

GMB140

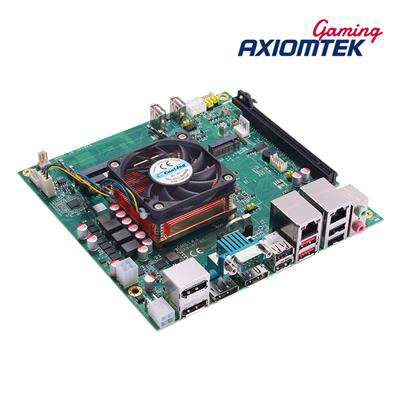

Picture of GMB143
