GMB851

Status : Available

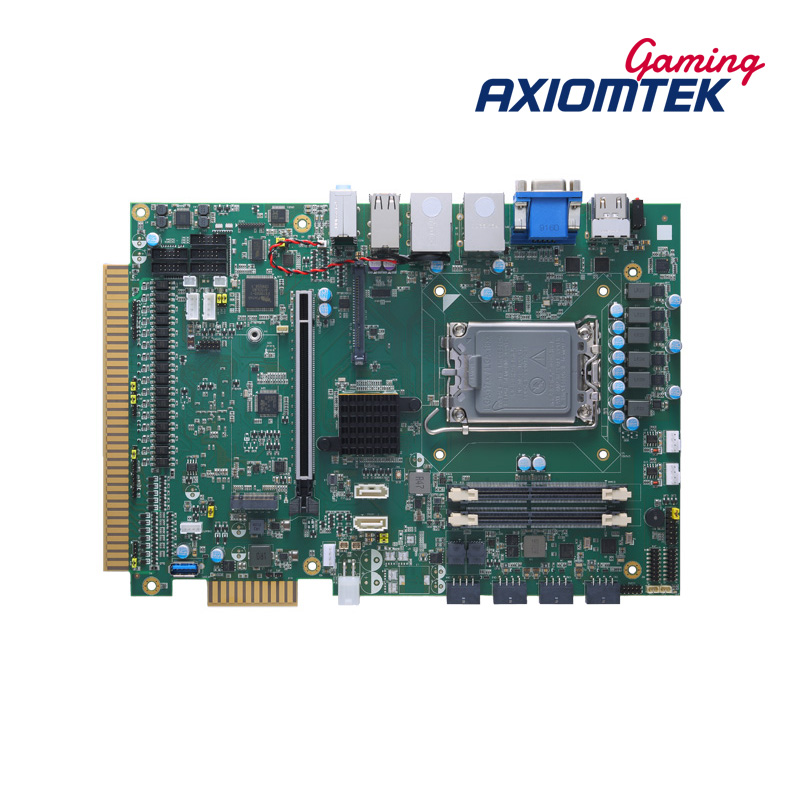

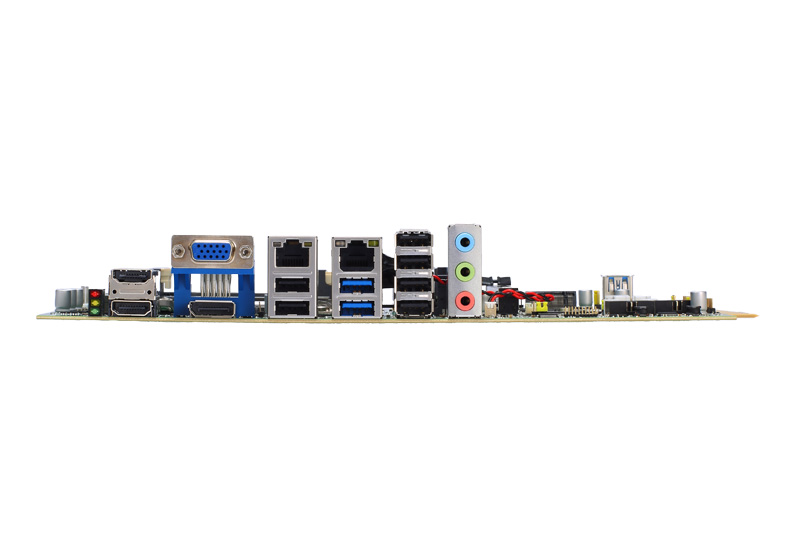

JAMMA-Type Gaming Control Board with 12th/13th/14th Gen Intel® Core™ Processor

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
GMB851
GMB851
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® 12th/13th/14th Gen Core™ processor
  • PCIe x16 expansion
  • 2 sockets of DDR4 SODIMM 260 pins
  • 2 SATA DOM, 1 CFast, 1 M.2 (PCIe Gen3 x4)
  • 1 VGA, 2 HDMI, 1 DP++
  • Optional support for TPM 2.0 & secure BIOS
  • 72-pin JAMMA interface
  • 6W+6W Audio amplied output
  • Optional support 4ch LED strip, up to 4000pcs LED chips

Specifications

CPU
  • Intel® 12th/13th/14th gen Core™ processor, TDP 65W
Chipset
  • Intel® H610/Q670
System Memory
  • 2 x DDR4-3200, 260-pin SO-DIMM, max up to 64GB
BIOS
  • AMI
Watchdog Timer
  • 1 sec to 255 min
USB
  • 2 x external USB 3.2 type-A connector
  • 1 x Internal vertical USB 3.2 Type-A connector
  • 2 x external USB 2.0 type-A connector
  • 4 x external USB 2.0 type-A connector (Q670)/2x external USB 2.0 type-A connector (H610)
Serial Interface
  • 1 x Full COM DB9 connector (COM1) support RS-232/422/485
  • 1 x Full COM DB9 connector (COM2) support RS-232/TTL
  • 2 x Full COM DB9 connector (COM3, COM4) support RS-232/ccTalk by pin header
  • 2 x simple COM by pin header or JAMMA 72-pin golden finger
Ethernet
  • 2 x RJ45 GbE LAN
Audio
  • 5.1-ch audio output by jack connector
  • 6W + 6W (R/L) class-D amplied output by JAMMA 72-pin
Display
  • 1 x VGA. D-Sub15 connector
  • 2 x HDMI
  • 1 x DP++
Gaming I/0
  • Intrusion type:
  • 2x by internal pin header
  • 7x by JAMMA 72-pin
  • SRAM / MRAM(battery-less backup):
  • 2x bank supported with battery backup, supports up to 8MB, 16MB by request
  • Default 2MB by a single bank
  • DI/DO:
  • 27x bits isolated digital input
  • 27x bits high current output. 0.5A/30V
  • Tachometer:
  • 2x fan speed detection
  • Event log:
  • Up to 200 event logs
  • EEPROM:
  • Default 1KB
  • Low battery warning for SRAM and intrusion:
  • "2x low battery detection
  • LED strip control (option):
  • 4ch LED strip support
  • Support up to 4000 LED
Expansion
  • 1 x PCIe x16 slot
Storage
  • 2 x SATA DOM, support pin-7 power
  • 1 x Vertical CFast socket (optional)
  • 1 x M.2 M-key (PCIe Gen3 x4) NVMe supported
Security
  • TPM 2.0 on board (optional)
  • Secure BIOS
Power Input
  • DC+12V / DC+5V
  • Power failure detection
Dimensions
  • 275.4 mm (W) x 192.5 mm (D)
Operating Temperature
  • 0°C to +60°C
Humidity
  • 10 % to 95 %, non-condensing
OS
  • Windows, Linux
EMC
  • 27 x bits isolated digital input
  • 27 x bits high current output. 0.5A/30V

Ordering Information

  • GMB851-Q670
    Mini-ITX board with 12th/13th/14th Gen Intel® Core™, Q670 PCH, DP++, 2 x HDMI, 1 x VGA, 2 x GbE, 6 x COM, 9 x USB, 12V DC-in
  • GMB851-H610
    Mini-ITX board with 12th/13th/14th Gen Intel® Core™, H610 PCH, DP++, 2 x HDMI, 1 x VGA, 2 x GbE, 6 x COM, 7 x USB, 12V DC-in
  • 713000001500
    LGA1700 cooler kit, 1U chassis compatible, 65W
  • 713000001600
    LGA1700 cooler kit, 1U chassis compatible, 35W
  • 594Q3002810E
    USB3.0 cable 90D 9P AM/9P AF 20cm
