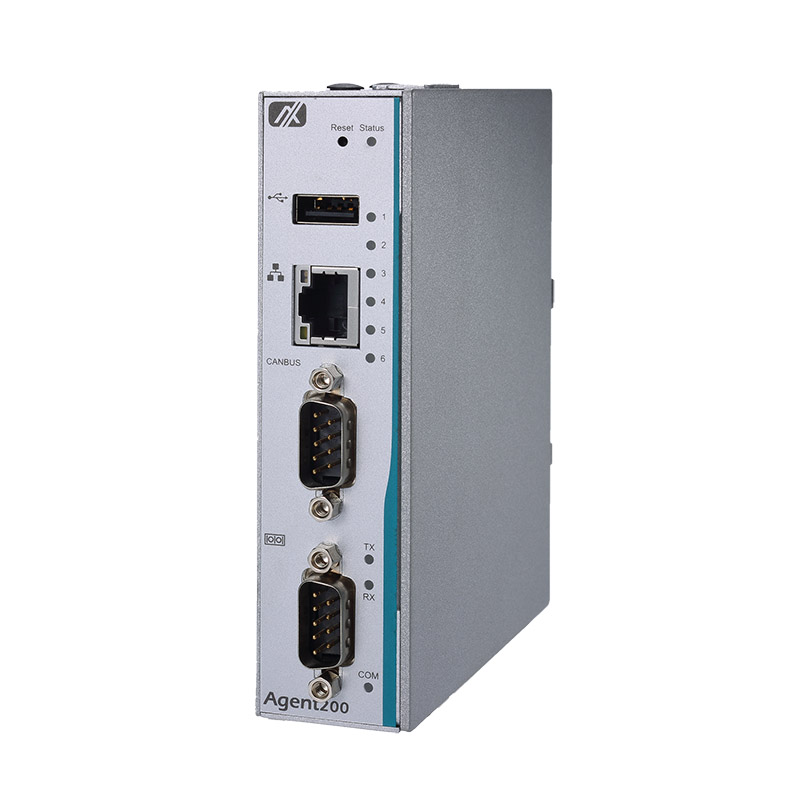

Agent200-FL-DC

產品階段 : 供應中

RISC-based DIN-rail Fanless Embedded System with i.MX 6UL Processor,1 COM, 1 LAN, DIO (4-in/4-out), and CANBus

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
Agent200-FL-DC
Agent200-FL-DC
Agent200-FL-DC
Agent200-FL-DC
  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件
  • 常見問題

產品特色

  • RISC-based (i.MX 6UltraLite) processor 528 MHz
  • 256MB DDR3L SDRAM onboard
  • 4GB eMMC Flash onboard
  • 2 PCI Express Mini Card slots (Wi-Fi or 3G/4G)
  • 4 digital inputs and 4 digital outputs
  • Power input range of 9 to 48 VDC with terminal block
  • Embedded Linux (Yocto) operating system
  • Fanless and compact design
  • Wide operating temperature range from -40°C to +70°C

產品規格

CPU
  • NXP i.MX 6UL processor, ARM® Cortex®-A7 @ 528 MHz
Chipset
  • SoC Integrated
System Memory
  • 256 MB DDR3-1600 onboard
COM
  • 1 x RS-232/422/485
USB
  • 1 x USB 2.0
Ethernet
  • 1 x 10/100 Mbps Ethernet
  • Magnetic isolation protection 1.5KV
PoE
  • N/A
CANbus
  • 1 x CANBus
Digital I/O

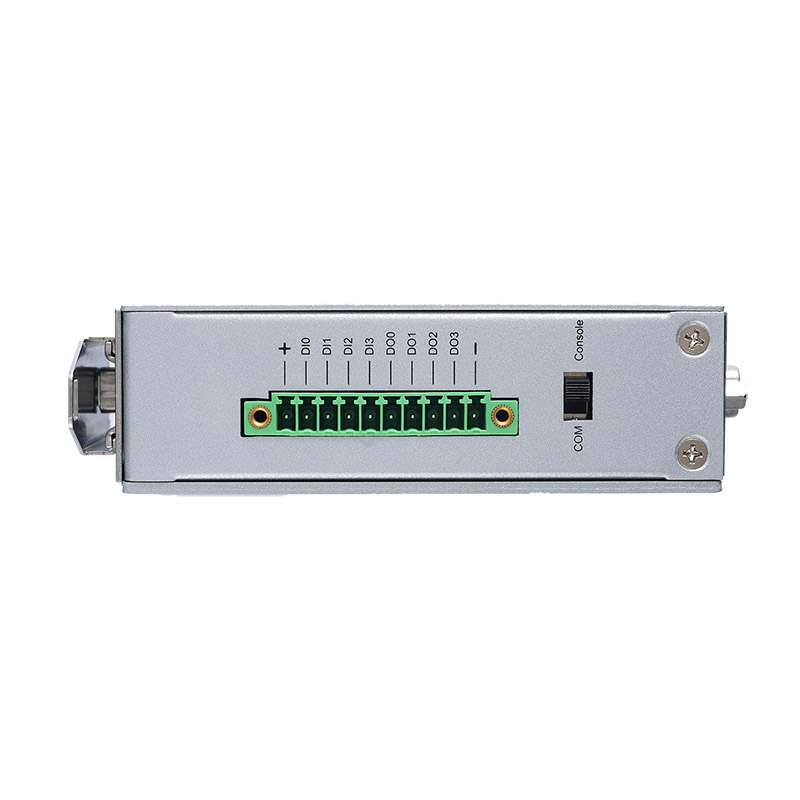

  • 1 x DIO (4-in/4-out)
Analog Input
  • N/A
Display
  • N/A
Expansion
  • 2 x PCI Express Mini Card slot (USB signal only)
  • 1 x SIM card socket
Storage
  • 1 x eMMC 4GB flash onboard
  • 1 x Micro SD card slot
Others
  • 1 x EEPPROM (2 Kb)
  • Console Port for user setting with debug
Power

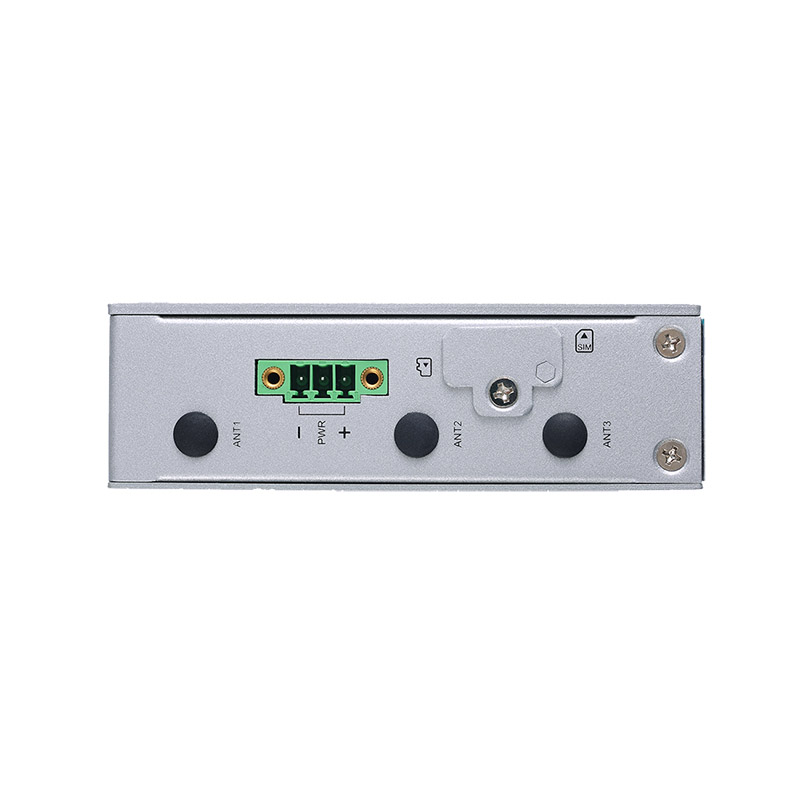

  • 9 to 48 VDC power input range
Watchdog Timer
  • 0.5 to 128 sec. with a time resolution of 0.5 sec.
Construction
  • Extruded aluminum and heavy-duty steel, IP20
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F)
Relative Humidity
  • 10% to 95%
Vibration
  • 2 Gms @ (10 to 150Hz random; operation)
Dimensions (W x D x H)
  • 31 x 100 x 125 mm (1.22" x 3.94" x 4.92")
Weight (net/gross)
  • 0.3 kg (0.66 lb)/0.44 kg (0.97 lb)
Certifications
  • CE, FCC
EOS Support
  • Yocto Sumo
Mounting

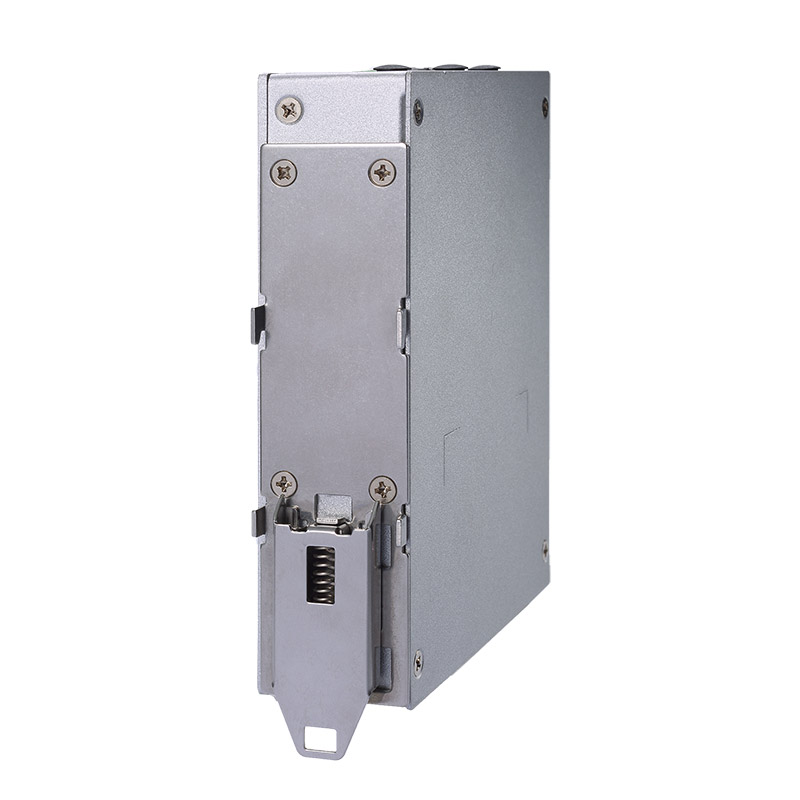

  • DIN-rail
  • Wall mount

訂購資訊

  • Agent200-FL-DC (P/N-E278200100 )
    Robust RISC-based DIN-rail Fanless Embedded System with i.MX 6UL Processor, 1 COM, 1 LAN, DIO (4-in/4-out), and CANbus
  • Wall mount kit
  • Wireless (3G/GPS/Wi-Fi) module

技術文件

Drivers

Software

Manual

日期 說明 版本 下載檔案
2024/01/05 Linux User's Manual VA1.0
2020/08/26 Agent200 User's Manual VA1_06-22-2020 (1) V1.0

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2023/01/11 UKCA Declaration of Conformity
2023/01/11 CE LVD Verification
2023/01/11 CE-Conformity Declaration
2023/01/11 FCC Verification
2023/01/11 CE EMC Verification
