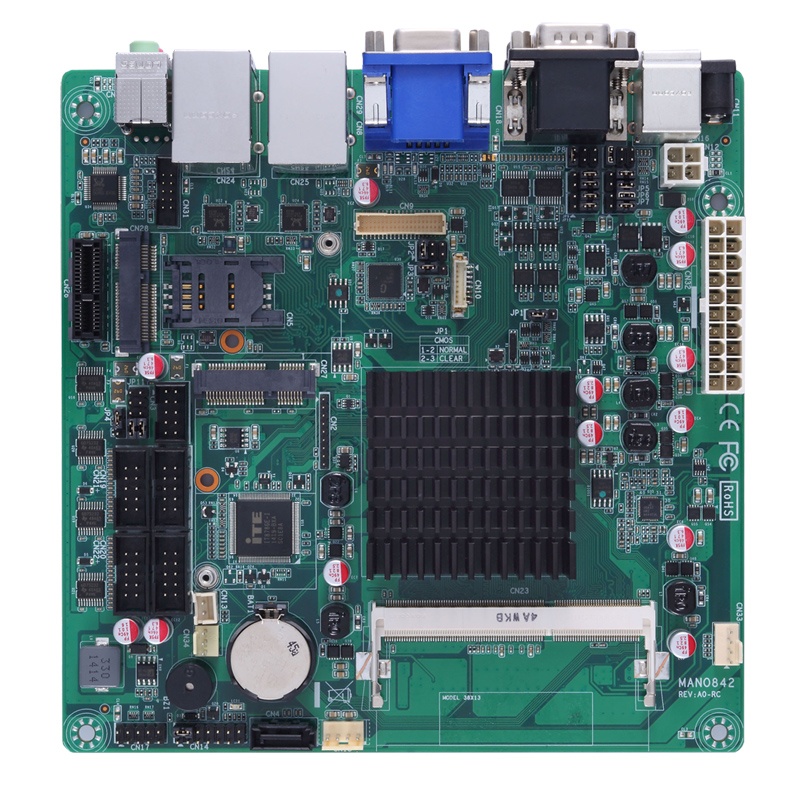

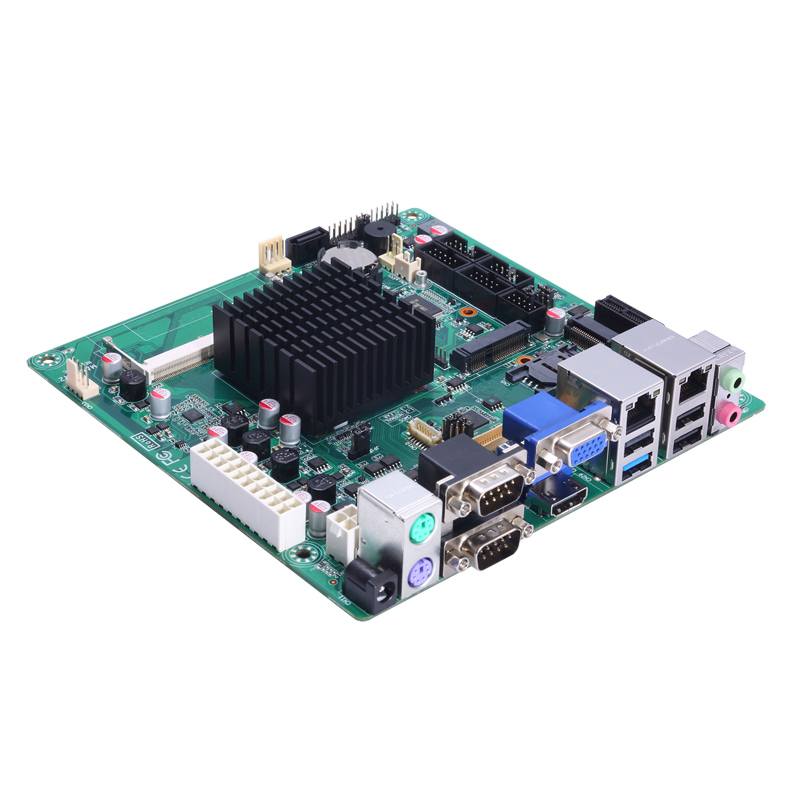

MANO842

產品階段 : 供應中

Mini-ITX SBC with Intel® Celeron® Processor J1900 (up to 2.42 GHz), VGA/HDMI/LVDS, USB 3.0, Mini PCIe Card and HD Audio

產品規格表 (PDF)
產品規格表 (PDF)
加入比較
加入比較
立即詢價
立即詢價
MANO842
MANO842
Dual-View

Dual-View

Fanless

Fanless

Low Power

Low Power

Wide Temperature

Wide Temperature

  • 產品特色
  • 產品規格
  • 訂購資訊
  • 技術文件
  • 常見問題

產品特色

  • Intel® Celeron® processor J1900 2.0 GHz
  • 1 DDR3L-1333 SO-DIMM, up to 8GB
  • PCIe x1 supported
  • 1 USB 3.0 and 5 USB 2.0 ports
  • 1 SATA-300 and 1 mSATA slots
  • 6 COM ports
  • 12 VDC and ATX
  • VGA/HDMI/LVDS with dual-view supported

產品規格

CPU
  • Intel® Celeron® processor J1900 up to 2.42 GHz
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM dual channel DDR3L-1333, up to 8GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
  • 4 x RS-232
USB
  • 5 x USB 2.0
  • 1 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps (Realtek RTL8111E)
Display
  • 1 x VGA
  • 1 x HDMI
  • 1 x LVDS
GPIO
  • 8 channels programmable
Audio
  • Mic-in/Line-out
Storage
  • 1 x SATA-300
  • 1 x mSATA
TPM
Expansion
  • 1 x PCIe x1
  • 1 x PCI Express Mini Card
  • 1 x SIM card slot
Others
  • 1 x PS/2 Keyboard & mouse
Battery
  • Lithium 3V/220 mAH
Power Consumption (Max.)
Power Input
  • 12VDC or STD ATX
Watchdog Timer
  • 255 level, 1 to 255 sec.
Hardware Monitoring
  • N/A
Operating Temperature
  • 0ºC to +60ºC (+32ºF to +140ºF)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 170 x 170 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

訂購資訊

  • MANO842VHGGA (P/N-E38M842101)
    Mini-ITX SBC with Intel® Celeron® J1900, VGA/HDMI/LVDS, 2 GbE LANs, USB 3.0, PCI Express Mini Card and HD audio
  • 59411500600E
    SATA power cable 4P 180 mm (RC)
  • 59386831000E
    USB x 2, 2 x 5P 2.54 mm, L=180 mm
  • 59380703000E
    COM port x 2 with bracket P=2.54 mm
  • 50956124040E
    AC Adapter 60W/12V5A/Φ2.5

技術文件

Drivers

日期 說明 版本 下載檔案
2022/01/24 Win 10_Driver_TXE V1.6
2022/01/24 Win 10_Driver_LAN V1.6
2022/01/24 Win 10_Driver_Audio V1.6
2022/01/24 Win 10_Driver_Graphic V1.6
2022/01/24 Win 10_Driver_Chipset V1.6
2022/01/24 Win 7/8_Driver_TXE V1.6
2022/01/24 Win 7/8_Driver_Audio V1.6
2022/01/24 Win 7/8_Driver_LAN V1.6
2022/01/24 Win 7/8_Driver_USB 3.0 V1.6
2022/01/24 Win 7/8_Driver_Graphic V1.6
2022/01/24 Win 7/8_Driver_Chipset V1.6

Software

Manual

日期 說明 版本 下載檔案
2020/05/08 User's Manual VA6

Design Guide

Technical Announcement

Certificates

日期 說明 版本 下載檔案
2021/12/03 UKCA Declaration of Conformity
2021/04/14 CE-Conformity Declaration
